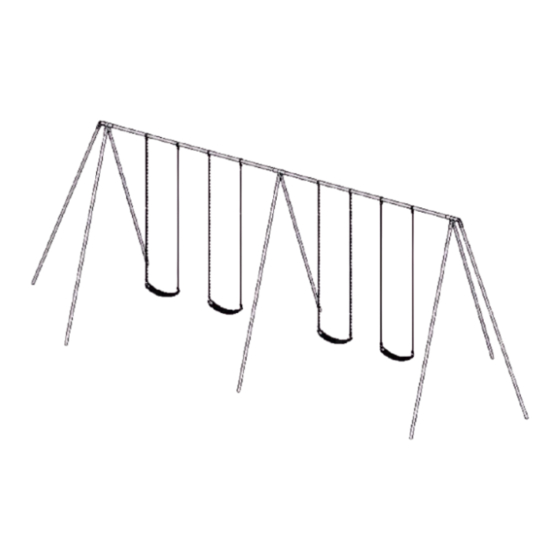

12’ primary tripod 4 seat swing
Hide thumbs Also See for 581-422:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
581-422 12' PRIMARY TRIPOD SWING
Installation Guide
INSTALLATION INSTRUCTIONS
581-422
12' PRIMARY TRIPOD SWING
Please read the entire manual before beginning installation.
1 CTN
10 PIPE
11 TOTAL PCS
360# WEIGHT
CLASS 70
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 581-422 and is the answer not in the manual?

Questions and answers

Related Manuals for SportsPlay 581-422

Summary of Contents for SportsPlay 581-422

  • Page 1 581-422 12’ PRIMARY TRIPOD SWING Installation Guide INSTALLATION INSTRUCTIONS 581-422 12’ PRIMARY TRIPOD SWING Please read the entire manual before beginning installation. 1 CTN 10 PIPE 11 TOTAL PCS 360# WEIGHT CLASS 70...
  • Page 2 581-422 12’ PRIMARY TRIPOD SWING Installation Guide TAB SECTION INDEX 1. 3D AND 2D DRAWINGS 2. INSTALLATION GUIDE 3. INSTALLATION STEPS 4. COMPONENT INSTALLATION 5. APPENDIX 6. ORIGINAL COMPONENT MAINTENANCE FORMS 7. COMPLETED COMPONENT MAINTENANCE FORMS...

  • Page 3: Table Of Contents

    581-422 12’ PRIMARY TRIPOD SWING Installation Guide Table of Contents 3D DRAWING ........Error! Bookmark not defined. HARDWARE DRAWINGS TOP DOWN VIEW ......Error! Bookmark not defined. COMPONENT INSTALLATION INSTRUCTION SETS FOOTING VIEW ........ Error! Bookmark not defined. APPENDIX Important ....................6 FINAL INSTALLATION STEPS When your receive your playground ..........
  • Page 4 581-422 12’ PRIMARY TRIPOD SWING Installation Guide...
  • Page 5 581-422 12’ PRIMARY TRIPOD SWING Installation Guide...

  • Page 6: Important

    SportsPlay recommends carefully unpacking the unit and taking an inventory before...
  • Page 7 581-422 12’ PRIMARY TRIPOD SWING Installation Guide SportsPlay Equipment inc. has provided two warning labels that state: “WARNING – Installation over a hard surface such as concrete, asphalt or packed earth may result in serious injury or death from falls.” These labels must be installed on vertical posts as per ASTM F1487.

  • Page 8: Safety Surfacing

    SERIOUS INJURY OR DEATH FROM A FALL 100 Bar harbor drive West Conshohocken PA, 19428-2959 Because accidental falls are likely to occur around play equipment, SportsPlay Equipment Inc. recommends that a resilient safety surfacing that will meet Call – 618-832-9585 standard ASTM F1292 be placed under and around the structure and extend throughout the entire use zone.

  • Page 9: Tools And Materials

    581-422 12’ PRIMARY TRIPOD SWING Installation Guide Tools and Materials Files and sand paper List is for tools and materials needed that are not included with the Safety surfacing playground Spray paint to mark holes Follow manufacturer’s guidelines for proper use of tools and materials.

  • Page 10: Before Beginning

    All SportsPlay Equipment play events have been engineered to meet all applicable safety guidelines, but if installed Improperly, these problems may occur:...

  • Page 11: Step 1: Layout

    581-422 12’ PRIMARY TRIPOD SWING Installation Guide FOOTING SIDE VIEW Step 1: Layout Lay structure in the desired location using the top view layout drawing. Measure from each post to ensure there is adequate space for any component and the components fall zone. This drawing is a standard drawing and does not represent the actual playground you are installing.

  • Page 12: Step 3: Deck, Post & Component Installation

    581-422 12’ PRIMARY TRIPOD SWING Installation Guide SportsPlay recommends having a CPSI (certified playground safety Step 3: Post & Component Installation inspector) present during installation. If that’s not possible you should have the completed playground (after surfacing is in place) inspected by We recommend installing the posts once the post are square and level a CPSI.

  • Page 13: Other Installation Tips

    581-422 12’ PRIMARY TRIPOD SWING Installation Guide Other Installation Tips If you are mocking up components with the intention of removing the hardware at some point, you may want to apply lubricating oil to the hardware. Stainless steel hardware has a tendency to seize so if you are planning on removing the hardware you may want to apply lubricant to prevent this.

  • Page 14: Supervision Guide

    581-422 12’ PRIMARY TRIPOD SWING Installation Guide  Loose clothing, hoods, strings or jewelry shall be tight or not worn SUPERVISION GUIDE while playing to prevent strangulation.  Although the equipment is designed, installed and maintained in accordance with Ensure the temperature of the equipment is not hazardous. Direct all safety guidelines adult supervision is required.
  • Page 15 581-422 12’ PRIMARY TRIPOD SWING Installation Guide 3/16 ALLEN (YELLOW) ½ X ½ SET SCREW 2 3/8” SWING D-SHACKLE HANGER ¼ ALLEN (BLUE) 5/16 LOCK 5/16 X 1 BUTTON WASHER HEAD NUT 5/16 ALLEN (RED) 5/16 X 2 ½ BUTTON...
  • Page 16 581-422 12’ PRIMARY TRIPOD SWING Installation Guide COMPONENT INSTALLATION INSTRUCTIONS...
  • Page 17 581-422 12’ PRIMARY TRIPOD SWING INSTALLATION INSTRUCTION INSTALLATION DETAILS  Recommended crew (Adult): 2  Installation time: 4 hr  User age: 5-12  Use zone: 48’ x 44’  Weight: 360 lbs SURFACING: Use of safety surfacing in compliance with ASTM specification F1292 is required.
  • Page 18 581-422 12’ PRIMARY TRIPOD SWING INSTALLATION INSTRUCTION PARTS LIST PART # DESCRIPTION 583-518A Center Fitting 583-519A End Fitting 1 7/8” x 15’ Pipe 553-603A 2 3/8” x 11’ Pipe 343-210A 2 3/8” Swing Hanger 585-520 585-955 Cut Proof Belt Seat 4/O Chain x 9’6”...
  • Page 19 581-422 12’ PRIMARY TRIPOD SWING INSTALLATION INSTRUCTION FOOTING INFORMATION  Total footing depth is 24” less the height of the surfacing plus the height of the blocking material. If you are using 12” of surfacing the footing hole would need to be 12” plus the height of the blocking material (refer to both the side and front cutaway views to the right).
  • Page 20 581-422 12’ PRIMARY TRIPOD SWING INSTALLATION INSTRUCTION ELEVATION AND FOOTING LAYOUT VIEW March 2, 2016...
  • Page 21 581-422 12’ PRIMARY TRIPOD SWING INSTALLATION INSTRUCTION SPECIFICATIONS INSTALLATION TIPS & TROUBLE SHOOTING  Apply locktite to all bolts during assembly prior to  Tube – FloCoat® Galvanized 1 7/8” O.D. and 2 3/8” O.D. completely tightening them.  Hardware – Stainless steel & tamper resistant ...
  • Page 22 581-422 12’ PRIMARY TRIPOD SWING INSTALLATION INSTRUCTION BEFORE YOU BEGIN In addition to the components on the packing list you will need a tape measure, post hole digger, level and a dry erase marker. INSTALLATION STEPS __1) Review all instructions before beginning:...
  • Page 23 581-422 12’ PRIMARY TRIPOD SWING INSTALLATION INSTRUCTION INSTALLATION STEPS CONTIUDE Continue: __6) Slide the pipe into the swing end fitting until it’s flush with the end fitting then mark the top and bottom hole. With a small drill bit drill the marked spots then drill with a 7/16” drill bit through the small holes in the pipe.
  • Page 24 581-422 12’ PRIMARY TRIPOD SWING INSTALLATION INSTRUCTION INSTALLATION STEPS CONTINUED __11) Once the entire playground has been installed and you have verified that the entire playground is level you can add the concrete to the footing holes. Be sure to use concrete with a minimum 2,500 psi and mix the concrete per the manufacturer’s...
