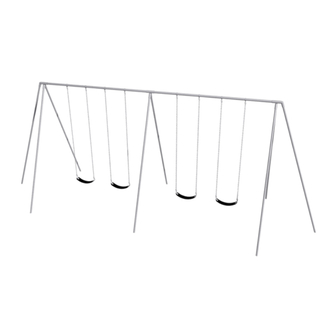

581-422 12' Primary Tripod 4 Seat Swing
Please retain this instruction sheet in your files.
parts information.
instructions.
It is important to use and maintain all public playground equipment
properly.
Playground equipment, which is improperly maintained, can cause serious
injury.
Periodical inspections, maintenance, repair and/or replacement of damaged parts
is necessary for safe operation of equipment and safety of users.
should be used under all playground equipment.
charge, from the Consumer Product Safety Commission, include "A Handbook for Public
Playground Safety".
PACKING LIST
1 CTN
2 PIPE
1 343-210A
8 PIPE
1 583-603A
1 CTN
* IMPORTANT *
All equipment should be installed in accordance with these
You can receive your free copy by calling 1-301-504-0708.
Hardware Bag
2 3/8" OD x 11' long
1 7/8" OD x 15' long
10 PIPE
11 TOTAL PCS
It contains important replacement
Appropriate publications, available at no
HARDWARE BAG
8
585-520
2 3/8" Swing Hanger
3
583-518A
Center Fitting
2
583-519A
End Fitting
4
585-955
Cut Proof Belt Seat
8
317-140
4/0 chain x 9'6" long
16
585-901
S-Hook
14
196-802
½" x ½" Socket Set Screw
1
416-400
¼" Socket Key
1
805-532
Warning Label
1
805-534
SportsPlay Label
1
Maintenance Checklist
WT 360#
CLASS 70
Resilient surfacing
Advertisement
Related Manuals for SportsPlay 581-422
Summary of Contents for SportsPlay 581-422
- Page 1 581-422 12’ Primary Tripod 4 Seat Swing * IMPORTANT * Please retain this instruction sheet in your files. It contains important replacement parts information. All equipment should be installed in accordance with these instructions. It is important to use and maintain all public playground equipment properly.
- Page 2 581-422 12’ Primary Tripod 4 Seat Swing GENERAL FOOTING RECOMMENDATIONS Diameter & Depth of footings illustrated are satisfactory in most applications for pipe sizes up to 2 3/8” diameter. Varying soil & climatic conditions may require deeper & heavier footings in some areas.
- Page 3 581-422 12’ Primary Tripod 4 Seat Swing GENERAL USE/FALL ZONE & FOOTING RECOMMENDATIONS SINGLE AXIS SWINGS: The Use/Fall Zone should extend to the front & rear, a minimum distance of twice the height of the Top Rail above the resilient surfacing material.
- Page 4 581-422 12’ Primary Tripod 4 Seat Swing STEP #2: Remove swing hanger pendulums from the swing hanger assemblies. Using S-hooks, attach seats to chain and chain to swing hanger pendulums. Close the S-hooks to within .034” (1/32”) using S-hook pliers.
