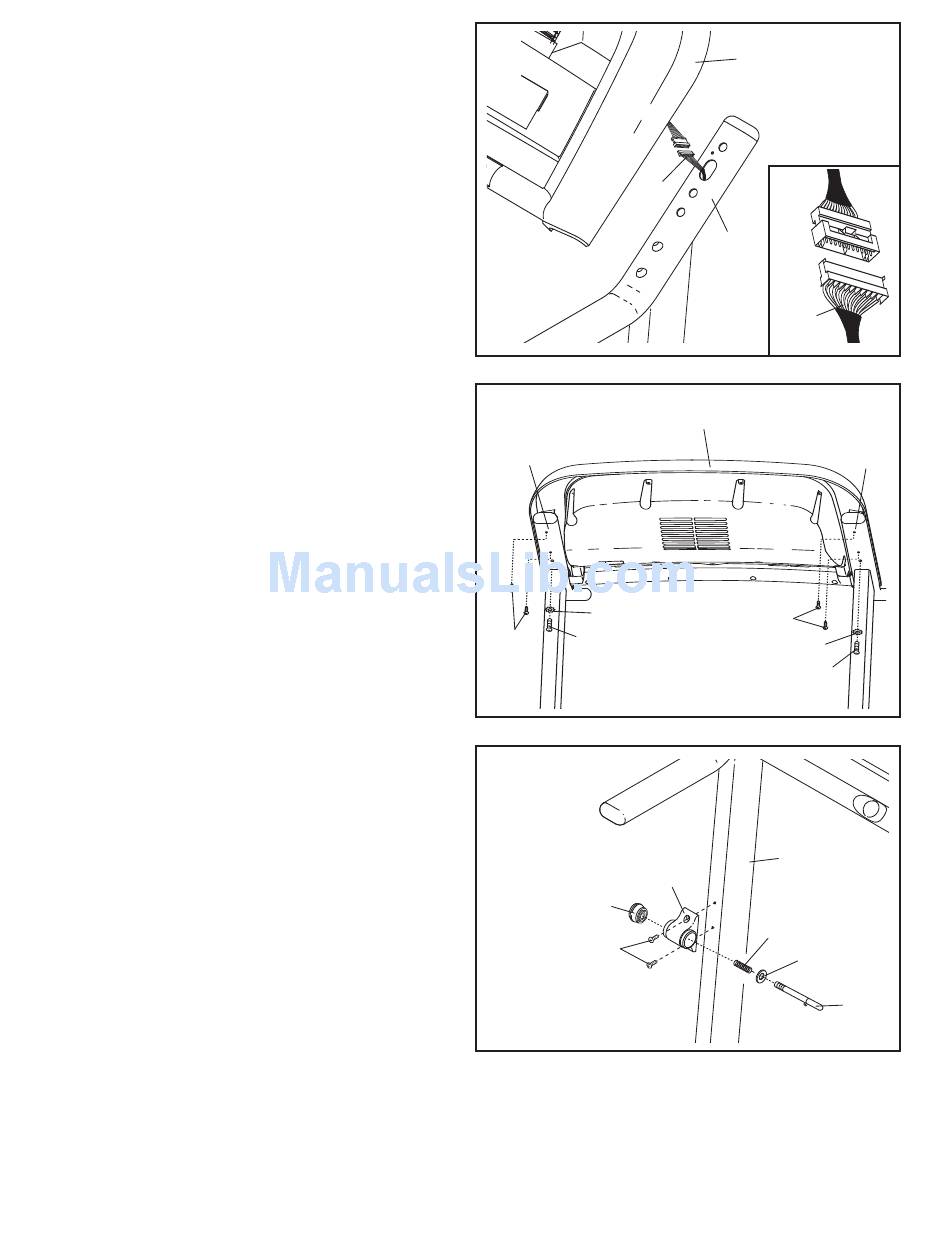

5. Have another person hold the Console Base
(47) near the right Handrail (71).
Connect the Wire Harness (42) to the wire har-
ness on the Console Base (47). Make sure to
connect the connectors properly (see the
inset drawing). The connectors should slide
together easily and snap into place. If the con-
nectors do not slide together easily and snap
into place, turn one connector and try again. IF
THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
6. Set the console assembly on the Handrails (71);
insert the excess wiring into the console assem-
bly. Make sure that no wires are pinched.
Attach the console assembly with four 3/4"
Screws (2), two Console Bolts (90), and two 1/4"
Star Washers (73) as shown. Start all four
Screws and both Console Bolts before tight-
ening any of them.
7. Attach the Latch Housing (29) to the left Upright
(69) with two 3/4" Screws (2). Make sure that
the large hole in the Latch Housing is on the
side shown. Do not overtighten the Screws.
Remove the knob from the pin. Make sure that
the collar and the spring are on the pin as
shown. Insert the pin into the Latch Housing (29),
and tighten the knob back onto the pin.
8. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt
(see page 20). To protect the floor or carpet, place a mat under the treadmill.
5
42
6
Console Assembly
71
73
2 90
7
Knob
2
8
47
71
42
2
73
90
69
29
Spring
Collar
71
Pin
