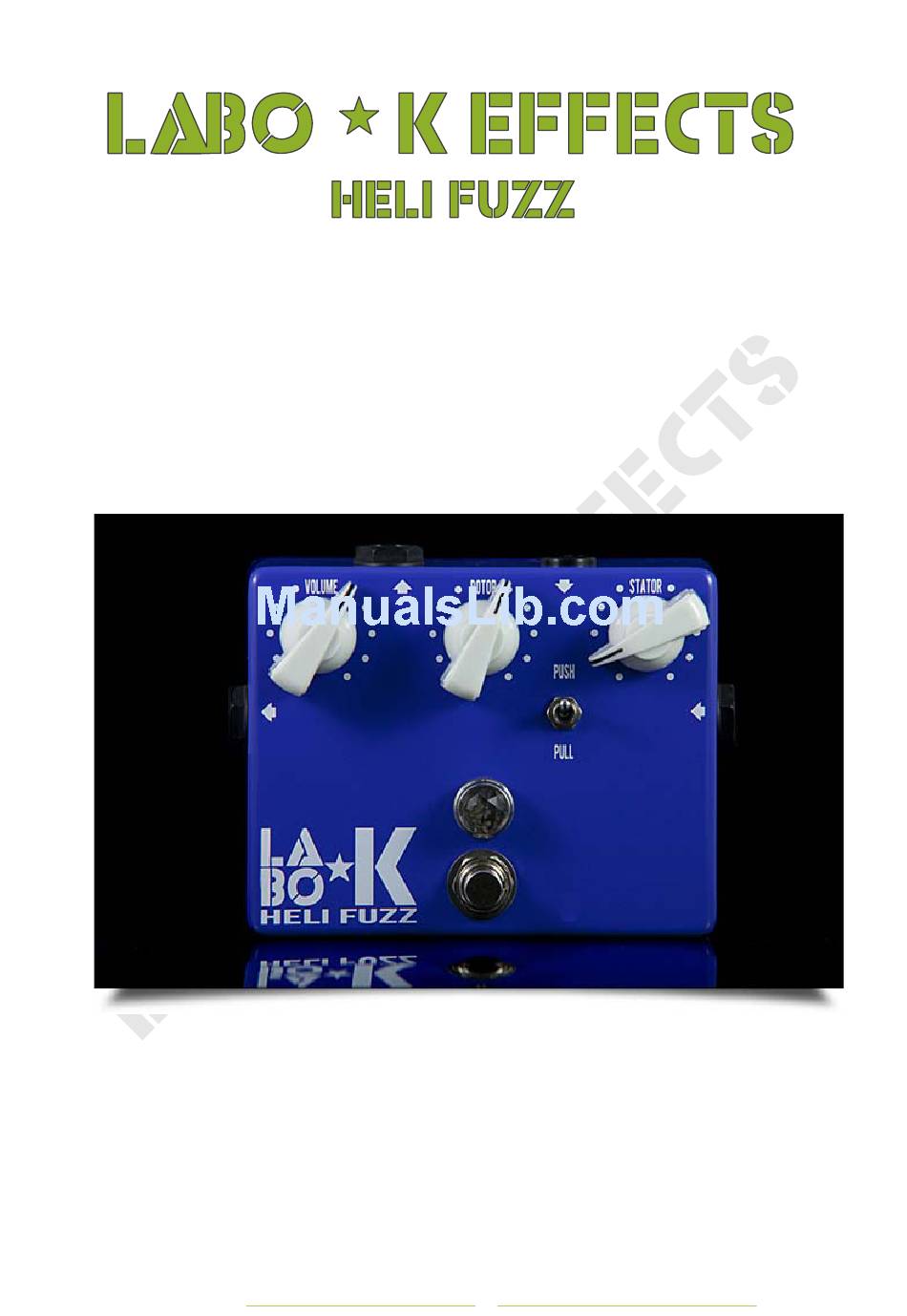

- Page 1 Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com...
- Page 2 Contents CONTENTS TECHNICAL INFO OVERVIEW CONTROLS POWER SUPPLY REMOTE INPUT ADVICES TROUBLESHOOTING RECALL SHEET Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com...
-
Page 3: Technical Info
technical info COntrols § Output level (Volume) § Rotor (Speed) § Stator (Depth) TECHNOLOGy § Selected components § Robust diecast enclosure § Cliff et Lumberg connectors specifications § True Bypass 3PDT switch. § Consumption 4mA. § Power: 9V battery or AC adapter DC 9V (not included). §... -
Page 4: Overview
It also has a control input of the rotor. It is possible to connect several kinds of commands in this entry. Like all Labo ★ K Effects pedals, the Heli Fuzz is True By Pass. It means that when the effect is not active, the device is completely disconnected from the path of the signal and thus adds none résistive load in this one (The... -
Page 5: Controls
I – THE POTENTIOMETERS 1. Volume This control adjusts the output level of the Heli Fuzz. 2. Rotor Rotor can control the speed of the hash. Tempo range is 60 to 250 3. Stator This setting affects the depth of the hash signal. -
Page 6: Power Supply
Link » cord. § 9V battery from another Labo ★ K Effects pedal via « Power- Link » cord. Notes : The power consumption of the Heli Fuzz is 4mA what gives internal battery a comfortable lifetime. When input jack... -
Page 7: Remote Input
remote input It also has a control input of the rotor. It is possible to connect several kinds of commands in this entry: A selector for selecting acurate hash speeds very useful in studio or when a particular tempo must be respected. A command LABO★K EFFECTS External Remote which adjusts the rotor speed without getting on your knees. -
Page 8: Advices
advices To keep the integrity of the sound, use good quality mono Jack cords exclusively. To extend the life of the battery, remove the connector of the input jack when not using the device. Replace the battery when the light ignites only weakly or not at all during the use. -
Page 9: Troubleshooting
troubleshooting STAGE 1 No sound comes out of the device: § Verify that all your equipment works without the pedal. § Insert the pedal into the chain. § If the sound takes out in by pass mode, go directly to the stage 2. If the sound does not comes out either in by pass mode, nor in effect mode, go directly to the stage 4 STAGE 2... -
Page 10: Recall Sheet
RECALL SHEET Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com...
