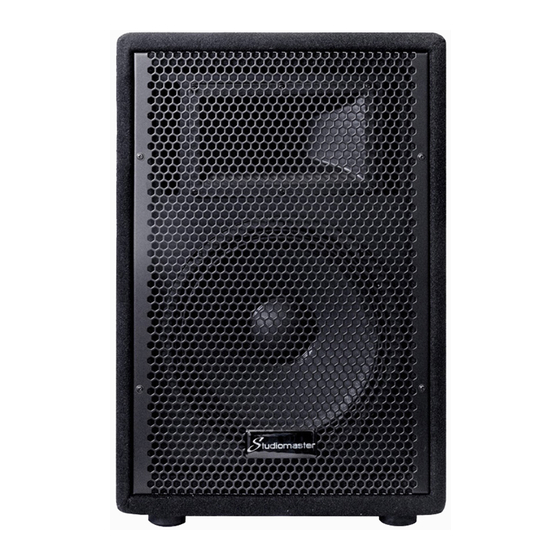

Summary of Contents for Studiomaster GX10
- Page 2 Introduction Read the User Guide Unpacking Safety Instructions Controls & Features - GX active series Applications Technical Specification Warranty Service Information...
- Page 3 INTRODUCTION UNPACKING Thank you for buying this Studiomaster product. Remove your Studiomaster product from its packaging. The GX series comes in both active and passive versions, in 10", 12" and Retain the packing carton in the eventuality that the unit needs to be 15"...
- Page 4 GX active models only (GX10A/12A/15A/12MA/15MA) Do not operate the unit next to heat sources such as Before connecting the A.C. power cord make sure the radiators. wall supply voltage is suitable for the GX active series. For 230V models the supply must be between 220 and The unit should not be operated or stored near rain or 240V.
- Page 5 CONTROLS & FEATURES - GX active (GX10A/12A/15A/12MA/15MA) MIC INPUT : Balanced input using a professional HI : EQ boosts or cuts the high / HF frequencies. female XLR connector for low impedence microphones. MID : EQ boosts or cuts the mid / MF frequencies. MIC GAIN : This is used to match the incoming signal to the internal operating level of the GX powered LO : EQ boosts or cuts the low / LF frequencies.
- Page 6 GX cabinet and is used to power an additional passive speaker. To avoid damage it is recommended that only a Studiomaster GX passive speaker of the same size should be used with a GX active speaker.
- Page 7 Using the GX10/12/15 active speakers with a mixer Connect the mixer to the LINE input. Set the LINE INPUT GAIN, EQ and MAIN LEVEL controls to the centre (12 o'clock) position and make all volume and tone adjustment on the mixer.
- Page 8 GX10 GX12 GX15 GX12M GX15M Power Handling (program) 200W 400W 500W 400W 500W Nominal Impedance 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms Frequency Response 80Hz - 18kHz 60Hz - 18kHz 40Hz - 18kHz 60Hz - 18kHz 40Hz - 18kHz...
- Page 9 GX10A GX12A GX15A GX12MA GX15MA Output Power (music) 100W 200W 250W 200W 250W Frequency Response 80Hz - 18kHz 60Hz - 18kHz 40Hz - 18kHz 60Hz - 18kHz 40Hz - 18kHz Maximum SPL 120dB 124dB 126dB 124dB 126dB Crossover frequency 4kHz 4kHz 3kHz 4kHz...
- Page 10 The Manufacturer warrants all Studiomaster products to be free copy of the original sales receipt is submitted whenever a from defects in materials and workmanship for a period of one warranty service is required. year from date of purchase. The Manufacturer reserves the right It is recommended that you complete and mail the Warranty to the final decision on all warranty claims.
- Page 11 If you have a problem with your Studiomaster product or think it You must have the Returns Authorisation number clearly marked has developed a fault you should first carefully check the Trouble on the outside of the carton or we may refuse the delivery.
- Page 12 Studioking Limited UK Tel : 44 (0)1525 217111 Fax : 44 (0)1525 378466 Email : enquiries@studiomaster.com MADE IN CHINA GXM ENG V1...
