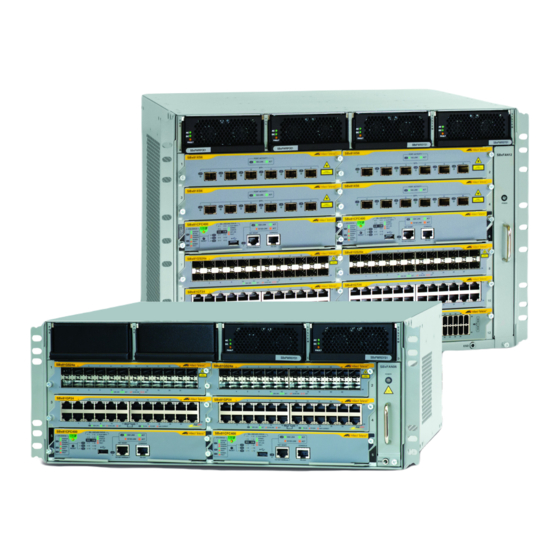

Allied Telesis SBx8112 Command Reference Manual

Allied Telesis SBx8112 Command Reference Manual

Switchblade x8100 series; next generation intelligent layer 3+ chassis switches; reference for alliedware plus version 5.4.7-1.x

Table Of Contents

Advertisement

Quick Links

Download this manual

SwitchBlade

NEXT GENERATION INTELLIGENT LAYER 3+ CHASSIS SWITCHES

SBx8112

SBx8106

Command Reference for

AlliedWare Plus™ Version 5.4.7-1.x

C613-50175-01 Rev B

®

x8100 Series

SBx81CFC400

SBx81CFC960

Table of Contents

Advertisement

Need help?

Need help?

Do you have a question about the SBx8112 and is the answer not in the manual?

Questions and answers

Summary of Contents for Allied Telesis SBx8112

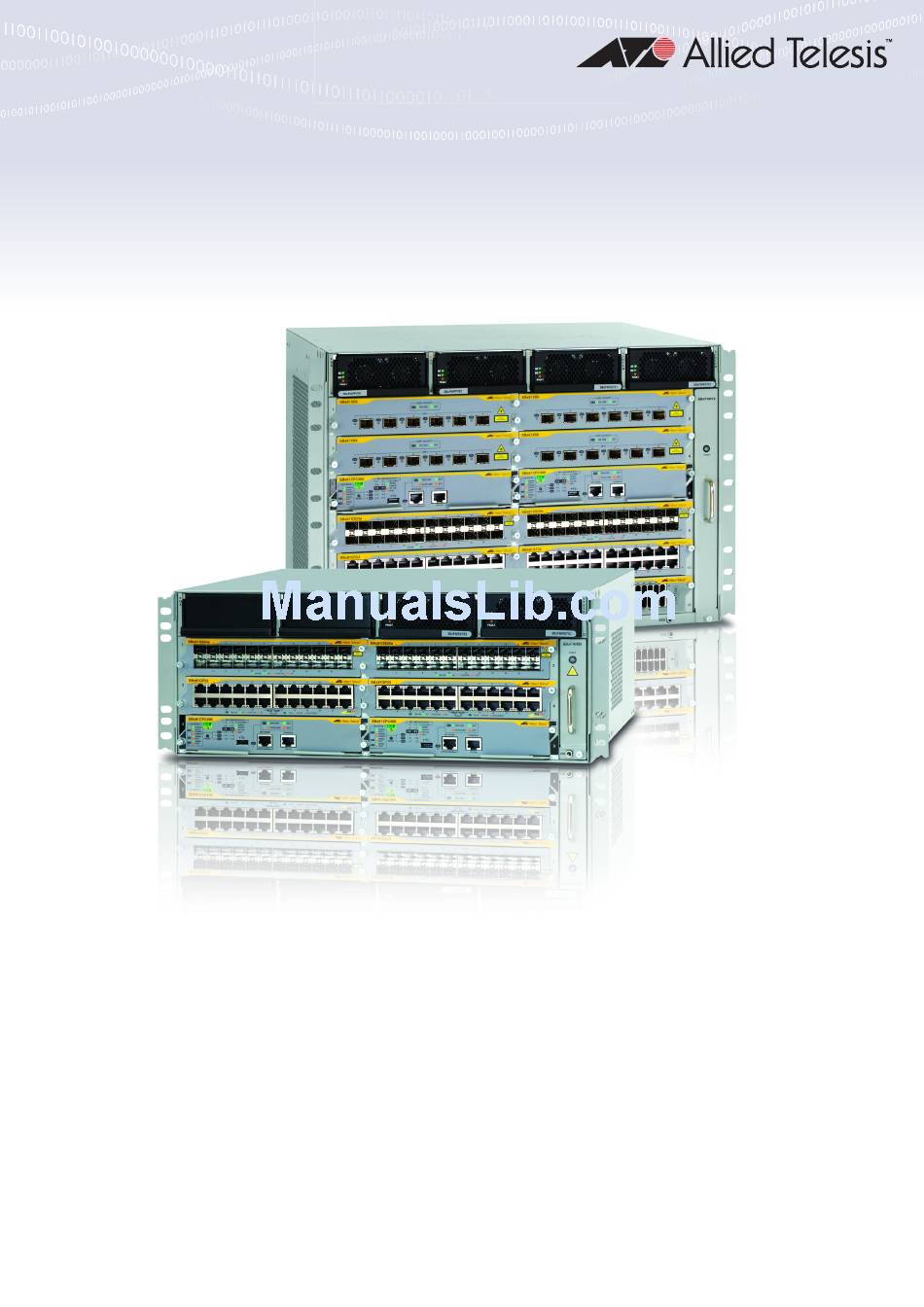

Page 1 ® SwitchBlade x8100 Series NEXT GENERATION INTELLIGENT LAYER 3+ CHASSIS SWITCHES SBx8112 SBx81CFC400 SBx8106 SBx81CFC960 Command Reference for AlliedWare Plus™ Version 5.4.7-1.x C613-50175-01 Rev B...
Page 2 If you would like a copy of the GPL source code contained in Allied Telesis products, please send us a request by registered mail including a check for US$15 to cover production and shipping costs and a CD with the GPL code will be mailed to you.
Page 3: Table Of Contents
Contents PART 1: Setup and Troubleshooting ......105 Chapter 1: CLI Navigation Commands ......106 Introduction .
Page 4: Table Of Contents
ip tftp source-interface ....... . . 143 ipv6 tftp source-interface ....... . 144 mkdir .
Page 5: Table Of Contents
Chapter 4: Feature and Release Licensing Commands ....210 Introduction ........210 license .
Page 6: Table Of Contents
show interface memory ....... . . 291 show memory ........293 show memory allocations .
Page 7: Table Of Contents
default log monitor ........365 default log permanent .
Page 8: Table Of Contents
show interface ........453 show interface brief .
Page 9: Table Of Contents
platform routingratio ........517 platform silicon-profile ....... . . 519 platform vlan-stacking-tpid .
Page 10: Table Of Contents
switchport trunk allowed vlan ......589 switchport trunk native vlan ......592 switchport vlan-stacking (double tagging) .
Page 11: Table Of Contents
spanning-tree max-hops (MSTP) ......662 spanning-tree mode ........663 spanning-tree mst configuration .
Page 12: Table Of Contents
show debugging power-inline ......725 show power-inline ........726 show power-inline counters .
Page 13: Table Of Contents
ip tcp synack-retries ........797 ip unreachables ........798 local-proxy-arp .
Page 14: Table Of Contents
ipv6 nd managed-config-flag ......863 ipv6 nd minimum-ra-interval ......864 ipv6 nd other-config-flag .
Page 15: Table Of Contents
ip rip receive version ........931 ip rip send-packet .
Page 16: Table Of Contents
show ipv6 rip interface ....... . . 991 timers (IPv6 RIPng) ........992 undebug ipv6 rip .
Page 17: Table Of Contents
ospf restart helper ........1054 ospf router-id ........1056 overflow database .
Page 18: Table Of Contents
debug ipv6 ospf lsa ........1128 debug ipv6 ospf nfsm .
Page 19: Table Of Contents
address-family ........1203 aggregate-address .
Page 20: Table Of Contents
distance (BGP and BGP4+) ......1269 exit-address-family ........1271 ip as-path access-list .
Page 21: Table Of Contents
neighbor unsuppress-map ......1393 neighbor update-source ....... 1396 neighbor version (BGP only) .
Page 22: Table Of Contents
show ip bgp regexp (BGP only) ......1467 show ip bgp route-map (BGP only) ......1469 show ip bgp scan (BGP only) .
Page 23: Table Of Contents
clear arp-cache ........1534 clear ip bgp * (BGP only) .
Page 24: Table Of Contents
show ip vrf ........1623 show ip vrf detail .
Page 25: Table Of Contents
show debugging igmp ....... . 1687 show ip igmp groups ....... . . 1688 show ip igmp interface .
Page 26: Table Of Contents
ip multicast route-limit ....... . 1749 ip multicast wrong-vif-suppression ......1750 ip multicast-routing .
Page 27: Table Of Contents
show ip pim sparse-mode interface detail ....1813 show ip pim sparse-mode local-members ....1814 show ip pim sparse-mode mroute .
Page 28: Table Of Contents
show ipv6 pim sparse-mode mroute ......1879 show ipv6 pim sparse-mode mroute detail ....1881 show ipv6 pim sparse-mode neighbor .
Page 29: Table Of Contents
(named hardware ACL: IP protocol entry) ..... 1955 (named hardware ACL: MAC entry) ......1960 (named hardware ACL: TCP or UDP entry) .
Page 30: Table Of Contents
Chapter 41: QoS Commands ........2062 Introduction ........2062 class .
Page 31: Table Of Contents
show mls qos interface queue-counters ..... 2135 show mls qos interface storm-status ......2137 show mls qos maps cos-queue .
Page 32: Table Of Contents
auth max-supplicant ........2214 auth profile (Global Configuration) ......2216 auth profile (Interface Configuration) .
Page 33: Table Of Contents
copy web-auth-https-file ....... 2285 description (Authentication Profile) ......2286 erase proxy-autoconfig-file .
Page 34: Table Of Contents
Chapter 45: RADIUS Commands ....... . 2360 Introduction ........2360 auth radius send nas-identifier .
Page 35: Table Of Contents
show radius local-server statistics ......2423 show radius local-server user ......2424 user (RADIUS server) .
Page 36: Table Of Contents
ip dhcp snooping binding ......2483 ip dhcp snooping database ......2484 ip dhcp snooping delete-by-client .
Page 37: Table Of Contents
issu rejoin-timeout ........2550 show boot ........2551 show card detail .
Page 38: Table Of Contents
Chapter 54: Allied Telesis Management Framework™ (AMF) Commands ..2632 Introduction ........2632 area-link .
Page 39: Table Of Contents
atmf provision node configure boot system ....2693 atmf provision node create ......2694 atmf provision node delete .
Page 40: Table Of Contents
show atmf links guest detail ......2799 show atmf links statistics ....... 2803 show atmf nodes .
Page 41: Table Of Contents
probe timeout ........2882 probe type .
Page 42: Table Of Contents
ntp broadcastdelay ........2963 ntp discard ........2964 ntp master .
Page 43: Table Of Contents
lldp med-tlv-select ........3033 lldp non-strict-med-tlv-order-check ......3036 lldp notification-interval .
Page 44: Table Of Contents
Introduction ........3104 banner login (SSH) .
Page 45: Table Of Contents
type chassis card ........3181 type chassis active-CFC-fail .
Page 46: Table Of Contents
List of Commands (access-list extended ICMP filter) ........1986 (access-list extended IP filter).
Page 47: Table Of Contents
aaa authentication auth-web ......... . .2323 aaa authentication dot1x .
Page 48: Table Of Contents
address-family............1527 advertisement-interval.
Page 49: Table Of Contents
atmf authorize............2643 atmf backup area-masters delete.
Page 50: Table Of Contents
atmf provision node configure boot system ......2693 atmf provision node create ..........2694 atmf provision node delete .
Page 51: Table Of Contents
auth radius send service-type ......... . .2362 auth reauthentication.
Page 52: Table Of Contents
auth-web-server login-url ..........2267 auth-web-server page language .
Page 53: Table Of Contents
bgp client-to-client reflection ......... . .1218 bgp cluster-id .
Page 54: Table Of Contents
circuit-failover ............2569 cisco-metric-behavior (RIP).
Page 55: Table Of Contents
clear ip bgp peer-group (BGP only) ........1261 clear ip dhcp binding .
Page 56: Table Of Contents
clear log buffered............355 clear log external .
Page 57: Table Of Contents
copy local-radius-user-db (from file) ........2397 copy local-radius-user-db (to file) .
Page 58: Table Of Contents
debug arp security............2476 debug atmf packet .
Page 59: Table Of Contents
debug ospf nfsm ............1018 debug ospf nsm .
Page 60: Table Of Contents
default log monitor ............365 default log permanent .
Page 61: Table Of Contents
distribute-list (OSPF) ........... .1026 distribute-list (RIP) .
Page 62: Table Of Contents
end ..............112 enrollment (trustpoint configuration mode) .
Page 63: Table Of Contents
gvrp dynamic-vlan-creation..........742 gvrp enable (global) .
Page 64: Table Of Contents
ip dhcp snooping verify mac-address........2490 ip dhcp snooping violation.
Page 65: Table Of Contents
ip igmp proxy-service ...........1653 ip igmp querier-timeout .
Page 66: Table Of Contents
ip local-proxy-arp............794 ip mroute .
Page 67: Table Of Contents
ip pim exclude-genid ...........1788 ip pim ext-srcs-directly-connected .
Page 68: Table Of Contents
ip rip receive-packet ........... . . 930 ip rip send version 1-compatible .
Page 69: Table Of Contents
ipv6 mld limit............1713 ipv6 mld querier-timeout .
Page 70: Table Of Contents
ipv6 ospf dead-interval ..........1141 ipv6 ospf display route single-line .
Page 71: Table Of Contents
ipv6 pim spt-threshold..........1868 ipv6 pim ssm .
Page 72: Table Of Contents
lldp faststart-count ........... . .3029 lldp holdtime-multiplier .
Page 73: Table Of Contents
log event-host ............241 log event-host .
Page 74: Table Of Contents
match as-path ............1288 match as-path .
Page 75: Table Of Contents
max-static-routes ............266 max-static-routes .
Page 76: Table Of Contents
neighbor collide-established ..........1315 neighbor default-originate.
Page 77: Table Of Contents
neighbor unsuppress-map ..........1393 neighbor update-source .
Page 78: Table Of Contents
ospf router-id............1056 overflow database external .
Page 79: Table Of Contents
power-inline priority ........... . . 721 power-inline usage-threshold .
Page 80: Table Of Contents
redistribute (RIP)............949 region (MSTP) .
Page 81: Table Of Contents
router-id (VRF) ............1588 router-id .
Page 82: Table Of Contents
set as-path .............1415 set as-path .
Page 83: Table Of Contents
show arp security statistics ..........2499 show arp security .
Page 84: Table Of Contents
show atmf working-set ..........2826 show atmf .
Page 85: Table Of Contents
show card ............. . . 273 show class-map .
Page 86: Table Of Contents
show debugging epsr ..........2618 show debugging gvrp .
Page 87: Table Of Contents
show dot1x.............2179 show ecofriendly .
Page 88: Table Of Contents
show ip bgp cidr-only (BGP only) ........1594 show ip bgp community (BGP only) .
Page 89: Table Of Contents
show ip bgp summary (BGP only) ........1609 show ip community-list .
Page 90: Table Of Contents
show ip ospf database asbr-summary ........1073 show ip ospf database external .
Page 91: Table Of Contents
show ip protocols ospf..........1092 show ip protocols rip .
Page 92: Table Of Contents
show ipv6 mroute ............1765 show ipv6 multicast forwarding .
Page 93: Table Of Contents
show ipv6 route summary ..........906 show ipv6 route .
Page 94: Table Of Contents
show mls qos backplane-queue .........2130 show mls qos interface policer-counters.
Page 95: Table Of Contents
show radius server group ..........2357 show radius statistics .
Page 96: Table Of Contents
show spanning-tree mst detail interface ........632 show spanning-tree mst detail interface .
Page 97: Table Of Contents
show tacacs+ ............2462 show tech-support .
Page 98: Table Of Contents
snmp-server view............3021 snmp-server .
Page 99: Table Of Contents
speed ..............550 ssh client .
Page 100: Table Of Contents
switchport atmf-agentlink ..........2832 switchport atmf-arealink remote-area .
Page 101: Table Of Contents
terminal monitor ............323 terminal resize.
Page 102: Table Of Contents
type ping-poll ............3190 type reboot .
Page 103: Table Of Contents
undebug ping-poll ........... . .3219 undebug platform packet.
Page 104: Table Of Contents
vty ipv6 access-class (named) ......... . .2061 wait .
Page 105: Part 1: Setup And Troubleshooting
Part 1: Setup and Troubleshooting C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 106: Chapter 1: Cli Navigation Commands
CLI Navigation Commands Introduction Overview This chapter provides an alphabetical reference for the commands used to navigate between different modes. This chapter also provides a reference for the help and show commands used to help navigate within the CLI. Command List •...
Page 107: Configure Terminal
CLI N AVIGATION OMMANDS CONFIGURE TERMINAL configure terminal Overview This command enters the Global Configuration command mode. configure terminal Syntax Mode Privileged Exec Example To enter the Global Configuration command mode (note the change in the command prompt), enter the command: awplus# configure terminal awplus(config)#...
Page 108: Disable (Privileged Exec Mode)
CLI N AVIGATION OMMANDS DISABLE RIVILEGED XEC MODE disable (Privileged Exec mode) Overview This command exits the Privileged Exec mode, returning the prompt to the User Exec mode. To end a session, use the exit command. disable Syntax Mode Privileged Exec Example To exit the Privileged Exec mode, enter the command: awplus#...
Page 109 CLI N AVIGATION OMMANDS Overview This command lets you to run User Exec and Privileged Exec mode commands when you are in any configuration mode. do <command> Syntax Parameter Description <command> Specify the command and its parameters. Mode Any configuration mode awplus# configure terminal Example...
Page 110: Enable (Privileged Exec Mode)
CLI N AVIGATION OMMANDS ENABLE RIVILEGED XEC MODE enable (Privileged Exec mode) Overview This command enters the Privileged Exec mode and optionally changes the privilege level for a session. If a privilege level is not specified then the maximum privilege level (15) is applied to the session. If the optional privilege level is omitted then only users with the maximum privilege level can access Privileged Exec mode without providing the password as specified by the enable password...
Page 111 CLI N AVIGATION OMMANDS ENABLE RIVILEGED XEC MODE Privilege Exec mode. Use the enable password command or the enable secret commands to set the password to enable access to Privileged Exec mode. awplus> enable 7 awplus# Related disable (Privileged Exec mode) Commands enable password enable secret...
Page 112 CLI N AVIGATION OMMANDS Overview This command returns the prompt to the Privileged Exec command mode from any other advanced command mode. Syntax Mode All advanced command modes, including Global Configuration and Interface Configuration modes. Example The following example shows the use of the end command to return to the Privileged Exec mode directly from Interface mode.
Page 113: Exit
CLI N AVIGATION OMMANDS EXIT exit Overview This command exits the current mode, and returns the prompt to the mode at the previous level. When used in User Exec mode, the exit command terminates the session. exit Syntax Mode All command modes, including Global Configuration and Interface Configuration modes.
Page 114: Help
CLI N AVIGATION OMMANDS HELP help Overview This command displays a description of the AlliedWare Plus™ OS help system. help Syntax Mode All command modes Example To display a description on how to use the system help, use the command: awplus# help Output...
Page 115: Logout
CLI N AVIGATION OMMANDS LOGOUT logout Overview This command exits the User Exec or Privileged Exec modes and ends the session. logout Syntax Mode User Exec and Privileged Exec Example To exit the User Exec mode, use the command: awplus# logout C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 116: Show History
CLI N AVIGATION OMMANDS SHOW HISTORY show history Overview This command lists the commands entered in the current session. The history buffer is cleared automatically upon reboot. The output lists all command line entries, including commands that returned an error. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 117: Chapter 2: File And Configuration Management Commands
File and Configuration Management Commands Introduction Overview This chapter provides an alphabetical reference of AlliedWare Plus™ OS file and configuration management commands. Filename Syntax Many of the commands in this chapter use the placeholder “filename” to represent and Keyword the name and location of the file that you want to act on. The following table Usage explains the syntax of the filename for each different type of file location.
Page 118 ILE AND ONFIGURATION ANAGEMENT OMMANDS When you copy a file... Use this syntax: Example: Copying with SFTP sftp://[[<location>]/<directory>] To specify a file in the top-level /<filename> directory of the server: sftp://10.0.0.5/example.cfg <hostname>-<stack_ID>.<card-ID>/f Copying to or from To specify a file in the configs directory lash:[/][<directory>/] <filename>...
Page 119 ILE AND ONFIGURATION ANAGEMENT OMMANDS Similarly, you can specify the USB storage device base directory with usb or usb: or usb:/ You cannot name a directory or subdirectory flash, nvs, usb, card, tftp, scp, sftp or http. These keywords are reserved for tab completion when using various file commands.
Page 120 ILE AND ONFIGURATION ANAGEMENT OMMANDS • “show running-config” on page 156 • “show running-config interface” on page 160 • “show startup-config” on page 162 • “show version” on page 163 • “unmount” on page 165 • “write file” on page 166 •...
Page 121: Boot Config-File
ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT CONFIG FILE boot config-file Overview Use this command to set the configuration file to use during the next boot cycle. Use the no variant of this command to remove the configuration file. : To ensure correct operation of the chassis and in particular of any cards inserted NOTE after issuing this command, the chassis should be rebooted.
Page 122 ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT CONFIG FILE To stop running the configuration file “branch.cfg” stored on the switch’s USB storage device filesystem when the device boots up, use the commands: awplus# configure terminal awplus(config)# no boot config-file usb:/branch.cfg Related boot config-file backup Commands boot system...
Page 123: Boot Config-File Backup
ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT CONFIG FILE BACKUP boot config-file backup Overview Use this command to set a backup configuration file to use if the main configuration file cannot be accessed. Use the no variant of this command to remove the backup configuration file. Syntax boot config-file backup <filepath-filename>...
Page 124: Boot System
ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT SYSTEM boot system Overview Use this command to set the release file to load during the next boot cycle. Use the no variant of this command to stop specifying a primary release file to boot from.
Page 125 ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT SYSTEM To run the release file SBx81CFC960-5.4.7-1.1.rel, which is stored on the switch’s USB storage device filesystem, the next time the device boots up, use the commands: awplus# configure terminal awplus(config)# boot system usb:/SBx81CFC960-5.4.7-1.1.rel Related boot config-file Commands...
Page 126: Boot System Backup
ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT SYSTEM BACKUP boot system backup Overview Use this command to set a backup release file to load if the main release file cannot be loaded. Use the no variant of this command to stop specifying a backup release file. Syntax boot system backup <filepath-filename>...
Page 127 ILE AND ONFIGURATION ANAGEMENT OMMANDS Overview This command changes the current working directory. cd <directory-name> Syntax Parameter Description <directory-name> Name and path of the directory. Mode Privileged Exec To change to the directory called images, use the command: Example awplus# cd images Related Commands...
Page 128: Copy (Filename)
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY FILENAME copy (filename) Overview This command copies a file. This allows you to: • copy files from your device to a remote device • copy files from a remote device to your device • copy files stored on Flash memory to or from a different memory type, such as a USB storage device •...
Page 129 ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY FILENAME To copy the file “config.cfg” into the current directory from a USB storage device, and rename it to “configtest.cfg”, use the command: awplus# copy usb:/config.cfg configtest.cfg To copy the file “config.cfg” into the current directory from a remote file server, and rename it to “configtest.cfg”, use the command: awplus# copy fserver:/config.cfg configtest.cfg...
Page 130: Copy Current-Software
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY CURRENT SOFTWARE copy current-software Overview This command copies the AlliedWare Plus™ OS software that the device has booted from, to a destination file. Specify whether the destination is Flash or USB when saving the software to the local filesystem. copy current-software <destination-name>...
Page 131: Copy Debug
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY DEBUG copy debug Overview This command copies a specified debug file to a destination file. copy debug {<destination-name>|debug|flash|nvs|scp|tftp|usb} Syntax {<source-name>|debug|flash|nvs|scp|tftp|usb} Parameter Description <destination-name> The filename and path where you would like the debug output saved. See Introduction on page 117 for valid syntax.
Page 132: Copy Running-Config
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY RUNNING CONFIG copy running-config Overview This command copies the running-config to a destination file, or copies a source file into the running-config. Commands entered in the running-config do not survive a device reboot unless they are saved in a configuration file. copy <source-name>...
Page 133: Copy Startup-Config
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY STARTUP CONFIG copy startup-config Overview This command copies the startup-config script into a destination file, or alternatively copies a configuration script from a source file into the startup-config file. Specify whether the destination is Flash or USB when loading from the local filesystem.
Page 134: Copy Zmodem
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY ZMODEM copy zmodem Overview This command allows you to copy files using ZMODEM using Minicom. ZMODEM works over a serial connection and does not need any interfaces configured to do a file transfer. copy <source-name> zmodem Syntax copy zmodem Parameter...
Page 135: Delete
ILE AND ONFIGURATION ANAGEMENT OMMANDS DELETE delete Overview This command deletes files or directories. delete [force] [recursive] <filename> Syntax Parameter Description force Ignore nonexistent filenames and never prompt before deletion. recursive Remove the contents of directories recursively. <filename> The filename and path of the file to delete. See Introduction on page 117 for valid syntax.
Page 136: Delete Debug
ILE AND ONFIGURATION ANAGEMENT OMMANDS DELETE DEBUG delete debug Overview Use this command to delete a specified debug output file. delete debug <source-name> Syntax Parameter Description <source-name> The filename and path where the debug output originates. Introduction on page 117 for valid URL syntax. Mode Privileged Exec Example...
Page 137 ILE AND ONFIGURATION ANAGEMENT OMMANDS Overview This command lists the files on a filesystem. If no directory or file is specified then this command lists the files in the current working directory. dir [all] [recursive] [sort [reverse] [name|size|time] Syntax [<filename>|debug|flash|nvs|usb] Parameter Description List all files.
Page 138 ILE AND ONFIGURATION ANAGEMENT OMMANDS To list all the files in the root of the Flash filesystem, use the command: awplus# dir all flash: To list recursively the files in the Flash filesystem, use the command: awplus# dir recursive flash: To list the files in alphabetical order, use the command: awplus# dir sort name...
Page 139: Edit
ILE AND ONFIGURATION ANAGEMENT OMMANDS EDIT edit Overview This command opens a text file in the AlliedWare Plus™ text editor. Once opened you can use the editor to alter to the file. If a filename is specified and it already exists, then the editor opens it in the text editor.
Page 140: Edit (Filename)
ILE AND ONFIGURATION ANAGEMENT OMMANDS EDIT FILENAME edit (filename) Overview This command opens a remote text file as read-only in the AlliedWare Plus™ text editor. Before starting the editor make sure your terminal, terminal emulation program, or Telnet client is 100% compatible with a VT100 terminal. The editor uses VT100 control sequences to display text on the terminal.
Page 141: Erase Factory-Default
ILE AND ONFIGURATION ANAGEMENT OMMANDS ERASE FACTORY DEFAULT erase factory-default Overview This command erases all data from NVS and all data from Flash excluding the following: • the current release file • the backup release file • license files The device is then rebooted and returned to its factory default condition. The device can then be used for AMF automatic node recovery.
Page 142: Erase Startup-Config
ILE AND ONFIGURATION ANAGEMENT OMMANDS ERASE STARTUP CONFIG erase startup-config Overview This command deletes the file that is set as the startup-config file, which is the configuration file that the system runs when it boots up. At the next restart, the device loads the default configuration file, default.cfg. If default.cfg no longer exists, then the device loads with the factory default configuration.
Page 143: Ip Tftp Source-Interface
ILE AND ONFIGURATION ANAGEMENT OMMANDS IP TFTP SOURCE INTERFACE ip tftp source-interface Overview Use this command to manually specify the IP address that all TFTP requests originate from. This is useful in network configurations where TFTP servers only accept requests from certain devices, or where the server cannot dynamically determine the source of the request.
Page 144: Ipv6 Tftp Source-Interface
ILE AND ONFIGURATION ANAGEMENT OMMANDS TFTP SOURCE INTERFACE ipv6 tftp source-interface Overview Use this command to manually specify the IPv6 address that all TFTP requests originate from. This is useful in network configurations where TFTP servers only accept requests from certain devices, or where the server cannot dynamically determine the source of the request.
Page 145: Mkdir
ILE AND ONFIGURATION ANAGEMENT OMMANDS MKDIR mkdir Overview This command makes a new directory. mkdir <name> Syntax Parameter Description <name> The name and path of the directory that you are creating. Mode Privileged Exec Usage You cannot name a directory or subdirectory flash, nvs, usb, card, tftp, scp, sftp or http.
Page 146: Move
ILE AND ONFIGURATION ANAGEMENT OMMANDS MOVE move Overview This command renames or moves a file. move <source-name> <destination-name> Syntax Parameter Description <source-name> The filename and path of the source file. See Introduction on page 117 for valid syntax. <destination-name> The filename and path of the destination file. See Introduction on page 117 for valid syntax.
Page 147: Move Debug
ILE AND ONFIGURATION ANAGEMENT OMMANDS MOVE DEBUG move debug Overview This command moves a specified debug file to a destination debug file. move debug {<destination-name>|debug|nvs|flash|usb} Syntax Parameter Description <destination-name> The filename and path where you would like the debug output moved to. See Introduction on page 117 for valid syntax.
Page 148 ILE AND ONFIGURATION ANAGEMENT OMMANDS Overview This command prints the current working directory. Syntax Mode Privileged Exec Example To print the current working directory, use the command: awplus# Related Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 149: Rmdir
ILE AND ONFIGURATION ANAGEMENT OMMANDS RMDIR rmdir Overview This command removes a directory. This command only works on empty directories, unless you specify the optional force keyword. rmdir [force] <name> Syntax Parameter Description force Optional keyword that allows you to delete directories that are not empty and contain files or subdirectories.
Page 150: Show Boot
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW BOOT show boot Overview This command displays the current boot configuration. We recommend that the currently running release is set as the current boot image. ISSU will not execute if there is no current boot image. Syntax show boot Mode...
Page 151 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW BOOT Table 2-1: Parameters in the output from show boot Parameter Description Current software The current software release that the device is using. Current boot image The boot image currently configured for use during the next boot cycle.
Page 152: Show File
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW FILE show file Overview This command displays the contents of a specified file. show file <filename> Syntax Parameter Description <filename> Name of a file on the local Flash filesystem, or name and directory path of a file. Mode Privileged Exec To display the contents of the file oldconfig.cfg, which is in the current...
Page 153: Show File Systems
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW FILE SYSTEMS show file systems Overview This command lists the filesystems and their utilization information where appropriate. show file systems Syntax Mode Privileged Exec Examples To display the filesystems, use the command: awplus# show file systems Output Figure 2-7: Example output from the show file systems command...
Page 154 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW FILE SYSTEMS awplus#show file systems Size(b) Free(b) Type Flags Prefixes S/D/V Lcl/Ntwk Avail ------------------------------------------------------------------- 63.0M 28.5M flash flash: static local Y system system: virtual local - 10.0M 9.8M debug debug: static local Y 499.0K 431.0K nvs: static...
Page 155 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW FILE SYSTEMS Related edit Commands edit (filename) show file C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 156: Show Running-Config
Antivirus configuration application Application configuration as-path Autonomous system path filter configuration as-path access-list Configuration of ACLs for AS path filtering atmf Allied Telesis Management Framework configuration Border Gateway Protocol (BGP) configuration community-list Community-list configuration crypto Security-specific configuration dhcp DHCP configuration...
Page 157 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG Parameter Description Internet Protocol (IP) configuration ip pim dense-mode PIM-DM configuration ip pim sparse-mode PIM-SM configuration ip route IP static route configuration ip-reputation IP Reputation configuration IPS configuration ipsec Internet Protocol Security (IPSec) configuration ipv6 Internet Protocol version 6 (IPv6)
Page 158 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG Parameter Description switch Switch configuration web-control Web Control configuration Mode Privileged Exec and Global Configuration Example To display the current configuration of your device, use the command: awplus# show running-config Output Figure 2-8: Example output from show running-config ...
Page 159 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG ! interface port1.1.1-1.1.4 switchport switchport mode access ! interface port1.2.1-1.2.11 switchport switchport mode access ! interface port1.2.12 switchport switchport mode access switchport access vlan 2 Related copy running-config Commands show running-config interface C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 160: Show Running-Config Interface
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG INTERFACE show running-config interface Overview This command displays the current configuration of one or more interfaces on the device. show running-config interface [<interface-list>] [dot1x|ip Syntax igmp|ip multicast|ip pim dense-mode|ip pim sparse-mode|ipv6 rip|lacp|mstp|ospf|rip|rstp|stp] Parameter Description <interface-list>...
Page 161 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG INTERFACE Parameter Description rstp Displays running configuration for RSTP (Rapid Spanning Tree Protocol) for the specified interfaces. Displays running configuration for STP (Spanning Tree Protocol) for the specified interfaces. Mode Privileged Exec and Global Configuration Default Displays information for all protocols on all interfaces Examples...
Page 162: Show Startup-Config
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW STARTUP CONFIG show startup-config Overview This command displays the contents of the start-up configuration file, which is the file that the device runs on start-up. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 163: Show Version
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW VERSION show version Overview This command displays the version number and copyright details of the current AlliedWare Plus™ OS your device is running. The show output displays a message whenever ISSU is running. Syntax show version Mode User Exec and Privileged Exec...
Page 164 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW VERSION Application Interface Specification Framework  Copyright (c) 2002-2004 MontaVista Software, Inc;  Copyright (c) 2005-2010 Red Hat, Inc.  Hardware Platform Interface Library  Copyright (c) 2004 by Intel Corp.  Copyright (C) IBM Corp. 2004-2008. Corosync Cluster Engine ...
Page 165: Unmount
ILE AND ONFIGURATION ANAGEMENT OMMANDS UNMOUNT unmount Overview Use this command to unmount an external storage device. We recommend you unmount storage devices before removing them, to avoid file corruption. This is especially important if files may be automatically written to the storage device, such as external log files or AMF backup files.
Page 166: Write File
ILE AND ONFIGURATION ANAGEMENT OMMANDS WRITE FILE write file Overview This command copies the running-config into the file that is set as the current startup-config file. This command is a synonym of the write memory and copy running-config startup-config commands. write [file] Syntax Mode...
Page 167: Write Memory
ILE AND ONFIGURATION ANAGEMENT OMMANDS WRITE MEMORY write memory Overview This command copies the running-config into the file that is set as the current startup-config file. This command is a synonym of the write file and copy running-config startup-config commands. write [memory] Syntax Mode...
Page 168: Write Terminal
ILE AND ONFIGURATION ANAGEMENT OMMANDS WRITE TERMINAL write terminal Overview This command displays the current configuration of the device. This command is a synonym of the show running-config command. write terminal Syntax Mode Privileged Exec Example To display the current configuration of your device, use the command: awplus# write terminal Related...
Page 169: Chapter 3: User Access Commands
User Access Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure user access. Command List • “clear line console” on page 171 • “clear line vty” on page 172 • “enable password” on page 173 •...
Page 170 CCESS OMMANDS • “service terminal-length (deleted)” on page 198 • “show privilege” on page 199 • “show security-password configuration” on page 200 • “show security-password user” on page 201 • “show telnet” on page 202 • “show users” on page 203 •...
Page 171: Clear Line Console
CCESS OMMANDS CLEAR LINE CONSOLE clear line console Overview This command resets a console line. If a terminal session exists on the line then the terminal session is terminated. If console line settings have changed then the new settings are applied. clear line console 0 Syntax Mode...
Page 172: Clear Line Vty
CCESS OMMANDS CLEAR LINE VTY clear line vty Overview This command resets a VTY line. If a session exists on the line then it is closed. clear line vty <0-32> Syntax Parameter Description <0-32> Line number Mode Privileged Exec Example To reset the first VTY line, use the command: awplus# clear line vty 1...
Page 173: Enable Password
CCESS OMMANDS ENABLE PASSWORD enable password Overview To set a local password to control access to various privilege levels, use the enable password Global Configuration command. Use the enable password command to modify or create a password to be used, and use the no enable password command to remove the password.
Page 174 CCESS OMMANDS ENABLE PASSWORD the commands in User Exec mode, but not any configuration commands in Privileged Exec mode. Note that the enable password command is an alias for the enable secret command and one password per privilege level is allowed using these commands. Do not assign one password to a privilege level with enable password and another...
Page 175 CCESS OMMANDS ENABLE PASSWORD password. It is not required to use the service password-encryption command for this method. The output in the configuration file will show only the encrypted string, and not the text string. awplus# configure terminal awplus(config)# enable password 8 fU7zHzuutY2SA awplus(config)# This results in the following show output: awplus#show run...
Page 176: Enable Secret
CCESS OMMANDS ENABLE SECRET enable secret Overview To set a local password to control access to various privilege levels, use the enable secret Global Configuration command. Use the enable secret command to modify or create a password to be used, and use the no enable secret command to remove the password.
Page 177 CCESS OMMANDS ENABLE SECRET the commands in User Exec mode, but not any configuration commands in Privileged Exec mode. Note that the enable secret command is an alias for the enable password command and one password per privilege level is allowed using these commands. Do not assign one password to a privilege level with enable password and another...
Page 178 CCESS OMMANDS ENABLE SECRET is not required to use the service password-encryption command for this method. The output in the configuration file will show only the encrypted string, and not the text string: awplus# configure terminal awplus(config)# enable secret 8 fU7zHzuutY2SA awplus(config)# This results in the following show output: awplus#show run...
Page 179: Exec-Timeout
CCESS OMMANDS EXEC TIMEOUT exec-timeout Overview This command sets the interval your device waits for user input from either a console or VTY connection. Once the timeout interval is reached, the connection is dropped. This command sets the time limit when the console or VTY connection automatically logs off after no activity.
Page 180 CCESS OMMANDS EXEC TIMEOUT Related line Commands service telnet C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 181: Flowcontrol Hardware (Asyn/Console)
CCESS OMMANDS FLOWCONTROL HARDWARE ASYN CONSOLE flowcontrol hardware (asyn/console) Overview Use this command to enable RTS/CTS (Ready To Send/Clear To Send) hardware flow control on a terminal console line (asyn port) between the DTE (Data Terminal Equipment) and the DCE (Data Communications Equipment). flowcontrol hardware Syntax no flowcontrol hardware...
Page 182 CCESS OMMANDS FLOWCONTROL HARDWARE ASYN CONSOLE Examples To enable hardware flow control on terminal console line asyn0, use the commands: awplus# configure terminal awplus(config)# line console 0 awplus(config-line)# flowcontrol hardware To disable hardware flow control on terminal console line asyn0, use the commands: awplus# configure terminal...
Page 183: Length (Asyn)
CCESS OMMANDS LENGTH ASYN length (asyn) Overview Use this command to specify the number of rows of output that the device will display before pausing, for the console or VTY line that you are configuring. The no variant of this command restores the length of a line (terminal session) attached to a console port or to a VTY to its default length of 22 rows.
Page 184: Line
CCESS OMMANDS LINE line Overview Use this command to enter line configuration mode for the specified VTYs or the console. The command prompt changes to show that the device is in Line Configuration mode. line vty <first-line> [<last-line>] Syntax line console 0 Parameter Description <first-line>...
Page 185 CCESS OMMANDS LINE To enter Line Configuration mode to configure the console (asyn 0) port terminal line, use the commands: awplus# configure terminal awplus(config)# line console 0 awplus(config-line)# Related accounting login Commands clear line console clear line vty flowcontrol hardware (asyn/console) length (asyn) login authentication privilege level...
Page 186: Privilege Level
CCESS OMMANDS PRIVILEGE LEVEL privilege level Overview This command sets a privilege level for VTY or console connections. The configured privilege level from this command overrides a specific user’s initial privilege level at the console login. privilege level <1-15> Syntax Mode Line Configuration Usage...
Page 187: Security-Password History
CCESS OMMANDS SECURITY PASSWORD HISTORY security-password history Overview This command specifies the number of previous passwords that are unable to be reused. A new password is invalid if it matches a password retained in the password history. The no variant of the command disables this feature. Syntax security-password history <0-15>...
Page 188: Security-Password Forced-Change
CCESS OMMANDS SECURITY PASSWORD FORCED CHANGE security-password forced-change Overview This command specifies whether or not a user is forced to change an expired password at the next login. If this feature is enabled, users whose passwords have expired are forced to change to a password that must comply with the current password security rules at the next login.
Page 189: Security-Password Lifetime
CCESS OMMANDS SECURITY PASSWORD LIFETIME security-password lifetime Overview This command enables password expiry by specifying a password lifetime in days. Note that when the password lifetime feature is disabled, it also disables the security-password forced-change command and the security-password warning command.
Page 190: Security-Password Min-Lifetime-Enforce
CCESS OMMANDS SECURITY PASSWORD MIN LIFETIME ENFORCE security-password min-lifetime-enforce Overview Use this command to configure a minimum number of days before a password can be changed by a user. With this feature enabled, once a user sets the password, the user cannot change it again until the minimum lifetime has passed.
Page 191: Security-Password Minimum-Categories
CCESS OMMANDS SECURITY PASSWORD MINIMUM CATEGORIES security-password minimum-categories Overview This command specifies the minimum number of categories that the password must contain in order to be considered valid. The password categories are: • uppercase letters: A to Z • lowercase letters: a to z •...
Page 192: Security-Password Minimum-Length
CCESS OMMANDS SECURITY PASSWORD MINIMUM LENGTH security-password minimum-length Overview This command specifies the minimum allowable password length. This value is checked against when there is a password change or a user account is created. security-password minimum-length <1-23> Syntax Parameter Description <1-23>...
Page 193: Security-Password Reject-Expired-Pwd
CCESS OMMANDS SECURITY PASSWORD REJECT EXPIRED security-password reject-expired-pwd Overview This command specifies whether or not a user is allowed to login with an expired password. Users with expired passwords are rejected at login if this functionality is enabled. Users then have to contact the Network Administrator to change their password.
Page 194: Security-Password Warning
CCESS OMMANDS SECURITY PASSWORD WARNING security-password warning Overview This command specifies the number of days before the password expires that the user will receive a warning message specifying the remaining lifetime of the password. Note that the warning period cannot be set unless the lifetime feature is enabled with the security-password lifetime command.
Page 195: Service Advanced-Vty
CCESS OMMANDS SERVICE ADVANCED service advanced-vty Overview This command enables the advanced-vty help feature. This allows you to use TAB completion for commands. Where multiple options are possible, the help feature displays the possible options. The no service advanced-vty command disables the advanced-vty help feature. Syntax service advanced-vty no service advanced-vty...
Page 196: Service Password-Encryption
CCESS OMMANDS SERVICE PASSWORD ENCRYPTION service password-encryption Overview Use this command to enable password encryption. This is enabled by default. When password encryption is enabled, the device displays passwords in the running config in encrypted form instead of in plain text. Use the no service password-encryption command to stop the device from displaying newly-entered passwords in encrypted form.
Page 197: Service Telnet
CCESS OMMANDS SERVICE TELNET service telnet Overview Use this command to enable the telnet server. The server is enabled by default. Enabling the telnet server starts the device listening for incoming telnet sessions on the configured port. The server listens on port 23, unless you have changed the port by using the privilege level command.
Page 198: Service Terminal-Length (Deleted)
CCESS OMMANDS SERVICE TERMINAL LENGTH DELETED service terminal-length (deleted) Overview This command has been deleted in Software Version 5.4.5-0.1 and later. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 199: Show Privilege
CCESS OMMANDS SHOW PRIVILEGE show privilege Overview This command displays the current user privilege level, which can be any privilege level in the range <1-15>. Privilege levels <1-6> allow limited user access (all User Exec commands), privilege levels <7-14> allow restricted user access (all User Exec commands plus Privileged Exec show commands).
Page 200: Show Security-Password Configuration
CCESS OMMANDS SHOW SECURITY PASSWORD CONFIGURATION show security-password configuration Overview This command displays the configuration settings for the various security password rules. show security-password configuration Syntax Mode Privileged Exec Example To display the current security-password rule configuration settings, use the command: awplus# show security-password configuration...
Page 201: Show Security-Password User
CCESS OMMANDS SHOW SECURITY PASSWORD USER show security-password user Overview This command displays user account and password information for all users. show security-password user Syntax Mode Privileged Exec Example To display the system users’ remaining lifetime or last password change, use the command: awplus# show security-password user...
Page 202: Show Telnet
CCESS OMMANDS SHOW TELNET show telnet Overview This command shows the Telnet server settings. show telnet Syntax Mode User Exec and Privileged Exec Example To show the Telnet server settings, use the command: awplus# show telnet Output Figure 3-4: Example output from the show telnet command Telnet Server Configuration...
Page 203: Show Users
CCESS OMMANDS SHOW USERS show users Overview This command shows information about the users who are currently logged into the device. show users Syntax Mode User Exec and Privileged Exec Example To show the users currently connected to the device, use the command: awplus# show users Output...
Page 204: Telnet
CCESS OMMANDS TELNET telnet Overview Use this command to open a telnet session to a remote device. telnet {<hostname>|[ip] <ipv4-addr>|[ipv6] <ipv6-addr>} Syntax [<port>] telnet [vrf <vrf-name>] {<hostname>|[ip] <ipv4-addr>|[ipv6] Syntax (VRF-lite) <ipv6-addr>} [<port>] CFC960 Only Parameter Description Apply this command to a VRF instance. <vrf-name>...
Page 205: Telnet Server
CCESS OMMANDS TELNET SERVER telnet server Overview This command enables the telnet server on the specified TCP port. If the server is already enabled then it will be restarted on the new port. Changing the port number does not affect the port used by existing sessions. telnet server {<1-65535>|default} Syntax Parameter...
Page 206: Terminal Length
CCESS OMMANDS TERMINAL LENGTH terminal length Overview Use the terminal length command to specify the number of rows of output that the device will display before pausing, for the currently-active terminal only. Use the terminal no length command to remove the length specified by this command.
Page 207: Terminal Resize
CCESS OMMANDS TERMINAL RESIZE terminal resize Overview Use this command to automatically adjust the number of rows of output on the console, which the device will display before pausing, to the number of rows configured on the user’s terminal. terminal resize Syntax Mode User Exec and Privileged Exec...
Page 208: Username
CCESS OMMANDS USERNAME username Overview This command creates or modifies a user to assign a privilege level and a password. : The default username privilege level of 1 is not shown in running-config output. NOTE Any username privilege level that has been modified from the default is shown. Syntax username <name>...
Page 209 CCESS OMMANDS USERNAME Usage An intermediate CLI security level (privilege level 7 to privilege level 14) allows a CLI user access to the majority of show commands, including the platform show commands that are available at privilege level 1 to privilege level 6. Note that some show commands, such as show running-configuration and show startup-configuration, are only available at privilege level 15.
Page 210: Chapter 4: Feature And Release Licensing Commands
To see which Feature Licenses are available for your device, see the AlliedWare Plus Datasheet. With Software Version 5.4.6-1.x and later, new installations of Allied Telesis Management Framework (AMF) require a Subscription License instead of a Feature License. For information about Subscription Licensing commands, see the Subscription Licensing Commands chapter.
Page 211: License
EATURE AND ELEASE ICENSING OMMANDS LICENSE license Overview This command activates the licensed software feature set on a chassis, a stack, or all chassis that are part of the stack. Use the no variant of this command to deactivate the licensed software feature set on a standalone switch, a chassis, a stack, or all chassis that are part of the stack.
Page 212 EATURE AND ELEASE ICENSING OMMANDS LICENSE If you add a feature license you will be prompted at the console that the feature needs to restart. For example, if the feature license contains a license for the EPSR protocol, then that protocol will restart, but you do not need to manually restart the whole device for the new license to take effect.
Page 213: License Certificate
This command enables you to apply software release licenses from a license certificate file to a control card in a chassis, all control cards in a chassis, or all chassis that are part of a stack. : Contact your authorized Allied Telesis support center to obtain a release license. NOTE Syntax license certificate <certificate-url>...
Page 214: Show License
EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE show license Overview This command displays information about a specific software feature or release license, or all enabled software feature or release licenses on the device. show license [feature|release] [<label>|index <index-number>] Syntax Parameter Description feature Only display license information for any applied feature licenses.
Page 215 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE Output Figure 4-3: Example output from show license showing a base license, a VCStack-Plus feature license, and release licenses on two control cards installed in a single SBx8100 chassis awplus#show license  Board region: Global ...
Page 216 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE Table 4-1: Parameters in the output of show license Parameter Description Board region Name of the region for the Base License features. Chassis Feature Licenses Displays feature licences applied to the chassis. A feature license applied to the chassis is inherited automatically by a backup control card in the chassis.
Page 217: Show License Brief
EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE BRIEF show license brief Overview This command displays information about a specific software feature or release license, or all enabled software feature or release licenses on the device. show license [feature|release] [<label>|index <index-number>] Syntax brief Parameter...
Page 218 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE BRIEF Output Figure 4-4: Example output from show license brief awplus#show license brief  Board region: Global  Feature licenses on stack member 2:  ------------------------------------------------------------------------ Index License name Quantity Customer name Type Period...
Page 219 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE BRIEF Figure 4-5: Example output from show license release brief awplus#show license release brief  Board region: Global  Release licenses on card 2.5:  ------------------------------------------------------------------------ Index License name Quantity Customer name Type Version Period...
Page 220 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE BRIEF Table 4-2: Parameters in the output of show license brief Parameter Description Board region Name of the region for the Base License features. Index Index identifying entry. The index is assigned automatically by the software. It is not configured. License name Name of the license key bundle (case-sensitive).
Page 221: Show License Brief Member
EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE BRIEF MEMBER show license brief member Overview Use this command to display information about either a specific software license, or all software feature licenses enabled on either a specific stack member or all stack members.
Page 222 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE BRIEF MEMBER Output Figure 4-7: Example output from show license brief member awplus#show license brief member all  Board region: Global  Feature licenses on stack member 1:  ------------------------------------------------------------------------ Index License name Quantity Customer name...
Page 223 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE BRIEF MEMBER Release licenses on card 2.5:  ------------------------------------------------------------------------ Index License name Quantity Customer name Type Version Period ------------------------------------------------------------------------ Rel-544 ABC-Consulting Full 5.4.4 N/A  Release licenses on card 2.6:  ------------------------------------------------------------------------ Index License name Quantity Customer name...
Page 224: Show License Member
EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE MEMBER show license member Overview Use this command to display information about either a specific software license, or all software feature licenses enabled on either a specific stack member or all stack members. show license [<label>] member [<1-2>|all] Syntax Parameter...
Page 225 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE MEMBER Output Figure 4-8: Example output from show license member all for two stack members, showing feature and release licenses awplus#show license member all  Board region: Global  Feature licenses on stack member 1: ...
Page 226 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE MEMBER Feature licenses on stack member 2:  Index : 1 License name : Base License Customer name : Base License Quantity of licenses : 1 Type of license : Full License issue date : 28-Feb-2014...
Page 227 EATURE AND ELEASE ICENSING OMMANDS SHOW LICENSE MEMBER Table 4-4: Parameters in the output of show license member (cont.) Parameter Description Backup Member Displays feature and release licenses applied to the chassis and active and backup control cards for the backup member in a VCStack Plus environment.
Page 228: Show System Mac License
EATURE AND ELEASE ICENSING OMMANDS SHOW SYSTEM MAC LICENSE show system mac license Overview This command displays the physical MAC address on a chassis, or a stack. This information is required when you buy a release license. show system mac license Syntax Mode User Exec and Privileged Exec...
Page 229: Chapter 5: Subscription Licensing Commands
Licensing commands. For Software Version 5.4.6-1.x and later, Subscription Licensing enables you to use Allied Telesis Management Framework (AMF). You need to purchase an AMF subscription for each AMF master or controller node in your AMF network. To see the AMF subscriptions for your device, see the AlliedWare Plus Datasheet.
Page 230: License Redistribute
Check which stack member the license entitlement came from originally, by using the command: awplus# show license external stored If you are replacing that stack member, in the Allied Telesis Download center, transfer the license to another stack member’s serial number. Update the stack’s licenses by using the command: awplus#...
Page 231: License Update (Filename)
Use this command to load a license, after you have manually copied the license file onto the device. Only use this command if you cannot directly access the Allied Telesis Download Center from this device. Otherwise, use the command license update online instead.
Page 232: License Update Online
LICENSE UPDATE ONLINE license update online Overview Use this command to add or update subscription licenses from the Allied Telesis Download Center, to subscribe to features such as AMF master. When you enter this command, the device will: Connect to the Download Center Check if new or changed licenses are available for the device, keyed to the device’s serial number...
Page 233 UBSCRIPTION ICENSING OMMANDS LICENSE UPDATE ONLINE Example To add a subscription license, use the command: awplus# license update online Related show license external Commands Command Version 5.4.6-2.1: command added changes C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 234: Show License External
UBSCRIPTION ICENSING OMMANDS SHOW LICENSE EXTERNAL show license external Overview Use this command to show information about subscription (external) licenses. For products with stacking, additional information may be displayed to indicate the source of the current feature entitlements. If this information indicates that a device is “NOT PRESENT”, you need to take action as described in the warning in the output.
Page 235 Upon reboot  these entitlements will be lost. To avoid loss of functionality  re-connect the device to the stack, or transfer the license to another  stack member using the RMA feature on the Allied Telesis Download Center website. ...
Page 236 UBSCRIPTION ICENSING OMMANDS SHOW LICENSE EXTERNAL Related license update online Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 237: Chapter 6: Gui Commands
GUI Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure the GUI. For more information, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide Command List • “atmf topology-gui enable” on page 238 •...
Page 238: Atmf Topology-Gui Enable
GUI C OMMANDS ATMF TOPOLOGY GUI ENABLE atmf topology-gui enable Overview Use this command to enable the operation of Vista Manager EX on the Master device. Vista Manager EX delivers state-of-the-art monitoring and management for your Autonomous Management Framework™ (AMF) network, by automatically creating a complete topology map of switches, firewalls and wireless access points (APs).
Page 239: Gui-Timeout
GUI C OMMANDS TIMEOUT gui-timeout Overview Use this command to configure an idle timeout period for a GUI session. The time can be set in minutes and/or seconds. Use the no variant of this command to disable the GUI session idle timeout. Syntax gui-timeout <minutes>...
Page 240 GUI C OMMANDS TIMEOUT Related show running-config Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 241: Log Event-Host
GUI C OMMANDS LOG EVENT HOST log event-host Overview Use this command to set up an external host to log AMF topology events through Vista Manager. This command is run on the Master device. Use the no variant of this command to disable log events through Vista Manager. Syntax log event-host [<ipv4-addr>|<ipv6-addr>] atmf-topology-event no log event-host [<ipv4-addr>|<ipv6-addr>] atmf-topology-event...
Page 242: Service Http
GUI C OMMANDS SERVICE HTTP service http Overview Use this command to enable the HTTP (Hypertext Transfer Protocol) service. This service is required to support Vista Manager EX™ and the AlliedWare Plus™ GUI Java applet. Use the no variant of this command to disable the HTTP feature. service http Syntax no service http...
Page 243: Show Http
GUI C OMMANDS SHOW HTTP show http Overview This command shows the HTTP server settings. show http Syntax Mode User Exec and Privileged Exec Example To show the HTTP server settings, use the command: awplus# show http Output Figure 6-2: Example output from the show http command awplus#show http...
Page 244: Introduction
System Configuration and Monitoring Commands Introduction Overview This chapter provides an alphabetical reference of commands for configuring and monitoring the system. Command List • “banner exec” on page 246 • “banner login (system)” on page 248 • “banner motd” on page 250 •...
Page 245 YSTEM ONFIGURATION AND ONITORING OMMANDS • “show clock” on page 280 • “show cpu” on page 282 • “show cpu history” on page 285 • “show debugging” on page 288 • “show ecofriendly” on page 289 • “show interface memory” on page 291 •...
Page 246: Banner Exec
YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER EXEC banner exec Overview This command configures the User Exec mode banner that is displayed on the console after you login. The banner exec default command restores the User Exec banner to the default banner. Use the no banner exec command to disable the User Exec banner and remove the default User Exec banner.
Page 247 YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER EXEC To remove the User Exec mode banner after login, enter the following commands: awplus#configure terminal awplus(config)#no banner exec awplus(config)#exit awplus#exit  awplus login: manager Password:  awplus> Related banner login (system) Commands banner motd C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 248: Banner Login (System)
YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER LOGIN SYSTEM banner login (system) Overview This command configures the login banner that is displayed on the console when you login. The login banner is displayed on all connected terminals. The login banner is displayed after the MOTD (Message-of-the-Day) banner and before the login username and password prompts.
Page 249: Banner Motd
YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER LOGIN SYSTEM Related banner exec Commands banner motd C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 250: Banner Motd
YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER MOTD banner motd Overview Use this command to create or edit the text MotD (Message-of-the-Day) banner displayed before login. The MotD banner is displayed on all connected terminals. The MotD banner is useful for sending messages that affect all network users, for example, any imminent system shutdowns.
Page 251 YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER MOTD awplus>enable awplus#configure terminal Enter configuration commands, one per line. End with CNTL/Z. awplus(config)#no banner motd awplus(config)#exit awplus#exit  awplus login: manager Password:  AlliedWare Plus (TM) 5.4.7 01/03/17 12:00:00  awplus> Related banner exec Commands banner login (system) C613-50175-01 Rev B...
Page 252: Card Enable
YSTEM ONFIGURATION AND ONITORING OMMANDS CARD ENABLE card enable Overview Use this command to enable or disable a chassis line card or control card. Use the no variant of this command to take the card out of service. Syntax card <stack-ID>.<card-ID> enable no card <stack-ID>.<card-ID>...
Page 253: Clock Set
YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SET clock set Overview This command sets the time and date for the system clock. clock set <hh:mm:ss> <day> <month> <year> Syntax Parameter Description <hh:mm:ss> Local time in 24-hour format <day> Day of the current month, from 1 to 31 <month>...
Page 254: Clock Summer-Time Date
YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SUMMER TIME DATE clock summer-time date Overview This command defines the start and end of summertime for a specific year only, and specifies summertime’s offset value to Standard Time for that year. The no variant of this command removes the device’s summertime setting. This clears both specific summertime dates and recurring dates (set with the clock summer-time recurring...
Page 255 YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SUMMER TIME DATE Related clock summer-time recurring Commands clock timezone C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 256: Clock Summer-Time Recurring
YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SUMMER TIME RECURRING clock summer-time recurring Overview This command defines the start and end of summertime for every year, and specifies summertime’s offset value to Standard Time. The no variant of this command removes the device’s summertime setting. This clears both specific summertime dates (set with the clock summer-time date command) and recurring dates.
Page 257 YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SUMMER TIME RECURRING Mode Global Configuration Examples To set a summertime definition for New Zealand using NZST (UTC+12:00) as the standard time, and NZDT (UTC+13:00) as summertime, with summertime set to start on the last Sunday in September, and end on the 1st Sunday in April, use the command: awplus(config)# clock summer-time NZDT recurring 5 sun sep 2:00...
Page 258: Clock Timezone
YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK TIMEZONE clock timezone Overview This command defines the device’s clock timezone. The timezone is set as a offset to the UTC. The no variant of this command resets the system time to UTC. By default, the system time is set to UTC. clock timezone <timezone-name>...
Page 259: Ecofriendly Led
YSTEM ONFIGURATION AND ONITORING OMMANDS ECOFRIENDLY LED ecofriendly led Overview Use this command to enable the eco-friendly LED (Light Emitting Diode) feature which turns off power to all LEDs on the switch, except to the eth0 port and active/standby LEDs on the Control Fabric Cards, and to the LEDs on the PSUs and fan tray.
Page 260: Ecofriendly Lpi
YSTEM ONFIGURATION AND ONITORING OMMANDS ECOFRIENDLY LPI ecofriendly lpi Use this command to conserve power by enabling the eco-friendly LPI (Low Power Idle) feature. This feature reduces the power supplied to the ports on chassis line cards or control cards installed in the switch, except the eth0 port, whenever ports are idle and are connected to IEEE802.3az Energy Efficient Ethernet compliant host devices.
Page 261: Show Ecofriendly
YSTEM ONFIGURATION AND ONITORING OMMANDS ECOFRIENDLY LPI Related duplex Commands ecofriendly led show ecofriendly show interface speed C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 262: Hostname
YSTEM ONFIGURATION AND ONITORING OMMANDS HOSTNAME hostname Overview This command sets the name applied to the device as shown at the prompt. The hostname is: • displayed in the output of the show system command • displayed in the CLI prompt so you know which device you are configuring •...
Page 263 YSTEM ONFIGURATION AND ONITORING OMMANDS HOSTNAME To set the system name to HQ-Sales, use the command: Example awplus# configure terminal awplus(config)# hostname HQ-Sales This changes the prompt to: HQ-Sales(config)# To revert to the default hostname awplus, use the command: HQ-Sales(config)# no hostname This changes the prompt to: awplus(config)#...
Page 264: Max-Fib-Routes
YSTEM ONFIGURATION AND ONITORING OMMANDS ROUTES max-fib-routes Overview This command enables you to control the maximum number of FIB routes configured. It operates by providing parameters that enable you to configure preset maximums and warning message thresholds. : When using VRF-lite, this command applies to the Global VRF instance; to set NOTE the max-fib-routes for a user-defined VRF instance use the max-fib-routes (VRF)
Page 265 YSTEM ONFIGURATION AND ONITORING OMMANDS ROUTES Related max-fib-routes (VRF) Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 266: Max-Static-Routes
YSTEM ONFIGURATION AND ONITORING OMMANDS STATIC ROUTES max-static-routes Overview Use this command to set the maximum number of static routes, excluding FIB (Forwarding Information Base) routes. : When using VRF-lite, this command applies to the Global VRF instance; to set NOTE the max-static-routes for a user-defined VRF instance use the max-static-routes (VRF)
Page 267: No Debug All
YSTEM ONFIGURATION AND ONITORING OMMANDS NO DEBUG ALL no debug all Overview This command disables the debugging facility for all features on your device. This stops the device from generating any diagnostic debugging messages. The debugging facility is disabled by default. Syntax no debug all [bgp|ipv6|dot1x|nsm|ospf|pim dense-mode|pim sparse-mode|rip|vrrp]...
Page 268 YSTEM ONFIGURATION AND ONITORING OMMANDS NO DEBUG ALL To disable all PIM Dense Mode debugging, use the command: awplus# no debug all pim dense-mode To disable all PIM Sparse Mode debugging, use the command: awplus# no debug all pim sparse-mode To disable all RIP debugging, use the command: awplus# no debug all rip...
Page 269: Reboot
YSTEM ONFIGURATION AND ONITORING OMMANDS REBOOT reboot Overview This command halts the device and performs a cold restart (also known as reload). It displays a confirmation request before restarting. reboot Syntax reload Mode Privileged Exec Usage The reboot and reload commands perform the same action. Examples To restart the device, use the command: awplus#...
Page 270: Reboot Card
YSTEM ONFIGURATION AND ONITORING OMMANDS REBOOT CARD reboot card Overview This command halts and performs a cold restart (also known as reload card) on a selected chassis line card or control card. It displays a confirmation request before restarting. reboot card <stack-ID>.<card-ID> Syntax reload card <stack-ID>.<card-ID>...
Page 271: Reload
YSTEM ONFIGURATION AND ONITORING OMMANDS RELOAD reload Overview This command performs the same function as the reboot command. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 272: Reset Card
YSTEM ONFIGURATION AND ONITORING OMMANDS RESET CARD reset card Overview Use this command to perform a hardware reset on a chassis line card or control card. You can use this command to reset an unresponsive card. reset card <stack-ID>.<card-ID> Syntax Parameter Description reset...
Page 273: Show Card
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CARD show card Overview Use this command to display information about current and provisioned chassis line cards or control cards. Note that an asterisk is now displayed appended to line card’s information line indicating that the card is not running the same version as its Active Master CFC.
Page 274 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CARD Table 1: Parameters in the output of the show cardcommand (cont.) Parameter Description State The current state of the card. One of the following: Booting The card is currently loading its software release. Initializin The card has loaded its software release and is currently initializing software processes.
Page 275: Show Card Detail
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CARD DETAIL show card detail Overview Use this command to display detailed information about current and provisioned chassis, line cards or control cards and to display software version information. show card detail Syntax Mode Privileged Exec Example To display detailed information about the cards, use the following command:...
Page 276 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CARD DETAIL Table 2: Example output from the show card detail command DUT2-x8100#show card detail   Card 1.1: ---------------------------------------------------------------- Type AT-SBx81GP24 State Online Uptime - Bootloader Version - Mac Address eccd.6d7b.3014 Software Version 5.4.4-1.2...
Page 277 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CARD DETAIL Table 2: Example output from the show card detail command (cont.) Type AT-SBx81CFC960 State Online (Active) Uptime - Bootloader Version - Mac Address eccd.6d9e.330e Software Version 5.4.4-1.2  Card 1.6: ---------------------------------------------------------------- Type AT-SBx81CFC960...
Page 278 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CARD DETAIL Table 3: Parameters in the output of the show carddetail command (cont.) Parameter Description State The current state of the card. One of the following: Booting The card is currently loading its software release.
Page 279 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CARD DETAIL Related show provisioning (card) Commands show system show tech-support stack management subnet C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 280: Show Clock
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CLOCK show clock Overview This command displays the system’s current configured local time and date. It also displays other clock related information such as timezone and summertime configuration. show clock Syntax Mode User Exec and Privileged Exec Example To display the system’s current local time, use the command: awplus#...
Page 281 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CLOCK Related clock set Commands clock summer-time date clock summer-time recurring clock timezone C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 282: Show Cpu
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU show cpu Overview This command displays a list of running processes with their CPU utilization. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 283 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU Output Figure 7-3: Example output from show cpu Card 1.5:  CPU averages: 1 second: 12%, 20 seconds: 2%, 60 seconds: 2% System load averages: 1 minute: 0.03, 5 minutes: 0.02, 15 minutes: 0.00 Current CPU load:...
Page 284 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU Table 5: Parameters in the output of the show cpu command (cont.) Parameter Description state Process state; one of “run”, “sleep”, “zombie”, and “dead”. sleep% Percentage of time that the process is in the sleep state. runtime The time that the process has been running for, measured in jiffies.
Page 285: Show Cpu History
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU HISTORY show cpu history Overview This command prints a graph showing the historical CPU utilization. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 286 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU HISTORY Output Figure 7-4: Example output from the show cpu history command Per second CPU load history  100 90 80 70 60 50 40 30 * 10 ******************************************* **************** |..|..|..|..|..|..|..|..|..|..|..|.. Oldest Newest CPU load% per second (last 60 seconds)...
Page 287: Show Memory
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU HISTORY Related show memory Commands show memory allocations show memory pools show process C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 288: Show Debugging
User Exec and Privileged Exec Usage This command displays all debugging information, similar to the way the show tech-support command displays all show output for use by Allied Telesis authorized service personnel only. Example To display all debugging information, use the command: awplus#...
Page 289: Show Ecofriendly
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW ECOFRIENDLY show ecofriendly Overview This command displays the switch’s eco-friendly configuration status. The ecofriendly led ecofriendly lpi configuration status are shown in the show ecofriendly output. show ecofriendly Syntax Mode Privileged Exec and Global Configuration Example To display the switch’s eco-friendly configuration status, use the following command:...
Page 290 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW ECOFRIENDLY Table 6: Parameters in the output of the show ecofriendly command Parameter Description normal The eco-friendly LED feature is disabled and port LEDs show the current state of the ports. This is the default setting.
Page 291: Show Interface Memory
This command displays the shared memory used by either all interfaces, or the specified interface or interfaces. The output is useful for diagnostic purposes by Allied Telesis authorized service personnel. For information on filtering and saving command output, see the “Getting Started...
Page 292 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW INTERFACE MEMORY Output Figure 7-8: Example output from the show interface memory command awplus#show interface memory Vlan blocking state shared memory usage --------------------------------------------- Interface shmid Bytes Used nattch Status port1.1.1 491535 1 port1.1.2 393228 1...
Page 293: Show Memory
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY show memory Overview This command displays the memory used by each process that is currently running For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 294 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY Output Figure 7-10: Example output from show memory awplus#show memory  Card 1.5:  RAM total: 513512 kB; free: 413848 kB; buffers: 9440 kB  user processes ============== pid name mem% size(kB) peak(kB) data(kB) stk(kB)...
Page 295: Show Memory Allocations
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY ALLOCATIONS show memory allocations Overview This command displays the memory allocations used by processes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 296: Show Memory History
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY ALLOCATIONS Related show memory Commands show memory history show memory pools show memory shared show tech-support C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 297: Show Memory History
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY HISTORY show memory history Overview This command prints a graph showing the historical memory usage. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 298 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY HISTORY Output Figure 7-12: Example output from the show memory history command STACK member 1: Card 1.5:  Per minute memory utilization history  100 90 80 70 60 50 40************************************************************* 30 20 10...
Page 299: Show Memory Pools
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY POOLS show memory pools Overview This command shows the memory pools used by processes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 300: Show Memory Shared
Overview This command displays shared memory allocation information. The output is useful for diagnostic purposes by Allied Telesis authorized service personnel. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 301: Show Process
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW PROCESS show process Overview This command lists a summary of the current running processes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show process [<stack-ID>.<card-ID>] [sort {cpu|mem}] Parameter...
Page 302 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW PROCESS Output Figure 7-15: Example output from the show process command Card 1.5:  CPU averages: 1 second: 8%, 20 seconds: 5%, 60 seconds: 5% System load averages: 1 minute: 0.04, 5 minutes: 0.08, 15 minutes: 0.12 Current CPU load:...
Page 303 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW PROCESS Table 8: Parameters in the output from the show process command (cont.) Parameter Description Process priority. state Process state; one of “run”, “sleep”, “stop”, “zombie”, or “dead”. sleep% Percentage of time the process is in the sleep state. Related show cpu Commands...
Page 304: Show Reboot History
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW REBOOT HISTORY show reboot history Overview Use this command to display the device’s reboot history. show reboot history [<stack-ID>.<card-ID>] Syntax Parameter Description <stack-ID> Chassis stack member number, from 1 to 2. <card-ID> Slot number of the line card or control card, from 1 to 12. Mode User Exec and Privileged Exec Example...
Page 305: Show Router-Id
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW ROUTER show router-id Overview Use this command to show the Router ID of the current system. show router-id Syntax Mode User Exec and Privileged Exec Example To display the Router ID of the current system, use the command: awplus# show router-id Output...
Page 306: Show System
Output Figure 7-18: Example output from show system  swi_a_1350_1000#show system System Status Mon Nov 16 08:42:16 2015  Board Board Name Serial number --------------------------------------------------------------------------------- Chassis AT-SBx8112 A042764112500072 Controller 316 Bay5 AT-SBx81CFC960 A042854111400005 Controller 316 Bay6 AT-SBx81CFC960 A042854112500015 Blade Bay7 AT-SBx81GP24 A042774102900003...
Page 307 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM Environment Status : Normal Uptime : 1 days 00:48:55 Bootloader version : 3.0.2  Current software : SBx81CFC960-5.4.5-2.1.rel Software version : 5.4.5-2.1 Build date : Thu Nov 12 12:11:29 NZDT 2015 Warning: ISSU is currently in progress. System may be running with different software versions...
Page 308: Show System Environment
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM ENVIRONMENT show system environment Overview This command displays the current environmental status of your device and any attached PSU, XEM, or other expansion option. The environmental status covers information about temperatures, fans, and voltage. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 309 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM ENVIRONMENT  Resource ID: 4 Name: PSU Bay D (AT-SBxPWR-SYS/AC) Sensor (Units) Reading Low Limit High Limit Status Device Present Ok Fan/Temperature Fault Ok PSU Power Output Ok PSU Power Input  Resource ID: 5 Name: Fan Tray Slot (AT-SBxFAN12)...
Page 310: Show System Interrupts
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM INTERRUPTS show system interrupts Overview Use this command to display the number of interrupts for each IRQ (Interrupt Request) used to interrupt input lines on a PIC (Programmable Interrupt Controller) on your device. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 311: Show System Mac
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM MAC show system mac Overview This command displays the physical MAC addresses available on a chassis or a stack. This command also shows the virtual MAC address for a stack if the stack virtual MAC address feature is enabled with the stack virtual-mac command or the...
Page 312 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM MAC Output Figure 7-21: Example output from the show system mac command on two SBx8112 chassis connected with VCStack Plus awplus#show system mac  Stack member 1:  Card MAC Address ------------------------------------ eccd.6d7b.2c7f...
Page 313 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM MAC Output Figure 7-22: Example output showing how to use the stack virtual-mac command and the show system mac command awplus#configure terminal Enter configuration commands, one per line. End with CNTL/Z. awplus(config)#stack virtual-mac % Please check that the new MAC 0000.cd37.0065 is unique within ...
Page 314: Show System Pci Device
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM PCI DEVICE show system pci device Overview Use this command to display the PCI devices on your device. show system pci device Syntax Mode User Exec and Privileged Exec Example To display information about the PCI devices on your device, use the command: awplus# show system pci device Output...
Page 315: Show System Pci Tree
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM PCI DEVICE Related show system environment Commands show system pci tree C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 316: Show System Pci Tree
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM PCI TREE show system pci tree Overview Use this command to display the PCI tree on your device. show system pci tree Syntax Mode User Exec and Privileged Exec Example To display information about the PCI tree on your device, use the command: awplus# show system pci tree Output...
Page 317: Show System Serialnumber
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM SERIALNUMBER show system serialnumber Overview This command shows the serial number information for the device. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 318: Show Tech-Support
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW TECH SUPPORT show tech-support Overview This command generates system and debugging information for the device and saves it to a file. This command is useful for collecting a large amount of information so that it can then be analyzed for troubleshooting purposes.
Page 319 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW TECH SUPPORT Parameter Description ripng Display RIPNG specific information stack Display stacking device information Display STP specific information system Display general system information tacacs+ Display TACACS+ information update Display resource update specific information Output modifier >...
Page 320: Speed (Asyn)
YSTEM ONFIGURATION AND ONITORING OMMANDS SPEED ASYN speed (asyn) Overview This command changes the console speed from the device. Note that a change in console speed is applied for subsequent console sessions. Exit the current session to enable the console speed change using the clear line console command.
Page 321 YSTEM ONFIGURATION AND ONITORING OMMANDS SPEED ASYN Related clear line console Commands line show running-config show startup-config speed C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 322: System Territory (Deprecated)
YSTEM ONFIGURATION AND ONITORING OMMANDS SYSTEM TERRITORY DEPRECATED system territory (deprecated) Overview This command has been deprecated in Software Version 5.4.4-0.1 and later. It now has no effect. It is no longer useful to specify a system territory, so there is no alternative command.
Page 323: Terminal Monitor
YSTEM ONFIGURATION AND ONITORING OMMANDS TERMINAL MONITOR terminal monitor Overview Use this command to display debugging output on a terminal. To display the cursor after a line of debugging output, press the Enter key. Use the command terminal no monitor to stop displaying debugging output on the terminal, or use the timeout option to stop displaying debugging output on the terminal after a set time.
Page 324: Undebug All
YSTEM ONFIGURATION AND ONITORING OMMANDS UNDEBUG ALL undebug all Overview This command applies the functionality of the no debug all command. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 325: Chapter 8: Pluggables And Cabling Commands
Pluggables and Cabling Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure and monitor Pluggables and Cabling, including: • Cable Fault Locator for finding faults in copper cabling • Optical Digital Diagnostic Monitoring (DDM) to help find fiber issues when links go down •...
Page 326: Clear Test Cable-Diagnostics Tdr
LUGGABLES AND ABLING OMMANDS CLEAR TEST CABLE DIAGNOSTICS TDR clear test cable-diagnostics tdr Overview Use this command to clear the results of the last cable test that was run. clear test cable-diagnostics tdr Syntax Mode Privileged Exec Examples To clear the results of a previous cable-diagnostics test use the following commands: awplus# clear test cable-diagnostics tdr...
Page 327: Debug Fiber-Monitoring
LUGGABLES AND ABLING OMMANDS DEBUG FIBER MONITORING debug fiber-monitoring Overview Use this command to enable debugging of active fiber monitoring on the specified ports. Use the no variant of this command to disable debugging on all ports or the specified ports. Syntax debug fiber-monitoring interface <port-list>...
Page 328 LUGGABLES AND ABLING OMMANDS DEBUG FIBER MONITORING Related show system fiber-monitoring Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 329: Fiber-Monitoring Action
LUGGABLES AND ABLING OMMANDS FIBER MONITORING ACTION fiber-monitoring action Overview Use this command to specify an action to be taken if the optical power received on the port changes from the baseline by the amount specified in the fiber-monitoring sensitivity command. Use the no variant of this command to remove the specified action or all actions from the port.
Page 330: Fiber-Monitoring Baseline
LUGGABLES AND ABLING OMMANDS FIBER MONITORING BASELINE fiber-monitoring baseline Overview Use this command to configure how the baseline value for comparison is calculated for active fiber monitoring on the port. Note that alarm generation will not commence until the link has been up for a full averaging period.
Page 331 LUGGABLES AND ABLING OMMANDS FIBER MONITORING BASELINE Related fiber-monitoring interval Commands fiber-monitoring sensitivity C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 332: Fiber-Monitoring Enable
LUGGABLES AND ABLING OMMANDS FIBER MONITORING ENABLE fiber-monitoring enable Overview Use this command to enable active fiber monitoring on a fiber port. If the port can support fiber monitoring but does not have the correct SFP or fiber type installed, the configuration will be saved, and monitoring will commence when a supported SFP is inserted.
Page 333: Fiber-Monitoring Interval
LUGGABLES AND ABLING OMMANDS FIBER MONITORING INTERVAL fiber-monitoring interval Overview Use this command to configure the fiber monitoring polling interval in seconds for the port. The optical power will be read every <interval> seconds and compared against the calculated threshold values to see if a log message or other action is required.
Page 334: Fiber-Monitoring Sensitivity
LUGGABLES AND ABLING OMMANDS FIBER MONITORING SENSITIVITY fiber-monitoring sensitivity Overview Use this command to configure the sensitivity of the alarm thresholds on the port for active fiber monitoring. Use the no variant of this command to reset the sensitivity to the default. Syntax fiber-monitoring sensitivity (low|medium|high|highest|fixed <25-65535>)|relative <0.01-10.0>...
Page 335 LUGGABLES AND ABLING OMMANDS FIBER MONITORING SENSITIVITY Related fiber-monitoring action Commands fiber-monitoring baseline show system fiber-monitoring C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 336: Show System Fiber-Monitoring
LUGGABLES AND ABLING OMMANDS SHOW SYSTEM FIBER MONITORING show system fiber-monitoring Overview Use this command to display settings and current status for Active Fiber Monitoring. show system fiber-monitoring Syntax Mode User Exec/Privileged Exec Example To display configuration and status for active fiber monitoring on ports, use the command: awplus# show system fiber-monitoring...
Page 337 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM FIBER MONITORING Table 8-1: Parameters in the output from show system fiber-monitoring Parameter Description Reading units The units for optical power readings in the rest of the display, e.g. 0.0001mW. Status Whether active fiber monitoring is enabled or disabled for this port.
Page 338 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM FIBER MONITORING fiber-monitoring interval fiber-monitoring sensitivity C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 339: Show System Pluggable
Different types of pluggable transceivers are supported in different models of device. See your Allied Telesis dealer for more information about the models of pluggables that your device supports.
Page 340 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE Output Figure 8-3: Example output from show system pluggable System Pluggable Information  Stack member 1  Port Vendor Device Serial Number Datecode Type -------------------------------------------------------------------------------- 1.5.1 ATI AT-SP10SR A04440R121700174 12042700 10GBASE-SR 1.5.2 ATI AT-SP10SR A04440R121700145 12042700 10GBASE-SR...
Page 341: Serial Number
LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE Table 9: Parameters in the output from the show system pluggable command Parameter Description Stack member The stack member number. Port Specifies the port number for the installed pluggable transceiver. Vendor Specifies the vendor’s name for the installed pluggable transceiver.
Page 342: Show System Pluggable Detail
Different types of pluggable transceivers are supported in different models of device. See your Allied Telesis dealer for more information about the models of pluggables that your device supports.
Page 343 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DETAIL • Diagnostic Calibration: Specifies whether the pluggable transceiver supports DDM or DOM Internal or External Calibration. – Internal is displayed if the pluggable transceiver supports DDM or DOM Internal Calibration. – External is displayed if the pluggable transceiver supports DDM or DOM External Calibration.
Page 344 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DETAIL Table 8-1: Parameters in the output from show system pluggable detail Parameter Description Stack member The stack member number. Port Specifies the port the pluggable transceiver is installed in. Vendor Name Specifies the vendor’s name for the installed pluggable transceiver.
Page 345 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DETAIL Table 8-1: Parameters in the output from show system pluggable detail (cont.) Parameter Description Diagnostic Specifies whether the pluggable transceiver supports DDM Calibration or DOM Internal or External Calibration: Internal is displayed if the pluggable transceiver supports DDM or DOM Internal Calibration.
Page 346: Show System Pluggable Diagnostics
LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DIAGNOSTICS show system pluggable diagnostics Overview This command displays diagnostic information about SFP and SFP+ pluggable transceivers that support Digital Diagnostic Monitoring (DDM). Different types of pluggable transceivers are supported in different models of device.
Page 347 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DIAGNOSTICS Output Figure 8-6: Example output from the show system pluggable diagnostics command on a device awplus#show system pluggable diagnostics System Pluggable Information Diagnostics  Stack member 1:  Port1.5.1 Status Alarms Warnings Reading Alarm Warning...
Page 348 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DIAGNOSTICS Table 9: Parameters in the output from the show system pluggables diagnostics command Parameter Description Temp (Degrees C) Shows the temperature inside the transceiver. Vcc (Volts) Shows voltage supplied to the transceiver. Tx Bias (mA) Shows current to the Laser Diode in the transceiver.
Page 349: Show Test Cable-Diagnostics Tdr
LUGGABLES AND ABLING OMMANDS SHOW TEST CABLE DIAGNOSTICS TDR show test cable-diagnostics tdr Overview Use this command to display the results of the last cable-diagnostics test that was run using the TDR (Time Domain Reflectometer) on a fixed copper cable port. The displayed status of the cable can be either: •...
Page 350: Test Cable-Diagnostics Tdr Interface
LUGGABLES AND ABLING OMMANDS TEST CABLE DIAGNOSTICS TDR INTERFACE test cable-diagnostics tdr interface Overview Use this command to apply the Cable Fault Locator’s cable-diagnostics tests to twisted pair data cables for a selected port. The tests will detect either correct, short circuit, or open, circuit terminations.
Page 351: Chapter 9: Logging Commands
Logging Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure logging. See the Logging Feature Overview and Configuration Guide for more information about the different types of log and how to filter log messages. Command List •...
Page 352 OGGING OMMANDS • “log console (filter)” on page 376 • “log console exclude” on page 379 • “log email” on page 382 • “log email (filter)” on page 383 • “log email exclude” on page 386 • “log email time” on page 389 •...
Page 353: Clear Exception Log
OGGING OMMANDS CLEAR EXCEPTION LOG clear exception log Overview This command resets the contents of the exception log, but does not remove the associated core files. : When this command is used within a stacked environment, it will remove the NOTE contents of the exception logs in all stack members.
Page 354: Clear Log
OGGING OMMANDS CLEAR LOG clear log Overview This command removes the contents of the buffered and permanent logs. : When this command is used within a stacked environment, it will remove the NOTE contents of the buffered and permanent logs in all stack members. Syntax clear log Mode...
Page 355: Clear Log Buffered
OGGING OMMANDS CLEAR LOG BUFFERED clear log buffered Overview This command removes the contents of the buffered log. : When this command is used within a stacked environment, it will remove the NOTE contents of the buffered logs in all stack members. Syntax clear log buffered Mode...
Page 356: Clear Log External
OGGING OMMANDS CLEAR LOG EXTERNAL clear log external Overview Use this command to delete the external log file from the USB storage device it is stored on. If the external log is rotating between multiple files, this command deletes all those files, not just the most recent one.
Page 357: Clear Log Permanent
OGGING OMMANDS CLEAR LOG PERMANENT clear log permanent Overview This command removes the contents of the permanent log. : When this command is used within a stacked environment, it will remove the NOTE contents of the permanent logs in all stack members. Syntax clear log permanent Mode...
Page 358: Copy Buffered-Log
OGGING OMMANDS COPY BUFFERED copy buffered-log Overview Use this command to copy the buffered log to an internal or external destination. copy buffered-log <destination-name> Syntax Parameter Description <destination-name> The filename and path for the destination file. See Introduction on page 117 for valid syntax. Mode Privileged Exec Example...
Page 359: Copy Permanent-Log
OGGING OMMANDS COPY PERMANENT copy permanent-log Overview Use this command to copy the permanent log to an internal or external destination. copy permanent-log <destination-name> Syntax Parameter Description <destination-name> The filename and path for the destination file. See Introduction on page 117 for valid syntax. Mode Privileged Exec Example...
Page 360: Default Log Buffered
OGGING OMMANDS DEFAULT LOG BUFFERED default log buffered Overview This command restores the default settings for the buffered log stored in RAM. By default the size of the buffered log is 50 kB and it accepts messages with the severity level of “warnings” and above. default log buffered Syntax Default...
Page 361: Default Log Console
OGGING OMMANDS DEFAULT LOG CONSOLE default log console Overview This command restores the default settings for log messages sent to the terminal when a log console command is issued. By default all messages are sent to the console when a log console command is issued. default log console Syntax Mode...
Page 362: Default Log Email
OGGING OMMANDS DEFAULT LOG EMAIL default log email Overview This command restores the default settings for log messages sent to an email address. By default no filters are defined for email addresses. Filters must be defined before messages will be sent. This command also restores the remote syslog server time offset value to local (no offset).
Page 363: Default Log External
OGGING OMMANDS DEFAULT LOG EXTERNAL default log external Overview Use this command to restore the default settings for the external log. By default, the size of the external log is 50 kB, it rotates through 1 additional file, and it accepts messages with a severity level of notices and above.
Page 364: Default Log Host
OGGING OMMANDS DEFAULT LOG HOST default log host Overview This command restores the default settings for log sent to a remote syslog server. By default no filters are defined for remote syslog servers. Filters must be defined before messages will be sent. This command also restores the remote syslog server time offset value to local (no offset).
Page 365: Default Log Monitor
OGGING OMMANDS DEFAULT LOG MONITOR default log monitor Overview This command restores the default settings for log messages sent to the terminal when a terminal monitor command is used. default log monitor Syntax Default All messages are sent to the terminal when a terminal monitor command is used.
Page 366: Default Log Permanent
OGGING OMMANDS DEFAULT LOG PERMANENT default log permanent Overview This command restores the default settings for the permanent log stored in NVS. By default, the size of the permanent log is 50 kB and it accepts messages with the severity level of warnings and above. default log permanent Syntax Default...
Page 367: Log Buffered
OGGING OMMANDS LOG BUFFERED log buffered Overview This command configures the device to store log messages in RAM. Messages stored in RAM are not retained on the device over a restart. Once the buffered log reaches its configured maximum allowable size old messages will be deleted to make way for new ones.
Page 368: Log Buffered (Filter)
OGGING OMMANDS LOG BUFFERED FILTER log buffered (filter) Overview Use this command to create a filter to select messages to be sent to the buffered log. Selection can be based on the priority/ severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 369 OGGING OMMANDS LOG BUFFERED FILTER Parameter Description pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI)
Page 370 OGGING OMMANDS LOG BUFFERED FILTER Default By default the buffered log has a filter to select messages whose severity level is “notices (5)” or higher. This filter may be removed using the no variant of this command. Mode Global Configuration Examples To add a filter to send all messages generated by EPSR that have a severity of notices or higher to the buffered log, use the following commands:...
Page 371: Log Buffered Exclude
OGGING OMMANDS LOG BUFFERED EXCLUDE log buffered exclude Overview Use this command to exclude specified log messages from the buffered log. You can exclude messages on the basis of: • the priority/severity of the message • the program that generated the message •...
Page 372 OGGING OMMANDS LOG BUFFERED EXCLUDE Parameter Description pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP)
Page 373 OGGING OMMANDS LOG BUFFERED EXCLUDE Default No log messages are excluded Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log buffered exclude msgtext example of irrelevant message Related clear log buffered...
Page 374: Log Buffered Size
OGGING OMMANDS LOG BUFFERED SIZE log buffered size Overview This command configures the amount of memory that the buffered log is permitted to use. Once this memory allocation has been filled old messages will be deleted to make room for new messages. log buffered size <50-250>...
Page 375: Log Console
OGGING OMMANDS LOG CONSOLE log console Overview This command configures the device to send log messages to consoles. The console log is configured by default to send messages to the device’s main console port. Use the no variant of this command to configure the device not to send log messages to consoles.
Page 376: Log Console (Filter)
OGGING OMMANDS LOG CONSOLE FILTER log console (filter) Overview This command creates a filter to select messages to be sent to all consoles when the log console command is given. Selection can be based on the priority/severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 377 OGGING OMMANDS LOG CONSOLE FILTER Parameter Description lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI) imish Integrated Management Interface Shell (IMISH) epsr Ethernet Protection Switched Rings (EPSR) irdp ICMP Router Discovery Protocol (IRDP)
Page 378 OGGING OMMANDS LOG CONSOLE FILTER Examples To create a filter to send all messages containing the text “Bridging initialization” to console instances where the log console command has been entered, use the following commands: awplus# configure terminal awplus(config)# log console msgtext "Bridging initialization" To remove a filter that sends all messages generated by EPSR that have a severity of notices or higher to consoles, use the following commands: awplus#...
Page 379: Log Console Exclude
OGGING OMMANDS LOG CONSOLE EXCLUDE log console exclude Overview Use this command to prevent specified log messages from being sent to the console, when console logging is turned on. You can exclude messages on the basis of: • the priority/severity of the message •...
Page 380 OGGING OMMANDS LOG CONSOLE EXCLUDE Parameter Description rsvp Resource Reservation Protocol (RSVP) pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp...
Page 381 OGGING OMMANDS LOG CONSOLE EXCLUDE Default No log messages are excluded Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log console exclude msgtext example of irrelevant message Related default log console...
Page 382: Log Email
OGGING OMMANDS LOG EMAIL log email Overview This command configures the device to send log messages to an email address. The email address is specified in this command. log email <email-address> Syntax Parameter Description <email-address> The email address to send log messages to Default By default no filters are defined for email log targets.
Page 383: Log Email (Filter)
OGGING OMMANDS LOG EMAIL FILTER log email (filter) Overview This command creates a filter to select messages to be sent to an email address. Selection can be based on the priority/ severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 384 OGGING OMMANDS LOG EMAIL FILTER Parameter Description pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP)
Page 385 OGGING OMMANDS LOG EMAIL FILTER Mode Global Configuration Examples To create a filter to send all messages generated by EPSR that have a severity of notices or higher to the email address admin@homebase.com, use the following commands: awplus# configure terminal awplus(config)# log email admin@homebase.com level notices program epsr...
Page 386: Log Email Exclude
OGGING OMMANDS LOG EMAIL EXCLUDE log email exclude Overview Use this command to prevent specified log messages from being emailed, when the device is configured to send log messages to an email address. You can exclude messages on the basis of: •...
Page 387 OGGING OMMANDS LOG EMAIL EXCLUDE Parameter Description rsvp Resource Reservation Protocol (RSVP) pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp...
Page 388 OGGING OMMANDS LOG EMAIL EXCLUDE Default No log messages are excluded Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log email exclude msgtext example of irrelevant message Related default log email...
Page 389: Log Email Time
OGGING OMMANDS LOG EMAIL TIME log email time Overview This command configures the time used in messages sent to an email address. If the syslog server is in a different time zone to your device then the time offset can be configured using either the utc-offset parameter option keyword or the local-offset parameter option keyword, where utc-offset is the time difference from UTC (Universal Time, Coordinated) and local-offset is the difference from...
Page 390 OGGING OMMANDS LOG EMAIL TIME To send messages to the email address test@home.com in the same time zone Examples as the device’s local time zone, use the following commands: awplus# configure terminal awplus(config)# log email admin@base.com time local 0 To send messages to the email address admin@base.com with the time information converted to the time zone of the email recipient, which is 3 hours ahead of the device’s local time zone, use the following commands: awplus#...
Page 391: Log External
OGGING OMMANDS LOG EXTERNAL log external Overview Use this command to enable external logging. External logging sends syslog messages to a file on a USB storage device. If the file does not already exist on the storage device, it (and any specified subdirectory) will be automatically created.
Page 392 OGGING OMMANDS LOG EXTERNAL show log external unmount Command Version 5.4.7-1.1: command added changes C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 393: Log External (Filter)
OGGING OMMANDS LOG EXTERNAL FILTER log external (filter) Overview Use this command to create a filter to select messages to be sent to the external log. You can include messages based on: • the priority/severity of the message • the program that generated the message •...
Page 394 OGGING OMMANDS LOG EXTERNAL FILTER Parameter Description ospfv3 Open Shortest Path First (OSPF) version 3 (OSPFv3) Border Gateway Protocol (BGP) rsvp Resource Reservation Protocol (RSVP) pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x...
Page 395 OGGING OMMANDS LOG EXTERNAL FILTER Parameter Description msgtext Select messages containing a certain text string. <text- A text string to match (maximum 128 characters). This is case sensitive, and must be the last string> text on the command line. Default By default the external log has a filter to select messages whose severity level is “notices (5)”...
Page 396: Log External Exclude
OGGING OMMANDS LOG EXTERNAL EXCLUDE log external exclude Overview Use this command to exclude specified log messages from the external log. You can exclude messages on the basis of: • the priority/severity of the message • the program that generated the message •...
Page 397 OGGING OMMANDS LOG EXTERNAL EXCLUDE Parameter Description pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP)
Page 398 OGGING OMMANDS LOG EXTERNAL EXCLUDE Default No log messages are excluded Mode Global Configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log external exclude msgtext example of irrelevant message Related clear log external...
Page 399: Log External Rotate
OGGING OMMANDS LOG EXTERNAL ROTATE log external rotate Overview Use this command to configure the number of files that the external log can rotate through. Use the no variant of this command to return to the default. Syntax log external rotate <0-255> no log external rotate Parameter Description...
Page 400 OGGING OMMANDS LOG EXTERNAL ROTATE Related clear log external Commands default log external log external log external (filter) log external exclude log external size show log config show log external unmount Command Version 5.4.7-1.1: command added changes C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 401: Log External Size
OGGING OMMANDS LOG EXTERNAL SIZE log external size Overview Use this command to configure the total amount of size that the external log is permitted to use, in kilobytes. The maximum possible depends on the storage device’s file system. Note that if you are rotating between multiple files, this is the maximum size of all files, not of each individual file.
Page 402: Log Facility
OGGING OMMANDS LOG FACILITY log facility Overview Use this command to assign a facility to all log messages generated on this device. This facility overrides any facility that is automatically generated as part of the log message. Use the no variant of this command to remove the configured facility. Syntax log facility {kern|user|mail|daemon|auth|syslog|lpr|news|uucp|...
Page 403 OGGING OMMANDS LOG FACILITY Table 9-1: Ordinary meanings of the facility parameter in log messages (cont.) Facility Description FTP daemon local<0..7> The facility labels above have specific meanings, while the local facility labels are intended to be put to local use. In AlliedWare Plus, some of these local facility labels are used in log messages.
Page 404: Log Host
OGGING OMMANDS LOG HOST log host Overview This command configures the device to send log messages to a remote syslog server via UDP port 514. The IP address of the remote server must be specified. By default no filters are defined for remote syslog servers. Filters must be defined before messages will be sent.
Page 405: Log Host Time
OGGING OMMANDS LOG HOST log host exclude log host source log host time log trustpoint show log config C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 406: Log Host (Filter)
OGGING OMMANDS LOG HOST FILTER log host (filter) Overview This command creates a filter to select messages to be sent to a remote syslog server. Selection can be based on the priority/severity of the message, the program that generated the message, the logging facility used, a substring within the message or a combination of some or all of these.
Page 407 OGGING OMMANDS LOG HOST FILTER Parameter Description pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI)
Page 408 OGGING OMMANDS LOG HOST FILTER Examples To create a filter to send all messages generated by EPSR that have a severity of notices or higher to a remote syslog server with IP address 10.32.16.21, use the following commands: awplus# configure terminal awplus(config)# log host 10.32.16.21 level notices program epsr To create a filter to send all messages containing the text “Bridging initialization”,...
Page 409: Log Host Exclude
OGGING OMMANDS LOG HOST EXCLUDE log host exclude Overview Use this command to prevent specified log messages from being sent to the remote syslog server, when log host is enabled. You can exclude messages on the basis of: • the priority/severity of the message •...
Page 410 OGGING OMMANDS LOG HOST EXCLUDE Parameter Description rsvp Resource Reservation Protocol (RSVP) pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp...
Page 411 OGGING OMMANDS LOG HOST EXCLUDE Default No log messages are excluded Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log host exclude msgtext example of irrelevant message Related default log host...
Page 412: Log Host Source
OGGING OMMANDS LOG HOST SOURCE log host source Overview Use this command to specify a source interface or IP address for the device to send syslog messages from. You can specify any one of an interface name, an IPv4 address or an IPv6 address. This is useful if the device can reach the syslog server via multiple interfaces or addresses and you want to control which interface/address the device uses.
Page 413: Log Host Time
OGGING OMMANDS LOG HOST TIME log host time Overview This command configures the time used in messages sent to a remote syslog server. If the syslog server is in a different time zone to your device then the time offset can be configured using either the utc-offset parameter option keyword or the local-offset parameter option keyword, where utc-offset is the time difference from UTC (Universal Time, Coordinated) and local-offset is the difference from local time.
Page 414 OGGING OMMANDS LOG HOST TIME To send messages to the remote syslog server with the IP address 10.32.16.12 with the time information converted to the time zone of the remote syslog server, which is 3 hours ahead of the device’s local time zone, use the following commands: awplus# configure terminal...
Page 415: Log Monitor (Filter)
OGGING OMMANDS LOG MONITOR FILTER log monitor (filter) Overview This command creates a filter to select messages to be sent to the terminal when terminal monitor command is given. Selection can be based on the priority/severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 416 OGGING OMMANDS LOG MONITOR FILTER Parameter Description dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI) imish Integrated Management Interface Shell (IMISH) epsr Ethernet Protection Switched Rings (EPSR)
Page 417 OGGING OMMANDS LOG MONITOR FILTER Examples To create a filter to send all messages that are generated by authentication and have a severity of info or higher to terminal instances where the terminal monitor command has been given, use the following commands: awplus# configure terminal awplus(config)#...
Page 418: Log Monitor Exclude
OGGING OMMANDS LOG MONITOR EXCLUDE log monitor exclude Overview Use this command to prevent specified log messages from being displayed on a terminal, when terminal monitor is enabled. You can exclude messages on the basis of: • the priority/severity of the message •...
Page 419 OGGING OMMANDS LOG MONITOR EXCLUDE Parameter Description rsvp Resource Reservation Protocol (RSVP) pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp...
Page 420 OGGING OMMANDS LOG MONITOR EXCLUDE Default No log messages are excluded Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log monitor exclude msgtext example of irrelevant message Related default log monitor...
Page 421: Log Permanent
OGGING OMMANDS LOG PERMANENT log permanent Overview This command configures the device to send permanent log messages to non-volatile storage (NVS) on the device. The content of the permanent log is retained over a reboot. Once the permanent log reaches its configured maximum allowable size old messages will be deleted to make way for new messages.
Page 422: Log Permanent (Filter)
OGGING OMMANDS LOG PERMANENT FILTER log permanent (filter) Overview This command creates a filter to select messages to be sent to the permanent log. Selection can be based on the priority/ severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 423 OGGING OMMANDS LOG PERMANENT FILTER Parameter Description pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI) imish Integrated Management Interface Shell (IMISH)
Page 424 OGGING OMMANDS LOG PERMANENT FILTER Mode Global Configuration Examples To create a filter to send all messages generated by EPSR that have a severity of notices or higher to the permanent log use the following commands: awplus# configure terminal awplus(config)# log permanent level notices program epsr To create a filter to send all messages containing the text “Bridging initialization”, to the permanent log use the following commands:...
Page 425: Log Permanent Exclude
OGGING OMMANDS LOG PERMANENT EXCLUDE log permanent exclude Overview Use this command to prevent specified log messages from being sent to the permanent log. You can exclude messages on the basis of: • the priority/severity of the message • the program that generated the message •...
Page 426 OGGING OMMANDS LOG PERMANENT EXCLUDE Parameter Description pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP)
Page 427 OGGING OMMANDS LOG PERMANENT EXCLUDE Default No log messages are excluded Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log permanent exclude msgtext example of irrelevant message Related clear log permanent...
Page 428: Log Permanent Size
OGGING OMMANDS LOG PERMANENT SIZE log permanent size Overview This command configures the amount of memory that the permanent log is permitted to use. Once this memory allocation has been filled old messages will be deleted to make room for new messages. log permanent size <50-250>...
Page 429: Log-Rate-Limit Nsm
OGGING OMMANDS RATE LIMIT NSM log-rate-limit nsm Overview This command limits the number of log messages generated by the device for a given interval. Use the no variant of this command to revert to the default number of log messages generated by the device of up to 200 log messages per second. Syntax log-rate-limit nsm messages <message-limit>...
Page 430 OGGING OMMANDS RATE LIMIT NSM To return the device the default setting, to generate up to 200 log messages per second, use the following commands: awplus# configure terminal awplus(config)# no log-rate-limit nsm C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™...
Page 431: Log Trustpoint
OGGING OMMANDS LOG TRUSTPOINT log trustpoint Overview This command adds one or more trustpoints to be used with the syslog application. Multiple trustpoints may be specified, or the command may be executed multiple times, to add multiple trustpoints to the application. The no version of this command removes one or more trustpoints from the list of trustpoints associated with the application.
Page 432: Show Counter Log
OGGING OMMANDS SHOW COUNTER LOG show counter log Overview This command displays log counter information. show counter log Syntax Mode User Exec and Privileged Exec Example To display the log counter information, use the command: awplus# show counter log Output Figure 9-1: Example output from the show counter log command Log counters...
Page 433: Show Exception Log
OGGING OMMANDS SHOW EXCEPTION LOG show exception log Overview This command displays the contents of the exception log. show exception log Syntax Mode User Exec and Privileged Exec Example To display the exception log, use the command: awplus# show exception log Output Figure 9-2: Example output from the show exception log command on a...
Page 434: Show Log
OGGING OMMANDS SHOW LOG show log Overview This command displays the contents of the buffered log. For information on filtering and saving command output, see the “Getting Started with AlliedWare_Plus” Feature Overview and Configuration Guide. Syntax show log [tail [<10-250>]] Parameter Description tail...
Page 435 OGGING OMMANDS SHOW LOG Output Figure 9-3: Example output from show log awplus#show log  <date> <time> <facility>.<severity> <program[<pid>]>: <message>  -------------------------------------------------------------------- 2011 Aug 29 07:55:22 kern.notice awplus kernel: Linux version 2.6.32.12-at1 (mak er@awpmaker03-dl) (gcc version 4.3.3 (Gentoo 4.3.3-r3 p1.2, pie-10.1.5) ) #1 Wed Dec 8 11:53:40 NZDT 2010...
Page 436: Show Log Config
OGGING OMMANDS SHOW LOG CONFIG show log config Overview This command displays information about the logging system. This includes the configuration of the various log destinations, such as buffered, permanent, syslog servers (hosts) and email addresses. This also displays the latest status information for each log destination.
Page 437 OGGING OMMANDS SHOW LOG CONFIG Host 10.32.16.21: Time offset ..+2:00 Offset type ..UTC Source ..- Secured ..enabled Filters: 1 Level ..critical Program ..any Facility ..any Message text . any Statistics ..1327 messages received, 1 accepted by filter (2016 Oct 11  10:36:16) Email admin@alliedtelesis.com:...
Page 438: Show Log External
OGGING OMMANDS SHOW LOG EXTERNAL show log external Overview Use this command to display the contents of the external log, which is stored on a USB storage device. show log external [tail [<10-250>]] Syntax Parameter Description tail Display only the latest log entries. <10-250>...
Page 439: Show Log Permanent
OGGING OMMANDS SHOW LOG PERMANENT show log permanent Overview This command displays the contents of the permanent log. show log permanent [<stack-ID>.<card-ID>] [tail [<10-250>]] Syntax Parameter Description <stack-ID> Chassis stack member number, from 1 to 2. <card-ID> Slot number of the line card or control card, from 1 to 12. tail Display only the latest log entries.
Page 440 OGGING OMMANDS SHOW LOG PERMANENT log permanent (filter) log permanent exclude log permanent size show log config C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 441: Show Running-Config Log
OGGING OMMANDS SHOW RUNNING CONFIG LOG show running-config log Overview This command displays the current running configuration of the Log utility. show running-config log Syntax Mode Privileged Exec and Global Configuration Example To display the current configuration of the log utility, use the command: awplus# show running-config log Related...
Page 442 OGGING OMMANDS UNMOUNT unmount Overview Use this command to unmount an external storage device. We recommend you unmount storage devices before removing them, to avoid file corruption. This is especially important if files may be automatically written to the storage device, such as external log files or AMF backup files.
Page 443: Chapter 10: Scripting Commands
Scripting Commands Introduction Overview This chapter provides commands used for command scripts. Command List • “activate” on page 444 • “echo” on page 445 • “wait” on page 446 C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 444: Activate
CRIPTING OMMANDS ACTIVATE activate Overview This command activates a script file. activate [background] <script> Syntax Parameter Description background Activate a script to run in the background. A process that is running in the background will operate as a separate task, and will not interrupt foreground processing.
Page 445: Echo
CRIPTING OMMANDS ECHO echo Overview This command echoes a string to the terminal, followed by a blank line. echo <line> Syntax Parameter Description <line> The string to echo Mode User Exec and Privileged Exec Usage This command may be useful in CLI scripts, to make the script print user-visible comments.
Page 446: Wait
CRIPTING OMMANDS WAIT wait Overview This command pauses execution of the active script for the specified period of time. wait <delay> Syntax Parameter Description <delay> <1-65335> Specify the time delay in seconds Default No wait delay is specified by default to pause script execution. Mode Privileged Exec (when executed from a script not directly from the command line) Usage...
Page 447: Chapter 11: Interface Commands
Interface Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure and display interfaces. Command List • “description (interface)” on page 448 • “interface (to configure)” on page 449 • “mtu” on page 451 • “show interface”...
Page 448: Description (Interface)
NTERFACE OMMANDS DESCRIPTION INTERFACE description (interface) Overview Use this command to add a description to a specific port or interface. description <description> Syntax Parameter Description <description> Text describing the specific interface. Descriptions can contain any printable ASCII characters (ASCII 32-126). Mode Interface Configuration Example...
Page 449: Interface (To Configure)
NTERFACE OMMANDS INTERFACE TO CONFIGURE interface (to configure) Overview Use this command to select one or more interfaces to configure. interface <interface-list> Syntax interface lo Parameter Description <interface-list> The interfaces or ports to configure. An interface-list can be: • an interface such as a VLAN(e.g. vlan2), a switch port (e.g. port1.1.12), a static channel group (e.g.
Page 450 NTERFACE OMMANDS INTERFACE TO CONFIGURE The following example shows how to enter Interface mode to configure the local loopback interface. awplus# configure terminal awplus(config)# interface lo awplus(config-if)# Related ip address (IP Addressing and Protocol) Commands show interface show interface brief C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 451 NTERFACE OMMANDS Overview Use this command to set the Maximum Transmission Unit (MTU) size for VLANs, where MTU is the maximum packet size that VLANs can transmit. The MTU size setting is applied to both IPv4 and IPv6 packet transmission. Use the no variant of this command to remove a previously specified Maximum Transmission Unit (MTU) size for VLANs, and restore the default MTU size (1500 bytes) for VLANs.
Page 452: C613-50175-01 Rev B Command Reference For Switchblade® X8100 Series
NTERFACE OMMANDS Related show interface Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 453: Show Interface
NTERFACE OMMANDS SHOW INTERFACE show interface Overview Use this command to display interface configuration and status. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show interface [<interface-list>] show interface lo Parameter Description...
Page 454 NTERFACE OMMANDS SHOW INTERFACE Figure 11-1: Example output from the show interface command awplus#show interface Interface port1.1.1 Scope: both Link is DOWN, administrative state is UP Thrash-limiting Status Not Detected, Action learn-disable, Timeout 1(s) Hardware is Ethernet, address is eccd.6d03.1123 index 5001 metric 1 mru 1522...
Page 455 NTERFACE OMMANDS SHOW INTERFACE Figure 11-3: Example output from the show interface vlan1,vlan2 command  awplus#show interface vlan1,vlan2 Interface vlan1 Scope: both Link is UP, administrative state is UP Hardware is VLAN, address is 0015.77e9.5c50 IPv4 address 192.168.1.1/24 broadcast 192.168.1.255 index 201 metric 1 mtu 1500...
Page 456: Show Interface Brief
NTERFACE OMMANDS SHOW INTERFACE BRIEF show interface brief Overview Use this command to display brief interface, configuration, and status information, including provisioning information. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 457 This command displays the shared memory used by either all interfaces, or the specified interface or interfaces. The output is useful for diagnostic purposes by Allied Telesis authorized service personnel. For information on filtering and saving command output, see the “Getting Started...
Page 458 NTERFACE OMMANDS SHOW INTERFACE MEMORY Output Figure 11-5: Example output from the show interface memory command awplus#show interface memory Vlan blocking state shared memory usage --------------------------------------------- Interface shmid Bytes Used nattch Status port1.1.1 491535 1 port1.1.2 393228 1 port1.1.3 557073 1...
Page 459: Show Interface Status
NTERFACE OMMANDS SHOW INTERFACE STATUS show interface status Overview Use this command to display the status of the specified interface or interfaces. Note that when no interface or interfaces are specified then the status of all interfaces on the device are shown. show interface [<port-list>] status Syntax Parameter...
Page 460 NTERFACE OMMANDS SHOW INTERFACE STATUS Table 13: Example output from the show interface status command awplus#sho int status Port Name Status Vlan Duplex Speed Type port1.1.1 notconnect 1 auto auto port1.1.2 notconnect 1 auto auto port1.1.3 notconnect 1 auto auto port1.1.4 notconnect 1 auto...
Page 461 NTERFACE OMMANDS SHOW INTERFACE STATUS Table 14: Parameters in the output from the show interface status command Parameter Description Duplex The actual duplex mode of the interface, preceded by a- if it has autonegotiated this duplex mode. If the port is disabled or not connected, it displays the configured duplex setting.
Page 462: Shutdown
NTERFACE OMMANDS SHUTDOWN shutdown Overview This command shuts down the selected interface. This administratively disables the link and takes the link down at the physical (electrical) layer. Use the no variant of this command to disable this function and therefore to bring the link back up again.
Page 463 Port Mirroring and Remote Mirroring Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure Port Mirroring and Remote Mirroring (also known as RSPAN). For more information, see the Mirroring Feature Overview and Configuration Guide. Command List •...
Page 464: Mirror Interface
IRRORING AND EMOTE IRRORING OMMANDS MIRROR INTERFACE mirror interface Overview Use this command to define a mirror port and mirrored (monitored) ports and direction of traffic to be mirrored. The port for which you enter interface mode will be the mirror port. The destination port is removed from all VLANs, and no longer participates in other switching.
Page 465 IRRORING AND EMOTE IRRORING OMMANDS MIRROR INTERFACE Mode Interface Configuration Usage Use this command to send traffic to another device connected to the mirror port for monitoring. For more information, see the Mirroring Feature Overview and Configuration Guide. A mirror port cannot be associated with a VLAN. If a switch port is configured to be a mirror port, it is automatically removed from any VLAN it was associated with.
Page 466: Remote-Mirror Interface
IRRORING AND EMOTE IRRORING OMMANDS REMOTE MIRROR INTERFACE remote-mirror interface Overview Use this command on the source device to specify the source port whose traffic is to be remote-mirrored (monitored), and the remote mirroring VLAN ID these mirrored frames will be tagged with when they egress from the source device. The port for which Interface Configuration mode is entered is the port via which the mirrored traffic egresses the source device towards the remote destination device.
Page 467 IRRORING AND EMOTE IRRORING OMMANDS REMOTE MIRROR INTERFACE This command can only be used to configure a single egress port on the source device, not a range of egress ports. Do not use the interface command with multiple interfaces before using this remote-mirror interface command. One egress (destination) port on the source device can transmit mirrored frames from up to four remote mirrored (source) ports.
Page 468: Show Mirror
IRRORING AND EMOTE IRRORING OMMANDS SHOW MIRROR show mirror Overview Use this command to display the status of all mirrored ports. show mirror Syntax Mode User Exec and Privileged Exec Example To display the status of all mirrored ports, use the following command: awplus# show mirror Output...
Page 469: Show Mirror Interface
IRRORING AND EMOTE IRRORING OMMANDS SHOW MIRROR INTERFACE show mirror interface Overview Use this command to display port mirroring configuration for a mirrored (monitored) switch port. show mirror interface <port> Syntax Parameter Description <port> The monitored switch port to display information about. Mode User Exec, Privileged Exec and Interface Configuration To display port mirroring configuration for the port1.1.4, use the following...
Page 470: Show Remote-Mirror
IRRORING AND EMOTE IRRORING OMMANDS SHOW REMOTE MIRROR show remote-mirror Overview Use this command to display information for remote-mirroring. show remote-mirror Syntax Mode User Exec Example To display information about remote mirroring, use the command: awplus# show remote-mirror Output Figure 12-3: Example output from show remote-mirror awplus#show remote-mirror...
Page 471 IRRORING AND EMOTE IRRORING OMMANDS SHOW REMOTE MIRROR Table 12-1: Parameters in the output from show remote-mirror (cont.) Parameter Description Remote mirror On the destination device, this displays : egress ports • the remote mirror egress ports • the remote mirror VLANs they are associated with Remote mirror On source, destination and intermediate devices, this VLANs...
Page 472: Switchport Remote-Mirror-Egress
IRRORING AND EMOTE IRRORING OMMANDS SWITCHPORT REMOTE MIRROR EGRESS switchport remote-mirror-egress Overview Use this command on the device receiving remote mirrored traffic to set the remote mirroring egress port for the specified remote mirroring VLAN. This port removes the remote mirror VLAN tagging before transmitting the mirrored traffic. Ingress traffic on this port is disabled.
Page 473: Vlan Mode Remote-Mirror-Vlan
IRRORING AND EMOTE IRRORING OMMANDS VLAN MODE REMOTE MIRROR VLAN vlan mode remote-mirror-vlan Overview Use this command to create a single VLAN or a range of VLANs in remote mirror mode to be used for remote mirroring. Use the no variant of this command to remove the remote mirror VLAN from the VLAN database and its configurations.
Page 474 IRRORING AND EMOTE IRRORING OMMANDS VLAN MODE REMOTE MIRROR VLAN switchport remote-mirror-egress C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 475 Interface Testing Commands Introduction Overview This chapter provides an alphabetical reference of commands used for testing interfaces. Command List • “clear test interface” on page 476 • “service test” on page 477 • “test interface” on page 478 C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 476: Clear Test Interface
NTERFACE ESTING OMMANDS CLEAR TEST INTERFACE clear test interface Overview This command clears test results and counters after issuing the test interface command. Test results and counters must be cleared before executing subsequent test interface commands. clear test interface {<port-list>|all} Syntax Parameter Description...
Page 477: Service Test
NTERFACE ESTING OMMANDS SERVICE TEST service test Overview This command puts the device into the interface testing state, ready to begin testing. After entering this command, enter Interface Configuration mode for the desired interfaces and enter the command test interface. Do not test interfaces on a device that is part of a live network—disconnect the device first.
Page 478: Test Interface
NTERFACE ESTING OMMANDS TEST INTERFACE test interface Overview This command starts a test on a port or all ports or a selected range or list of ports. Use the no variant of this command to disable this function. The test duration can be configured by specifying the time in minutes after specifying a port or ports to test.
Page 479 NTERFACE ESTING OMMANDS TEST INTERFACE Example To test the switch ports in VLAN 1, install loopbacks in the ports, and enter the following commands: awplus(config)# service test awplus(config)# no spanning-tree rstp enable bridge-forward awplus(config)# interface vlan1 awplus(config-if)# shutdown awplus(config-if)# awplus# test interface all To see the output, use the commands: awplus#...
Page 480: Part 2: Interfaces And Layer 2
Part 2: Interfaces and Layer 2 C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 481: Chapter 14: Switching Commands
Switching Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure switching. For more information, see the Switching Feature Overview and Configuration Guide. Command List • “card provision (deprecated)” on page 484 • “clear loop-protection counters” on page 485 •...
Page 482 WITCHING OMMANDS • “mac address-table thrash-limit” on page 506 • “platform control-plane-prioritization rate” on page 507 • “platform fdb-chain-length” on page 509 • “platform fdb-l3-hosts” on page 510 • “platform jumboframe” on page 511 • “platform l2mc-table mode” on page 512 •...
Page 483 WITCHING OMMANDS • “undebug loopprot” on page 560 • “undebug platform packet” on page 561 C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 484: Card Provision (Deprecated)
WITCHING OMMANDS CARD PROVISION DEPRECATED card provision (deprecated) Overview This command has been deprecated in Software Version 5.4.4-0.1 and later. Please use the switch card provision command instead. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 485: Clear Loop-Protection Counters
WITCHING OMMANDS CLEAR LOOP PROTECTION COUNTERS clear loop-protection counters Overview Use this command to clear the counters for the Loop Protection counters. clear loop-protection [interface <port-list>] counters Syntax Parameters Description interface The interface whose counters are to be cleared. <port-list> A port, a port range, or an aggregated link.
Page 486: Clear Mac Address-Table Dynamic
WITCHING OMMANDS CLEAR MAC ADDRESS TABLE DYNAMIC clear mac address-table dynamic Overview Use this command to clear the filtering database of all entries learned for a selected MAC address, an MSTP instance, a switch port interface or a VLAN interface. clear mac address-table dynamic [address Syntax <mac-address>|interface <port>...
Page 487 WITCHING OMMANDS CLEAR MAC ADDRESS TABLE DYNAMIC This example shows how to clear all dynamically learned filtering database entries when learned through switch operation for a given MSTP instance 1 on switch port interface port1.1.2. awplus# clear mac address-table dynamic interface port1.1.2 instance 1 Related clear mac address-table static...
Page 488: Clear Mac Address-Table Static
WITCHING OMMANDS CLEAR MAC ADDRESS TABLE STATIC clear mac address-table static Overview Use this command to clear the filtering database of all statically configured entries for a selected MAC address, interface, or VLAN. clear mac address-table static [address <mac-address>|interface Syntax <port>|vlan <vid>] Parameter Description...
Page 489: Clear Port Counter
WITCHING OMMANDS CLEAR PORT COUNTER clear port counter Overview Use this command to clear the packet counters of the port. clear port counter [<port>] Syntax Parameter Description <port> The port number or range Mode Privileged Exec To clear the packet counter for port1.1.1, use the command: Example awplus# clear port counter port1.1.1...
Page 490: Clear Port-Security Intrusion
WITCHING OMMANDS CLEAR PORT SECURITY INTRUSION clear port-security intrusion Overview Use this command to clear the history of the port-security intrusion list on all ports, or an individual port. If a port is not specified, the intrusion lists of all ports are cleared.
Page 491 WITCHING OMMANDS CLEAR PORT SECURITY INTRUSION Table 14-2: Example output from show port-security intrusion  awplus#show port-security intrusion interface port1.1.1 Port Security Intrusion List ------------------------------------------------------------ Interface: port1.1.1 - 1 intrusion(s) detected 801f.0200.19da To clear the history of port-security intrusion list on port1.1.1, use the following command: awplus# clear port-security intrusion interface port1.1.1...
Page 492 WITCHING OMMANDS CLEAR PORT SECURITY INTRUSION Related show port-security interface Commands show port-security intrusion switchport port-security switchport port-security aging switchport port-security maximum switchport port-security violation C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 493: Debug Loopprot
WITCHING OMMANDS DEBUG LOOPPROT debug loopprot Overview This command enables Loop Protection debugging. The no variant of this command disables Loop Protection debugging. Syntax debug loopprot {info|msg|pkt|state|nsm|all} no debug loopprot {info|msg|pkt|state|nsm|all} Parameter Description info General Loop Protection information. Received and transmitted Loop Detection Frames (LDFs). Echo raw ASCII display of received and transmitted LDF packets to the console.
Page 494: Debug Platform Packet
WITCHING OMMANDS DEBUG PLATFORM PACKET debug platform packet Overview This command enables platform to CPU level packet debug functionality on the device. Use the no variant of this command to disable platform to CPU level packet debug. If the result means both send and receive packet debug are disabled, then any active timeout will be canceled.
Page 495 WITCHING OMMANDS DEBUG PLATFORM PACKET To enable packet debug for sFlow packets only for the default timeout of 5 minutes, enter: awplus# debug platform packet sflow To enable send packet debug with no timeout, enter: awplus# debug platform packet send timeout 0 To enable VLAN packet debug for VLAN 2 with a timeout duration of 3 minutes, enter: awplus#...
Page 496: Duplex
WITCHING OMMANDS DUPLEX duplex Overview This command changes the duplex mode for the specified port. To see the currently-negotiated duplex mode for ports whose links are up, use the command show interface. To see the configured duplex mode (when different from the default), use the command show running-config.
Page 497: Flowcontrol (Switch Port)
WITCHING OMMANDS FLOWCONTROL SWITCH PORT flowcontrol (switch port) Overview Use this command to enable flow control, and configure the flow control mode for the switch port. Use the no variant of this command to disable flow control for the specified switch port.
Page 498: Linkflap Action
WITCHING OMMANDS LINKFLAP ACTION linkflap action Overview Use this command to detect flapping on all ports. If more than 15 flaps occur in less than 15 seconds the flapping port will shut down. Use the no variant of this command to disable flapping detection at this rate. Syntax linkflap action [shutdown] no linkflap action...
Page 499: Loop-Protection Loop-Detect
WITCHING OMMANDS LOOP PROTECTION LOOP DETECT loop-protection loop-detect Overview Use this command to enable the loop-protection loop-detect feature and configure its parameters. Use the no variant of this command to disable the loop-protection loop-detect feature. Syntax loop-protection loop-detect [ldf-interval <period>] [ldf-rx-window <frames>] [fast-block] no loop-protection loop-detect Parameter...
Page 500: Loop-Protection Action
WITCHING OMMANDS LOOP PROTECTION ACTION loop-protection action Overview Use this command to specify the protective action to apply when a network loop is detected on an interface. Use the no variant of this command to reset the loop protection actions to the default action, vlan-disable, on an interface.
Page 501: Loop-Protection Action-Delay-Time
WITCHING OMMANDS LOOP PROTECTION ACTION DELAY TIME loop-protection action-delay-time Overview Use this command to sets the loop protection action delay time for an interface to specified values in seconds. The action delay time specifies the waiting period for the action. Use the no variant of this command to reset the loop protection action delay time for an interface to default.
Page 502: Loop-Protection Timeout
WITCHING OMMANDS LOOP PROTECTION TIMEOUT loop-protection timeout Overview Use this command to specify the Loop Protection recovery action duration on an interface. Use the no variant of this command to set the loop protection timeout to the default. Syntax loop-protection timeout <duration> no loop-protection timeout Parameter Description...
Page 503: Mac Address-Table Acquire
WITCHING OMMANDS MAC ADDRESS TABLE ACQUIRE mac address-table acquire Overview Use this command to enable MAC address learning on the device. Use the no variant of this command to disable learning. Syntax mac address-table acquire no mac address-table acquire Default Learning is enabled by default for all instances.
Page 504: Mac Address-Table Ageing-Time
WITCHING OMMANDS MAC ADDRESS TABLE AGEING TIME mac address-table ageing-time Overview Use this command to specify an ageing-out time for a learned MAC address. The learned MAC address will persist for at least the specified time. The no variant of this command will reset the ageing-out time back to the default of 300 seconds (5 minutes).
Page 505: Mac Address-Table Static
WITCHING OMMANDS MAC ADDRESS TABLE STATIC mac address-table static Overview Use this command to statically configure the MAC address-table to forward or discard frames with a matching destination MAC address. mac address-table static <mac-addr> {forward|discard} interface Syntax <port> [vlan <vid>] no mac address-table static <mac-addr>...
Page 506: Mac Address-Table Thrash-Limit
WITCHING OMMANDS MAC ADDRESS TABLE THRASH LIMIT mac address-table thrash-limit Overview Use this command to set the thrash limit on the device or stack. Thrashing occurs when a MAC address table rapidly “flips” its mapping of a single MAC address between two subnets, usually as a result of a network loop. Use the no variant of this command to disable thrash limiting.
Page 507: Platform Control-Plane-Prioritization Rate
WITCHING OMMANDS PLATFORM CONTROL PLANE PRIORITIZATION RATE platform control-plane-prioritization rate Overview The feature ensures that different traffic types can share the CPU effectively. Use this command to set the maximum traffic rate on the CPU port to limit the data rate to the CPU.
Page 508 WITCHING OMMANDS PLATFORM CONTROL PLANE PRIORITIZATION RATE Then you can confirm the CPU protection feature has been disabled using show platform: awplus# show platform Load Balancing srt-dst-mac, src-dst-ip Control-plane-prioritization Max 0 Mbps Jumboframe support off Enhanced mode qos counters Vlan-stacking TPID 0x8100...
Page 509: Platform Fdb-Chain-Length
Usage In rare circumstances, changing the chain length may be necessary to maximise throughput. You should only do this if directed by Allied Telesis support personnel, because a shorter chain length will result in a greater risk of hash collisions.
Page 510: Platform Fdb-L3-Hosts
WITCHING OMMANDS PLATFORM FDB HOSTS platform fdb-l3-hosts Overview Use this command to enable Host Mode. Host Mode increases the number of IPv4 and IPv6 host entries that the switch can store. It is only available on SBx8100 systems consisting of SBx81CFC960 controller cards and SBx81XLEM line cards. Use the no variant of this command to disable Host Mode.
Page 511: Platform Jumboframe
WITCHING OMMANDS PLATFORM JUMBOFRAME platform jumboframe Overview This command enables the device to forward jumbo frames. See the Switching Feature Overview and Configuration Guide for more information. When jumbo frame support is enabled, the maximum size of packets that the device can forward is 10240 bytes.
Page 512: Platform L2Mc-Table Mode
WITCHING OMMANDS PLATFORM L TABLE MODE platform l2mc-table mode Overview Use this command to control the way in which hardware layer-2 multicast forwarding entries are allocated to multicast groups. You can choose either to share entries between groups when possible, or to allocate one entry per mulicast group.
Page 513 WITCHING OMMANDS PLATFORM L TABLE MODE multicast data will not be shared across the aggregated links, and therefore the bandwidth of the aggregation will not be fully utilised. If you change the mode to entry-per-group, then each group will have its own forwarding entry, and a statistical process will put different members of the aggregation into different forwarding entries.
Page 514: Platform L2Mc-Overlap
WITCHING OMMANDS PLATFORM L OVERLAP platform l2mc-overlap Overview Use this command to enable checking for overlapping (shared) multicast entries, so that shared entries are not deleted if they are still in use. Use the no version of this command to disable checking for overlapping entries before deletion.
Page 515: Platform Load-Balancing
WITCHING OMMANDS PLATFORM LOAD BALANCING platform load-balancing Overview This command determines which address fields are used as inputs into the load balancing algorithm for aggregated links. The output from this algorithm is used to select which individual path a given packet will traverse within an aggregated link.
Page 516 WITCHING OMMANDS PLATFORM LOAD BALANCING Examples To use MAC addresses and IP addresses, you do not have to enter any commands, because this is the default. Note that this setting is not displayed in the show running-config output. Use the show platform command to verify this setting.
Page 517: Platform Routingratio
WITCHING OMMANDS PLATFORM ROUTINGRATIO platform routingratio Overview This command changes the amount of memory allocated to: • IPv4 route entries versus IPv6 route entries, and/or • unicast and multicast address entries Use the no variant of this command to restore to the default setting. For this command or the no variant to take effect, you must copy it to the startup configuration using the copy running-config...
Page 518 WITCHING OMMANDS PLATFORM ROUTINGRATIO For this command (or the no version) to take effect, you must copy it to the startup configuration using the copy running-config command and then reboot the switch: awplus# copy running-config startup-config awplus# reboot Examples To set the route and next hop tables to store IPv4 addresses only, use the following commands: awplus# configure terminal...
Page 519: Platform Silicon-Profile
CAUTION Use this command with caution, because setting the silicon profile stops some line cards from operating. We recommend that you consult your Allied Telesis support representative before using this command, to ensure the settings are suitable for your switch.
Page 520 WITCHING OMMANDS PLATFORM SILICON PROFILE Table 14-5: SBx8100 line cards supported by each parameter option: (cont.) line card profile1 support profile2 support profile3 support SBx81XS6 supported supported not supported SBx81XS16 supported not supported not supported SBx81XLEM not supported not supported supported Default By default, no silicon profile is set, and all line cards are allowed.
Page 521 From August 3rd 2016, the Premium License (AT-FL-CFC960-01) supports up to 100,000 BGP routes in L2 Switching / L3 Routing Mode. If your license is older than this, contact your Allied Telesis representative to obtain a new one. C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 522 WITCHING OMMANDS PLATFORM SILICON PROFILE • If there are more than 1000 IPv6 neighbors, you must configure the reachable time to 300,000 ms. To do this (for vlan100 in this example), use the commands: awplus(config)# interface vlan100 awplus(config-if)# ipv6 nd reachable-time 300000 •...
Page 523 WITCHING OMMANDS PLATFORM SILICON PROFILE Related copy running-config Commands: reboot platform routingratio show platform C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 524: Platform Vlan-Stacking-Tpid
WITCHING OMMANDS PLATFORM VLAN STACKING TPID platform vlan-stacking-tpid Overview This command specifies the Tag Protocol Identifier (TPID) value that applies to all frames that are carrying double tagged VLANs. All nested VLANs must use the same TPID value. (This feature is sometimes referred to as VLAN stacking or VLAN double-tagging.) Use the no variant of this command to revert to the default TPID value (0x8100).
Page 525: Polarity
WITCHING OMMANDS POLARITY polarity Overview This command sets the MDI/MDIX polarity on a copper-based switch port. polarity {auto|mdi|mdix} Syntax Parameter Description Sets the polarity to MDI (medium dependent interface). mdix Sets the polarity to MDI-X (medium dependent interface crossover). auto The switch port sets the polarity automatically.
Page 526: Show Debugging Loopprot
WITCHING OMMANDS SHOW DEBUGGING LOOPPROT show debugging loopprot Overview This command shows Loop Protection debugging information. show debugging loopprot Syntax Mode User Exec and Privileged Exec Example To display the enabled Loop Protection debugging modes, use the command: awplus# show debugging loopprot Related debug loopprot Commands...
Page 527: Show Debugging Platform Packet
WITCHING OMMANDS SHOW DEBUGGING PLATFORM PACKET show debugging platform packet Overview This command shows platform to CPU level packet debugging information. show debugging platform packet Syntax Mode User Exec and Privileged Exec Example To display the platform packet debugging information, use the command: awplus# show debugging platform packet Related...
Page 528: Show Flowcontrol Interface
WITCHING OMMANDS SHOW FLOWCONTROL INTERFACE show flowcontrol interface Overview Use this command to display flow control information. show flowcontrol interface <port> Syntax Parameter Description <port> Specifies the name of the port to be displayed. Mode User Exec and Privileged Exec To display the flow control for the port1.1.5, use the command: Example awplus#...
Page 529: Show Interface Err-Disabled
WITCHING OMMANDS SHOW INTERFACE ERR DISABLED show interface err-disabled Overview Use this command to show the ports which have been dynamically shut down by protocols running on the device and the protocols responsible for the shutdown. show interface [<interface-range> err-disabled] Syntax Parameter Description...
Page 530: Show Interface Switchport
WITCHING OMMANDS SHOW INTERFACE SWITCHPORT show interface switchport Overview Use this command to show VLAN information about each switch port. show interface switchport Syntax Mode User Exec and Privileged Exec Example To display VLAN information about each switch port, enter the command: awplus# show interface switchport Output...
Page 531: Show Loop-Protection
WITCHING OMMANDS SHOW LOOP PROTECTION show loop-protection Overview Use this command to display the current loop protection setup for the device. show loop-protection [interface <port-list>] [counters] Syntax Parameter Description interface The interface selected for display. <port-list> A port, a port range, or an aggregated link. counters Displays counter information for loop protection.
Page 532 WITCHING OMMANDS SHOW LOOP PROTECTION awplus#show loop-protection counters  Switch Loop Detection Counter  Interface Rx Invalid Last LDF Rx ------------------------------------------------------------------------- port1.1.1 vlan1 - port1.1.2 vlan1 - port1.1.3 vlan1 - C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 533: Show Mac Address-Table
WITCHING OMMANDS SHOW MAC ADDRESS TABLE show mac address-table Overview Use this command to display the mac address-table for all configured VLANs. show mac address-table Syntax Mode User Exec and Privileged Exec Usage The show mac address-table command is only applicable to view a mac address-table for Layer 2 switched traffic within VLANs.
Page 534 WITCHING OMMANDS SHOW MAC ADDRESS TABLE awplus(config)#mac address-table static 0000.1111.2222 for int  port1.1.11 vlan 2 awplus(config)#end awplus# awplus#show mac address-table  VLAN port type unknown 0000.cd28.0752 forward static port1.1.9 0030.846e.bac7 forward dynamic port1.1.11 0000.1111.2222 forward static unknown 0000.cd28.0752 forward static...
Page 535: Show Mac Address-Table Thrash-Limit
WITCHING OMMANDS SHOW MAC ADDRESS TABLE THRASH LIMIT show mac address-table thrash-limit Overview Use this command to display the current thrash limit set for all interfaces on the device. show mac address-table thrash-limit Syntax Mode User Exec and Privileged Exec Example To display the current, use the following command: awplus#...
Page 536: Show Platform
WITCHING OMMANDS SHOW PLATFORM show platform Overview This command displays the settings configured by using the platform commands. show platform Syntax Mode Privileged Exec Usage This command displays the settings in the running config. For changes in some of these settings to take effect, the device must be rebooted with the new settings in the startup config.
Page 537 WITCHING OMMANDS SHOW PLATFORM Table 15: Parameters in the output of the show platform command (cont.) Parameter Description Fdb-chain-length The length of the FDB hash chain (set with the platform fdb-chain-length command). FDB entries are hashed and indexed using a hash. In rare circumstances it may be useful to reduce the chain length.
Page 538: Show Platform Classifier Statistics Utilization Brief
WITCHING OMMANDS SHOW PLATFORM CLASSIFIER STATISTICS UTILIZATION BRIEF show platform classifier statistics utilization brief Overview This command displays the number of used entries available for various platform functions, and the percentage that number of entries represents of the total available. Syntax show platform classifier statistics utilization brief Mode...
Page 539 The software manages the use and allocation of these bytes automatically. The output of this table is intended for use by Allied Telesis Customer Support only. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series...
Page 540 WITCHING OMMANDS SHOW PLATFORM CLASSIFIER STATISTICS UTILIZATION BRIEF Related show platform Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 541: Show Platform Port
WITCHING OMMANDS SHOW PLATFORM PORT show platform port Overview This command displays the various port registers or platform counters for specified switchports. show platform port [<port-list>|counters] Syntax Parameter Description <port-list> The ports to display information about. A port-list can be: •...
Page 542 WITCHING OMMANDS SHOW PLATFORM PORT Output Figure 14-9: Example output from the show platform port command awplus#show platform port port1.3.0  Card 1.3:  PHY Registers for dev 3 (port 0) Primary Phy: Phy address is: 04 hwMode: 0 QSGMII to Copper Phy temperature: 35 (Degrees C)...
Page 543 WITCHING OMMANDS SHOW PLATFORM PORT Table 17: Parameters in the output from the show platform port command Parameter Description Ethernet MAC counters Combined receive/ Number of packets in each size range received and transmit packets by transmitted. size (octets) counters Number of 64 octet packets received and transmitted.
Page 544 WITCHING OMMANDS SHOW PLATFORM PORT Table 17: Parameters in the output from the show platform port command Parameter Description BroadcastPkts Number of broadcast packets received. PauseMACCtlFrms Number of Pause MAC Control Frames received. OversizePkts Number of oversize packets received. Fragments Number of fragments received.
Page 545 WITCHING OMMANDS SHOW PLATFORM PORT Table 17: Parameters in the output from the show platform port command Parameter Description ifInUcastPkts Inbound interface Unicast counter. ifInDiscards Inbound interface Discarded Packets counter. ipInHdrErrors Inbound interface Header Errors counter. ifOutUcastPkts Outbound interface Unicast counter. ifOutErrors Outbound interface Error counter.
Page 546: Show Port-Security Interface
WITCHING OMMANDS SHOW PORT SECURITY INTERFACE show port-security interface Overview Use this command to show the current port-security configuration and the switch port status. show port-security interface <port> Syntax Parameter Description <port> The port to display information about. The port may be a switch port (e.g.
Page 547: Show Port-Security Intrusion
WITCHING OMMANDS SHOW PORT SECURITY INTRUSION show port-security intrusion Overview Use this command to show the intrusion list. If the port is not specified, the entire intrusion table is shown. show port-security intrusion [interface <port>] Syntax Parameter Description interface Specify a port <port>...
Page 548: Show Provisioning (Card)
WITCHING OMMANDS SHOW PROVISIONING CARD show provisioning (card) Overview This command shows the provisioning status of all installed or provisioned hardware. Provisioning is the preconfiguration necessary to accommodate future connection of line cards and control cards. show provisioning Syntax Mode User Exec and Privileged Exec Example To show provisioning, use the following command:...
Page 549: Show Storm-Control
WITCHING OMMANDS SHOW STORM CONTROL show storm-control Overview Use this command to display storm-control information for all interfaces or a particular interface. show storm-control [<port>] Syntax Parameter Description <port> The port to display information about. The port may be a switch port (e.g.
Page 550: Speed
WITCHING OMMANDS SPEED speed Overview This command changes the speed of the specified port. You can optionally specify the speed or speeds that get autonegotiated, so autonegotiation is only attempted at the specified speeds. To see the currently-negotiated speed for ports whose links are up, use the show interface command.
Page 551 WITCHING OMMANDS SPEED Examples To set an SFP+ to a fixed speed of 10000Mbps, enter the following commands: awplus# configure terminal awplus(config)# interface port1.1.2 awplus(config-if)# speed 10000 To return the port to auto-negotiating its speed, enter the following commands: awplus# configure terminal awplus(config)# interface port1.1.2...
Page 552: Storm-Control Level
WITCHING OMMANDS STORM CONTROL LEVEL storm-control level Overview Use this command to specify the speed limiting level for broadcasting, multicast, or destination lookup failure (DLF) traffic for the port. Storm-control limits the selected traffic type to the specified percentage of the maximum port speed. Use the no variant of this command to disable storm-control for broadcast, multicast or DLF traffic.
Page 553: Switch Card Provision
WITCHING OMMANDS SWITCH CARD PROVISION switch card provision Overview This command enables you to pre-configure a specific empty slot within a specific chassis ready for inserting a particular card type. To run this command, the slot position must be vacant and the selected card type must be one that is currently supported.
Page 554: Switchport Port-Security
WITCHING OMMANDS SWITCHPORT PORT SECURITY switchport port-security Overview Use this command to enable the port-security feature. This feature is also known as the port-based learn limit. It allows the user to set the maximum number of MAC addresses that each port can learn. Use the no variant of this command to disable the port-security feature.
Page 555: Switchport Port-Security Aging
WITCHING OMMANDS SWITCHPORT PORT SECURITY AGING switchport port-security aging Overview Use this command to set MAC addresses that have been learned by port security to age out. Use the no variant of this command to set the MAC addresses to not age out. Syntax switchport port-security aging no switchport port-security aging...
Page 556: Switchport Port-Security Maximum
WITCHING OMMANDS SWITCHPORT PORT SECURITY MAXIMUM switchport port-security maximum Overview Use this command to set the maximum number of MAC addresses that each port can learn. Use the no variant of this command to unset the maximum number of MAC addresses that each port can learn.
Page 557: Switchport Port-Security Violation
WITCHING OMMANDS SWITCHPORT PORT SECURITY VIOLATION switchport port-security violation Overview Use this command to set the action taken on a switch port when the port exceeds the learning limits. The port action can be either shutdown, restrict or protect. If shutdown is set, the physical link will be disabled and “shutdown”...
Page 558: Thrash-Limiting
WITCHING OMMANDS THRASH LIMITING thrash-limiting Overview Sets and configures the thrash limit action that will be applied to any port on the device when a thrashing condition is detected. The thrash-limiting timeout specifies the time, in seconds, for which the thrash action is employed. thrash-limiting {[action Syntax {learn-disable|link-down|port-disable|vlan-disable|none}]...
Page 559 WITCHING OMMANDS THRASH LIMITING To set the thrash limiting action to its default, use the following command: awplus(config-if)# no thrash-limiting action To set the thrash limiting timeout to its default, use the following command: awplus(config-if)# no thrash-limiting timeout Related loop-protection loop-detect Commands loop-protection action loop-protection timeout...
Page 560: Undebug Loopprot
WITCHING OMMANDS UNDEBUG LOOPPROT undebug loopprot Overview This command applies the functionality of the no debug loopprot command. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 561: Undebug Platform Packet
WITCHING OMMANDS UNDEBUG PLATFORM PACKET undebug platform packet Overview This command applies the functionality of the no debug platform packet command. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 562: Chapter 15: Vlan Commands
VLAN Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure VLANs. For more information see the VLAN Feature Overview and Configuration Guide. Command List • “port-vlan-forwarding-priority” on page 564 • “private-vlan” on page 567 • “private-vlan association”...
Page 563 VLAN C OMMANDS • “switchport private-vlan host-association” on page 587 • “switchport private-vlan mapping” on page 588 • “switchport trunk allowed vlan” on page 589 • “switchport trunk native vlan” on page 592 • “switchport vlan-stacking (double tagging)” on page 593 •...
Page 564: Port-Vlan-Forwarding-Priority
VLAN C OMMANDS PORT VLAN FORWARDING PRIORITY port-vlan-forwarding-priority Overview Use this command to specify which protocol has the highest priority for controlling transitions from blocking to forwarding traffic, when more than one of EPSR, Loop Protection, and MAC thrashing protection are used on the switch. These protocols use the same mechanism to block or forward traffic.
Page 565 VLAN C OMMANDS PORT VLAN FORWARDING PRIORITY effects on a port would conflict and override each other. Without this command, each protocol could set a port to forwarding for a VLAN, sometimes overriding the previous setting by another protocol to block the port. This could sometimes lead to unexpected broadcast storms.
Page 566 VLAN C OMMANDS PORT VLAN FORWARDING PRIORITY To prioritize Loop Protection over EPSR or MAC Thrashing protection settings, so that EPSR or MAC Thrashing protection cannot set a port to the forwarding state for a VLAN if Loop Protection has set it to the blocking state, use the commands: awplus# configure terminal awplus(config)#...
Page 567: Private-Vlan
VLAN C OMMANDS PRIVATE VLAN private-vlan Overview Use this command to a create a private VLAN. Private VLANs can be either primary or secondary. Secondary VLANs can be ether community or isolated. Use the no variant of this command to remove the specified private VLAN. For more information, see the VLAN Feature Overview and Configuration Guide.
Page 568: Private-Vlan Association
VLAN C OMMANDS PRIVATE VLAN ASSOCIATION private-vlan association Overview Use this command to associate a secondary VLAN to a primary VLAN. Only one isolated VLAN can be associated to a primary VLAN. Multiple community VLANs can be associated to a primary VLAN. Use the no variant of this command to remove association of all the secondary VLANs to a primary VLAN.
Page 569: Show Port-Vlan-Forwarding-Priority
VLAN C OMMANDS SHOW PORT VLAN FORWARDING PRIORITY show port-vlan-forwarding-priority Overview Use this command to display the highest priority protocol that controls port-vlan forwarding or blocking traffic. This command displays whether EPSR or Loop Protection is set as the highest priority for determining whether a port forwards a VLAN, as set by the port-vlan-forwarding-priority command.
Page 570: Show Vlan
VLAN C OMMANDS SHOW VLAN show vlan Overview Use this command to display information about a particular VLAN by specifying its VLAN ID. Selecting all will display information for all the VLANs configured. show vlan Syntax {all|brief|dynamic|static|auto|static-ports|<1-4094>} Parameter Description <1-4094> Display information about the VLAN specified by the VLAN ID.
Page 571: Show Vlan Access-Map
VLAN C OMMANDS SHOW VLAN ACCESS show vlan access-map Overview Use this command to display information about the configured VLAN access-maps. VLAN access-maps contain a series of ACLs and enable you to filter traffic ingressing specified VLANs. show vlan access-map [<name>] Syntax Parameter Description...
Page 572: Show Vlan Classifier Group
VLAN C OMMANDS SHOW VLAN CLASSIFIER GROUP show vlan classifier group Overview Use this command to display information about all configured VLAN classifier groups or a specific group. show vlan classifier group [<1-16>] Syntax Parameter Description <1-16> VLAN classifier group identifier Mode User Exec and Privileged Exec Usage...
Page 573: Show Vlan Classifier Group Interface
VLAN C OMMANDS SHOW VLAN CLASSIFIER GROUP INTERFACE show vlan classifier group interface Overview Use this command to display information about a single switch port interface for all configured VLAN classifier groups. show vlan classifier group interface <switch-port> Syntax Parameter Description <switch-port>...
Page 574: Show Vlan Classifier Interface Group
VLAN C OMMANDS SHOW VLAN CLASSIFIER INTERFACE GROUP show vlan classifier interface group Overview Use this command to display information about all interfaces configured for a VLAN group or all the groups. show vlan classifier interface group [<1-16>] Syntax Parameter Description <1-16>...
Page 575: Show Vlan Classifier Rule
VLAN C OMMANDS SHOW VLAN CLASSIFIER RULE show vlan classifier rule Overview Use this command to display information about all configured VLAN classifier rules or a specific rule. show vlan classifier rule [<1-256>] Syntax Parameter Description <1-256> VLAN classifier rule identifier Mode User Exec and Privileged Exec Usage...
Page 576: Show Vlan Filter
VLAN C OMMANDS SHOW VLAN FILTER show vlan filter Overview Use this command to display information about the configured VLAN filters. VLAN filters apply access-maps (and therefore ACLs) to VLANs. This enables you to filter traffic ingressing specified VLANs. show vlan filter [<access-map-name>] Syntax Parameter Description...
Page 577: Show Vlan Private-Vlan
VLAN C OMMANDS SHOW VLAN PRIVATE VLAN show vlan private-vlan Overview Use this command to display the private VLAN configuration and associations. show vlan private-vlan Syntax Mode User Exec and Privileged Exec Example To display the private VLAN configuration and associations, enter the command: awplus# show vlan private-vlan Output...
Page 578: Switchport Access Vlan
VLAN C OMMANDS SWITCHPORT ACCESS VLAN switchport access vlan Overview Use this command to change the port-based VLAN of the current port. Use the no variant of this command to change the port-based VLAN of this port to the default VLAN, vlan1. Syntax switchport access vlan <vlan-id>...
Page 579: Switchport Enable Vlan
VLAN C OMMANDS SWITCHPORT ENABLE VLAN switchport enable vlan Overview This command enables the VLAN on the port manually once disabled by certain actions, such as QSP (QoS Storm Protection) or EPSR (Ethernet Protection Switching Ring). Note that if the VID is not given, all disabled VLANs are re-enabled. switchport enable vlan [<1-4094>] Syntax Parameter...
Page 580: Switchport Mode Access
VLAN C OMMANDS SWITCHPORT MODE ACCESS switchport mode access Overview Use this command to set the switching characteristics of the port to access mode. Received frames are classified based on the VLAN characteristics, then accepted or discarded based on the specified filtering criteria. switchport mode access [ingress-filter {enable|disable}] Syntax Parameter...
Page 581: Switchport Mode Private-Vlan
VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN switchport mode private-vlan Overview Use this command to make a Layer 2 port a private VLAN host port or a promiscuous port. Use the no variant of this command to remove the configuration. Syntax switchport mode private-vlan {host|promiscuous} no switchport mode private-vlan {host|promiscuous}...
Page 582: Switchport Mode Private-Vlan Trunk Promiscuous
VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN TRUNK PROMISCUOUS switchport mode private-vlan trunk promiscuous Overview Use this command to enable a port in trunk mode to be promiscuous port for isolated VLANs. : Private VLAN trunk ports are not supported by the current AlliedWare Plus GVRP NOTE implementation.
Page 583 VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN TRUNK PROMISCUOUS To create the isolated VLANs 2, 3 and 4 and then enable port1.1.2 in trunk Examples mode as a promiscuous port for these VLANs with the group ID of 3, use the following commands: awplus# configure terminal...
Page 584: Switchport Mode Private-Vlan Trunk Secondary
VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN TRUNK SECONDARY switchport mode private-vlan trunk secondary Overview Use this command to enable a port in trunk mode to be a secondary port for isolated VLANs. : Private VLAN trunk ports are not supported by the current AlliedWare Plus GVRP NOTE implementation.
Page 585 VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN TRUNK SECONDARY To create isolated private VLAN 2 and then enable port1.1.3 in trunk mode as Examples a secondary port for the this VLAN with the group ID of 3, use the following commands: awplus# configure terminal...
Page 586: Switchport Mode Trunk
VLAN C OMMANDS SWITCHPORT MODE TRUNK switchport mode trunk Overview Use this command to set the switching characteristics of the port to trunk. Received frames are classified based on the VLAN characteristics, then accepted or discarded based on the specified filtering criteria. switchport mode trunk [ingress-filter {enable|disable}] Syntax Parameter...
Page 587: Switchport Private-Vlan Host-Association
VLAN C OMMANDS SWITCHPORT PRIVATE VLAN HOST ASSOCIATION switchport private-vlan host-association Overview Use this command to associate a primary VLAN and a secondary VLAN to a host port. Only one primary and secondary VLAN can be associated to a host port. Use the no variant of this command to remove the association.
Page 588: Switchport Private-Vlan Mapping
VLAN C OMMANDS SWITCHPORT PRIVATE VLAN MAPPING switchport private-vlan mapping Overview Use this command to associate a primary VLAN and a set of secondary VLANs to a promiscuous port. Use the no variant of this to remove all the association of secondary VLANs to primary VLANs for a promiscuous port.
Page 589: Switchport Trunk Allowed Vlan
VLAN C OMMANDS SWITCHPORT TRUNK ALLOWED VLAN switchport trunk allowed vlan Overview Use this command to add VLANs to be trunked over this switch port. Traffic for these VLANs can be sent and received on the port. Use the no variant of this command to reset switching characteristics of a specified interface to negate a trunked configuration specified with switchport trunk allowed vlan command.
Page 590 VLAN C OMMANDS SWITCHPORT TRUNK ALLOWED VLAN Usage The all parameter sets the port to be a tagged member of all the VLANs configured on the device. The none parameter removes all VLANs from the port’s tagged member set. The add and remove parameters will add and remove VLANs to and from the port’s member set.
Page 591 VLAN C OMMANDS SWITCHPORT TRUNK ALLOWED VLAN Examples The following shows adding a single VLAN to the port’s member set. awplus# configure terminal awplus(config)# interface port1.1.2 awplus(config-if)# switchport trunk allowed vlan add 2 The following shows adding a range of VLANs to the port’s member set. awplus# configure terminal awplus(config)#...
Page 592: Switchport Trunk Native Vlan
VLAN C OMMANDS SWITCHPORT TRUNK NATIVE VLAN switchport trunk native vlan Overview Use this command to configure the native VLAN for this port. The native VLAN is used for classifying the incoming untagged packets. Use the none parameter with this command to remove the native VLAN from the port and set the acceptable frame types to vlan-tagged only.
Page 593: Switchport Vlan-Stacking (Double Tagging)
VLAN C OMMANDS SWITCHPORT VLAN STACKING DOUBLE TAGGING switchport vlan-stacking (double tagging) Overview Use this command to enable VLAN stacking on a port and set it to be a customer-edge-port or provider-port. This is sometimes referred to as VLAN double-tagging, nested VLANs, or Q in Q. Use no parameter with this command to disable VLAN stacking on an interface.
Page 594: Switchport Voice Dscp
VLAN C OMMANDS SWITCHPORT VOICE DSCP switchport voice dscp Overview Use this command for a specific port to configure the Layer 3 DSCP value advertised when the transmission of LLDP-MED Network Policy TLVs for voice devices is enabled. When LLDP-MED capable IP phones receive this network policy information, they transmit voice data with the specified DSCP value.
Page 595: Switchport Voice Vlan
VLAN C OMMANDS SWITCHPORT VOICE VLAN switchport voice vlan Overview Use this command to configure the Voice VLAN tagging advertised when the transmission of LLDP-MED Network Policy TLVs for voice endpoint devices is enabled. When LLDP-MED capable IP phones receive this network policy information, they transmit voice data with the specified tagging.
Page 596 VLAN C OMMANDS SWITCHPORT VOICE VLAN If the Voice VLAN details are to be assigned by RADIUS, then the RADIUS server must be configured to send the attribute “Egress-VLANID (56)” or “Egress-VLAN-Name (58)” in the RADIUS Accept message when authenticating a phone attached to this port.
Page 597 VLAN C OMMANDS SWITCHPORT VOICE VLAN Related egress-vlan-id Commands egress-vlan-name lldp med-tlv-select spanning-tree edgeport (RSTP and MSTP) switchport voice dscp switchport voice vlan priority show lldp C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 598: Switchport Voice Vlan Priority
VLAN C OMMANDS SWITCHPORT VOICE VLAN PRIORITY switchport voice vlan priority Overview Use this command to configure the Layer 2 user priority advertised when the transmission of LLDP-MED Network Policy TLVs for voice devices is enabled. This is the priority in the User Priority field of the IEEE 802.1Q VLAN tag, also known as the Class of Service (CoS), or 802.1p priority.
Page 599: Vlan
VLAN C OMMANDS VLAN vlan Overview This command creates VLANs, assigns names to them, and enables or disables them. Disabling the VLAN causes all forwarding over the specified VLAN ID to cease. Enabling the VLAN allows forwarding of frames on the specified VLAN. The no variant of this command destroys the specified VLANs or returns their MTU to the default.
Page 600: Vlan Access-Map
VLAN C OMMANDS VLAN ACCESS vlan access-map Overview Use this command to create a VLAN access-map and enter into VLAN access-map mode, so you can add ACLs to the map. You can use any IPv4 or IPv6 hardware ACLs. VLAN access-maps are used to attach ACLs to VLANs, and therefore to filter traffic as it ingresses VLANs.
Page 601: Vlan Classifier Activate
VLAN C OMMANDS VLAN CLASSIFIER ACTIVATE vlan classifier activate Overview Use this command in Interface Configuration mode to associate a VLAN classifier group with the switch port. Use the no variant of this command to remove the VLAN classifier group from the switch port.
Page 602: Vlan Classifier Group
VLAN C OMMANDS VLAN CLASSIFIER GROUP vlan classifier group Overview Use this command to create a group of VLAN classifier rules. The rules must already have been created. Use the no variant of this command to delete a group of VLAN classifier rules. Syntax vlan classifier group <1-16>...
Page 603: Vlan Classifier Rule Ipv4
VLAN C OMMANDS VLAN CLASSIFIER RULE IPV vlan classifier rule ipv4 Overview Use this command to create an IPv4 subnet-based VLAN classifier rule and map it to a specific VLAN. Use the no variant of this command to delete the VLAN classifier rule.
Page 604: Vlan Classifier Rule Proto
VLAN C OMMANDS VLAN CLASSIFIER RULE PROTO vlan classifier rule proto Overview Use this command to create a protocol type-based VLAN classifier rule, and map it to a specific VLAN. See the published IANA EtherType IEEE 802 numbers here: www.iana.org/assignments/ieee-802-numbers/ieee-802-numbers.txt. Instead of a protocol name the decimal value of the protocol's EtherType can be entered.
Page 605 VLAN C OMMANDS VLAN CLASSIFIER RULE PROTO Parameter Description [decsyscomm|24583] DEC Systems Comms Arch protocol [g8bpqx25|2303] G8BPQ AX.25 protocol [ieeeaddrtrans|2561] Xerox IEEE802.3 PUP Address [ieeepup|2560] Xerox IEEE802.3 PUP protocol [ip|2048] IP protocol [ipv6|34525] IPv6 protocol [ipx|33079] IPX protocol [netbeui|61680] IBM NETBIOS/NETBEUI protocol [netbeui|61681] IBM NETBIOS/NETBEUI...
Page 606 VLAN C OMMANDS VLAN CLASSIFIER RULE PROTO awplus# configure terminal Example awplus(config)# vlan classifier rule 1 proto x25 encap ethv2 vlan 2 awplus(config)# vlan classifier rule 2 proto 512 encap ethv2 vlan 2 awplus(config)# vlan classifier rule 3 proto 2056 encap ethv2 vlan 2 awplus(config)# vlan classifier rule 4 proto 2054 encap ethv2...
Page 607: Vlan Database
VLAN C OMMANDS VLAN DATABASE vlan database Overview Use this command to enter the VLAN Configuration mode. vlan database Syntax Mode Global Configuration Usage Use this command to enter the VLAN configuration mode. You can then add or delete a VLAN, or modify its values. Example In the following example, note the change to VLAN configuration mode from Configure mode:...
Page 608: Vlan Filter
VLAN C OMMANDS VLAN FILTER vlan filter Overview Use this command to apply a VLAN access-map to a list of VLANs. The switch uses the ACLs in the access-map to filter traffic ingressing those VLANs. See the ACL Feature Overview and Configuration Guide for more information, including information about the number of rules consumed by per-VLAN ACLs, and ACL processing order.
Page 609: Chapter 16: Spanning Tree Commands
Spanning Tree Commands Introduction Overview This chapter provides an alphabetical reference for commands used to configure RSTP, STP or MSTP. For information about spanning trees, including configuration procedures, see the STP Feature Overview and Configuration Guide. Command List • “clear spanning-tree statistics”...
Page 610 PANNING OMMANDS • “show spanning-tree statistics instance” on page 641 • “show spanning-tree statistics instance interface” on page 642 • “show spanning-tree statistics interface” on page 644 • “show spanning-tree vlan range-index” on page 646 • “spanning-tree autoedge (RSTP and MSTP)”...
Page 611: Clear Spanning-Tree Statistics
PANNING OMMANDS CLEAR SPANNING TREE STATISTICS clear spanning-tree statistics Overview Use this command to clear all the STP BPDU (Bridge Protocol Data Unit) statistics. clear spanning-tree statistics Syntax clear spanning-tree statistics [instance <mstp-instance>] clear spanning-tree statistics [interface <port> [instance <mstp-instance>]] Parameter Description <port>...
Page 612: Clear Spanning-Tree Detected Protocols (Rstp And Mstp)
PANNING OMMANDS (RSTP MSTP) CLEAR SPANNING TREE DETECTED PROTOCOLS clear spanning-tree detected protocols (RSTP and MSTP) Overview Use this command to clear the detected protocols for a specific port, or all ports. Use this command in RSTP or MSTP mode only. clear spanning-tree detected protocols [interface <port>] Syntax Parameter...
Page 613: Debug Mstp (Rstp And Stp)
PANNING OMMANDS (RSTP STP) DEBUG MSTP debug mstp (RSTP and STP) Overview Use this command to enable debugging for the configured spanning tree mode, and echo data to the console, at various levels. Note that although this command uses the keyword mstp it displays debugging output for RSTP and STP protocols as well the MSTP protocol.
Page 614 PANNING OMMANDS (RSTP STP) DEBUG MSTP command. The default terminal monitor filter will select and display these messages. Alternatively, the messages can be directed to any of the other log outputs by adding a filter for the MSTP application using log buffered (filter) command: awplus#...
Page 615 PANNING OMMANDS (RSTP STP) DEBUG MSTP awplus#terminal monitor awplus#debug mstp packet rx decode interface port1.1.19 17:23:42 awplus MSTP[1417]: port1.1.19 xSTP BPDU rx - start 17:23:42 awplus MSTP[1417]: Protocol version: MSTP, BPDU type: RST 17:23:42 awplus MSTP[1417]: CIST Flags: Agree Forward Learn role=Desig 17:23:42 awplus MSTP[1417]: CIST root id : 0000:0000cd1000fe...
Page 616 PANNING OMMANDS (RSTP STP) DEBUG MSTP awplus#terminal monitor awplus#debug mstp packet rx decode interface port1.1.19 awplus#17:30:17 awplus MSTP[1417]: port1.1.19 xSTP BPDU rx - start 17:30:17 awplus MSTP[1417]: Protocol version: RSTP, BPDU type: RST 17:30:17 awplus MSTP[1417]: CIST Flags: Forward Learn role=Desig 17:30:17 awplus MSTP[1417]: CIST root id : 8000:0000cd1000fe...
Page 617: Instance Priority (Mstp)
PANNING OMMANDS (MSTP) INSTANCE PRIORITY instance priority (MSTP) Overview Use this command to set the priority for this device to become the root bridge for the specified MSTI (Multiple Spanning Tree Instance). Use this command for MSTP only. Use the no variant of this command to restore the root bridge priority of the device for the instance to the default.
Page 618 PANNING OMMANDS (MSTP) INSTANCE PRIORITY Related region (MSTP) Commands revision (MSTP) show spanning-tree mst config spanning-tree mst instance spanning-tree mst instance priority C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 619: Instance Vlan (Mstp)
PANNING OMMANDS (MSTP) INSTANCE VLAN instance vlan (MSTP) Overview Use this command to create an MST Instance (MSTI), and associate the specified VLANs with it. An MSTI is a spanning tree instance that exists within an MST region (MSTR). When a VLAN is associated with an MSTI the member ports of the VLAN are automatically configured to send and receive spanning-tree information for the associated MSTI.
Page 620 PANNING OMMANDS (MSTP) INSTANCE VLAN Related region (MSTP) Commands revision (MSTP) show spanning-tree mst config spanning-tree mst instance vlan C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 621: Region (Mstp)
PANNING OMMANDS (MSTP) REGION region (MSTP) Overview Use this command to assign a name to the device’s MST Region. MST Instances (MSTI) of a region form different spanning trees for different VLANs. Use this command for MSTP only. Use the no variant of this command to remove this region name and reset it to the default.
Page 622: Revision (Mstp)
PANNING OMMANDS (MSTP) REVISION revision (MSTP) Overview Use this command to specify the MST revision number to be used in the configuration identifier. Use this command for MSTP only. Syntax revision <revision-number> Parameter Description <revision-number> <0-65535> Revision number. Default The default of revision number is 0. Mode MST Configuration Usage...
Page 623: Show Debugging Mstp
PANNING OMMANDS SHOW DEBUGGING MSTP show debugging mstp Overview Use this command to show the MSTP debugging options set. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show debugging mstp Mode User Exec and Privileged Exec mode...
Page 624: Show Spanning-Tree
PANNING OMMANDS SHOW SPANNING TREE show spanning-tree Overview Use this command to display detailed spanning tree information on the specified port or on all ports. Use this command for RSTP, MSTP or STP. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 625 PANNING OMMANDS SHOW SPANNING TREE Output Figure 16-2: Example output from show spanning-tree in RSTP mode awplus#show spanning-tree % 1: Bridge up - Spanning Tree Enabled % 1: Root Path Cost 0 - Root Port 0 - Bridge Priority 32768 % 1: Forward Delay 15 - Hello Time 2 - Max Age 20...
Page 626 PANNING OMMANDS SHOW SPANNING TREE awplus#show spanning-tree 13:03:34 awplus IMISH[13974]: show spanning-tree % Default: Bridge up - Spanning Tree Enabled - topology change detected % Default: Root Path Cost 0 - Root Port 0 - Bridge Priority 32768 % Default: Forward Delay 15 - Hello Time 2 - Max Age 20 - Transmit Hold Count 6 % Default: Root Id 8000eccd6d031123...
Page 627: Show Spanning-Tree Brief
PANNING OMMANDS SHOW SPANNING TREE BRIEF show spanning-tree brief Overview Use this command to display a summary of spanning tree status information on all ports. Use this command for RSTP, MSTP or STP. show spanning-tree brief Syntax Parameter Description brief A brief summary of spanning tree information.
Page 628: Show Spanning-Tree Mst
PANNING OMMANDS SHOW SPANNING TREE MST show spanning-tree mst Overview This command displays bridge-level information about the CIST and VLAN to MSTI mappings. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 629: Show Spanning-Tree Mst Config
PANNING OMMANDS SHOW SPANNING TREE MST CONFIG show spanning-tree mst config Overview Use this command to display MSTP configuration identifier for the device. show spanning-tree mst config Syntax Mode User Exec, Privileged Exec and Interface Configuration Usage The region name, the revision number, and the digest of the VLAN to MSTI configuration table must be the same on all devices that are intended to be in the same MST region.
Page 630: Show Spanning-Tree Mst Detail
PANNING OMMANDS SHOW SPANNING TREE MST DETAIL show spanning-tree mst detail Overview This command displays detailed information about each instance, and all interfaces associated with that particular instance. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 631 PANNING OMMANDS SHOW SPANNING TREE MST DETAIL port1.1.3: Port 5003 - Id 838b - Role Disabled - State Discarding port1.1.3: Designated External Path Cost 0 -Internal Path Cost 0 port1.1.3: Configured Path Cost 20000000 - Add type Explicit ref count 1 port1.1.3: Designated Port Id 838b - CIST Priority 128 -...
Page 632: Show Spanning-Tree Mst Detail Interface
PANNING OMMANDS SHOW SPANNING TREE MST DETAIL INTERFACE show spanning-tree mst detail interface Overview This command displays detailed information about the specified switch port, and the MST instances associated with it. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 633 PANNING OMMANDS SHOW SPANNING TREE MST DETAIL INTERFACE port1.1.2: No portfast configured - Current portfast off port1.1.2: portfast bpdu-guard default - Current portfast bpdu-guard off port1.1.2: portfast bpdu-filter default - Current portfast bpdu-filter off port1.1.2: no root guard configured - Current root guard off port1.1.2: Configured Link Type point-to-point - Current shared...
Page 634: Show Spanning-Tree Mst Instance
PANNING OMMANDS SHOW SPANNING TREE MST INSTANCE show spanning-tree mst instance Overview This command displays detailed information for the specified instance, and all switch ports associated with that instance. A topology change counter has been included for RSTP and MSTP. You can see the topology change counter for RSTP by using the show spanning-tree command.
Page 635: Show Spanning-Tree Mst Instance Interface
PANNING OMMANDS SHOW SPANNING TREE MST INSTANCE INTERFACE show spanning-tree mst instance interface Overview This command displays detailed information for the specified MST (Multiple Spanning Tree) instance, and the specified switch port associated with that MST instance. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 636: Show Spanning-Tree Mst Interface
PANNING OMMANDS SHOW SPANNING TREE MST INTERFACE show spanning-tree mst interface Overview This command displays the number of instances created, and VLANs associated with it for the specified switch port. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 637 PANNING OMMANDS SHOW SPANNING TREE MST DETAIL INTERFACE show spanning-tree mst detail interface Overview This command displays detailed information about the specified switch port, and the MST instances associated with it. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 638 PANNING OMMANDS SHOW SPANNING TREE MST DETAIL INTERFACE port1.1.2: No portfast configured - Current portfast off port1.1.2: portfast bpdu-guard default - Current portfast bpdu-guard off port1.1.2: portfast bpdu-filter default - Current portfast bpdu-filter off port1.1.2: no root guard configured - Current root guard off port1.1.2: Configured Link Type point-to-point - Current shared...
Page 639: Show Spanning-Tree Statistics
PANNING OMMANDS SHOW SPANNING TREE STATISTICS show spanning-tree statistics Overview This command displays BPDU (Bridge Protocol Data Unit) statistics for all spanning-tree instances, and all switch ports associated with all spanning-tree instances. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 640 PANNING OMMANDS SHOW SPANNING TREE STATISTICS % STATUS of Port Timers % --------------------- % Hello Time Configured : 2 % Hello timer : INACTIVE % Hello Time Value : 0 % Forward Delay Timer : INACTIVE % Forward Delay Timer Value : 0...
Page 641: Show Spanning-Tree Statistics Instance
PANNING OMMANDS SHOW SPANNING TREE STATISTICS INSTANCE show spanning-tree statistics instance Overview This command displays BPDU (Bridge Protocol Data Unit) statistics for the specified MST (Multiple Spanning Tree) instance, and all switch ports associated with that MST instance. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 642: Show Spanning-Tree Statistics Instance Interface
PANNING OMMANDS SHOW SPANNING TREE STATISTICS INSTANCE INTERFACE show spanning-tree statistics instance interface Overview This command displays BPDU (Bridge Protocol Data Unit) statistics for the specified MST (Multiple Spanning Tree) instance and the specified switch port associated with that MST instance. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 643 PANNING OMMANDS SHOW SPANNING TREE STATISTICS INSTANCE INTERFACE Output Figure 16-15: Example output from show spanning-tree statistics instance interface awplus#sh spanning-tree statistics interface port1.1.2 instance 1 Spanning Tree Enabled for Instance : 1 ================================== % INST_PORT port1.1.2 Information & Statistics % ----------------------------------------...
Page 644: Show Spanning-Tree Statistics Interface
PANNING OMMANDS SHOW SPANNING TREE STATISTICS INTERFACE show spanning-tree statistics interface Overview This command displays BPDU (Bridge Protocol Data Unit) statistics for the specified switch port, and all MST instances associated with that switch port. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 645 PANNING OMMANDS SHOW SPANNING TREE STATISTICS INTERFACE % PORT Based Information & Statistics % ----------------------------------- % Config Bpdu's xmitted : 0 % Config Bpdu's received : 0 % TCN Bpdu's xmitted : 0 % TCN Bpdu's received : 0 % Forward Trans Count : 0...
Page 646: Show Spanning-Tree Vlan Range-Index
PANNING OMMANDS SHOW SPANNING TREE VLAN RANGE INDEX show spanning-tree vlan range-index Overview Use this command to display information about MST (Multiple Spanning Tree) instances and the VLANs associated with them including the VLAN range-index value for the device. show spanning-tree vlan range-index Syntax Mode Privileged Exec...
Page 647: Spanning-Tree Autoedge (Rstp And Mstp)
PANNING OMMANDS (RSTP MSTP) SPANNING TREE AUTOEDGE spanning-tree autoedge (RSTP and MSTP) Overview Use this command to enable the autoedge feature on the port. The autoedge feature allows the port to automatically detect that it is an edge port. If it does not receive any BPDUs in the first three seconds after linkup, enabling, or entering RSTP or MSTP mode, it sets itself to be an edgeport and enters the forwarding state.
Page 648: Spanning-Tree Bpdu
PANNING OMMANDS SPANNING TREE BPDU spanning-tree bpdu Overview Use this command to configure BPDU (Bridge Protocol Data Unit) discarding or forwarding, when STP is disabled on the switch. This may be needed for correct STP operation in complex networks. There is no no variant for this command. Instead, apply the discard parameter to reset it back to the default then re-enable STP with the command spanning-tree enable.
Page 649 PANNING OMMANDS SPANNING TREE BPDU Examples To enable STP BPDU discard in Global Configuration mode with STP disabled, which discards all ingress STP BPDU frames, enter the commands: awplus# configure terminal awplus(config)# no spanning-tree rstp enable awplus(config)# spanning-tree bpdu discard To enable STP BPDU forward in Global Configuration mode with STP disabled, which forwards any ingress STP BPDU frames to all ports regardless of any VLAN membership, enter the commands:...
Page 650: Spanning-Tree Cisco-Interoperability (Mstp)
PANNING OMMANDS (MSTP) SPANNING TREE CISCO INTEROPERABILITY spanning-tree cisco-interoperability (MSTP) Overview Use this command to enable/disable Cisco-interoperability for MSTP. Use this command for MSTP only. Syntax spanning-tree cisco-interoperability {enable|disable} Parameter Description enable Enable Cisco interoperability for MSTP. disable Disable Cisco interoperability for MSTP. Default If this command is not used, Cisco interoperability is disabled.
Page 651: Spanning-Tree Edgeport (Rstp And Mstp)
PANNING OMMANDS (RSTP MSTP) SPANNING TREE EDGEPORT spanning-tree edgeport (RSTP and MSTP) Overview Use this command to set a port as an edge-port. Use this command for RSTP or MSTP. This command has the same effect as the spanning-tree portfast (STP) command, but the configuration displays differently in the output of some show commands.
Page 652: Spanning-Tree Enable
PANNING OMMANDS SPANNING TREE ENABLE spanning-tree enable Overview Use this command in Global Configuration mode to enable the specified spanning tree protocol for all switch ports. Note that this must be the spanning tree protocol that is configured on the device by the spanning-tree mode command.
Page 653 PANNING OMMANDS SPANNING TREE ENABLE To disable RSTP in Global Configuration mode, enter the below commands: awplus# configure terminal awplus(config)# no spanning-tree rstp enable Related spanning-tree mode Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 654: Spanning-Tree Errdisable-Timeout Enable
PANNING OMMANDS SPANNING TREE ERRDISABLE TIMEOUT ENABLE spanning-tree errdisable-timeout enable Overview Use this command to enable the errdisable-timeout facility, which sets a timeout for ports that are disabled due to the BPDU guard feature. Use this command for RSTP or MSTP. Use the no variant of this command to disable the errdisable-timeout facility.
Page 655: Spanning-Tree Errdisable-Timeout Interval
PANNING OMMANDS SPANNING TREE ERRDISABLE TIMEOUT INTERVAL spanning-tree errdisable-timeout interval Overview Use this command to specify the time interval after which a port is brought back up when it has been disabled by the BPDU guard feature. Use this command for RSTP or MSTP. Syntax spanning-tree errdisable-timeout interval <10-1000000>...
Page 656: Spanning-Tree Force-Version
PANNING OMMANDS SPANNING TREE FORCE VERSION spanning-tree force-version Overview Use this command in Interface Configuration mode for a switch port interface only to force the protocol version for the switch port. Use this command for RSTP or MSTP only. spanning-tree force-version <version> Syntax no spanning-tree force-version Parameter...
Page 657: Spanning-Tree Forward-Time
PANNING OMMANDS SPANNING TREE FORWARD TIME spanning-tree forward-time Overview Use this command to set the forward delay value. Use the no variant of this command to reset the forward delay value to the default setting of 15 seconds. The forward delay sets the time (in seconds) to control how fast a port changes its spanning tree state when moving towards the forwarding state.
Page 658: Spanning-Tree Guard Root
PANNING OMMANDS SPANNING TREE GUARD ROOT spanning-tree guard root Overview Use this command in Interface Configuration mode for a switch port only to enable the Root Guard feature for the switch port. The root guard feature disables reception of superior BPDUs. You can use this command for RSTP, STP or MSTP. Use the no variant of this command to disable the root guard feature for the port.
Page 659: Spanning-Tree Hello-Time
PANNING OMMANDS SPANNING TREE HELLO TIME spanning-tree hello-time Overview Use this command to set the hello-time. This sets the time in seconds between the transmission of device spanning tree configuration information when the device is the Root Bridge of the spanning tree or is trying to become the Root Bridge. Use this command for RSTP, STP or MSTP.
Page 660: Spanning-Tree Link-Type
PANNING OMMANDS SPANNING TREE LINK TYPE spanning-tree link-type Overview Use this command in Interface Configuration mode for a switch port interface only to enable or disable point-to-point or shared link types on the switch port. Use this command for RSTP or MSTP only. Use the no variant of this command to return the port to the default link type.
Page 661: Spanning-Tree Max-Age
PANNING OMMANDS SPANNING TREE MAX spanning-tree max-age Overview Use this command to set the max-age. This sets the maximum age, in seconds, that dynamic spanning tree configuration information is stored in the device before it is discarded. Use this command for RSTP, STP or MSTP. Use the no variant of this command to restore the default of max-age.
Page 662: Spanning-Tree Max-Hops (Mstp)
PANNING OMMANDS (MSTP) SPANNING TREE MAX HOPS spanning-tree max-hops (MSTP) Overview Use this command to specify the maximum allowed hops for a BPDU in an MST region. This parameter is used by all the instances of the MST region. Use the no variant of this command to restore the default. Use this command for MSTP only.
Page 663: Spanning-Tree Mode
PANNING OMMANDS SPANNING TREE MODE spanning-tree mode Overview Use this command to change the spanning tree protocol mode on the device. The spanning tree protocol mode on the device can be configured to either STP, RSTP or MSTP. spanning-tree mode {stp|rstp|mstp} Syntax Default The default spanning tree protocol mode on the device is RSTP.
Page 664: Spanning-Tree Mst Configuration
PANNING OMMANDS SPANNING TREE MST CONFIGURATION spanning-tree mst configuration Overview Use this command to enter the MST Configuration mode to configure the Multiple Spanning-Tree Protocol. spanning-tree mst configuration Syntax Mode Global Configuration Examples The following example uses this command to enter MST Configuration mode. Note the change in the command prompt.
Page 665: Spanning-Tree Mst Instance
PANNING OMMANDS SPANNING TREE MST INSTANCE spanning-tree mst instance Overview Use this command to assign a Multiple Spanning Tree instance (MSTI) to a switch port or channel group. Note that ports are automatically configured to send and receive spanning-tree information for the associated MSTI when VLANs are assigned to MSTIs using the instance vlan (MSTP) command.
Page 666: Spanning-Tree Mst Instance Path-Cost
PANNING OMMANDS SPANNING TREE MST INSTANCE PATH COST spanning-tree mst instance path-cost Overview Use this command to set the cost of a path associated with a switch port, for the specified MSTI. This specifies the switch port’s contribution to the cost of a path to the MSTI regional root via that port.
Page 667 PANNING OMMANDS SPANNING TREE MST INSTANCE PATH COST To return the path cost to its default value on instance 3, use the commands: awplus# configure terminal awplus(config)# interface port1.1.2 awplus(config-if)# no spanning-tree mst instance 3 path-cost Related instance vlan (MSTP) Commands spanning-tree mst instance spanning-tree mst instance priority...
Page 668: Spanning-Tree Mst Instance Priority
PANNING OMMANDS SPANNING TREE MST INSTANCE PRIORITY spanning-tree mst instance priority Overview Use this command in Interface Configuration mode for a switch port interface only to set the port priority for an MST instance (MSTI). Use the no variant of this command to restore the default priority value (128). Syntax spanning-tree mst instance <instance-id>...
Page 669: Spanning-Tree Mst Instance Restricted-Role
PANNING OMMANDS SPANNING TREE MST INSTANCE RESTRICTED ROLE spanning-tree mst instance restricted-role Overview Use this command in Interface Configuration mode for a switch port interface only to enable the restricted role for an MSTI (Multiple Spanning Tree Instance) on a switch port.
Page 670 PANNING OMMANDS SPANNING TREE MST INSTANCE RESTRICTED ROLE Related instance vlan (MSTP) Commands spanning-tree priority (port priority) spanning-tree mst instance spanning-tree mst instance path-cost spanning-tree mst instance restricted-tcn C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 671: Spanning-Tree Mst Instance Restricted-Tcn
PANNING OMMANDS SPANNING TREE MST INSTANCE RESTRICTED spanning-tree mst instance restricted-tcn Overview Use this command to prevent a switch port from propagating received topology change notifications and topology changes to other switch ports. This is named restricted TCN (Topology Change Notification). A TCN is a simple Bridge Protocol Data Unit (BPDU) that a bridge sends out to its root port to signal a topology change.
Page 672: Spanning-Tree Path-Cost
PANNING OMMANDS SPANNING TREE PATH COST spanning-tree path-cost Overview Use this command in Interface Configuration mode for a switch port interface only to set the cost of a path for the specified port. This value then combines with others along the path to the root bridge in order to determine the total cost path value from the particular port, to the root bridge.
Page 673: Spanning-Tree Portfast (Stp)
PANNING OMMANDS (STP) SPANNING TREE PORTFAST spanning-tree portfast (STP) Overview Use this command in Interface Configuration mode for a switch port interface only to set a port as an edge-port. The portfast feature enables a port to rapidly move to the forwarding state, without having first to pass through the intermediate spanning tree states.
Page 674 PANNING OMMANDS (STP) SPANNING TREE PORTFAST awplus# configure terminal Example awplus(config)# interface port1.1.2 awplus(config-if)# spanning-tree portfast Related spanning-tree edgeport (RSTP and MSTP) Commands show spanning-tree spanning-tree portfast bpdu-filter spanning-tree portfast bpdu-guard C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™...
Page 675: Spanning-Tree Portfast Bpdu-Filter
PANNING OMMANDS SPANNING TREE PORTFAST BPDU FILTER spanning-tree portfast bpdu-filter Overview This command sets the bpdu-filter feature and applies a filter to any BPDUs (Bridge Protocol Data Units) received. Enabling this feature ensures that configured ports will not transmit any BPDUs and will ignore (filter out) any BPDUs received. BPDU Filter is not enabled on a port by default.
Page 676 PANNING OMMANDS SPANNING TREE PORTFAST BPDU FILTER To enable STP BPDU filtering in Interface Configuration mode, enter the commands: awplus# configure terminal awplus(config)# interface port1.1.2 awplus(config-if)# spanning-tree portfast bpdu-filter enable Related spanning-tree edgeport (RSTP and MSTP) Commands show spanning-tree spanning-tree portfast (STP) spanning-tree portfast bpdu-guard C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 677: Spanning-Tree Portfast Bpdu-Guard
PANNING OMMANDS SPANNING TREE PORTFAST BPDU GUARD spanning-tree portfast bpdu-guard Overview This command applies a BPDU (Bridge Protocol Data Unit) guard to the port. A port with the bpdu-guard feature enabled will block all traffic (BPDUs and user data), if it starts receiving BPDUs.
Page 678 PANNING OMMANDS SPANNING TREE PORTFAST BPDU GUARD Use the show spanning-tree command to display the device and port configurations for the BPDU Guard feature. It shows both the administratively configured and currently running values of bpdu-guard. Example To enable STP BPDU guard in Global Configuration mode, enter the below commands: awplus# configure terminal...
Page 679: Spanning-Tree Priority (Bridge Priority)
PANNING OMMANDS SPANNING TREE PRIORITY BRIDGE PRIORITY spanning-tree priority (bridge priority) Overview Use this command to set the bridge priority for the device. A lower priority value indicates a greater likelihood of the device becoming the root bridge. Use this command for RSTP, STP or MSTP. When MSTP mode is configured, this will apply to the CIST.
Page 680: Spanning-Tree Priority (Port Priority)
PANNING OMMANDS SPANNING TREE PRIORITY PORT PRIORITY spanning-tree priority (port priority) Overview Use this command in Interface Configuration mode for a switch port interface only to set the port priority for port. A lower priority value indicates a greater likelihood of the port becoming part of the active topology.
Page 681: Spanning-Tree Restricted-Role
PANNING OMMANDS SPANNING TREE RESTRICTED ROLE spanning-tree restricted-role Overview Use this command in Interface Configuration mode for a switch port interface only to restrict the port from becoming a root port. Use the no variant of this command to disable the restricted role functionality. Syntax spanning-tree restricted-role no spanning-tree restricted-role...
Page 682: Spanning-Tree Restricted-Tcn
PANNING OMMANDS SPANNING TREE RESTRICTED spanning-tree restricted-tcn Overview Use this command in Interface Configuration mode for a switch port interface only to prevent TCN (Topology Change Notification) BPDUs (Bridge Protocol Data Units) from being sent on a port. If this command is enabled, after a topology change a bridge is prevented from sending a TCN to its designated bridge.
Page 683: Spanning-Tree Transmit-Holdcount
PANNING OMMANDS SPANNING TREE TRANSMIT HOLDCOUNT spanning-tree transmit-holdcount Overview Use this command to set the maximum number of BPDU transmissions that are held back. Use the no variant of this command to restore the default transmit hold-count value. Syntax spanning-tree transmit-holdcount no spanning-tree transmit-holdcount Default Transmit hold-count default is 3.
Page 684: Undebug Mstp
PANNING OMMANDS UNDEBUG MSTP undebug mstp Overview This command applies the functionality of the no debug mstp (RSTP and STP) command. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 685 Link Aggregation Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure a static channel group (static aggregator) and dynamic channel group (LACP channel group, etherchannel or LACP aggregator). Link aggregation is also sometimes referred to as channeling. : AlliedWare Plus™...
Page 686 GGREGATION OMMANDS • “lacp system-priority” on page 693 • “lacp timeout” on page 694 • “platform load-balancing” on page 696 • “show debugging lacp” on page 698 • “show diagnostic channel-group” on page 699 • “show etherchannel” on page 701 •...
Page 687: Channel-Group
GGREGATION OMMANDS CHANNEL GROUP channel-group Overview Use this command to either create a new dynamic channel group while at the same time adding a port to it, or to add a port to an existing dynamic channel group. Note that you must also set the LACP mode to be either active or passive. You can create up to 32 dynamic (LACP) channel groups (and up to 96 static channel groups).
Page 688 GGREGATION OMMANDS CHANNEL GROUP Examples To add port1.1.8 to a newly created LACP channel group 2, use the following commands: awplus# configure terminal awplus(config)# interface port1.1.8 awplus(config-if)# channel-group 2 mode active To remove device port1.1.8 from any created LACP channel groups, use the following commands: awplus# configure terminal...
Page 689: Clear Lacp Counters
GGREGATION OMMANDS CLEAR LACP COUNTERS clear lacp counters Overview Use this command to clear all counters of all present LACP aggregators (channel groups) or a given LACP aggregator. clear lacp [<1-32>] counters Syntax Parameter Description <1-32> Channel-group number. Mode Privileged Exec awplus# clear lacp 2 counters Example...
Page 690: Debug Lacp
GGREGATION OMMANDS DEBUG LACP debug lacp Overview Use this command to enable all LACP troubleshooting functions. Use the no variant of this command to disable this function. Syntax debug lacp {all|cli|event|ha|packet|sync|timer[detail]} no debug lacp {all|cli|event|ha|packet|sync|timer[detail]} Parameter Description Turn on all debugging for LACP. Specifies debugging for CLI messages.
Page 691: Lacp Global-Passive-Mode Enable
GGREGATION OMMANDS LACP GLOBAL PASSIVE MODE ENABLE lacp global-passive-mode enable Overview Use this command to enable LACP channel-groups to dynamically self-configure when they are connected to another device that has LACP channel-groups configured with Active Mode. lacp global-passive-mode enable Syntax no lacp global-passive-mode enable Default Enabled...
Page 692: Lacp Port-Priority
GGREGATION OMMANDS LACP PORT PRIORITY lacp port-priority Overview Use this command to set the priority of a device port. Ports are selected for aggregation based on their priority, with the higher priority (numerically lower) ports selected first. Use the no variant of this command to reset the priority of port to the default. Syntax lacp port-priority <1-65535>...
Page 693: Lacp System-Priority
GGREGATION OMMANDS LACP SYSTEM PRIORITY lacp system-priority Overview Use this command to set the system priority of a local system. This is used in determining the system responsible for resolving conflicts in the choice of aggregation groups. Use the no variant of this command to reset the system priority of the local system to the default.
Page 694: Lacp Timeout
GGREGATION OMMANDS LACP TIMEOUT lacp timeout Overview Use this command to set the short or long timeout on a port. Ports will time out of the aggregation if three consecutive updates are lost. lacp timeout {short|long} Syntax Parameter Description timeout Number of seconds before invalidating a received LACP data unit (DU).
Page 695 GGREGATION OMMANDS LACP TIMEOUT The following commands set the LACP short timeout for 1 second on port 1.1.2. awplus# configure terminal awplus(config)# interface port1.1.2 awplus(config-if)# lacp timeout short C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 696 GGREGATION OMMANDS PLATFORM LOAD BALANCING platform load-balancing Overview This command determines which address fields are used as inputs into the load balancing algorithm for aggregated links. The output from this algorithm is used to select which individual path a given packet will traverse within an aggregated link.
Page 697 GGREGATION OMMANDS PLATFORM LOAD BALANCING Examples To use MAC addresses and IP addresses, you do not have to enter any commands, because this is the default. Note that this setting is not displayed in the show running-config output. Use the show platform command to verify this setting.
Page 698: Show Debugging Lacp
GGREGATION OMMANDS SHOW DEBUGGING LACP show debugging lacp Overview Use this command to display the LACP debugging option set. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show debugging lacp Mode User Exec and Privileged Exec...
Page 699: Show Diagnostic Channel-Group
Overview This command displays dynamic and static channel group interface status information. The output of this command is useful for Allied Telesis authorized service personnel for diagnostic purposes. For information on filtering and saving command output, see the “Getting Started...
Page 700 GGREGATION OMMANDS SHOW DIAGNOSTIC CHANNEL GROUP  Channel Group Info based on HW: Note: Pos - position in hardware table Only entries from first device are displayed. ------------------------------------------------------------- Interface IfIndex Member port IfIndex Active Pos ------------------------------------------------------------- 4503 N/a 4601 N/a ...
Page 701: Show Etherchannel
GGREGATION OMMANDS SHOW ETHERCHANNEL show etherchannel Overview Use this command to display information about a LACP channel specified by the channel group number. The command output also shows the thrash limiting status. If thrash limiting is detected and the action parameter of the thrash-limiting command is set to vlan-disable, the output will also show the VLANs on which thrashing is detected.
Page 702: Show Etherchannel Detail
GGREGATION OMMANDS SHOW ETHERCHANNEL DETAIL show etherchannel detail Overview Use this command to display detailed information about all LACP channels. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide, which is available on our website at alliedtelesis.com.
Page 703: Show Etherchannel Summary
GGREGATION OMMANDS SHOW ETHERCHANNEL SUMMARY show etherchannel summary Overview Use this command to display a summary of all LACP channels. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide, which is available on our website at alliedtelesis.com.
Page 704: Show Lacp Sys-Id
GGREGATION OMMANDS SHOW LACP SYS show lacp sys-id Overview Use this command to display the LACP system ID and priority. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide, which is available on our website at alliedtelesis.com.
Page 705: Show Lacp-Counter
GGREGATION OMMANDS SHOW LACP COUNTER show lacp-counter Overview Use this command to display the packet traffic on all ports of all present LACP aggregators, or a given LACP aggregator. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 706: Show Port Etherchannel
GGREGATION OMMANDS SHOW PORT ETHERCHANNEL show port etherchannel Overview Use this command to show LACP details of the device port specified. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide, which is available on our website at alliedtelesis.com.
Page 707: Show Static-Channel-Group
GGREGATION OMMANDS SHOW STATIC CHANNEL GROUP show static-channel-group Overview Use this command to display all configured static channel groups and their corresponding member ports. Note that a static channel group is the same as a static aggregator. The command output also shows the thrash limiting status. If thrash limiting is detected and the action parameter of the thrash-limiting command is set to...
Page 708: Static-Channel-Group
GGREGATION OMMANDS STATIC CHANNEL GROUP static-channel-group Overview Use this command to create a static channel group, or add a member port to an existing static channel group. Static channel groups are also known as static aggregators. You can create up to 96 static channel groups (and up to 32 dynamic channel groups).
Page 709 GGREGATION OMMANDS STATIC CHANNEL GROUP To reference static channel group 2 as an interface, use the commands: awplus# configure terminal awplus(config)# interface sa2 awplus(config-if)# To make it possible to use QoS Storm Protection on static channel group 2 on port1.1.8, with an ACL named “test-acl”, use the commands: awplus# configure terminal awplus(config)#...
Page 710: Undebug Lacp
GGREGATION OMMANDS UNDEBUG LACP undebug lacp Overview This command applies the functionality of the no debug lacp command. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 711: Chapter 18: Power Over Ethernet Commands
The following documents offer further information for configuring PoE on AlliedWare Plus switches. • PoE Feature Overview and Configuration_Guide. • Support for Allied Telesis Enterprise_MIBs_in AlliedWare Plus, for information about which PoE MIB objects are supported. • SNMP Feature Overview and Configuration_Guide, for information about SNMP traps.
Page 712 OWER OVER THERNET OMMANDS • “show debugging power-inline” on page 725 • “show power-inline” on page 726 • “show power-inline counters” on page 730 • “show power-inline interface” on page 732 • “show power-inline interface detail” on page 734 C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 713: Clear Power-Inline Counters Interface
OWER OVER THERNET OMMANDS CLEAR POWER INLINE COUNTERS INTERFACE clear power-inline counters interface Overview This command will clear the counters from a specified port, a range of ports, or all ports on the switch. If no ports are entered then PoE counters for all ports are cleared.
Page 714: Debug Power-Inline
OWER OVER THERNET OMMANDS DEBUG POWER INLINE debug power-inline Overview This command enables debugging display for messages that are specific to Power over Ethernet (PoE). Use the no variant of this command to disable the specified PoE debugging messages. Syntax debug power-inline [all|event|info|power] no debug power-inline [all|event|info|power] Parameter...
Page 715 OWER OVER THERNET OMMANDS DEBUG POWER INLINE Related show debugging power-inline Commands terminal monitor C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 716: Power-Inline Allow-Legacy
OWER OVER THERNET OMMANDS POWER INLINE ALLOW LEGACY power-inline allow-legacy Overview This command enables detection of pre-IEEE 802.3af Power Ethernet standard legacy Powered Devices (PDs). The no variant of this command disables detection of pre-IEEE 802.3af Power Ethernet standard legacy Powered Devices (PDs). Syntax power-inline allow-legacy no power-inline allow-legacy...
Page 717: Power-Inline Description
OWER OVER THERNET OMMANDS POWER INLINE DESCRIPTION power-inline description Overview This command adds a description for a Powered Device (PD) connected to a PoE port. The no variant of this command clears a previously entered description for a connected PD, resetting the PD description to the default (null). Syntax power-inline description <pd-description>...
Page 718: Power-Inline Enable
OWER OVER THERNET OMMANDS POWER INLINE ENABLE power-inline enable Overview This command enables Power over Ethernet (PoE) to detect a connected Powered Device (PD) and supply power. The no variant of this command disables PoE functionality on the selected PoE port(s).
Page 719: Power-Inline Max
OWER OVER THERNET OMMANDS POWER INLINE MAX power-inline max Overview This command sets the maximum power allocated to a Power over an Ethernet (PoE and PoE+) port. The amount of power actually supplied to the port depends on the power requirements of the connected PD. It is also a function of the total PoE power loading on the switch and the PoE priority set for the port by the power-inline priority command.
Page 720 OWER OVER THERNET OMMANDS POWER INLINE MAX  awplus#configure terminal  awplus(config)#interface port1.1.1  awplus(config-if)#power-line max 5300  % The maximum power has been rounded to 5450mW in hardware. See the LLDP Feature Overview and Configuration Guide for information about power monitoring at the PD.
Page 721: Power-Inline Priority
OWER OVER THERNET OMMANDS POWER INLINE PRIORITY power-inline priority Overview This command sets the Power over Ethernet (PoE) priority level of a PoE port to one of three available priority levels: • • high • critical The no variant of this command restores the PoE port priority to the default (low). power-inline priority {low|high|critical} Syntax no power-inline priority...
Page 722 OWER OVER THERNET OMMANDS POWER INLINE PRIORITY To reset the priority level to the default of low on port1.1.1 to port1.1.10, use the following commands: awplus# configure terminal awplus(config)# interface port1.1.1-port1.1.10 awplus(config-if)# no power-inline priority Related power-inline usage-threshold Commands show power-inline show power-inline interface show running-config power-inline...
Page 723: Power-Inline Usage-Threshold
OWER OVER THERNET OMMANDS POWER INLINE USAGE THRESHOLD power-inline usage-threshold Overview This command sets the level at which the switch will issue a message that the power supplied to all Powered Devices (PDs) has reached a critical level of the nominal power rating for the switch.
Page 724: Service Power-Inline
OWER OVER THERNET OMMANDS SERVICE POWER INLINE service power-inline Overview This command enables Power over Ethernet (PoE) globally on the switch, for all PoE ports. service power-inline Syntax no service power-inline Default PoE functionality is enabled by default Mode Global Configuration Examples To disable PoE, use the following commands: awplus#...
Page 725: Show Debugging Power-Inline
OWER OVER THERNET OMMANDS SHOW DEBUGGING POWER INLINE show debugging power-inline Overview This command displays Power over Ethernet (PoE) debug settings. show debugging power-inline Syntax Mode User Exec and Privileged Exec Example To display PoE debug settings, use the following command: awplus# show debugging power-inline Output...
Page 726: Show Power-Inline
OWER OVER THERNET OMMANDS SHOW POWER INLINE show power-inline Overview This command displays the Power over Ethernet (PoE) status for all ports. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 727 OWER OVER THERNET OMMANDS SHOW POWER INLINE PoE Interface:  Interface Admin Pri Oper Power Device Class Max (mW) (mW) port1.1.1 Enabled Low Powered 7742 n/a 0 15400 [C] port1.1.2 Enabled Low Powered 7686 n/a 2 7000 [C] port1.1.3 Enabled Low Powered 7672 n/a 2 7000 [C] port1.1.4 Enabled Low Powered 7742 n/a 2 7000 [C]...
Page 728 OWER OVER THERNET OMMANDS SHOW POWER INLINE Table 1: Parameters in the show power-inline command output (cont.) Parameter Description Power Requested (W) The current power in watts (W) requested by the ports on the line card. Power Actual (W) The current power consumption in watts (W) drawn by any PDs connected to the line card.
Page 729 OWER OVER THERNET OMMANDS SHOW POWER INLINE Table 1: Parameters in the show power-inline command output (cont.) Parameter Description Class The class of the connected PD, if power is being supplied to the PD. Max (mW) The power in milliwatts (mW) allocated for the PoE port. Additionally, note the following as displayed per PoE port: •...
Page 730: Show Power-Inline Counters
OWER OVER THERNET OMMANDS SHOW POWER INLINE COUNTERS show power-inline counters Overview This command displays Power over Ethernet (PoE) event counters for ports on the Power Sourcing Equipment (PSE). The PoE event counters displayed can also be accessed by objects in the PoE MIB (RFC 3621). See the MIB Objects Feature Overview and Configuration Guide for information about which PoE MIB objects...
Page 731 OWER OVER THERNET OMMANDS SHOW POWER INLINE COUNTERS Table 2: Parameters in the show power-inline counters command output Parameter Description Interface The PoE port(s) in the format portx.y.z, where x is the chassis number, y is the number of the slot the line card is installed in, and z is the port number within the line card.
Page 732: Show Power-Inline Interface
OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE show power-inline interface Overview This command displays a summary of Power over Ethernet (PoE) information for specified ports. If no ports are specified then PoE information is displayed for all ports. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 733 OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE Table 3: Parameters in show power-inline interface output (cont.) Parameter Description The current PoE priorities for PoE ports on the PSE, as configured from a power-inline priority command: • Low displays when the low parameter is issued. The lowest priority for a PoE enabled port (default).
Page 734: Show Power-Inline Interface Detail
OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE DETAIL show power-inline interface detail Overview This command displays detailed information for one or more Power over Ethernet (PoE) ports. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 735 OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE DETAIL Table 4: Parameters in show power-inline interface detail output Parameter Description Interface The PoE port(s) in the format portx.y.z, where x is the chassis number, y is the number of the slot the line card is installed in, and z is the port number within the line card.
Page 736 OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE DETAIL Related show power-inline Commands show power-inline interface C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 737: Chapter 19: Gvrp Commands
GVRP Commands Introduction Overview With GVRP enabled the switch can exchange VLAN configuration information with other GVRP enabled switches. VLANs can be dynamically created and managed through trunk ports. • There is a limit of 400 VLANs supported by the AlliedWare Plus GVRP implementation.
Page 738: Clear Gvrp Statistics
GVRP C OMMANDS CLEAR GVRP STATISTICS clear gvrp statistics Overview Use this command to clear the GVRP statistics for all switchports, or for a specific switchport. clear gvrp statistics {all|<interface>} Syntax Parameter Description Specify all switchports to clear GVRP statistics. <interface>...
Page 739: Debug Gvrp
GVRP C OMMANDS DEBUG GVRP debug gvrp Overview Use this command to debug GVRP packets and commands, sending output to the console. Use the no variant of this command to turn off debugging for GVRP packets and commands. Syntax debug gvrp {all|cli|event|packet} no debug gvrp {all|cli|event|packet} Parameter Description...
Page 740: Show Debugging Gvrp
GVRP C OMMANDS DEBUG GVRP Related show debugging gvrp Commands terminal monitor C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 741: Gvrp (Interface)
GVRP C OMMANDS GVRP INTERFACE gvrp (interface) Overview Use this command to enable GVRP for switchport interfaces. Use the no variant of this command to disable GVRP for switchport interfaces. Syntax gvrp no gvrp Mode Interface Configuration (for switchport interfaces). Default Disabled by default.
Page 742: Gvrp Dynamic-Vlan-Creation
GVRP C OMMANDS GVRP DYNAMIC VLAN CREATION gvrp dynamic-vlan-creation Overview Use this command to enable dynamic VLAN creation globally for the switch. Use the no variant of this command to disable dynamic VLAN creation globally for the switch. Syntax gvrp dynamic-vlan-creation no gvrp dynamic-vlan-creation Mode Global Configuration...
Page 743: Gvrp Enable (Global)
GVRP C OMMANDS GVRP ENABLE GLOBAL gvrp enable (global) Overview Use this command to enable GVRP globally for the switch. Use the no variant of this command to disable GVRP globally for the switch. Syntax gvrp enable no gvrp enable Mode Global Configuration Default...
Page 744: Gvrp Registration
GVRP C OMMANDS GVRP REGISTRATION gvrp registration Overview Use this command to set GVRP registration to normal, fixed, and forbidden registration modes. Use the no variant of this command to disable GVRP registration. Syntax gvrp registration {normal|fixed|forbidden} no gvrp registration {normal|fixed|forbidden} Parameter Description normal...
Page 745: Gvrp Timer
GVRP C OMMANDS GVRP TIMER gvrp timer Overview Use this command to set GVRP timers in Interface Configuration mode for a given interface. Use the no variant of this command to reset the GVRP timers to the defaults specified in the table below. Syntax gvrp timer {join <timer-value>|leave <timer-value>|leaveall <timer-value>}...
Page 746: No Gvrp Timer Join
GVRP C OMMANDS GVRP TIMER To reset the GVRP join timer to its default of 20 hundredths of a second for interface port1.1.1, enter the commands: awplus# configure terminal awplus(config)# interface port1.1.1 awplus(config-if)# no gvrp timer join Related show gvrp timer Commands C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 747: Show Debugging Gvrp
GVRP C OMMANDS SHOW DEBUGGING GVRP show debugging gvrp Overview Use this command to display the GVRP debugging option set. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show debugging gvrp Mode...
Page 748: Show Gvrp Configuration
GVRP C OMMANDS SHOW GVRP CONFIGURATION show gvrp configuration Overview Use this command to display GVRP configuration data for a switch. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 749: Show Gvrp Machine
GVRP C OMMANDS SHOW GVRP MACHINE show gvrp machine Overview Use this command to display the state machine for GVRP. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show gvrp machine Mode...
Page 750: Show Gvrp Statistics
GVRP C OMMANDS SHOW GVRP STATISTICS show gvrp statistics Overview Use this command to display a statistical summary of GVRP information for the switch. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 751: Show Gvrp Timer
GVRP C OMMANDS SHOW GVRP TIMER show gvrp timer Overview Use this command to display data for the GVRP timers set with the gvrp timer command. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 752: Part 3: Layer 3 Switching
Part 3: Layer 3 Switching C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 753: Chapter 20: Ip Addressing And Protocol Commands
IP Addressing and Protocol Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure various IP features, including the following protocols: • Address Resolution Protocol (ARP) • ICMP Router Discovery Advertisements (IRDP) For more information, see the IP Feature Overview and Configuration Guide.
Page 754 IP A DDRESSING AND ROTOCOL OMMANDS • “ip irdp holdtime” on page 785 • “ip irdp lifetime” on page 786 • “ip irdp maxadvertinterval” on page 787 • “ip irdp minadvertinterval” on page 789 • “ip irdp multicast” on page 791 •...
Page 755: Arp-Aging-Timeout
IP A DDRESSING AND ROTOCOL OMMANDS AGING TIMEOUT arp-aging-timeout Overview This command sets a timeout period on dynamic ARP entries associated with a specific interface. If your device stops receiving traffic for the host specified in a dynamic ARP entry, it deletes the ARP entry from the ARP cache after this timeout is reached.
Page 756: Arp-Mac-Disparity
IP A DDRESSING AND ROTOCOL OMMANDS DISPARITY arp-mac-disparity Overview Use this command to enable the switch to support services like Microsoft Network Load Balancing (MS-NLB). Such services use ARP with disparate MAC addresses to ensure that packets destined for a server cluster virtual address are sent to all servers in the cluster. Disparate MAC addresses mean that the MAC address in the “sender hardware address”...
Page 757 IP A DDRESSING AND ROTOCOL OMMANDS DISPARITY For example, to flood only port1.1.1 to port1.1.3, use the commands: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# arp 10.10.1.100 010e.11ff.2222 port1.1.1-port1.1.3 Usage, multicast Multicast-IGMP mode is enabled by using the command arp-mac-disparity igmp mode multicast-igmp.
Page 758 IP A DDRESSING AND ROTOCOL OMMANDS DISPARITY To disable support for MS-NLB in unicast mode on interface vlan2, use the following commands: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# no arp-mac-disparity unicast Related arp (IP address MAC) Commands clear arp-cache show arp C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 759: Arp (Ip Address Mac)
IP A DDRESSING AND ROTOCOL OMMANDS MAC) ADDRESS arp (IP address MAC) Overview This command adds a static ARP entry to the ARP cache. This is typically used to add entries for hosts that do not support ARP or to speed up the address resolution function for a host.
Page 760 IP A DDRESSING AND ROTOCOL OMMANDS MAC) ADDRESS Usage One use of this command is to limit packet flooding when using services like Microsoft Network Load Balancing (MS-NLB). With such services, packets destined for server cluster virtual address must be sent to all servers in the cluster. The server cluster can operate in multicast mode, in which it uses a multicast MAC address.
Page 761: Arp Log
IP A DDRESSING AND ROTOCOL OMMANDS ARP LOG arp log Overview This command enables the logging of dynamic and static ARP entries in the ARP cache. The ARP cache contains mappings of device ports, VLAN IDs, and IP addresses to physical MAC addresses for hosts. This command can display the MAC addresses in the ARP log either using the notation HHHH.HHHH.HHHH, or using the IEEE standard hexadecimal notation (HH-HH-HH-HH-HH-HH).
Page 762 IP A DDRESSING AND ROTOCOL OMMANDS ARP LOG To enable ARP logging and specify that the MAC address in the log message is displayed in the standard IEEE format hexadecimal notation (HH-HH-HH-HH-HH-HH), use the following commands: awplus# configure terminal awplus(config)# arp log mac-address-format ieee To leave ARP logging enabled, but stop using HH-HH-HH-HH-HH-HH format and use HHHH.HHHH.HHHH format instead, use the following commands:...
Page 763 IP A DDRESSING AND ROTOCOL OMMANDS ARP LOG The following table lists the parameters in output of the show log | include ARP_LOG command. The ARP log message format is: <date> <time> <severity> <hostname> <program-name>  ARP_LOG <port-number> <vid> <operation> <MAC> <IP> Table 20-1: Parameters in the output from show log | include ARP_LOG Parameter Description...
Page 764: Arp Opportunistic-Nd
IP A DDRESSING AND ROTOCOL OMMANDS ARP OPPORTUNISTIC arp opportunistic-nd Overview Use this command to enable opportunistic neighbor discovery for the global ARP cache. This command changes the behavior for unsolicited ARP packet forwarding on the device. When using VRF-lite, you can use this command to enable opportunistic neighbor discovery for a named VRF instance.
Page 765 IP A DDRESSING AND ROTOCOL OMMANDS ARP OPPORTUNISTIC Example To enable opportunistic neighbor discovery for the VRF instance ‘blue’, enter: (VRF-lite) awplus# configure terminal CFC960 Only awplus(config)# arp opportunistic-nd vrf blue To disable opportunistic neighbor discovery for the VRF instance ‘blue’, enter: awplus# configure terminal awplus(config)#...
Page 766: Arp-Reply-Bc-Dmac
IP A DDRESSING AND ROTOCOL OMMANDS REPLY DMAC arp-reply-bc-dmac Overview Use this command to allow processing of ARP replies that arrive with a broadcast destination MAC (ffff.ffff.ffff). This makes neighbors reachable if they send ARP responses that contain a broadcast destination MAC. Use the no variant of this command to turn off processing of ARP replies that arrive with a broadcast destination MAC.
Page 767: Clear Arp-Cache
IP A DDRESSING AND ROTOCOL OMMANDS CLEAR ARP CACHE clear arp-cache Overview This command deletes dynamic ARP entries from the ARP cache. You can optionally specify the IPv4 address of an ARP entry to be cleared from the ARP cache. When running VRF-lite, this command deletes dynamic ARP entries either from the ARP cache of a specific VRF instance, or from the ARP cache of the Global VRF instance.
Page 768 IP A DDRESSING AND ROTOCOL OMMANDS CLEAR ARP CACHE When running VRF-lite, to clear the dynamic ARP entries from the global VRF-lite and all VRF instances, use the command: awplus# clear arp-cache Related arp-mac-disparity Commands arp (IP address MAC) show arp C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 769: Debug Ip Packet Interface
IP A DDRESSING AND ROTOCOL OMMANDS DEBUG IP PACKET INTERFACE debug ip packet interface Overview The debug ip packet interface command enables IP packet debug and is controlled by the terminal monitor command. If the optional icmp keyword is specified then ICMP packets are shown in the output.
Page 770 IP A DDRESSING AND ROTOCOL OMMANDS DEBUG IP PACKET INTERFACE To turn on ARP packet debugging on vlan1, use the command: Examples awplus# debug ip packet interface vlan1 arp To turn on all packet debugging on all interfaces on the device, use the command: awplus# debug ip packet interface all To turn on TCP packet debugging on vlan1 and IP address 192.168.2.4, use...
Page 771: Debug Ip Irdp
IP A DDRESSING AND ROTOCOL OMMANDS DEBUG IP IRDP debug ip irdp Overview This command enables debugging of ICMP Router Discovery Protocol (IRDP) events and messages on your device. IRDP debugging is disabled by default. The no variant of this command disables IRDP debugging. Negating any packet debug mode will switch detail off.
Page 772: Ip Address (Ip Addressing And Protocol)
IP A DDRESSING AND ROTOCOL OMMANDS (IP A IP ADDRESS DDRESSING AND ROTOCOL ip address (IP Addressing and Protocol) Overview This command sets a static IP address on an interface. The no variant of this command removes the IP address from the interface. You cannot remove the primary address when a secondary address is present.
Page 773 IP A DDRESSING AND ROTOCOL OMMANDS (IP A IP ADDRESS DDRESSING AND ROTOCOL To add the IP address 10.10.11.50/24 to the local loopback interface lo, use the following commands: awplus# configure terminal awplus(config)# interface lo awplus(config-if)# ip address 10.10.11.50/24 Related interface (to configure) Commands show ip interface...
Page 774: Ip Directed-Broadcast
IP A DDRESSING AND ROTOCOL OMMANDS IP DIRECTED BROADCAST ip directed-broadcast Overview Use this command to enable flooding of directed broadcast packets into a directly connected subnet. If this command is configured on a VLAN interface, then directed broadcasts received on other VLAN interfaces, destined for the subnet on this VLAN, will be flooded to the subnet broadcast address of this VLAN.
Page 775 IP A DDRESSING AND ROTOCOL OMMANDS IP DIRECTED BROADCAST Related ip forward-protocol udp Commands ip helper-address show running-config C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 776: Ip Forward-Protocol Udp
IP A DDRESSING AND ROTOCOL OMMANDS IP FORWARD PROTOCOL UDP ip forward-protocol udp Overview This command enables you to control which UDP broadcasts will be forwarded to the helper address(es). A UDP broadcast will only be forwarded if the destination UDP port number in the packet matches one of the port numbers specified using this command.
Page 777 IP A DDRESSING AND ROTOCOL OMMANDS IP FORWARD PROTOCOL UDP To delete a UDP port from the UDP ports that the device forwards, use the following commands: awplus# configure terminal awplus(config)# no ip forward-protocol udp <port> Related ip helper-address Commands ip directed-broadcast show running-config C613-50175-01 Rev B...
Page 778: Ip Gratuitous-Arp-Link
IP A DDRESSING AND ROTOCOL OMMANDS IP GRATUITOUS LINK ip gratuitous-arp-link Overview This command sets the Gratuitous ARP time limit for all switchports. The time limit restricts the sending of Gratuitous ARP packets to one Gratuitous ARP packet within the time in seconds. : This command specifies time between sequences of Gratuitous ARP packets, NOTE and time between individual Gratuitous ARP packets occurring in a sequence, to allow...
Page 779 IP A DDRESSING AND ROTOCOL OMMANDS IP GRATUITOUS LINK To restrict the sending of Gratuitous ARP packets to one every 20 seconds, use the commands: awplus# configure terminal awplus(config)# ip gratuitous-arp-link 20 Validation show running-config Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™...
Page 780: Ip Helper-Address
IP A DDRESSING AND ROTOCOL OMMANDS IP HELPER ADDRESS ip helper-address Overview This command adds a forwarding destination address for IP Helper to enable forwarding of User Datagram Protocol (UDP) broadcasts on an interface. Use the no variant of this command to disable the forwarding of broadcast packets to specific addresses.
Page 781 IP A DDRESSING AND ROTOCOL OMMANDS IP HELPER ADDRESS The following example removes IPv4 address 192.168.1.100 as an IP Helper destination address to which to forward UDP broadcasts received on vlan2: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# no ip helper-address 192.168.1.100 Related ip forward-protocol udp Commands...
Page 782 IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP ip irdp Overview This command enables ICMP Router Discovery advertising on an interface. However, the interface does not send or process Router Discovery messages until at least one IP address is configured on the interface with the ip address (IP Addressing and Protocol) command.
Page 783: Ip Irdp Address Preference
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP ADDRESS PREFERENCE ip irdp address preference Overview When multiple routers connected to a LAN are all sending Router Discovery advertisements, hosts need to be able to choose the best router to use. Therefore the IRDP defines a preference value to place in the Router Discovery advertisements.
Page 784: Ip Irdp Broadcast
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP BROADCAST ip irdp broadcast Overview This command configures broadcast Router Discovery advertisements on an interface. The interface sends IRDP advertisements with the broadcast address (255.255.255.255) as the IP destination address. The no variant of this command configures multicast Router Discovery advertisements on an interface.
Page 785: Ip Irdp Holdtime
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP HOLDTIME ip irdp holdtime Overview This command sets the maximum length of time that the advertised addresses are to be considered as valid router addresses by hosts. The no variant of this command resets the holdtime back to the default of 1800 seconds.
Page 786: Ip Irdp Lifetime
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP LIFETIME ip irdp lifetime Overview This command sets the maximum length of time that hosts should consider the Router Discovery advertised addresses as valid router addresses. If you change the lifetime value, also change the maxadvertisementinterval and the minadvertisementinterval to maintain the following ratios: This command is synonymous with the ip irdp hostname<0-9000>...
Page 787: Ip Irdp Maxadvertinterval
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP MAXADVERTINTERVAL ip irdp maxadvertinterval Overview This command sets the maximum time allowed between sending router advertisements from the interface. If you change the maxadvertisementinterval value, also change the lifetime and the minadvertisementinterval to maintain the following ratios: lifetime=3 x maxadvertisementinterval...
Page 788: Ip Irdp Minadvertinterval
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP MAXADVERTINTERVAL Related ip irdp Commands ip irdp lifetime ip irdp minadvertinterval show ip irdp interface C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 789: Ip Irdp Minadvertinterval
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP MINADVERTINTERVAL ip irdp minadvertinterval Overview This command sets the minimum time allowed between sending router advertisements from the interface. If you change the minadvertisementinterval value, also change the lifetime and the maxadvertisementinterval to maintain the following ratios: lifetime=3 x maxadvertisementinterval...
Page 790: Show Ip Irdp Interface
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP MINADVERTINTERVAL Related ip irdp Commands ip irdp lifetime ip irdp maxadvertinterval show ip irdp interface C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 791: Ip Irdp Multicast
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP MULTICAST ip irdp multicast Overview This command configures multicast Router Discovery advertisements on an interface. The interface sends IRDP advertisements with the all-system multicast address (224.0.0.1) as the IP destination address. The no variant of this command configures broadcast Router Discovery advertisements on an interface.
Page 792: Ip Irdp Preference
IP A DDRESSING AND ROTOCOL OMMANDS IP IRDP PREFERENCE ip irdp preference Overview When multiple routers connected to a LAN are all sending Router Discovery advertisements, hosts need to be able to choose the best router to use. Therefore the IRDP defines a preference value to place in the Router Discovery advertisements.
Page 793: Ip Limited-Local-Proxy-Arp
IP A DDRESSING AND ROTOCOL OMMANDS IP LIMITED LOCAL PROXY ip limited-local-proxy-arp Overview Use this command to enable local proxy ARP, but only for a specified set of IP addresses. This makes the device respond to ARP requests for those IP addresses when the addresses are reachable via the interface you are configuring.
Page 794: Ip Local-Proxy-Arp
IP A DDRESSING AND ROTOCOL OMMANDS IP LOCAL PROXY ip local-proxy-arp Overview This command allows you to stop MAC address resolution between hosts within a private VLAN edge interface. Local Proxy ARP works by intercepting ARP requests between hosts within a subnet and responding with your device’s own MAC address details instead of the destination host’s details.
Page 795: Ip Proxy-Arp
IP A DDRESSING AND ROTOCOL OMMANDS IP PROXY ip proxy-arp Overview This command enables Proxy ARP responses to ARP requests on an interface. When enabled, your device intercepts ARP broadcast packets and substitutes its own physical address for that of the remote host. By responding to the ARP request, your device ensures that subsequent packets from the local host are directed to its physical address, and it can then forward these to the remote host.
Page 796: Ip Redirects
IP A DDRESSING AND ROTOCOL OMMANDS IP REDIRECTS ip redirects Overview This command enables the device to send ICMP redirects on one or more interfaces. Use the no variant of this command to stop the device from sending ICMP redirects on one or more interfaces.
Page 797: Ip Tcp Synack-Retries
IP A DDRESSING AND ROTOCOL OMMANDS IP TCP SYNACK RETRIES ip tcp synack-retries Overview Use this command to specify how many times the switch will retry sending a SYN ACK for a TCP connection for which it has received a SYN but not an ACK. Such connections are called half-open TCP connections.
Page 798: Ip Unreachables
IP A DDRESSING AND ROTOCOL OMMANDS IP UNREACHABLES ip unreachables Overview Use this command to enable ICMP (Internet Control Message Protocol) type 3, destination unreachable, messages. Use the no variant of this command to disable destination unreachable messages. This prevents an attacker from using these messages to discover the topology of a network.
Page 799 IP A DDRESSING AND ROTOCOL OMMANDS IP UNREACHABLES Table 20-2: ICMP type 3 reason codes and description (cont.) Code Description [RFC] Host Precedence Violation [RFC1812] Precedence cutoff in effect [RFC1812] Example To disable destination unreachable messages, use the commands awplus# configure terminal awplus(config)# no ip unreachables...
Page 800: Local-Proxy-Arp
IP A DDRESSING AND ROTOCOL OMMANDS LOCAL PROXY local-proxy-arp Overview Use this command to specify an IP subnet for use with limited local proxy ARP. When limited local proxy ARP is enabled with the command limited-local-proxy-arp, the device will respond to ARP requests for addresses in that subnet.
Page 801: Optimistic-Nd
IP A DDRESSING AND ROTOCOL OMMANDS OPTIMISTIC optimistic-nd Overview Use this command to enable the optimistic neighbor discovery feature for both IPv4 and IPv6. Use the no variant of this command to disable the optimistic neighbor discovery feature. Syntax optimistic-nd no optimistic-nd Default The optimistic neighbor discovery feature is enabled by default.
Page 802: Ping
IP A DDRESSING AND ROTOCOL OMMANDS PING ping Overview This command sends a query to another IPv4 host (send Echo Request messages). ping [ip] <host> [broadcast] [df-bit {yes|no}] [interval Syntax <0-128>] [pattern <hex-data-pattern>] [repeat {<1-2147483647>|continuous}] [size <36-18024>] [source <ip-addr>] [timeout <1-65535>] [tos <0-255>] ping [vrf <vrf-name>] [ip] <host>...
Page 803 IP A DDRESSING AND ROTOCOL OMMANDS PING Example To ping the IP address 10.10.0.5 from VRF instance ‘red’, use the following (VRF-lite) command: CFC960 Only awplus# ping vrf red 10.10.0.5 : Unless a cross-domain static or leaked route exists to the destination IP address, NOTE you must run this command from within the same routing domain as the address being pinged.
Page 804: Router Ip Irdp
IP A DDRESSING AND ROTOCOL OMMANDS ROUTER IP IRDP router ip irdp Overview This command globally enables ICMP Router Discovery (IRDP) advertisements on your device. However, your device does not send or process IRDP messages until at least one interface is configured to use IP and has had IRDP enabled on the interface with the ip irdp command.
Page 805: Show Arp
IP A DDRESSING AND ROTOCOL OMMANDS SHOW ARP show arp Overview Use this command to display entries in the ARP routing and forwarding table—the ARP cache contains mappings of IP addresses to physical addresses for hosts. To have a dynamic entry in the ARP cache, a host must have used the ARP protocol to access another host.
Page 806 IP A DDRESSING AND ROTOCOL OMMANDS SHOW ARP Output Figure 20-3: Example output from the show arp command awplus#show arp  Type  IP Address MAC Address Interface Port dynamic  192.168.10.2 0015.77ad.fad8 vlan1 port1.1.1 dynamic  192.168.20.2 0015.77ad.fa48 vlan2 port1.1.2 192.168.1.100 00d0.6b04.2a42...
Page 807 IP A DDRESSING AND ROTOCOL OMMANDS SHOW ARP Table 21: Parameters in the output of the show arp command (cont.) Parameter Meaning Type Whether the entry is a static or dynamic entry. Static entries are added using the arp (IP address MAC) command.
Page 808: Show Debugging Ip Packet
IP A DDRESSING AND ROTOCOL OMMANDS SHOW DEBUGGING IP PACKET show debugging ip packet Overview Use this command to show the IP interface debugging status. IP interface debugging is set using the debug ip packet interface command. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 809 IP A DDRESSING AND ROTOCOL OMMANDS SHOW DEBUGGING IP PACKET Related debug ip packet interface Commands terminal monitor C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 810: Show Ip Interface
IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP INTERFACE show ip interface Overview Use this command to display information about interfaces and the IP addresses assigned to them. To display information about a specific interface, specify the interface name with the command. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 811: Show Ip Interface Vrf
IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP INTERFACE VRF show ip interface vrf Overview Use this command to display protocol and status information about configured interfaces and their assigned IP addresses in VRF instances. VRF-lite is supported only on the SBx81CFC960 Control Card; it is not supported on the CFC400 Control Card.
Page 812 IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP INTERFACE VRF Output Figure 20-10: Example output from the show ip interface with VRF-lite configured Interface IP-Address Status Protocol eth0 unassigned admin up down unassigned admin up running vlan1 192.168.1.1/24 admin up running...
Page 813: Show Ip Irdp
IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP IRDP show ip irdp Overview This command displays whether IRDP is globally enabled on your device, and the status of the debugging modes. If the debug ip irdp command has been set with the detail parameter then the both parameter is also set and the output will show “packet debugging mode is all”.
Page 814: Show Ip Irdp Interface
IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP IRDP INTERFACE show ip irdp interface Overview This command displays the configuration of IRDP on all interfaces, or for a specified interface. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 815 IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP IRDP INTERFACE Table 22: Parameters in the output of the show ip irdp interface command Parameter Description Sending mode Whether this interface is sending broadcast or multicast router advertisements. This means the destination IP address of router advertisements will be either the multicast address 224.0.0.1, or the broadcast address 255.255.255.255.
Page 816: Show Ip Sockets
IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP SOCKETS show ip sockets Overview Use this command to display information about the IP or TCP sockets that are present on the device. It includes TCP and UDP listen sockets, and displays the associated IP address and port.
Page 817 IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP SOCKETS Table 20-1: Parameters in the output from show ip sockets Parameter Description Not showing This field refers to established sessions between processes internal <number> to the device, that are used in its operation and management. local These sessions are not displayed as they are not useful to the user.
Page 818 IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP SOCKETS Table 20-1: Parameters in the output from show ip sockets (cont.) Parameter Description Remote For TCP and UDP listening sockets this shows the source IP address Address (either IPv4 or IPv6) and source TCP or UDP port number for which the socket will accept packets.
Page 819: Show Ip Traffic
IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP TRAFFIC show ip traffic Overview Use this command to display statistics regarding IP traffic sent and received by all interfaces on the device, showing totals for IP and IPv6 and then broken down into sub-categories such as TCP, UDP, ICMP and their IPv6 equivalents when appropriate.
Page 820 IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP TRAFFIC 155 delayed acks sent 21187 headers predicted 736 pure ACKs 80497 pure ACKs predicted UDP: 139468 datagrams received 139468 datagrams sent UDPLite: C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™...
Page 821: Tcpdump
IP A DDRESSING AND ROTOCOL OMMANDS TCPDUMP tcpdump Overview Use this command to start a tcpdump, which gives the same output as the Unix-like tcpdump command to display TCP/IP traffic. Press <ctrl> + c to stop a running tcpdump. tcpdump <line> Syntax tcpdump [vrf <vrf-name>] <line>...
Page 822: Traceroute
IP A DDRESSING AND ROTOCOL OMMANDS TRACEROUTE traceroute Overview Use this command to trace the route to the specified IPv4 host. traceroute {<ip-addr>|<hostname>} Syntax traceroute [vrf <vrf-name>] {<ip-addr>|<hostname>} Syntax (VRF-lite) CFC960 Only Parameter Description <ip-addr> The destination IPv4 address. The IPv4 address uses the format A.B.C.D.
Page 823: Undebug Ip Packet Interface
IP A DDRESSING AND ROTOCOL OMMANDS UNDEBUG IP PACKET INTERFACE undebug ip packet interface Overview This command applies the functionality of the no debug ip packet interface command. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 824: Undebug Ip Irdp
IP A DDRESSING AND ROTOCOL OMMANDS UNDEBUG IP IRDP undebug ip irdp Overview This command applies the functionality of the no debug ip irdp command. C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 825: Chapter 21: Domain Name Service (Dns) Commands
Domain Name Service (DNS) Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure Domain Name Service (DNS) features, including the following: • DNS client • DNS forwarding (DNS relay) For more information about DNS for Switches, see the Domain Name System (DNS) for AlliedWare Plus Switches Feature Overview and Configuration Guide Command List...
Page 826 (DNS) C OMAIN ERVICE OMMANDS • “show ip dns forwarding server” on page 845 • “show ip domain-list” on page 847 • “show ip domain-name” on page 848 • “show ip name-server” on page 849 C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™...
Page 827: Clear Ip Dns Forwarding Cache
(DNS) C OMAIN ERVICE OMMANDS CLEAR IP DNS FORWARDING CACHE clear ip dns forwarding cache Overview Use this command to clear the DNS Relay name resolver cache. When using VRF-lite, use this command to clear the DNS Relay name resolver cache for either the whole device or for a specific VRF instance.
Page 828: Debug Ip Dns Forwarding
(DNS) C OMAIN ERVICE OMMANDS DEBUG IP DNS FORWARDING debug ip dns forwarding Overview Use this command to enable DNS Relay debugging. Use the no variant of this command to disable DNS Relay debugging. Syntax debug ip dns forwarding no debug ip dns forwarding Default DNS Relay debugging is disabled by default.
Page 829: Ip Dns Forwarding
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING ip dns forwarding Overview Use this command to enable DNS Relay, the forwarding of incoming DNS queries for IP hostname-to-address translation. Use the no variant of this command to disable the forwarding of incoming DNS queries for IP hostname-to-address translation.
Page 830: Ip Dns Forwarding Cache
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING CACHE ip dns forwarding cache Overview Use this command to set the DNS Relay name resolver cache size and cache entry lifetime period. The DNS Relay name resolver cache stores the mappings between domain names and IP addresses.
Page 831: Ip Dns Forwarding Dead-Time
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING DEAD TIME ip dns forwarding dead-time Overview Use this command to set the time period in seconds when the device stops sending any DNS requests to an unresponsive server and all retries set using ip dns forwarding retry are used.
Page 832: Ip Dns Forwarding Retry
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING RETRY ip dns forwarding retry Overview Use this command to set the number of times DNS Relay will retry to forward DNS queries. The device stops sending DNS requests to an unresponsive server at the time set using the ip dns forwarding dead-time command and when all of the...
Page 833: Ip Dns Forwarding Source-Interface
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING SOURCE INTERFACE ip dns forwarding source-interface Overview Use this command to set the interface to use for forwarding and receiving DNS queries. Use the no variant of this command to unset the interface used for forwarding and receiving DNS queries.
Page 834: Ip Dns Forwarding Timeout
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING TIMEOUT ip dns forwarding timeout Overview Use this command to set the time period for the DNS Relay to wait for a DNS response. Use the no variant of this command to set the time period to wait for a DNS response to the default of 3 seconds.
Page 835: Ip Domain-List
(DNS) C OMAIN ERVICE OMMANDS IP DOMAIN LIST ip domain-list Overview This command adds a domain to the DNS list. Domains are appended to incomplete host names in DNS requests. Each domain in this list is tried in turn in DNS lookups.
Page 836: Ip Domain-Lookup
(DNS) C OMAIN ERVICE OMMANDS IP DOMAIN LOOKUP ip domain-lookup Overview This command enables the DNS client on your device. This allows you to use domain names instead of IP addresses in commands. The DNS client resolves the domain name into an IP address by sending a DNS inquiry to a DNS server, specified with the ip name-server command.
Page 837: Ip Domain-Name
(DNS) C OMAIN ERVICE OMMANDS IP DOMAIN NAME ip domain-name Overview This command sets a default domain for the DNS. The DNS client appends this domain to incomplete host-names in DNS requests. The no variant of this command removes the domain-name previously set by this command.
Page 838: Ip Name-Server
(DNS) C OMAIN ERVICE OMMANDS IP NAME SERVER ip name-server Overview This command adds IPv4 or IPv6 DNS server addresses. The DNS client on your device sends DNS queries to IP addresses in this list when trying to resolve a host name.
Page 839 (DNS) C OMAIN ERVICE OMMANDS IP NAME SERVER To enable your device to send DNS queries to a DNS server with the IPv6 address 2001:0db8:010d::1, use the commands: awplus# configure terminal awplus(config)# ip name-server 2001:0db8:010d::1 Example To enable your switch to send DNS queries (on VRF instance RED) to a DNS server with the IPv4 address 10.10.10.5 use the commands: (VRF-lite) CFC960 Only...
Page 840: Show Debugging Ip Dns Forwarding
(DNS) C OMAIN ERVICE OMMANDS SHOW DEBUGGING IP DNS FORWARDING show debugging ip dns forwarding Overview Use this command to display the DNS Relay debugging status. DNS Relay debugging is set using the debug ip dns forwarding command. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 841: Show Hosts
(DNS) C OMAIN ERVICE OMMANDS SHOW HOSTS show hosts Overview This command shows the default domain, domain list, and name servers configured on your device. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 842: Show Ip Dns Forwarding
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DNS FORWARDING show ip dns forwarding Overview Use this command to display the DNS Relay status. show ip dns forwarding Syntax Mode User Exec and Privileged Exec Examples To display the DNS Relay status, use the command: awplus# show ip dns forwarding Output...
Page 843: Show Ip Dns Forwarding Cache
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DNS FORWARDING CACHE show ip dns forwarding cache Overview Use this command to display the DNS Relay name resolver cache. show ip dns forwarding cache Syntax show ip dns [vrf <name>|global] forwarding cache Syntax (VRF-lite) CFC960 Only Parameter...
Page 844 (DNS) C OMAIN ERVICE OMMANDS SHOW IP DNS FORWARDING CACHE Output Figure 21-5: Example output from the show ip dns forwarding cache command that includes output for VRF instance RED. awplus#show ip dns vrf RED forwarding cache  Host Address Expires Flags...
Page 845: Show Ip Dns Forwarding Server
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DNS FORWARDING SERVER show ip dns forwarding server Overview Use this command to display the status of DNS forwarding name servers. If you are running VRF, you can also use this command to display the status for DNS forwarding name servers operating on a specific VRF instance.
Page 846 (DNS) C OMAIN ERVICE OMMANDS SHOW IP DNS FORWARDING SERVER Related ip dns forwarding Commands ip dns forwarding dead-time C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 847: Show Ip Domain-List
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DOMAIN LIST show ip domain-list Overview This command shows the domains configured in the domain list. The DNS client uses the domains in this list to append incomplete hostnames when sending a DNS inquiry to a DNS server. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 848: Show Ip Domain-Name
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DOMAIN NAME show ip domain-name Overview This command shows the default domain configured on your device. When there are no entries in the DNS list, the DNS client appends this domain to incomplete hostnames when sending a DNS inquiry to a DNS server.
Page 849: Show Ip Name-Server
(DNS) C OMAIN ERVICE OMMANDS SHOW IP NAME SERVER show ip name-server Overview This command displays a list of IPv4 and IPv6 DNS server addresses that your device will send DNS requests to. This is a static list configured using the name-server command.
Page 850: Chapter 22: Ipv6 Commands
IPv6 Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure IPv6. For more information, see the IPv6 Feature Overview and Configuration Guide. Command List • “clear ipv6 neighbors” on page 852 • “ipv6 address” on page 853 •...
Page 851 OMMANDS • “ipv6 opportunistic-nd” on page 876 • “ipv6 route” on page 877 • “ipv6 unreachables” on page 878 • “ping ipv6” on page 879 • “show ipv6 forwarding” on page 880 • “show ipv6 interface brief” on page 881 •...
Page 852: Clear Ipv6 Neighbors
OMMANDS CLEAR IPV NEIGHBORS clear ipv6 neighbors Overview Use this command to clear all dynamic IPv6 neighbor entries. clear ipv6 neighbors Syntax Mode Privileged Exec awplus# clear ipv6 neighbors Example C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 853: Ipv6 Address
OMMANDS ADDRESS ipv6 address Overview Use this command to set the IPv6 address of an interface. The command also enables IPv6 on the interface, which creates an EUI-64 link-local address as well as enabling RA processing and SLAAC. To stop the device from processing prefix information (routes and addresses from the received Router Advertisements) use the command no ipv6 nd accept-ra-pinfo.
Page 854 OMMANDS ADDRESS Related ipv6 address autoconfig Commands ipv6 address dhcp ipv6 dhcp server ipv6 enable ipv6 eui64-linklocal show running-config show ipv6 interface brief show ipv6 route C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 855: Ipv6 Address Autoconfig
OMMANDS ADDRESS AUTOCONFIG ipv6 address autoconfig Overview Use this command to enable IPv6 stateless address autoconfiguration (SLAAC) for an interface. This configures an IPv6 address on an interface derived from the MAC address on the interface. Use the no variant of this command to disable IPv6 SLAAC on an interface. Note that if no global addresses are left after removing all IPv6 autoconfigured addresses then IPv6 is disabled.
Page 856 OMMANDS ADDRESS AUTOCONFIG To disable SLAAC on the VLAN interface vlan2, use the following commands: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# no ipv6 address autoconfig Related ipv6 address Commands ipv6 enable show ipv6 interface brief show ipv6 route show running-config C613-50175-01 Rev B Command Reference for SwitchBlade®...
Page 857: Ipv6 Enable
OMMANDS ENABLE ipv6 enable Overview Use this command to enable automatic configuration of a link-local IPv6 address on an interface using Stateless Automatic Address Configuration (SLAAC). By default, the EUI-64 method is used to generate the link-local address. Use the no variant of this command to disable IPv6 on an interface without a global address.
Page 858 OMMANDS ENABLE Related ipv6 address Commands ipv6 address autoconfig ipv6 address dhcp ipv6 address (DHCPv6 PD) ipv6 dhcp client pd ipv6 nd prefix show ipv6 interface brief show ipv6 route show running-config C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™...
Page 859: Ipv6 Eui64-Linklocal
OMMANDS LINKLOCAL ipv6 eui64-linklocal Overview When IPv6 is enabled on an interface, an EUI link-local address is generated and installed on the interface. In other words, ipv6 eui64-linklocal is enabled by default on any IPv6 enabled interface. Use the no variant of this command to disallow the automatic generation of the EUI-64 link-local address on an IPv6 enabled interface.
Page 860: Ipv6 Forwarding
OMMANDS FORWARDING ipv6 forwarding Overview Use this command to turn on IPv6 unicast routing for IPv6 packet forwarding. Execute this command globally on your device prior to issuing ipv6 enable individual interfaces. Use this no variant of this command to turn off IPv6 unicast routing. Note IPv6 unicast routing is disabled by default.
Page 861: Ipv6 Multicast Forward-Slow-Path-Packet
OMMANDS MULTICAST FORWARD SLOW PATH PACKET ipv6 multicast forward-slow-path-packet Overview Use this command to enable multicast packets to be forwarded to the CPU. Enabling this command will ensure that the layer L3 MTU is set correctly for each IP multicast group and will apply the value of the smallest MTU among the outgoing interfaces for the multicast group.
Page 862: Ipv6 Nd Accept-Ra-Pinfo
OMMANDS ND ACCEPT PINFO ipv6 nd accept-ra-pinfo Overview Use this command to allow the processing of the prefix information included in a received RA (Router Advertisement) on an IPv6 enabled interface. Use the no variant of this command to disable an IPv6 interface from using the prefix information within a received RA.
Page 863: Ipv6 Nd Managed-Config-Flag
OMMANDS ND MANAGED CONFIG FLAG ipv6 nd managed-config-flag Overview Use this command to set the managed address configuration flag, contained within the router advertisement field. Setting this flag indicates the operation of a stateful autoconfiguration protocol such as DHCPv6 for address autoconfiguration, and that address information (i.e. the network prefix) and other (non-address) information can be requested from the device.
Page 864: Ipv6 Nd Minimum-Ra-Interval
OMMANDS ND MINIMUM INTERVAL ipv6 nd minimum-ra-interval Overview Use this command in Interface Configuration mode to set a minimum Router Advertisement (RA) interval for a VLAN interface. Use the no variant of this command in Interface Configuration mode to remove the minimum RA interval for a VLAN interface.
Page 865: Ipv6 Nd Other-Config-Flag
OMMANDS ND OTHER CONFIG FLAG ipv6 nd other-config-flag Overview Use this command to set the other stateful configuration flag (contained within the router advertisement field) to be used for IPv6 address auto-configuration. This flag is used to request the router to provide information in addition to providing addresses.
Page 866: Ipv6 Nd Prefix
OMMANDS ND PREFIX ipv6 nd prefix Overview Use this command in Interface Configuration mode for a VLAN interface to specify the IPv6 prefix information that is advertised by the router advertisement for IPv6 address auto-configuration. Use the no parameter with this command to reset the IPv6 prefix for a VLAN interface in Interface Configuration mode.
Page 867 OMMANDS ND PREFIX Usage This command specifies the IPv6 prefix flags that are advertised by the router advertisement message. Examples The following example configures the device to issue router advertisements on the VLAN interface vlan4, and advertises the address prefix of 2001:0db8::/64. awplus# configure terminal awplus(config)#...
Page 868: Ipv6 Nd Ra-Interval
OMMANDS ND RA INTERVAL ipv6 nd ra-interval Overview Use this command to specify the interval between IPv6 Router Advertisements (RA) transmissions. Use no parameter with this command to reset the value to the default value (600 seconds). Syntax ipv6 nd ra-interval <seconds> no ipv6 nd ra-interval Parameter Description...
Page 869: Ipv6 Nd Ra-Lifetime
OMMANDS ND RA LIFETIME ipv6 nd ra-lifetime Overview Use this command to specify the time period that this router can usefully act as a default gateway for the network. Each router advertisement resets this time period. Use no parameter with this command to reset the value to default. Syntax ipv6 nd ra-lifetime <seconds>...
Page 870: Ipv6 Nd Raguard
OMMANDS ND RAGUARD ipv6 nd raguard Overview Use this command to apply the Router Advertisements (RA) Guard feature from the Interface Configuration mode for a device port. This blocks all RA messages received on a device port. For more information about RA Guard, see the IPv6 Feature Overview and Configuration Guide.
Page 871 OMMANDS ND RAGUARD Output Example output from using show running-config interface port1.1.2 to verify RA Guard: ! interface port1.1.2 switchport mode access  ipv6 nd raguard ! Related show running-config interface Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™...
Page 872: Ipv6 Nd Reachable-Time
OMMANDS ND REACHABLE TIME ipv6 nd reachable-time Overview Use this command to specify the reachable time in the router advertisement to be used for detecting reachability of the IPv6 neighbor. Use the no variant of this command to reset the value to default. Syntax ipv6 nd reachable-time <milliseconds>...
Page 873: Ipv6 Nd Retransmission-Time
OMMANDS ND RETRANSMISSION TIME ipv6 nd retransmission-time Overview Use this command to specify the advertised retransmission interval for Neighbor Solicitation in milliseconds between IPv6 Routers. Use the no variant of this command to reset the retransmission time to the default (1 second).
Page 874: Ipv6 Nd Suppress-Ra
OMMANDS ND SUPPRESS ipv6 nd suppress-ra Overview Use this command to inhibit IPv6 Router Advertisement (RA) transmission for the current interface. Router advertisements are used when applying IPv6 stateless auto-configuration. Use no parameter with this command to enable Router Advertisement transmission.
Page 875: Ipv6 Neighbor
OMMANDS NEIGHBOR ipv6 neighbor Overview Use this command to add a static IPv6 neighbor entry. Use the no variant of this command to remove a specific IPv6 neighbor entry. Syntax ipv6 neighbor <ipv6-address> <vlan-name> <mac-address> <port-list> no ipv6 neighbor <ipv6-address> <vlan-name> <port-list> Parameter Description <ipv6-address>...
Page 876: Ipv6 Opportunistic-Nd
OMMANDS OPPORTUNISTIC ipv6 opportunistic-nd Overview Use this command to enable opportunistic neighbor discovery for the global IPv6 ND cache. Opportunistic neighbor discovery changes the behavior for unsolicited ICMPv6 ND packet forwarding on the device. Use the no variant of this command to disable opportunistic neighbor discovery for the global IPv6 ND cache.
Page 877: Ipv6 Route
OMMANDS ROUTE ipv6 route Overview This command adds a static IPv6 route to the Routing Information Base (RIB). If this route is the best route for the destination, then your device adds it to the Forwarding Information Base (FIB). Your device uses the FIB to advertise routes to neighbors and forward packets.
Page 878: Ipv6 Unreachables
OMMANDS UNREACHABLES ipv6 unreachables Overview Use this command to enable ICMPv6 (Internet Control Message Protocol version 6) type 1, destination unreachable, messages. Use the no variant of this command to disable destination unreachable messages. This prevents an attacker from using these messages to discover the topology of a network.
Page 879: Ping Ipv6
OMMANDS PING IPV ping ipv6 Overview This command sends a query to another IPv6 host (send Echo Request messages). ping ipv6 {<host>|<ipv6-address>} [repeat Syntax {<1-2147483647>|continuous}] [size <10-1452>] [interface <interface-list>] [timeout <1-65535>] Parameter Description <ipv6-addr> The destination IPv6 address. The IPv6 address uses the format X:X::X:X.
Page 880: Show Ipv6 Forwarding
OMMANDS SHOW IPV FORWARDING show ipv6 forwarding Overview Use this command to display IPv6 forwarding status. show ipv6 forwarding Syntax Mode User Exec and Privileged Exec awplus# show ipv6 forwarding Example Output Figure 22-1: Example output from the show ipv6 forwarding command ...
Page 881: Show Ipv6 Interface Brief
OMMANDS SHOW IPV INTERFACE BRIEF show ipv6 interface brief Overview Use this command to display brief information about interfaces and the IPv6 address assigned to them. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 882: Show Ipv6 Neighbors
OMMANDS SHOW IPV NEIGHBORS show ipv6 neighbors Overview Use this command to display all IPv6 neighbors. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show ipv6 neighbors Mode User Exec and Privileged Exec C613-50175-01 Rev B...
Page 883: Show Ipv6 Route
OMMANDS SHOW IPV ROUTE show ipv6 route Overview Use this command to display the IPv6 routing table for a protocol or from a particular table. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 884 OMMANDS SHOW IPV ROUTE Output Figure 22-3: Example output of the show ipv6 route command  IPv6 Routing Table Codes: C - connected, S - static, R - RIP, O - OSPF, B - BGP ::/0 [1/0] via 2001::a:0:0:c0a8:a6, vlan10 2001:db8::a:0:0:0:0/64 via ::, vlan10...
Page 885: Show Ipv6 Route Summary
OMMANDS SHOW IPV ROUTE SUMMARY show ipv6 route summary Overview Use this command to display the summary of the current NSM RIB entries. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 886: Traceroute Ipv6
OMMANDS TRACEROUTE IPV traceroute ipv6 Overview Use this command to trace the route to the specified IPv6 host. traceroute ipv6 {<ipv6-addr>|<hostname>} Syntax Parameter Description <ipv6-addr> The destination IPv6 address. The IPv6 address uses the format X:X::X:X. <hostname> The destination hostname. Mode User Exec and Privileged Exec Example...
Page 887: Chapter 23: Routing Commands
Routing Commands Introduction Overview This chapter provides an alphabetical reference of routing commands that are common across the routing IP protocols. For more information, see the Route Selection Feature Overview and Configuration Guide. Command List • “ip route” on page 888 •...
Page 888: Ip Route
OUTING OMMANDS IP ROUTE ip route Overview This command adds a static route to the Routing Information Base (RIB). If this route is the best route for the destination, then your device adds it to the Forwarding Information Base (FIB). Your device uses the FIB to advertise routes to neighbors and forward packets.
Page 889 OUTING OMMANDS IP ROUTE Parameter Description Applies the command to the specified VRF instance. <vrf-name> The name of the VRF instance to enter IPv4 Address-Family mode for. Mode Global Configuration Default The default administrative distance for a static route is 1 for priority over non-static routes.
Page 890 OUTING OMMANDS IP ROUTE To remove a static route from source VRF red, to the subnet 192.168.50.0/24 with a next hop of 192.168.20.6, use the following commands for static intra-VRF routing configuration: awplus# configure terminal awplus(config)# no ip route vrf red 192.168.50.0/24 192.168.20.6 To create a static route from source VRF red, to the subnet 192.168.50.0/24 with a next hop of 192.168.20.6 via vlan10, use the following commands for static...
Page 891 OUTING OMMANDS ROUTE ipv6 route Overview This command adds a static IPv6 route to the Routing Information Base (RIB). If this route is the best route for the destination, then your device adds it to the Forwarding Information Base (FIB). Your device uses the FIB to advertise routes to neighbors and forward packets.
Page 892 OUTING OMMANDS ROUTES max-fib-routes Overview This command enables you to control the maximum number of FIB routes configured. It operates by providing parameters that enable you to configure preset maximums and warning message thresholds. : When using VRF-lite, this command applies to the Global VRF instance; to set NOTE the max-fib-routes for a user-defined VRF instance use the max-fib-routes (VRF)
Page 893 OUTING OMMANDS ROUTES Related max-fib-routes (VRF) Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 894 OUTING OMMANDS STATIC ROUTES max-static-routes Overview Use this command to set the maximum number of static routes, excluding FIB (Forwarding Information Base) routes. : When using VRF-lite, this command applies to the Global VRF instance; to set NOTE the max-static-routes for a user-defined VRF instance use the max-static-routes (VRF) command.
Page 895: Maximum-Paths
OUTING OMMANDS MAXIMUM PATHS maximum-paths Overview This command enables ECMP on your device, and sets the maximum number of paths that each route has in the Forwarding Information Base (FIB). ECMP is enabled by default. The no variant of this command sets the maximum paths to the default of 4. Syntax maximum-paths <1-8>...
Page 896: Show Ip Route
OUTING OMMANDS SHOW IP ROUTE show ip route Overview Use this command to display routing entries in the FIB (Forwarding Information Base). The FIB contains the best routes to a destination, and your device uses these routes when forwarding traffic. You can display a subset of the entries in the FIB based on protocol.
Page 897 OUTING OMMANDS SHOW IP ROUTE To display all routing entries in the FIB associated with a VRF instance red, use the Example (VRF-lite) command: CFC960 Only awplus# show ip route vrf red Output Each entry in the output from this command has a code preceding it, indicating the source of the routing entry.
Page 898 OUTING OMMANDS SHOW IP ROUTE This route entry denotes: This route in the network 10.10.37.0/24 was added by OSPF. • • This route has an administrative distance of 110 and metric/cost of 11. This route is reachable via next hop 10.10.31.16. •...
Page 899: Show Ip Route Database
OUTING OMMANDS SHOW IP ROUTE DATABASE show ip route database Overview This command displays the routing entries in the RIB (Routing Information Base). When multiple entries are available for the same prefix, RIB uses the routes’ administrative distances to choose the best route. All best routes are entered into the FIB (Forwarding Information Base).
Page 900 OUTING OMMANDS SHOW IP ROUTE DATABASE Output Figure 23-2: Example output from the show ip route database command Codes: C - connected, S - static, R - RIP, B - BGP O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2...
Page 901 OUTING OMMANDS SHOW IP ROUTE DATABASE • Since this static route has a lower administrative distance than the OSPF route (110), the static route (1) is selected and installed in the FIB. If the static route becomes unavailable, then the device automatically selects the OSPF route and installs it in the FIB.
Page 902: Show Ip Route Summary
OUTING OMMANDS SHOW IP ROUTE SUMMARY show ip route summary Overview This command displays a summary of the current RIB (Routing Information Base) entries. To modify the lines displayed, use the | (output modifier token); to save the output to a file, use the > output redirection token. Syntax show ip route summary show ip route summary [vrf <vrf-name>|global]...
Page 903 OUTING OMMANDS SHOW IP ROUTE SUMMARY Output Figure 23-5: Example output from the show ip route summary vrf red command IP routing table name is Default-IP-Routing-Table(0) IP routing table maximum-paths is 4 Route Source Networks connected 1 Total 1 0 ...
Page 904 OUTING OMMANDS SHOW IPV ROUTE show ipv6 route Overview Use this command to display the IPv6 routing table for a protocol or from a particular table. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 905 OUTING OMMANDS SHOW IPV ROUTE Output Figure 23-6: Example output of the show ipv6 route command  IPv6 Routing Table Codes: C - connected, S - static, R - RIP, O - OSPF, B - BGP ::/0 [1/0] via 2001::a:0:0:c0a8:a6, vlan10 2001:db8::a:0:0:0:0/64 via ::, vlan10...
Page 906 OUTING OMMANDS SHOW IPV ROUTE SUMMARY show ipv6 route summary Overview Use this command to display the summary of the current NSM RIB entries. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 907: Chapter 24: Rip Commands
RIP Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure RIP. For information about configuring RIP, see the RIP Feature Overview and Configuration Guide. Command List • “accept-lifetime” on page 909 • “address-family ipv4 (RIP)” on page 911 •...
Page 908 RIP C OMMANDS • “ip rip send version 1-compatible” on page 935 • “ip rip split-horizon” on page 937 • “key” on page 938 • “key chain” on page 939 • “key-string” on page 940 • “maximum-prefix” on page 941 •...
Page 909: Accept-Lifetime
RIP C OMMANDS ACCEPT LIFETIME accept-lifetime Overview Use this command to specify the time period during which the authentication key on a key chain is received as valid. Use the no variant of this command to remove a specified time period for an authentication key on a key chain as set previously with the accept-lifetime command.
Page 910 RIP C OMMANDS ACCEPT LIFETIME awplus# configure terminal awplus(config)# key chain mychain awplus(config-keychain)# key 1 awplus(config-keychain-key)# accept-lifetime 03:03:01 3 Sep 2016 04:04:02 6 Oct 2016 Related Commands key-string key chain send-lifetime C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™...
Page 911: Address-Family Ipv4 (Rip)
RIP C OMMANDS 4 (RIP) ADDRESS FAMILY IPV address-family ipv4 (RIP) Overview This command enters the IPv4 address-family command mode. In this mode you can configure address-family specific parameters for a specific VRF (RIP) instance. VRF-lite is supported only on the SBx81CFC960 Control Card; it is not supported on the CFC400 Control Card.
Page 912: Alliedware-Behavior
RIP C OMMANDS ALLIEDWARE BEHAVIOR alliedware-behavior Overview This command configures your device to exhibit AlliedWare behavior when sending RIPv1 response/update messages. Configuring for this behavior may be necessary if you are replacing an AlliedWare device with an AlliedWare Plus device and wish to ensure consistent RIPv1 behavior.
Page 913 RIP C OMMANDS ALLIEDWARE BEHAVIOR To return your device to AlliedWare Plus-like behavior when sending and receiving RIPv1 update messages, enter the commands: awplus# configure terminal awplus(config)# router rip awplus(config-router)# no alliedware-behavior rip1-send awplus(config-router)# no alliedware-behavior rip1-recv Validation show ip protocols rip Commands show running-config Related...
Page 914: Cisco-Metric-Behavior (Rip)
RIP C OMMANDS (RIP) CISCO METRIC BEHAVIOR cisco-metric-behavior (RIP) Overview Use this command to enable or disable the RIP routing metric update to conform to Cisco’s implementation. This command is provided to allow inter-operation with older Cisco devices that do not conform to the RFC standard for RIP route metrics.
Page 915: Clear Ip Rip Route
RIP C OMMANDS CLEAR IP RIP ROUTE clear ip rip route Overview Use this command to clear specific data from the RIP routing table. clear ip rip route {<ip-dest-network/prefix-length>| Syntax static|connected|rip|ospf|bgp|invalid-routes|all} clear ip rip [vrf <vrf-name>] route Syntax (VRF-lite) {<ip-dest-network/prefix-length> CFC960 only |static|connected|rip|ospf|bgp|invalid-routes|all} Parameter...
Page 916: Debug Rip
RIP C OMMANDS DEBUG RIP debug rip Overview Use this command to specify the options for the displayed debugging information for RIP events and RIP packets. Use the no variant of this command to disable the specified debug option. Syntax debug rip {events|nsm|<packet>|all} no debug rip {events|nsm|<packet>|all} Parameter...
Page 917: Default-Information Originate (Rip)
RIP C OMMANDS (RIP) DEFAULT INFORMATION ORIGINATE default-information originate (RIP) Overview Use this command to generate a default route into the Routing Information Protocol (RIP). Use the no variant of this command to disable this feature. Syntax default-information originate no default-information originate Default Disabled Mode...
Page 918: Default-Metric (Rip)
RIP C OMMANDS (RIP) DEFAULT METRIC default-metric (RIP) Overview Use this command to specify the metrics to be assigned to redistributed RIP routes. Use the no variant of this command to reset the RIP metric back to its default (1). Syntax default-metric <metric>...
Page 919: Distance (Rip)
RIP C OMMANDS (RIP) DISTANCE distance (RIP) Overview This command sets the administrative distance for RIP routes. Your device uses this value to select between two or more routes to the same destination obtained from two different routing protocols. The route with the smallest administrative distance value is added to the Forwarding Information Base (FIB).
Page 920: Distribute-List (Rip)
RIP C OMMANDS (RIP) DISTRIBUTE LIST distribute-list (RIP) Overview Use this command to filter incoming or outgoing route updates using the access-list or the prefix-list. When running VRF-lite, this command can be applied to a specific VRF instance. Use the no variant of this command to disable this feature. distribute-list {<access-list>...
Page 921 RIP C OMMANDS (RIP) DISTRIBUTE LIST Related access-list extended (named) Commands ip prefix-list C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 922: Fullupdate (Rip)
RIP C OMMANDS (RIP) FULLUPDATE fullupdate (RIP) Overview Use this command to specify which routes RIP should advertise when performing a triggered update. By default, when a triggered update is sent, RIP will only advertise those routes that have changed since the last update. When fullupdate is configured, the device advertises the full RIP route table in outgoing triggered updates, including routes that have not changed.
Page 923: Ip Rip Authentication Key-Chain
RIP C OMMANDS IP RIP AUTHENTICATION KEY CHAIN ip rip authentication key-chain Overview Use this command to enable RIPv2 authentication on an interface and specify the name of the key chain to be used. Use the no variant of this command to disable this function. Syntax ip rip authentication key-chain <key-chain-name>...
Page 924 RIP C OMMANDS IP RIP AUTHENTICATION KEY CHAIN Specify the mode of authentication for the given interface (text or MD5), using the following command: awplus(config-if)# ip rip authentication mode {md5|text} Example In the following example of a configuration for multiple keys authentication, a password “toyota”...
Page 925: Ip Rip Authentication Mode
RIP C OMMANDS IP RIP AUTHENTICATION MODE ip rip authentication mode Overview Use this command to specify the type of authentication mode used for RIP v2 packets. Use the no variant of this command to restore clear text authentication. Syntax ip rip authentication mode {md5|text} no ip rip authentication mode Parameter...
Page 926 RIP C OMMANDS IP RIP AUTHENTICATION MODE Usage: multiple For multiple keys authentication, use the following steps to configure a route to enable RIPv2 authentication using multiple keys at different times: Define a key chain with a key chain name, using the following commands: awplus# configure terminal awplus(config)#...
Page 927 RIP C OMMANDS IP RIP AUTHENTICATION MODE Example 3 The following example specifies “mykey” as the authentication string with MD5 authentication, for the VLAN interface vlan2: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# ip rip authentication string mykey awplus(config-if)# ip rip authentication mode md5 Related ip rip authentication string Commands...
Page 928: Ip Rip Authentication String
RIP C OMMANDS IP RIP AUTHENTICATION STRING ip rip authentication string Overview Use this command to specify the authentication string or password used by a key. Use the no variant of this command to remove the authentication string. Syntax ip rip authentication string <auth-string> no ip rip authentication string Parameter Description...
Page 929 RIP C OMMANDS IP RIP AUTHENTICATION STRING In the following example, the VLAN interface vlan2 is configured to have an Example authentication string as guest. Any received RIP packet in that interface should have the same string as password. awplus# configure terminal awplus(config)# interface vlan2...
Page 930: Ip Rip Receive-Packet
RIP C OMMANDS IP RIP RECEIVE PACKET ip rip receive-packet Overview Use this command to configure the interface to enable the reception of RIP packets. Use the no variant of this command to disable this feature. Syntax ip rip receive-packet no ip rip receive-packet Default Receive-packet is enabled...
Page 931: Ip Rip Receive Version
RIP C OMMANDS IP RIP RECEIVE VERSION ip rip receive version Overview Use this command to specify the version of RIP packets accepted on an interface and override the setting of the version command. Use the no variant of this command to use the setting specified by the version (RIP) command.
Page 932: Ip Rip Send-Packet
RIP C OMMANDS IP RIP SEND PACKET ip rip send-packet Overview Use this command to enable sending RIP packets through the current interface. Use the no variant of this command to disable this feature. Syntax ip rip send-packet no ip rip send-packet Default Send packet is enabled Mode...
Page 933: Ip Rip Send Version
RIP C OMMANDS IP RIP SEND VERSION ip rip send version Overview Use this command in Interface Configuration mode to specify the version of RIP packets sent on an interface and override the setting of the version (RIP) command. This mechanism causes RIP version 2 interfaces to send multicast packets instead of broadcasting packets.
Page 934 RIP C OMMANDS IP RIP SEND VERSION In the following example, the VLAN interface vlan4 is configured to send both RIP version 2 and 1 packets. awplus# configure terminal awplus(config)# interface vlan4 awplus(config-if)# ip rip send version 2 1 In the following example, the VLAN interface vlan4 is configured to send RIP version 1 packets only.
Page 935: Ip Rip Send Version 1-Compatible
RIP C OMMANDS IP RIP SEND VERSION COMPATIBLE ip rip send version 1-compatible Overview Use this command in Interface Configuration mode to send RIP version 1 compatible packets from a RIP version 2 interfaces to other RIP Interfaces. This mechanism causes RIP version 2 interfaces to send broadcast packets instead of multicasting packets, and is used in environments where multicast is not enabled or where hosts do not listen to multicast.
Page 936 RIP C OMMANDS IP RIP SEND VERSION COMPATIBLE Related ip rip send version Commands version (RIP) C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 937: Ip Rip Split-Horizon
RIP C OMMANDS IP RIP SPLIT HORIZON ip rip split-horizon Overview Use this command to turn on the split-horizon mechanism on the interface. Use the no variant of this command to disable this mechanism. Syntax ip rip split-horizon [poisoned] no ip rip split-horizon Parameter Description poisoned...
Page 938 RIP C OMMANDS Overview Use this command to manage, add and delete authentication keys in a key-chain. Use the no variant of this command to delete the authentication key. Syntax key <keyid> no key <keyid> Parameter Description <keyid> <0-2147483647> Key identifier number. Mode Keychain Configuration Usage...
Page 939: Key Chain
RIP C OMMANDS KEY CHAIN key chain Overview Use this command to enter the key chain management mode and to configure a key chain with a key chain name. Use the no variant of this command to remove the key chain and all configured keys.
Page 940: Key-String
RIP C OMMANDS STRING key-string Overview Use this command to define the password to be used by a key. Use the no variant of this command to remove a password. Syntax key-string <key-password> no key-string Parameter Description <key-password> A string of characters to be used as a password by the key. Mode Keychain-key Configuration Usage...
Page 941: Maximum-Prefix
RIP C OMMANDS MAXIMUM PREFIX maximum-prefix Overview Use this command to configure the maximum number of RIP routes stored in the routing table. Use the no variant of this command to disable all limiting of the number of RIP routes stored in the routing table. Syntax maximum-prefix <maxprefix>...
Page 942: Neighbor (Rip)
RIP C OMMANDS (RIP) NEIGHBOR neighbor (RIP) Overview Use this command to specify a neighbor router. It is used for each router to which you wish to send unicast RIP updates. Use the no variant of this command to stop sending unicast updates to the specific router.
Page 943: Network (Rip)
RIP C OMMANDS (RIP) NETWORK network (RIP) Overview Use this command to activate the transmission of RIP routing information on the defined network. Use the no variant of this command to remove the specified network or VLAN as one that runs RIP. Syntax network {<network-address>[/<subnet-mask>]|<vlan-name>} no network {<network-address>[/<subnet-mask>]|<vlan-name>}...
Page 944 RIP C OMMANDS (RIP) NETWORK Related show ip rip Commands show running-config clear ip rip route C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 945: Offset-List (Rip)
RIP C OMMANDS (RIP) OFFSET LIST offset-list (RIP) Overview Use this command to add an offset to the in and out metrics of routes learned through RIP. Use the no variant of this command to remove the offset list. Syntax offset-list <access-list>...
Page 946 RIP C OMMANDS (RIP) OFFSET LIST Related access-list (extended numbered) Commands C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 947: Passive-Interface (Rip)
RIP C OMMANDS (RIP) PASSIVE INTERFACE passive-interface (RIP) Overview Use this command to block RIP broadcasts on the interface. Use the no variant of this command to disable this function. Syntax passive-interface <interface> no passive-interface <interface> Parameter Description <interface> Specifies the interface name. Default Disabled Mode...
Page 948: Recv-Buffer-Size (Rip)
RIP C OMMANDS (RIP) RECV BUFFER SIZE recv-buffer-size (RIP) Overview Use this command to run-time configure the RIP UDP (User Datagram Protocol) receive-buffer size to improve UDP reliability by avoiding UDP receive buffer overrun. Use the no variant of this command to reset the configured RIP UDP receive-buffer size to the system default (196608 bits).
Page 949: Redistribute (Rip)
RIP C OMMANDS (RIP) REDISTRIBUTE redistribute (RIP) Overview Use this command to redistribute information from other routing protocols into RIP. When using VRF-lite, you can apply this command to a specific VRF instance. Use the no variant of this command to disable the specified redistribution. The parameters metric and routemap may be used on this command, but have no effect.
Page 950 RIP C OMMANDS (RIP) REDISTRIBUTE Example To apply the metric value 15 to static routes in address-family ipv4 VRF instance blue being redistributed into RIP, use the following commands: (VRF-lite) CFC960 Only awplus# configure terminal awplus(config)# router rip awplus(config-router)# address-family ipv4 vrf blue awplus(config-router-af)# redistribute static metric 15 Related...
Page 951: Restart Rip Graceful
RIP C OMMANDS RESTART RIP GRACEFUL restart rip graceful Overview Use this command to force the RIP process to restart, and optionally set the grace-period. restart rip graceful [grace-period <1-65535>] Syntax Mode Privileged Exec Default The default RIP grace-period is 60 seconds. Usage After this command is executed, the RIP process immediately shuts down.
Page 952: Rip Restart Grace-Period
RIP C OMMANDS RIP RESTART GRACE PERIOD rip restart grace-period Overview Use this command to change the grace period of RIP graceful restart. Use the no variant of this command to disable this function. Syntax rip restart grace-period <1-65535> no rip restart grace-period <1-65535> Mode Global Configuration Default...
Page 953: Route (Rip)
RIP C OMMANDS (RIP) ROUTE route (RIP) Overview Use this command to add a static RIP route. Use the no variant of this command to remove a static RIP route. Syntax route <ip-addr/prefix-length> no route <ip-addr/prefix-length> Parameter Description <ip-addr/prefix-length> The IPv4 address and prefix length. Default No static RIP route is added by default.
Page 954: Router Rip
RIP C OMMANDS ROUTER RIP router rip Overview Use this global command to enter Router Configuration mode to enable the RIP routing process. Use the no variant of this command to disable the RIP routing process. Syntax router rip no router rip Mode Global Configuration Example...
Page 955: Send-Lifetime
RIP C OMMANDS SEND LIFETIME send-lifetime Overview Use this command to specify the time period during which the authentication key on a key chain can be sent. send-lifetime <start-date> {<end-date>| Syntax duration <seconds>|infinite} no send-lifetime Parameter Description Specifies the start time and date in the format:  <start-date>...
Page 956 RIP C OMMANDS SEND LIFETIME Related Commands key-string key chain accept-lifetime C613-50175-01 Rev B Command Reference for SwitchBlade® x8100 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 957: Show Debugging Rip
RIP C OMMANDS SHOW DEBUGGING RIP show debugging rip Overview Use this command to display the RIP debugging status for these debugging options: nsm debugging, RIP event debugging, RIP packet debugging and RIP nsm debugging. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 958: Show Ip Protocols Rip
RIP C OMMANDS SHOW IP PROTOCOLS RIP show ip protocols rip Overview Use this command to display RIP process parameters and statistics. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 959 RIP C OMMANDS SHOW IP RIP show ip rip Overview Use this command to show RIP routes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show ip rip Mode User Exec and Privileged Exec awplus#...
Page 960: Show Ip Rip Database
RIP C OMMANDS SHOW IP RIP DATABASE show ip rip database Overview Use this command to display information about the RIP database. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 961: Show Ip Rip Interface
RIP C OMMANDS SHOW IP RIP INTERFACE show ip rip interface Overview Use this command to display information about the RIP interfaces. You can specify an interface name to display information about a specific interface. show ip rip interface [<interface>] Syntax Parameter Description...
Page 962: Show Ip Rip Vrf Database
RIP C OMMANDS SHOW IP RIP VRF DATABASE show ip rip vrf database Overview Use this command to display information about the RIP database that is associated with a specific VRF instance. Entering this command with the full option included, will display information about the full RIP database (including sub-optimal routes) associated with a specific VRF instance.
Page 963: Show Ip Rip Vrf Interface
RIP C OMMANDS SHOW IP RIP VRF INTERFACE show ip rip vrf interface Overview Use this command to display information about the RIP interfaces that are associated with a specific VRF instance. VRF-lite is supported only on the SBx81CFC960 Control Card; it is not supported on the CFC400 Control Card.
Page 964: Timers (Rip)
RIP C OMMANDS (RIP) TIMERS timers (RIP) Overview Use this command to adjust routing network timers. Use the no variant of this command to restore the defaults. Syntax timers basic <update> <timeout> <garbage> no timers basic Parameter Description <update> <5-2147483647> Specifies the period at which RIP route update packets are transmitted.
Page 965 RIP C OMMANDS (RIP) TIMERS To set the update timer to 30, the routing information timeout timer to 180, and the routing garbage collection timer to 120 with VRF, use the following command: awplus# configure terminal awplus(config)# router rip awplus(config-router)# address-family ipv4 vrf blue awplus(config-router-af)# timers basic 30 180 120...
Page 966: Undebug Rip
RIP C OMMANDS UNDEBUG RIP undebug rip Overview Use this command to disable the options set for debugging information of RIP events, packets and communication between RIP and NSM. This command has the same effect as the no debug rip command. Syntax undebug rip {all|events|nsm|<packet>} Parameter...
Page 967: Version (Rip)
RIP C OMMANDS (RIP) VERSION version (RIP) Overview Use this command to specify a RIP version used globally by the router. If VRF-lite is configured, you can specify a RIP version either globally, or for a particular VRF instance. Use the no variant of this command to restore the default version. version {1|2} Syntax no version...
Page 968: Chapter 25: Ripng For Ipv6 Commands
RIPng for IPv6 Commands Introduction Overview This chapter contains RIPng commands. RIPng (Routing Information Protocol next generation) is an extension of RIPv2 to support IPv6. RFC 2080 specifies RIPng. The differences between RIPv2 and RIPng are: • RIPng does not support RIP updates authentication •...
Page 969 NG FOR OMMANDS • “router ipv6 rip” on page 986 • “show debugging ipv6 rip” on page 987 • “show ipv6 protocols rip” on page 988 • “show ipv6 rip” on page 989 • “show ipv6 rip database” on page 990 •...
Page 970: Aggregate-Address (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP AGGREGATE ADDRESS aggregate-address (IPv6 RIPng) Overview Use this command to add an aggregate route to RIPng. Use the no variant of this command to remove the aggregate route from RIPng. Syntax aggregate-address <ipv6-addr/prefix-length> no aggregate-address <ipv6-addr/prefix-length> Parameter Description <ipv6-addr/prefix-length>...
Page 971: Clear Ipv6 Rip Route
NG FOR OMMANDS CLEAR IPV RIP ROUTE clear ipv6 rip route Overview Use this command to clear specific data from the RIPng routing table. clear ipv6 rip route Syntax {<ipv6-addr/prefix-length>|all|connected|rip|static|ospf} Parameter Description <ipv6-addr/ Specify the IPv6 Address in format X:X::X:X/Prefix-Length. prefix-length>...
Page 972: Debug Ipv6 Rip
NG FOR OMMANDS DEBUG IPV debug ipv6 rip Overview Use this command to enable RIPng debugging and specify debugging for RIPng events, RIPng packets, or RIPng communication with NSM processes. Use the no variant of this command to disable RIPng debugging. Syntax debug ipv6 rip [all|events|nsm|packet [detail]|recv [detail]|send [detail]]...
Page 973: Default-Information Originate (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP DEFAULT INFORMATION ORIGINATE default-information originate (IPv6 RIPng) Overview Use this command to generate a default route into RIPng. Use the no variant of this command to disable this feature. Syntax default-information originate no default-information originate Default Disabled Mode...
Page 974: Default-Metric (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP DEFAULT METRIC default-metric (IPv6 RIPng) Overview Use this command to specify the metrics to be assigned to redistributed RIPng routes. Use the no variant of this command to reset the RIPng metric back to its default (1). Syntax default-metric <1-16>...
Page 975: Distribute-List (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP DISTRIBUTE LIST distribute-list (IPv6 RIPng) Overview Use this command to filter incoming or outgoing route updates using the access-list or the prefix-list. Use the no variant of this command to disable this feature. Syntax distribute-list [<access-list>|prefix <prefix-list-name>] [in|out] [<interface>] no distribute-list [<access-list>|prefix <prefix-list-name>] [in|out] [<interface>]...
Page 976: Ipv6 Rip Metric-Offset
NG FOR OMMANDS RIP METRIC OFFSET ipv6 rip metric-offset Overview Use this command to increment the metric value on incoming routes for a specified interface. This command can be used to artificially inflate the metric value for routes learned on the specified interface. Routes learned on the specified interface are only used if the routes to the same destination with a lower metric value in the routing table are down.
Page 977 NG FOR OMMANDS RIP METRIC OFFSET Examples To increment the metric-offset on the VLAN interface vlan2, enter the below commands: awplus# configure terminal awplus(config)# router ipv6 rip awplus(config-router)# exit awplus(config)# interface vlan2 awplus(config-if)# ipv6 rip metric-offset 1 To reset the metric-offset on the VLAN interface vlan2 to the default value, enter the below commands: awplus# configure terminal...
Page 978: Ipv6 Rip Split-Horizon
NG FOR OMMANDS RIP SPLIT HORIZON ipv6 rip split-horizon Overview Use this command to perform the split-horizon action on the interface. The default is split-horizon with poisoned reverse. Use the no variant of this command to disable this function. Syntax ipv6 rip split-horizon [poisoned] no ipv6 rip split-horizon Parameter...
Page 979: Ipv6 Router Rip
NG FOR OMMANDS ROUTER RIP ipv6 router rip Overview Use this command to enable RIPng routing on an interface. Use the no variant of this command to disable RIPng routing on an interface. Syntax ipv6 router rip no ipv6 router rip Default RIPng routing is disabled by default.
Page 980: Neighbor (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP NEIGHBOR neighbor (IPv6 RIPng) Overview Use this command to specify a neighbor router. Use the no variant of this command to disable the specific router. Syntax neighbor <ipv6-link-local-addr> <interface> no neighbor <ipv6-link-local-addr> <interface> Parameter Description <ipv6-link-local-addr>...
Page 981: Offset-List (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP OFFSET LIST offset-list (IPv6 RIPng) Overview Use this command to add an offset to in and out metrics to routes learned through RIPng. Use the no variant of this command to remove an offset list. Syntax offset-list {<access-list-number>|<access-list-name>} {in|out} <offset>...
Page 982: Passive-Interface (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP PASSIVE INTERFACE passive-interface (IPv6 RIPng) Overview Use this command to enable suppression of routing updates on an interface. Use the no variant of this command to disable this function. Syntax passive-interface <interface> no passive-interface <interface> Parameter Description <interface>...
Page 983: Recv-Buffer-Size (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP RECV BUFFER SIZE recv-buffer-size (IPv6 RIPng) Overview Use this command to configure the RIPng UDP (User Datagram Protocol) receive-buffer size. This should improve UDP reliability by avoiding UDP receive buffer overruns. Use the no variant of this command to unset the configured RIPng UDP receive-buffer size and set it back to the system default of 196608 bits.
Page 984: Redistribute (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP REDISTRIBUTE redistribute (IPv6 RIPng) Overview Use this command to redistribute information from other routing protocols into RIPng. Use the no variant of this command to disable the specified redistribution. The parameters metric and routemap may be used on this command, but have no effect.
Page 985: Route (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP ROUTE route (IPv6 RIPng) Overview Use this command to configure static RIPng routes. Use the no variant of this command to disable this function. Syntax route <ipv6-addr/prefix-length> no route <ipv6-addr/prefix-length> Parameter Description <ipv6-addr/prefix-length> Specify the IPv6 Address in format X:X::X:X/Prefix- Length.
Page 986: Router Ipv6 Rip
NG FOR OMMANDS ROUTER IPV router ipv6 rip Overview Use this global command to enter Router Configuration mode to enable a RIPng routing process. Use the no variant of this command to disable the RIPng routing process. Syntax router ipv6 rip no router ipv6 rip Mode Global Configuration...
Page 987: Show Debugging Ipv6 Rip
NG FOR OMMANDS SHOW DEBUGGING IPV show debugging ipv6 rip Overview Use this command to display the RIPng debugging status for the debugging options of: nsm debugging, RIPng event debugging, RIPng packet debugging, and RIPng nsm debugging. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 988: Show Ipv6 Protocols Rip
NG FOR OMMANDS SHOW IPV PROTOCOLS RIP show ipv6 protocols rip Overview Use this command to display RIPng process parameters and statistics. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 989: Show Ipv6 Rip
NG FOR OMMANDS SHOW IPV show ipv6 rip Overview Use this command to show RIPng routes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show ipv6 rip Mode User Exec and Privileged Exec Example...
Page 990: Show Ipv6 Rip Database
NG FOR OMMANDS SHOW IPV RIP DATABASE show ipv6 rip database Overview Use this command to display information about the RIPng database. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 991: Show Ipv6 Rip Interface
NG FOR OMMANDS SHOW IPV RIP INTERFACE show ipv6 rip interface Overview Use this command to display information about the RIPng interfaces. You can specify an interface name to display information about a specific interface. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 992: Timers (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP TIMERS timers (IPv6 RIPng) Overview Use this command to adjust the RIPng routing network timers. Use the no variant of this command to restore the defaults. Syntax timers basic <update> <timeout> <garbage> no timers basic Parameter Description <update>...
Page 993: Undebug Ipv6 Rip
NG FOR OMMANDS UNDEBUG IPV undebug ipv6 rip Overview Use this command to disable debugging options of RIPng events, RIPng packets, and communication between RIPng and NSM processes. undebug ipv6 rip [all|events|nsm|packet [recv|send][detail]] Syntax Parameter Description Disables all RIPng debugging. events Disable the display of RIPng events information.
Page 994: Chapter 26: Ospf Commands
OSPF Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure OSPF. For more information, see the OSPF Feature Overview and Configuration Guide. Command List • “area default-cost” on page 997 • “area authentication” on page 998 •...
Page 995 OSPF C OMMANDS • “debug ospf route” on page 1021 • “default-information originate” on page 1022 • “default-metric (OSPF)” on page 1023 • “distance (OSPF)” on page 1024 • “distribute-list (OSPF)” on page 1026 • “enable db-summary-opt” on page 1029 •...
Page 996 OSPF C OMMANDS • “router ospf” on page 1063 • “router-id” on page 1065 • “show debugging ospf” on page 1066 • “show ip ospf” on page 1067 • “show ip ospf border-routers” on page 1070 • “show ip ospf database”...
Page 997: Area Default-Cost
OSPF C OMMANDS AREA DEFAULT COST area default-cost Overview This command specifies a cost for the default summary route sent into a stub or NSSA area. The no variant of this command removes the assigned default-route cost. Syntax area <area-id> default-cost <0-16777215> no area <area-id>...
Page 998: Area Authentication
OSPF C OMMANDS AREA AUTHENTICATION area authentication Overview Use this command to enable authentication for an OSPF area. Specifying the area authentication sets the authentication to Type 1 authentication or the Simple Text password authentication (details in RFC 2328). The no variant of this command removes the authentication specification for an area.
Page 999: Area Filter-List
OSPF C OMMANDS AREA FILTER LIST area filter-list Overview This command configures filters to advertise summary routes on Area Border Routers (ABR). This command is used to suppress particular intra-area routes from/to an area to/from the other areas. You can use this command in conjunction with either the access-list or the prefix-list command.
Page 1000: Area Nssa
OSPF C OMMANDS AREA NSSA area nssa Overview This command sets an area as a Not-So-Stubby-Area (NSSA). By default, no NSSA area is defined. Use this command to simplify administration if you are connecting a central site using OSPF to a remote site that is using a different routing protocol. You can extend OSPF to cover the remote connection by defining the area between the central router and the remote router as an NSSA.
