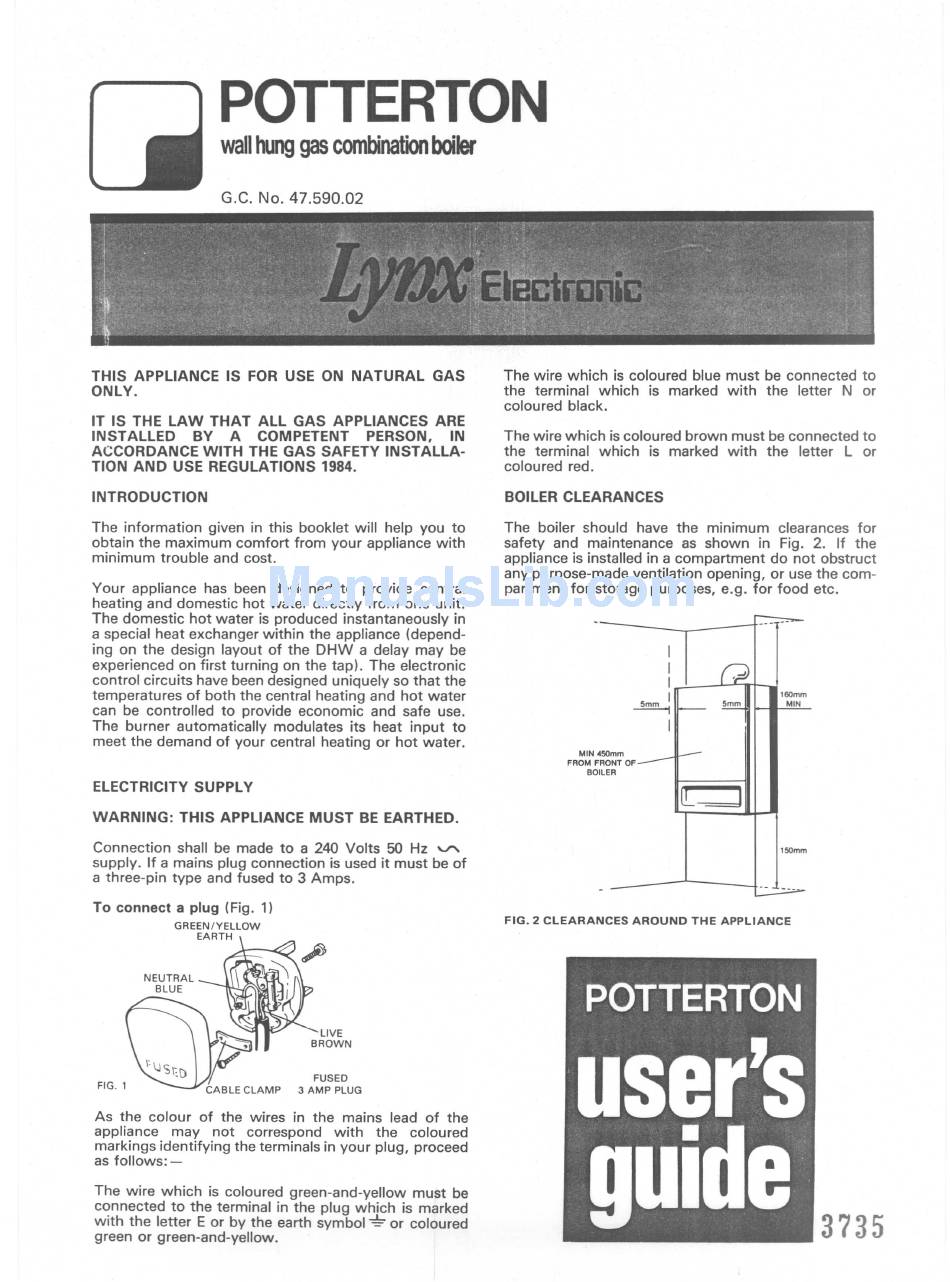

Potterton Lynx Electronic User Manual

POTTERTON
wall hung gas combination boiler
THIS APPLIANCE IS FOR USE ON NATURAL GAS
ONLY.
IT IS THE LAW THAT ALL GAS APPLIANCES ARE
INSTALLED BY A COMPETENT
ACCORDANCE WITH THE GAS SAFETY INSTALLA-
TION AND USE REGULATIONS
INTRODUCTION
The information given in this booklet will help you to
obtain the maximum comfort from your appliance with
minimum trouble and cost.
Your appliance has been designed to provide central
heating and domestic hot water directly from one unit.
The domestic hot water is produced instantaneously in
a special heat exchanger within the appliance (depend-
ing on the design layout of the DHW a delay may be
experienced on first turning on the
control circuits have been designed uniquely so that the
temperatures of both the central heating and hot water
can be controlled to provide economic and safe use.
The burner automatically modulates its heat input to
meet the demand of your central heating or hot water.
ELECTRICITY SUPPLY
WARNING: THIS APPLIANCE MUST BE EARTHED.
Connection shall be made to a 240 Volts 50 Hz
supply. If a mains plug connection is used it must be of
a three-pin type and fused to 3
To connect a plug (Fig. 1)
GREEN/YELLOW
EARTH
As the colour of the wires in the mains lead of the
appliance may not correspond with
markings identifying the terminals in your plug, proceed
as follows:-
The wire which is coloured green-and-yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the earth symbol
green or green-and-yellow.
PERSON, IN
1984.
tap). The electronic
'""
Amps.
the coloured
-::E-
or coloured
The wire which is coloured blue must be
the terminal which is marked with the
coloured black.
The wire which is coloured brown must be
the terminal which is marked with the
coloured red.
The boiler should have the minimum
safety and maintenance as shown in
appliance is installed in a compartment do
any purpose-made ventilation opening, or use
partment for storage purposes,
I
I
I
I
~
MIN 450mm
FROM FRONT OF
BOilER
POTTERTON
user's
guide··
connected to
letter N or
connected to
letter L or
clearances for
Fig. 2. If the
not obstruct
the com-
e.g. for food etc.
3735
