Connectors, Keys, and LEDs
LCD display with touchscreen
Fiber Port SFP+ (1G / 10G) receptacle and activity lights, located
above receptacle. Connect the network under test to this port.
When a fiber module is present, the fiber port will attempt to
link before the Wired Ethernet Port.
Wired Ethernet Port and activity lights, located above
receptacle. This port is used for analysis and troubleshooting of
10G 802.3an copper, 1G 802.3ab copper, and 100M networks,
all at full duplex only.
Management Port – For remote control of the analyzer and
access to its locally stored files. Enter the device's management
port IP address into a browser's address field to connect
remotely to a device.
Connector for the AC adapter – The LED is red when the battery
charges, and green when the battery is fully charged.
– Press the HOME key to go to the main screen.
Power key
– The Test key links/unlinks and starts/stops a test
depending on whether you are starting a test or whether it is in
progress. You can also tap the
Headset jack.
Type A USB port – use it to install software updates, import and
export profiles, and copy screenshots.
Micro - AB USB port – This connector is reserved for future use.
SD card slot – You can import or export profiles and other files
using the SD card.

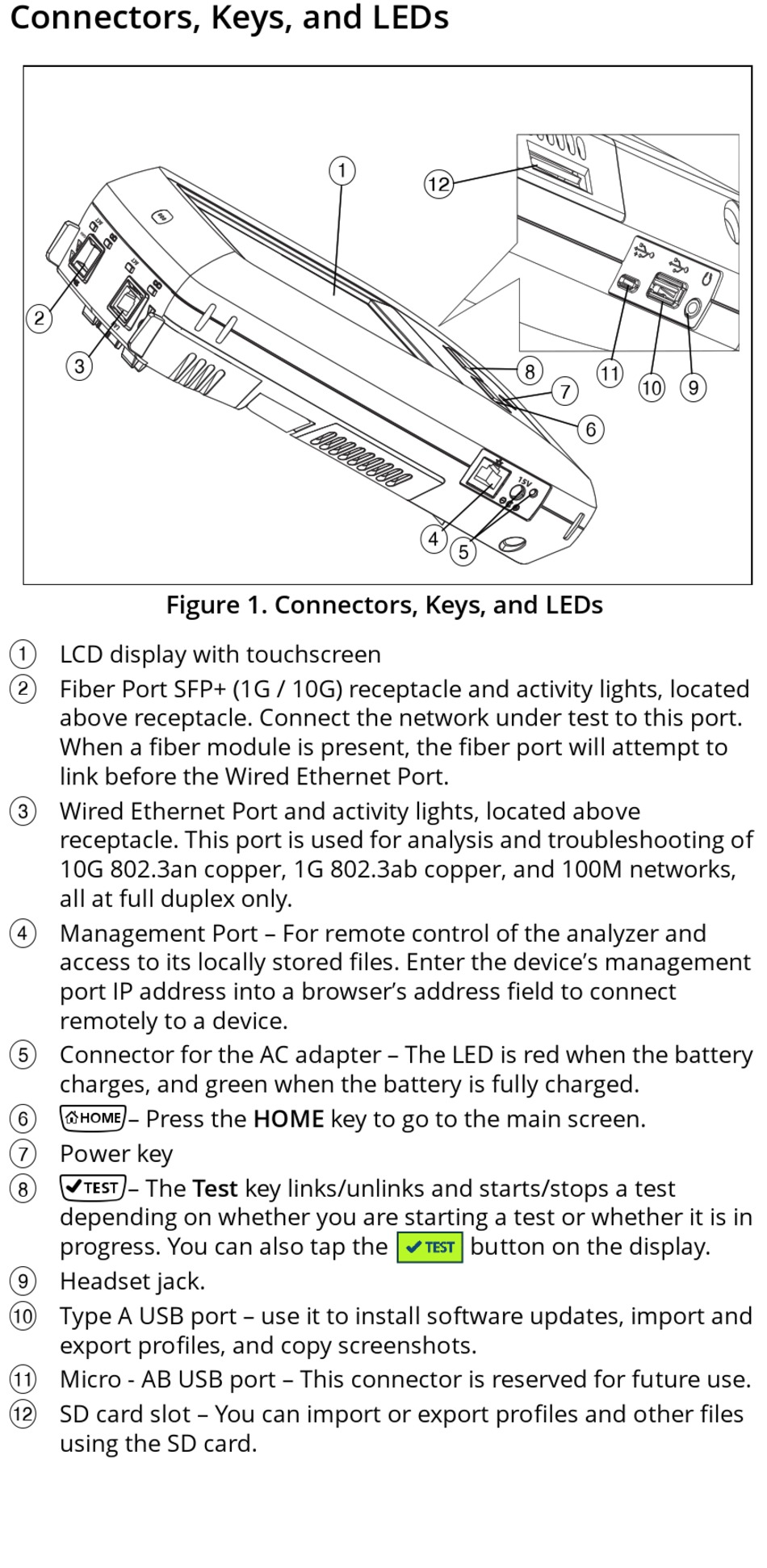

Figure 1. Connectors, Keys, and LEDs
button on the display.
