ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and 90° screwdriver and your own Phillips screwdriver
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

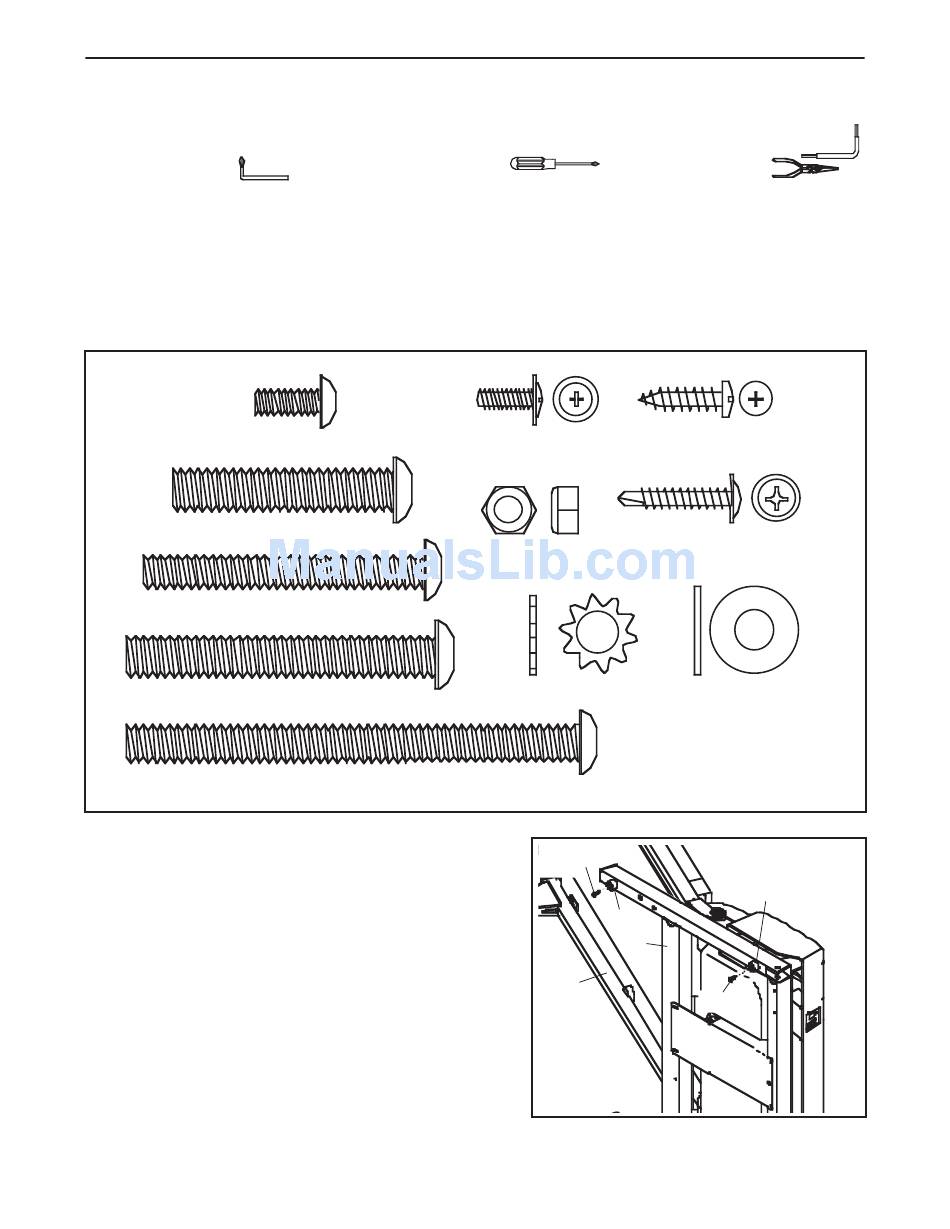

For help identifying the assembly hardware, see the drawings below. Note: The assembly hardware and other
small parts are packaged in separate part bags.
Weight Rack Bolt (121)–4
Wheel Bolt (86)–2
2 1/2" Bolt (56)–4
2 3/4" Bolt (47)–4
1. Make sure that the power cord is not plugged in.
With the help of a second person, carefully tip the
treadmill onto its left side. Partially fold the Frame (12) so
that the treadmill will be more stable. Do not fully fold
the treadmill until it is completely assembled.
Attach the four Base Pads (97) to the bottom of the Base
(82) with four 1" Tek Screws (115) (only two Base Pads
and 1" Tek Screws are shown).
1/2" Screw (107)–1
1/2" Silver Screw (107)–1
4" Bolt (120)–2
and needlenose pliers
3/4" Screw (39)–6
1" Tek Screw (115)–4
Nut (122)–4
Star Washer (81)–4
1
115
97
82
12
6
.
Washer (29)–4
97
115
