Model No. DTL52940
Serial No.
Write the serial number in the space
above for future reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this man-
ual for future reference.
USER'S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for ProForm CS9e HeartRate COntrol
Summary of Contents for ProForm CS9e HeartRate COntrol
- Page 1 Mon.–Fri., 6 a.m.–6 p.m. MST CAUTION Read all precautions and instruc- tions in this manual before using this equipment. Save this man- ual for future reference. USER'S MANUAL Visit our website at www.proform.com new products, prizes, fitness tips, and much more!
-
Page 2: Table Of Contents
HOW TO FOLD AND MOVE THE TREADMILL ........ -
Page 3: Important Precautions
10. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local PROFORM dealer or call 1-800-806- 3651 and order part number 146148. 11. Failure to use a properly functioning surge suppressor could result in damage to the con- trol system of the treadmill. - Page 4 SAVE THESE INSTRUCTIONS The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department toll-free at 1-800-999-3756 and order a free replacement decal.
-
Page 5: Before You Begin

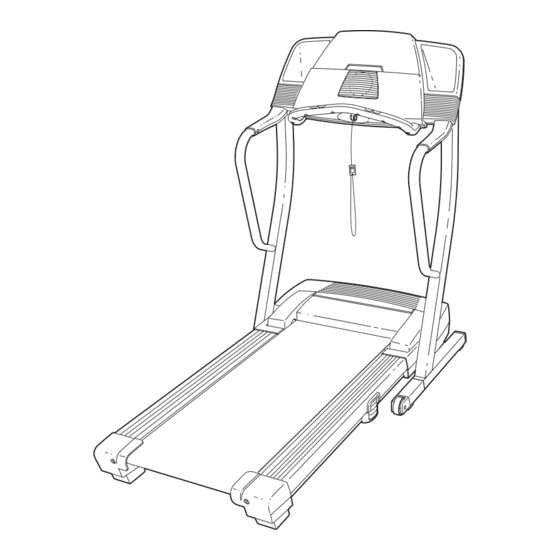

BEFORE YOU BEGIN Thank you for selecting the revolutionary PROFORM CS9e treadmill. The PROFORM CS9e treadmill com- bines advanced technology with innovative design to help you get the most from your exercise program in the convenience and privacy of your home. And when you’re not exercising, the unique PROFORM CS9e... -
Page 6: Assembly
During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor- mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. - Page 7 2. Remove the plastic ties and the wood brace from the Uprights (109). Identify the left handrail, which has a hole in the indi- cated location, and the right handrail. Hold the right handrail near the right Upright (109), and insert the Wire Harness (83) into the large hole in the right handrail and out of the upper end as shown.
- Page 8 Left Handgrip (76). 6. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the walking belt (see page 27).
- Page 9 If you purchase the optional chest pulse sensor (see page 23), follow the steps below to install the re- ceiver and the short jumper wire included with the chest pulse sensor. 1. Make sure that the power cord is unplugged. Remove the indicated 3/4”...
-
Page 10: How To Plug In Power Cord
(see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call 1-800-806-3651 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). -
Page 11: Features Of The Console
Two heart rate programs are also offered. Each program automatically adjusts the speed and in- cline of the treadmill to keep your heart rate near a tar- get heart rate while you exercise. The console also features iFIT.com interactive technol- ogy. -
Page 12: How To Turn On The Power
Stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 11) and slide the clip onto the waistband of your clothes. - Page 13 Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi- tion or the treadmill will be damaged.
- Page 14 If the speed and/or in- cline of the treadmill is about to change, the Speed display and/or the Distance/Incline display will flash to alert you. When the first segment ends, all speed settings will move one column to the left.
- Page 15 When the program ends, make sure that the in- cline of the treadmill is at the lowest setting. Next, remove the key from the console and put it in a secure place. Note: If the displays and various indicators on the console remain lit after the key is removed, the console is in the “demo”...
- Page 16 HOW TO USE HEART RATE PROGRAMS CAUTION: If you have heart prob- lems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regu- larly, consult your physician to find whether the medication will affect your exercise heart rate.
- Page 17 If your heart rate is too far below or above the target heart rate, the speed of the treadmill will automatically increase or decrease to bring your heart rate closer to the target heart rate. If the...
- Page 18 B. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player.
- Page 19 B. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
- Page 20 CONNECT YOUR HOME STEREO on page 19. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
- Page 21 Stop button or remove the key and go to step 1 on page 20. Note: If the speed or incline of the treadmill does not change when a “chirp” is heard: • Make sure that the iFIT.com indicator is lit and that the Time/Pace display is not flashing.
- Page 22 HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 19. In addi- tion, you must have an internet connection and an in- ternet service provider.
- Page 23 If a “d” appears in the display, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be...
-
Page 24: How To Fold And Move The Treadmill
CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. 1. Hold the treadmill in the locations shown at the right. To decrease the possibility of injury, bend your legs and keep your back straight. - Page 25 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the treadmill frame firmly with your left hand. Pull the latch knob to the right. Pivot the treadmill down until the pin on the latch knob is below the handgrip. Slowly re- lease the latch knob.
-
Page 26: Troubleshooting
PROBLEM: The power turns off during use SOLUTION: a. Check the reset/off circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in. - Page 27 Retighten the Screw. Reattach the Hood. Make sure the Screws are return to the correct holes (see step A). Run on the treadmill for a few minutes to check for a correct speed reading. PROBLEM: The walking belt slows when walked on SOLUTION: a.
-
Page 28: Exercise Guidelines
For maximum fat burning, adjust the speed or incline of the treadmill until your heart rate is near the middle number in your training zone. Aerobic Exercise If your goal is to strengthen your cardiovascular sys- tem, your exercise must be “aerobic.”... -
Page 29: Suggested Stretches
SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. -
Page 30: Part List
PART LIST—Model No. DTL52940 To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual. Key No. Qty. Description Foot Rail Cover Left Foot Rail Left Front Endcap Belt Guide Belt Guide Screw 3/4” Screw Console Frame Cage Nuts Incline Wire... - Page 31 Key No. Qty. Description Base Pad Clevis Pin Hairpin Cotter Rear Roller Star Washer Decal Plate Outlet Plate Wheel Housing Wheel Bolt Wheel Upright Pulse Bar Incline Motor Bolt 4” Bolt Cap Decal 1/2” Ground Screw 5/16” Allen Wrench iFIT.com Cable Motor Bracket Pulse Wire Front Roller Adj.
- Page 32 EXPLODED DRAWING—Model No. DTL52940 R1003A...
- Page 33 EXPLODED DRAWING—Model No. DTL52940 R1003A...
-
Page 34: How To Order Replacement Parts
• The MODEL NUMBER of the product (DTL52940) • The NAME of the product (PROFORM • The SERIAL NUMBER of the product (see the front cover of this manual) • The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on pages 30 and 31) ICON Health &...
