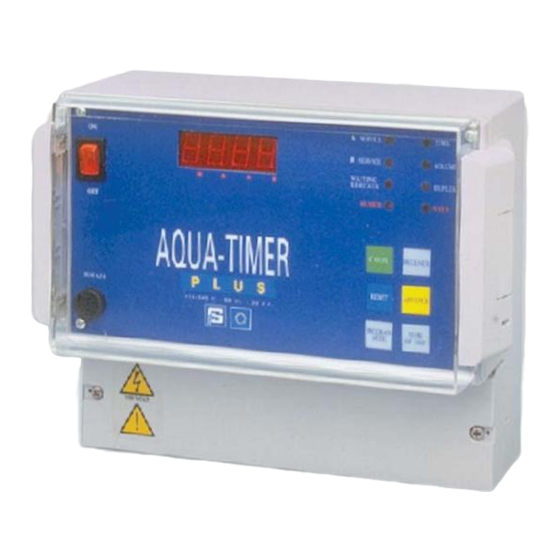

- Page 1 Distributed b Distributed by: S.I.A.T.A Asia Pacific Pte Ltd 37 Tannery Lane #06-08 Tannery House Singapore 347790 Tel: +65 6741 2994 • Fax: +65 6741 2995 www.siata.com.sg USE AND MAINTENANCE MANUAL AQUA TIMER PLUS Aqua Timer Plus 1/34...
- Page 2 EN 50082-1 General Regulation on Immunity – part 1 residential, commercial and light industry environments SIATA S.R.L. has a Quality System which conforms to the requirements of the regulation: ISO 9001/UNI EN ISO 9001-ed. 1994 (Certificate n°95.022 SGS ICS )
- Page 3 ? ..................31 IMER LUS WORKS IN AN IRREGULAR WAY APPENDIX A (GENERAL ELECTRICAL CONNECTIONS) ................. 32 APPENDIX B (ELECTRICAL CONNECTIONS FOR THE SINGLE DISTRIBUTOR) ........33 APPENDIX C (ELECTRICAL CONNECTIONS FOR THE DUPLEX DISTRIBUTOR) ........34 Aqua Timer Plus 3/34...
-
Page 4: Basic Characteristics
Aqua Timer Plus may be connected to a computer via RS232 using the correct cable serial cod. 881-1, so as to be able to acquire and then analyse the progress of the work parameters. -
Page 5: Technical Data
Class of protection IP65 Protection from disturbances ICE 65 Trial class 4 ( 3000 V ) Reading scale 0 – 999,999 Litri Box dimensions 240 mm x 185 mm x 115 mm Total weight 1.5 Kg Aqua Timer Plus 5/34... - Page 6 Changes the visualisation mode of the display. ADVANCE In programming, increases the value being modified. TIME OF Resetting of the local time. If the flag 1HL is programmed to 1, after the time the day of the week is set. Aqua Timer Plus 6/34...
-
Page 7: States Of Visualisation Of The Display
The box is covered by a certificate with the IP65 grade of protection, Aqua Timer Plus is therefore protected against infiltration of dust and direct jets of water. This protection is valid when the cover is closed, and the wiring slots are of the correct size for the cables used and are correctly assembled. -
Page 8: E Lectrical Connections
It is also protected against disturbances originating from the electricity supply by filters mounted inside the controller. If the version supplied at 24 Vac is used, the fuse is 1A retardant. An Autoreset circuit intervenes automatically if Aqua Timer Plus stops functioning after particularly strong disturbances. Aqua Timer Plus... -
Page 9: Instructions For Use
If this simple rule is not respected, Aqua Timer Plus will accept all the new programming, but will not be able to carry out the normal operations needed during the service. - Page 10 If the protection code is forgotten, it is no longer possible to enter the programming functions. In case of need, contact the SIATA technical service. Pressing the key Program Mode after the selection shown in tab. 5, proceed to the selection of the regeneration start mode, as shown in tab.
-
Page 11: Lll1 – Ll–1 – One Single Column With Start By Time
Management of salt alarm disabled Program 3 C L 0 3 C L Advance Management of salt alarm enabled. See par. 6.9 3 C L 1 3 C L Program Normal functioning 0 d L 0 0 d L Aqua Timer Plus 11/34... -
Page 12: Lll1 – Ll–2 – One Single Column With Start By Volume
The control on the remote start is available, which can start up the regeneration both immediately and deferred to the programmed time, based on the content of the flag 2HL. In this operative modality it is not possible to activate the cycle with the stand-by. Aqua Timer Plus 12/34... - Page 13 1 d L Program FLAG not used 2 d L 0 2 d L Program FLAG not used 3 d L 0 3 d L Program Fast flashing of the display. The programming is memorised in eeprom. Aqua Timer Plus 13/34...
-
Page 14: Lll1 – Ll–3 – One Single Column With Mixed Time / Volume Start
The control on the remote start is available, and can start up the regeneration both immediately and deferred to the programmed time, based on the content of the flag 2HL. In this operative modality the possibility of using the cam with the stand-by is not available. Aqua Timer Plus 14/34... - Page 15 1 d L Program FLAG not used 2 d L 0 2 d L Program FLAG not used 3 d L 0 3 d L Program Fast flashing of the display. The programming is memorised in eeprom. Aqua Timer Plus 15/34...
-
Page 16: Lll2 – Ll–1 – A Duplex Column With Start By Time
Immediate start of the regeneration at the command of the remote start. Program 2 H L 0 2 H L See par. 6.5 Start of the regeneration at the programmed time on the command of the remote Advance 2 H L 1 2 H L start Aqua Timer Plus 16/34... - Page 17 SC03 Programming of the regeneration cycle ( stop times ) Programming of the duration of the end of cycle impulse and of the litre counter divider of the SC05 dosing pump SC00 Initialisation of the system Aqua Timer Plus 17/34...
-
Page 18: Lll2 – Ll–2 – One Duplex Column With Start By Volume
1 C L 1 1 C L Program Duplex distributor with standard cams. See par. 6.8 2 C L 0 2 C L Duplex distributor with stand-by cams Advance 2 C L 1 2 C L Aqua Timer Plus 18/34... - Page 19 Programming of the duration of the end of cycle impulse and of the litre counter divider of the SC05 dosing pump SC06 Programming of the volume of resin, of the percentage of reserve and of the exchange capacity SC01 Programming of the hardness value Initialisation of the system SC00 Aqua Timer Plus 19/34...
-
Page 20: Lll2 – Ll–3 – One Duplex Column With Mixed Time / Volume Start
Immediate start of the regeneration at the command of the remote start. Program 2 H L 0 2 H L See par. 6.5 Start of the regeneration at the programmed time on the command of the remote Advance 2 H L 1 2 H L start Aqua Timer Plus 20/34... - Page 21 Programming of the duration of the end of cycle impulse and of the litre counter divider of the SC05 dosing pump SC06 Programming of the volume of resin, of the percentage of reserve and of the exchange capacity SC01 Programming of the hardness value SC00 Initialisation of the system Aqua Timer Plus 21/34...
-
Page 22: P Rogramming Codes
(see par. 6.9) from 1 to 99. Setting of the reserve of regenerations which can be carried out with the PROGRAM d A 0 5 salt introduced. (see par. 6.9). Aqua Timer Plus 22/34... -
Page 23: P Rogramming Of The Reserve
6.4 – Programming of the reserve Aqua Timer Plus allows for the volume of water treatable to be controlled, comparing it to a possible value of reserve, but only working in the single column modality with mixed control for the start of the regeneration. The percentage of reserve is programmed using the code SC02 and expresses the percentage of the total volume available which must be held in reserve. -
Page 24: P Rogramming Of The Litre Counter Divider ( Prescaler )
6.5 – Remote Start Aqua Timer Plus offers a “remote start” entry which allows for the regeneration to be started up by an external automatism or by a button placed at a distance from the system. Whichever device is used, it normally open type, and to start up the regeneration it must be closed for at least 15 seconds. -
Page 25: C Alculation Of The Cyclic Capacity Of A System
The volume calculated by Aqua Timer Plus can go from 0 to 999,999 litres. This value is optimised in order to be able to be visualised by the display of the controller which can show only four digits. A decimal point will appear on the display to separate the Timer metres from the litres, that is the thousands of litres from the hundreds. -
Page 26: F Unctionality Of The Regeneration Cycle , Flags 1Cl And 2Cl
6.8 – Functionality of the regeneration cycle, flags 1CL and 2CL. When Aqua Timer Plus is programmed to control one duplex column, it is possible to use a special distributor, equipped with a stand-by position at the beginning of the regeneration. - Page 27 = Movement phase of 25 seconds. Tab. 27 – Time diagram of the regeneration cycle with stand-by (Type 3). Search of the stroke Stand-by Stop Stop Stop Stop Waiting time Stroke end Stroke end = Movement phase of 25 seconds. Aqua Timer Plus 27/34...
-
Page 28: M Anagement Of The Alarm Of End Of Regenerative Autonomy
During the normal functioning of Aqua Timer Plus, the leds A or B will be on to indicate which column is in service. During the service, the impulses coming from the litre counter sensor, as well as decreasing the volume available through the litre counter divider set with the programming code SC04, also acts on the counter of the dosing pump programmed with the programming code SC05 (See par. -
Page 29: C Onnections
Service on the distributor does not come on, the connection of the cable cod. 96-S must be inverted. With reference to the attached page A, two types of litre counter may be used, the SIATA magnetic sensor with Hall effect, and the Reed counter, or otherwise a counter which however supplies a simple closure between two wires. - Page 30 At 05.35 the inhibit signal disappears and the regeneration starts. It is important to consider that, using this flag, there is the possibility of having the regeneration of the resins at a time considered undesirable. Aqua Timer Plus 30/34...
-
Page 31: Aqua Timer Plu Doe Not Come On
7 – What to do if … Some basic operations for the resolution of small problems which may arise during the use of Aqua Timer Plus are described below. If the suggestions shown do not help to resolve the situation, please call the SIATA service assistance. -
Page 32: Appendix A (General Electrical Connections)
Appendix A (General electrical connections) CE0027 Aqua Timer Plus 32/34... -
Page 33: Appendix B (Electrical Connections For The Single Distributor)
Appendix B (Electrical connections for the single distributor) CE0028 Aqua Timer Plus 33/34... -
Page 34: Appendix C (Electrical Connections For The Duplex Distributor)
Appendix C (Electrical connections for the duplex distributor) CE0021 Distributed by: Distributed by: S.I.A.T.A Asia Pacific Pte Ltd 37 Tannery Lane #06-08 Tannery House Singapore 347790 Tel: +65 6741 2994 • Fax: +65 6741 2995 www.siata.com.sg Aqua Timer Plus 34/34...
