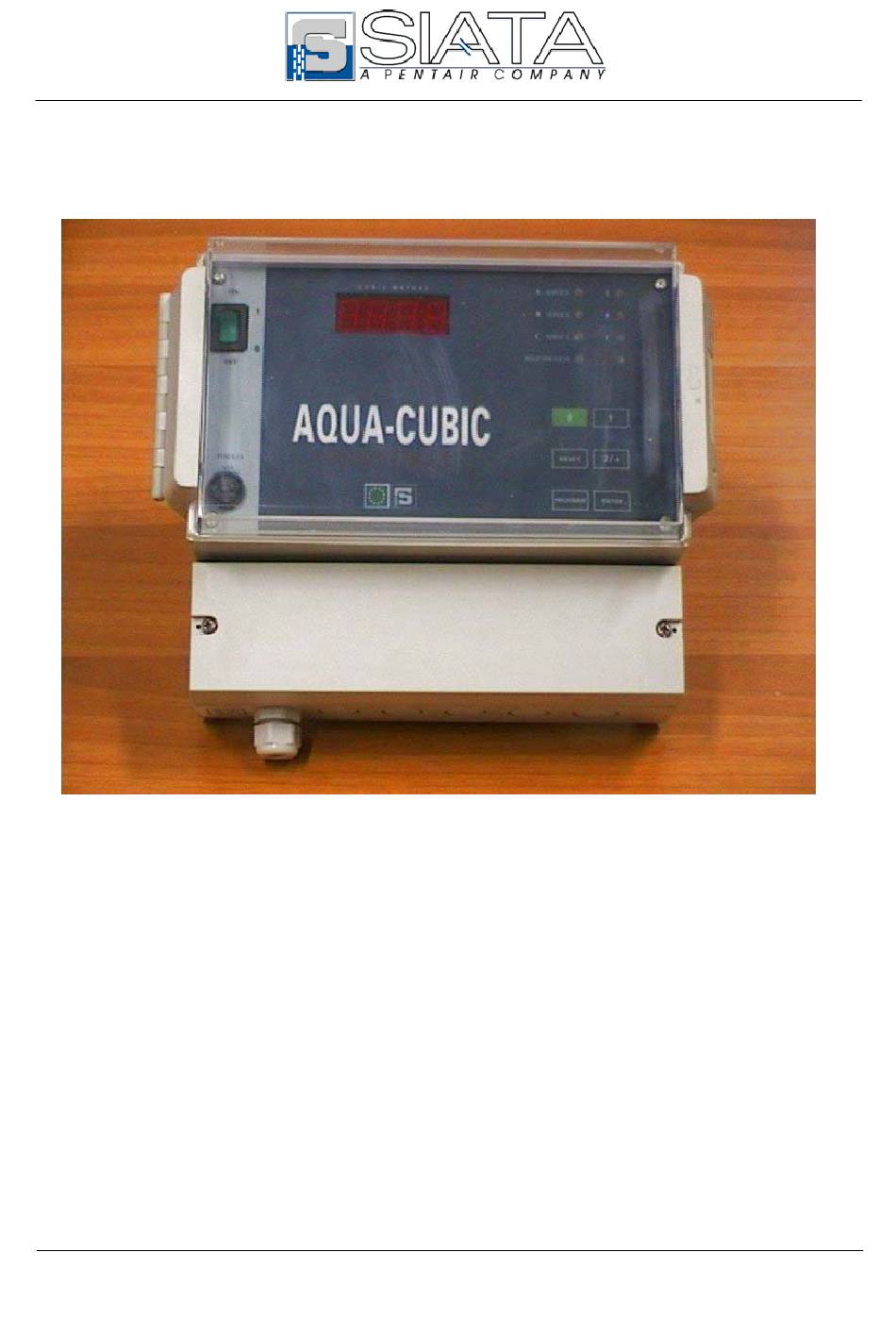

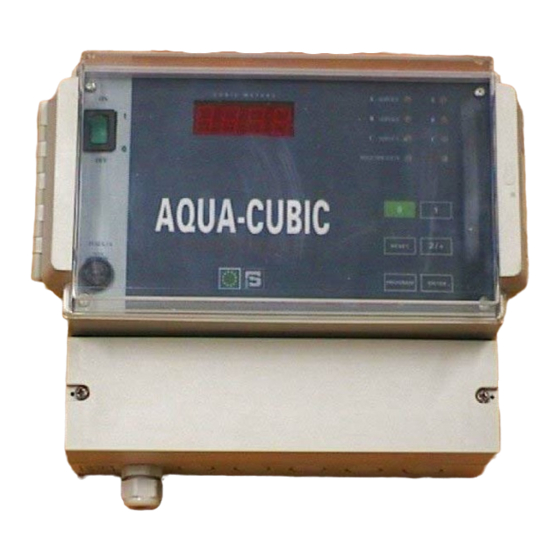

- Page 1 USE AND MAINTENANCE MANUAL AQUA CUBIC MULTIPLEX Aqua Cubic Multiplex 1/33 MAN0004 Rev. B 29.03.99...
- Page 2 Via Virginio 370/372 50025 Montespertoli-Florence (ITALY) Declares that the following material: AC-MULT/05 Description AQUA CUBIC MULTIPLEX Conforms to the essential pre-requisites of the following DIRECTIVES: • Electromagnetic Compatibility 89/336/CEE, 93/68/CEE • Low Voltage 73/23/CEE, 93/68/CEE The fulfilment of the following regulations has been verified: EN 50081-1 General Regulation on Emissions –...
-
Page 3: Table Of Contents
6.4 – Programming of the reserve ......................26 6.6 – Programming of the litre counter divider (prescaler) ..............27 6.7 – Calculation of the capacity of a system ................... 28 6.8 – Putting into service ........................... 28 Aqua Cubic Multiplex 3/33 MAN0004 Rev. B 29.03.99... - Page 4 6.11 –Modifying the programming during service, the flag 2CP ............30 7 – What to do if … ...........................30 7.1 - ... Aqua Cubic Multiplex does not come on ?.................. 30 7.2 - ... the motors of the distributors do not stop ? ................30 7.3 - ...
-
Page 5: Introduction
The regeneration may be immediate or deferred to a programmed time. Aqua Cubic Multiplex may be connected to a computer via RS232 using the cable cod. 881-1, so as to be able to acquire and then analyse the progress of the work parameters Aqua Cubic Multiplex is equipped with a buffer battery which allows for the work parameters to be retained in the memory should the electricity current fail. -
Page 6: Technical Data
Protection from disturbances ICE 65 Trial class 4 ( 3000 V ) Reading scale 0 – 999,999 Litres Container dimensions 240 mm x 185 mm x 115 mm Total weight 1.5 Kg Aqua Cubic Multiplex 6/33 MAN0004 Rev. B 29.03.99... -
Page 7: Explanation Of The Leds And Of The Keys
The column is in the stand-by phase after the regeneration. 1 C 2 0 The column is in regeneration. 0.0 0 0 The column has finished the volume programmed and is waiting to regenerate. Aqua Cubic Multiplex 7/33 MAN0004 Rev. B 29.03.99... -
Page 8: General
The box is covered by a certificate with the IP65 grade of protection, Aqua Cubic Multiplex is therefore protected against infiltration of dust and direct jets of water. This protection is valid when the cover is closed, and the wiring slots are of the correct size for the cables used and are correctly assembled. -
Page 9: Instructions For Use
If this simple rule is not respected, Aqua Cubic Multiplex cannot enter into service and access to the keypad will be limited after a few operations. -
Page 10: Ppp0 - One Single Column
6.2.1.a – Operative characteristics. This operative modality has been provided to resolve situations of emergency; Aqua Cubic Multiplex allows for the use of a distributor connected to a valve to ensure the supply of treated water to the utiliser when breakdowns of any degree of gravity do not allow the system to work fully and properly ( see par. -
Page 11: B - Programming Of The Flags
PROGRAM 2 d P 3 d P 0 FLAG not used PROGRAM 3 d P The rapid flashing of the display indicates that the values have been saved in PROGRAM the eeprom. Aqua Cubic Multiplex 11/33 MAN0004 Rev. B 29.03.99... -
Page 12: C - List Of Codes To Be Programmed
At the end of the programming the code 220 must always be keyed in (see par. 6.3) to initialise Aqua Cubic Multiplex with the new parameters. Note that the control on the reserve (flag 0dP) is automatically active and cannot be dis-activated. - Page 13 The column which has the lowest volume out of the two starts in regeneration. If only one of the columns reaches the value of reserve, the regeneration does not start, even at the programmed time. Aqua Cubic Multiplex 13/33...
-
Page 14: B - Programming Of The Flags
The rapid flashing of the display indicates that the values have been saved in the PROGRAM eeprom At the end of the programming the code 220 must always be keyed in (see par. 6.3) to initialise Aqua Cubic Multiplex with the new parameters. Aqua Cubic Multiplex 14/33 MAN0004 Rev. -
Page 15: C - List Of Codes To Be Programmed
Programming of the hardness value Initialisation of the system Remember that in order to use Aqua Cubic Multiplex as described in tab. 12, the flag 1CP must be programmed to 1. 6.2.3 – PPP2 – Two alternated single columns. 6.2.3.a – Operative characteristics. - Page 16 The reg. does not start. The reg. does not start. Immediate start. The reg. does not start. The reg. does not start. The reg. does not start. Immediate start. The reg. does not start. Aqua Cubic Multiplex 16/33 MAN0004 Rev. B 29.03.99...
-
Page 17: B - Programming Of The Flags
The rapid flashing of the display indicates that the values have been saved in the PROGRAM eeprom At the end of the programming the code 220 must always be keyed in (see par. 6.3) to initialise Aqua Cubic Multiplex with the new parameters. Aqua Cubic Multiplex 17/33 MAN0004 Rev. -
Page 18: C - List Of Codes To Be Programmed
Programming of the hardness value Initialisation of the system Remember that in order to use Aqua Cubic Multiplex as described in tab. 16, the flag 1CP must be programmed to 1. 6.2.4 – PPP4 – One duplex column. 6.2.4.a – Operative characteristics. - Page 19 Immediate start. Immediate start. The reg. does not start. The reg. does not start. Immediate start. Immediate start. The reg. does not start. The reg. does not start. Immediate start. Immediate start. Aqua Cubic Multiplex 19/33 MAN0004 Rev. B 29.03.99...
-
Page 20: B - Programming Of The Flags
The rapid flashing of the display indicates that the values have been saved in the PROGRAM eeprom At the end of the programming the code 220 must always be keyed in (see par. 6.3) to initialise Aqua Cubic Multiplex with the new parameters. Aqua Cubic Multiplex 20/33 MAN0004 Rev. -
Page 21: C - List Of Codes To Be Programmed
6.2.5 – PPPA – Two single columns in parallel 6.2.5.a – Operative characteristics. In this modality there are two distributors, each of which is connected to a SIATA valve. Both of the columns are in service.. It is not possible to have both of the columns in regeneration. -
Page 22: B - Programming Of The Flags
2 H P 3 H P 0 FLAG not used PROGRAM 3 H P 0 C P 0 Modality of the litre counter divider (0 = free see par. 6.6) PROGRAM 0 C P Aqua Cubic Multiplex 22/33 MAN0004 Rev. B 29.03.99... -
Page 23: C - List Of Codes To Be Programmed
The rapid flashing of the display indicates that the values have been saved in the PROGRAM eeprom At the end of the programming the code 220 must always be keyed in (see par. 6.3) to initialise Aqua Cubic Multiplex with the new parameters. 6.2.5.c – List of codes to be programmed For the programming and the meaning of the codes see par. -
Page 24: Programming Codes
Programming of the hardness value Initialisation of the system Remember that to use Aqua Cubic Multiplex as shown in tab. 23, the flag 1CP must be programmed to 1. 6.3 – Programming codes The work parameters necessary for Aqua Cubic Multiplex to work properly are set accesses them via the programming codes, under which the parameters inherent to a specific functionality of the controller are grouped together. - Page 25 B; xx varies from 1 to 99 minutes P 1 1 1 * C x x PROGRAM stands for the phases 2, 3 and 4 of the regeneration cycle of the column B Aqua Cubic Multiplex 25/33 MAN0004 Rev. B 29.03.99...
-
Page 26: Programming Of The Reserve
6.4 – Programming of the reserve Aqua Cubic Multiplex allows for the volume of treatable water to be controlled, putting it into ratio with a possible reserve value. This is programmed via the codes 100, 101 and 102 respectively for columns A, B and C, and expresses the percentage of the total volume available which must be held in reserve. -
Page 27: Programming Of The Litre Counter Divider (Prescaler)
3000 9999 The volume calculated by Aqua Cubic Multiplex can go from 0 to 999,999 litres. This value is optimised in order to be able to be visualised by the display of the controller which can show only four digits. -
Page 28: Calculation Of The Capacity Of A System
Regen), and that any unused limit switch entries are closed with a connector bridge. During the normal functioning of Aqua Cubic Multiplex, the leds A or B will be on to indicate which column is in service, while the leds A Service or B Service will indicate which column is visualised in that moment on the display. -
Page 29: Management Of The Dimensions Of The Tanks
6.10 – Management of the dimensions of the tanks Aqua Cubic Multiplex allows for plants with a maximum of three columns to be realised, that is with the use of as many as three distributors, each connected to a SIATA valve, and therefore to a tank containing the resins. -
Page 30: Modifying The Programming During Service, The Flag 2Cp
6.11 –Modifying the programming during service, the flag 2CP As already explained in par. 6.3, Aqua Cubic Multiplex calculates the volume of water which can be treated using the values of hardness of the water, the capacity of ionic exchange of the resins and the quantity of resin used. The calculation is carried out automatically at the end of the programming of the hardness (code 010), or otherwise may also be carried out keying in the code 211. -
Page 31: Aqua Cubic Multiplex Works In An Irregular Way
1. Check that the distributors are at the stroke end, that is that the motors are not in movement; 2. If using Aqua Cubic Multiplex with a single distributor, check that the limit switch entry not used is closed with a connector bridge;... - Page 32 Appendix A Aqua Cubic Multiplex 32/33 MAN0004 Rev. B 29.03.99...
- Page 33 Appendix B Aqua Cubic Multiplex 33/33 MAN0004 Rev. B 29.03.99...
