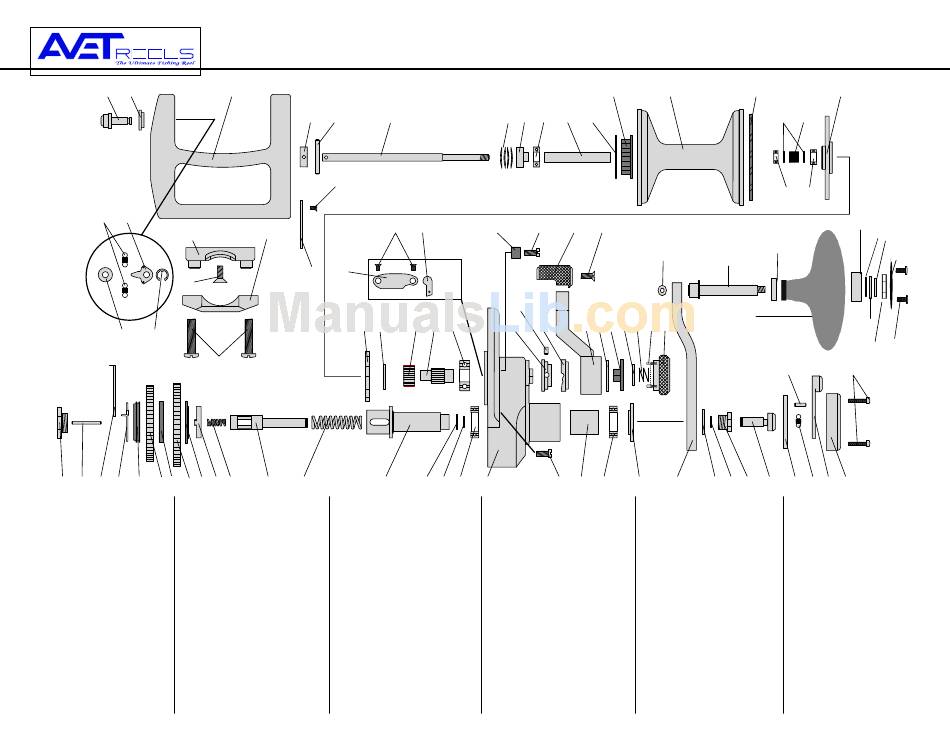

Avet Reels Two Speed Assembly SX 6 - 4 Parts List

83
82
85 86
88
89
84 87
25 25A 26 27 28 29 30 31 32 33 34
1 - Main Housing SX6/4-001 16 - Spool Spring
2 - Gear cover SX6/4-002 17 - Brake Bearing
3 - Cover Screw (2 req.) SX6/4-003 18 - Brake Disk
4 - Spool Shaft SX6/4-004 19 - Antireverse Gear
4A-Shaft Shoulder SX6/4-004A 20 - Disk Ring
4B-Shaft Pin SX6/4-004B 22 - Large Pinion Gear
5 - Belleville Washers (4 req.) SX6/4-005 23 - Small Pinion Gear
6 - Pusher Bushing SX6/4-006 24 - Pinion Bearing
7 - Spool Bearing SX6/4-007 25 - Drive Shaft Stop Nut
8 - Spool Tube SX6/4-008 25A-Stop Nut Pin
9 - Clicker Gear Retainer Ring SX6/4-009 26 - Connection Arm
10- Clicker Gear SX6/4-010 27 - Friction Ring
11- Spool SX6/4-011 28 - Washer LF
12- Brake Pad SX6/4-012 29 - Drive Gear SML
14- Spool Bearing SX6/4-014 30 - Washer MDL
15 - Spool Spring Washer (2 req.) SX6/4-015 31 - Drive Gear LRG
Models SX - 6/4 Parts List
(rev. 5-08)
1
4A
4B 4
3
44
90
45
2
19 20
91
35 36 37
SX6/4-016 32 - Washer RT
SX6/4-017 33 - Fork
SX6/4-018 34 - Fork Spring
SX6/4-019 35 - Pusher
SX6/4-020 36 - Pusher Spring
SX6/4-022 37 - Drive Shaft
SX6/4-023 38 - Pusher Washer
SX6/4-024 39 - Pusher E-Clip
SX6/4-025 40 - Drive Shaft Bearing (2 req.) SX6/4-040
SX6/4-025A 41 - End Housing
SX6/4-026 41A-Dog Pin
SX6/4-027 42 - Dog Washer
SX6/4-028 43 - Dog
SX6/4-029 44 - Dog Cover Screw (2 req.)
SX6/4-030 45 - Dog Cover
SX6/4-031 46 - Stop Pin (2 req.)
6 7 8
5
43 41A
46 47 54
51A
22 23 24 51 52 53
38 39 40 41
48 49
SX6/4-032 47- Pin Screw (2 req.) SX6/4-047
SX6/4-033 48- End Housing Screw (3 req.) SX6/4-048
SX6/4-034 49- Drive Shaft Tube SX6/4-049
SX6/4-035 50- Drive Shaft Washer SX6/4-050
SX6/4-036 51- Male Cam SX6/4-051
SX6/4-037 51A-Male Cam Pin (2 req.) SX6/4-051A
SX6/4-038 52- Lever Arm SX6/4-052
SX6/4-039 53-Female Cam SX6/4-053
54- Handle Knob SX6/4-054
SX6/4-041 55- Knob Screw SX6/4-055
SX6/4-041A 56- Teflon Washer (2req.) SX6/4-056
SX6/4-042 57- Drive Washer SX6/4-057
SX6/4-043 58- Preset Washer SX6/4-058
SX6/4-044 59- Preset Spring SX6/4-059
SX6/4-060A
SX6/4-045 60A- Preset Knob Detent
SX6/4-060
SX6/4-046 60- Preset Knob
10
11 12
9
55
72
72A
74
56 57 58 59 60
60A
61 62 63 64 65
40 50
61- Crank Arm SX6/4-061
62- Crank Arm Washer SX6/4-062
63- Push Knob E-Clip SX6/4-063
64- Crank Arm Nut SX6/4-064
65- Posh Knob SX6/4-065
66- Lock Plate SX6/4-066
67- Release Arm Spring SX6/4-067
68- Spring Pin SX6/4-068
69- Release Arm SX6/4-069
70- Push Knob Cover SX6/4-070
71- Cover Screws (2 req.) SX6/4-071
72A- Handle Shaft Washer SX6/4-072A
72-Handle Knob Shaft SX6/4-072
73- Handle Shaft Bearing SX6/4-073
74- Handle Knob SX6/4-074
75- Handle Tube SX6/4-075
ASSEMBLY
18
16
14 17
75
76 78
73
80
77
81
79
68 71
66 67 69 70
76- Knob Washer (optional) SX6/4-076
77- Spring Washer SX6/4-077
78- Lock Washer SX6/4-078
79- Nut SX6/4-079
80- Knob Cap SX6/4-080
81- Knob Cap Screws SX6/4-081
82- Clicker Pin SX6/4-082
83- Pin Support SX6/4-083
84- Pin Washer SX6/4-084
85- Clicker Spring (2 req.) SX6/4-085
86- Clicker Arm SX6/4-086
87- Pin-E-Clip SX6/4-087
88- Rod Mount SX6/4-088
89- Rod Mount Screws SX6/4-089
90- Rod Mount Clamp SX6/4-090
91- Clamp Screws SX6/4-091
