PRODUCT GUIDE

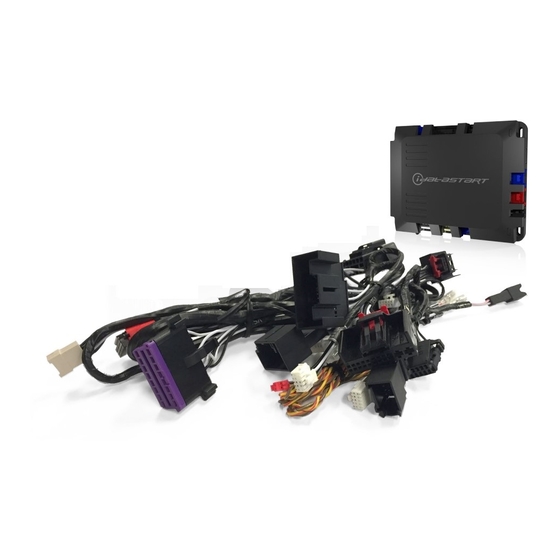

VW2410A
DOCUMENT NUMBER
REVISION DATE
20161107
NOTICE
The manufacturer will accept no responsability for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the
installed device. This device must be installed by a certified technician. Please review the
Installation Guide carefully before beginning any work.
