Dear Customer:

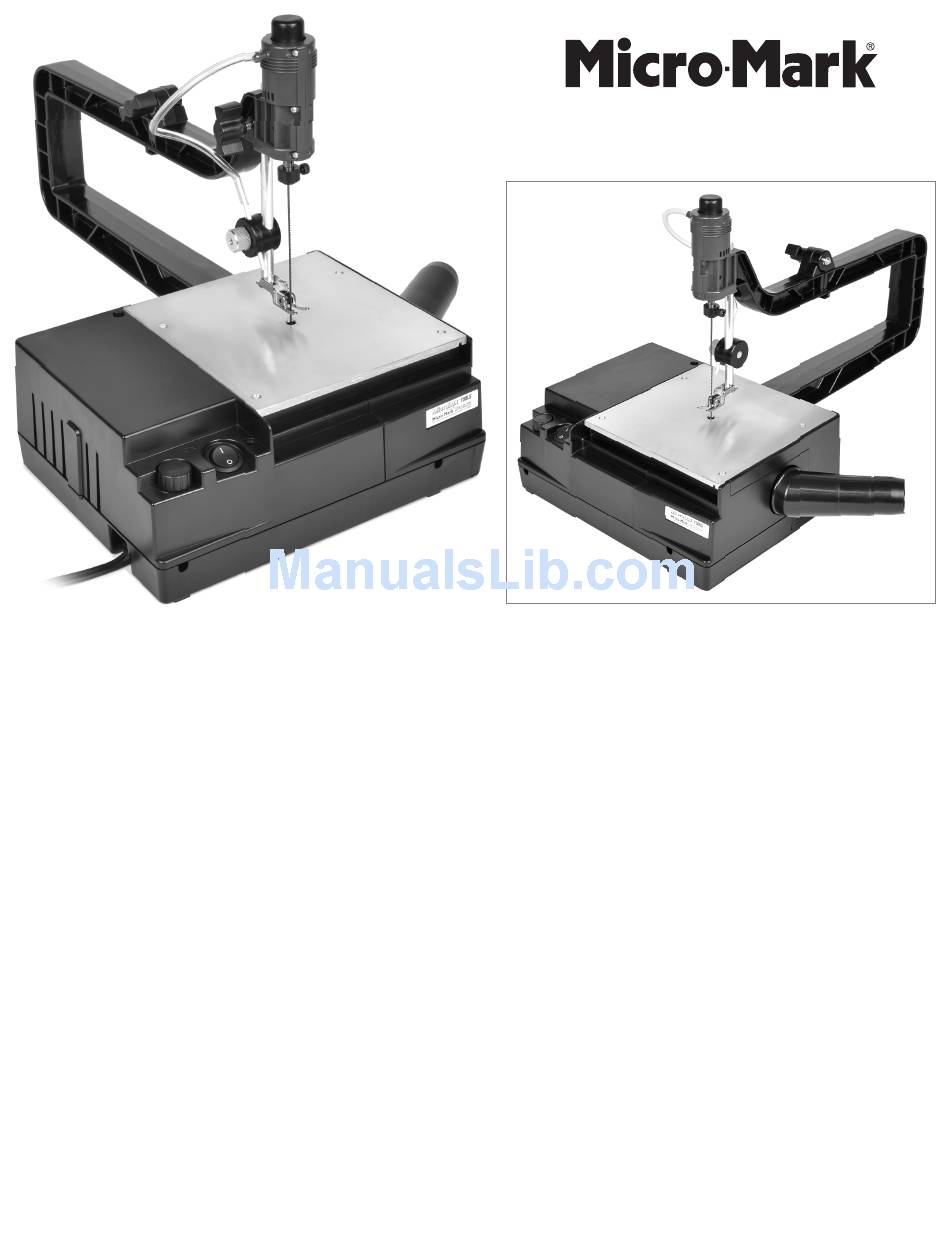

The MicroLux Multi-Saw is a high performance tool for every
model maker, and is ideal for the sawing of curves in wood,
plastic and non-ferrous metals.
State-of-the-Art production and testing procedures ensure
the maximum reliability from your power tool.
This manual comprises:
• Safety instructions
• Installation and operating instructions
• Spare parts list
• Warranty information
Reading this manual will:
• Help you understand the machine's operation.
• Avoid malfunctions due to improper operation.
• Increase the life of the machine.
Always keep this manual close at hand.
Do not operate the machine unless you are fully familiar
with it. Please observe the safety instructions.
Use only original MicroLux spare parts.
Parts bags contain:
• 6 premium saw blades (2 each #80857 coarse, for wood
only; #87937 medium and #80856 fine, for wood, plastic
and non-ferrous metals)
• 1 machine screw and washer
• 3 wood screws
• 1 long Allen wrench
• 2 table clamps
• 1 vacuum attachment
• 1 small machine screw (for mounting to #81387 bracket)
Operating Instructions for
#87776 MicroLux
Safety Instructions
Please read the following safety instructions thoroughly
and follow them before starting to work with the machine:
• Keep the work area clean and tidy.
• Do not use electric tools in rain, under wet conditions,
near flammable liquids or gasses.
• Avoid contact with grounded parts, such as pipes,
radiators, cookers or refrigerators.
• Store tools out of the reach of children.
• Do not overload the machine.
• Do not wear loose clothes or jewelry.
• Do not carry the machine by the electric cable or yoke.
• Keep the electrical cable away from heat, oil and sharp
edges. If necessary have it replaced by a specialist.
• Fasten the machine securely to a work table.
• Replace dull saw blades.
• Clean the machine thoroughly after completing your work.
• Pull out the electric plug before maintaining the machine,
before changing the saw blade or the toothed belt, or
when not using the machine.
• Make sure that the machine is switched off before
connecting it to the wall outlet.
• Check the machine for obvious damage before use.
Replace defective parts.
• Repairs in the electrical system should be carried out by
a specialist.
• Use only accessories and spare parts which are
recommended in these instructions.
• Use a push stick when working near the saw blade.
®
Multi-Saw
Advertisement
Table of Contents
Related Manuals for MICRO-MARK MicroLux 87776
Summary of Contents for MICRO-MARK MicroLux 87776
- Page 1 Operating Instructions for #87776 MicroLux ® Multi-Saw Dear Customer: Safety Instructions The MicroLux Multi-Saw is a high performance tool for every Please read the following safety instructions thoroughly model maker, and is ideal for the sawing of curves in wood, and follow them before starting to work with the machine: plastic and non-ferrous metals.
-
Page 2: Technical Data
Legend Diagram #1 Locking / Unlocking Knobs for Yoke Elbow and Foot Assembly #2 Dust Blower Assembly #3 Upper Clamping Ring with Set Screw #4 Foot Assembly #5 Lower Clamping Ring with Set Screw Exploded View #6 The 3 Locations for Screw Mounting #7 Speed Control Rheostat #8 Power Switch... - Page 3 #2 The Foot Assembly (4), arrives facing to the rear. Loosen the Knob (1) that secures it until you can spin it around to face forward as shown in the Legend Diagram. Of note here is the foot itself. It incorporates a grooved wheel that supports the blade while material is being cut, thus keeping your blade perpendicular to the table.
- Page 4 With the lower clamping ring in this position, you can set the saw down on your table and begin installing your blade. Loosen the Elbow Knob one full turn and raise and lay the head assembly backward. The lower clamping ring is visible through the hole in the table top and the slit in the center of it;...
- Page 5 #4 To use the saw safely, accurately and successfully, and to avoid vibration, the saw must be secured to a table or work bench during operation. Securing the saw is straight-forward and relatively easy. There are 3 ways to do so: Use the C-clamps provided, attaching them to the saw as shown and tightening to table tops up to 1-7/8”...
-
Page 6: General Information
General Information Speed Control As a general rule, use slower speeds and finer blades (more teeth) for thin materials and metals. Plastics cut best using the slow- est setting possible and with finer teeth. Use faster speeds and coarser blades (less teeth) for thick materials. Normally, woods can be cut best at higher speeds. -
Page 7: Limited Warranty
Micro-Mark makes no other warranty of any kind whatever, expressed or implied, and all implied warranties of merchantability and fitness for a particular purpose which exceed the above mentioned obligation are hereby disclaimed by Micro-Mark and excluded from this warranty.
