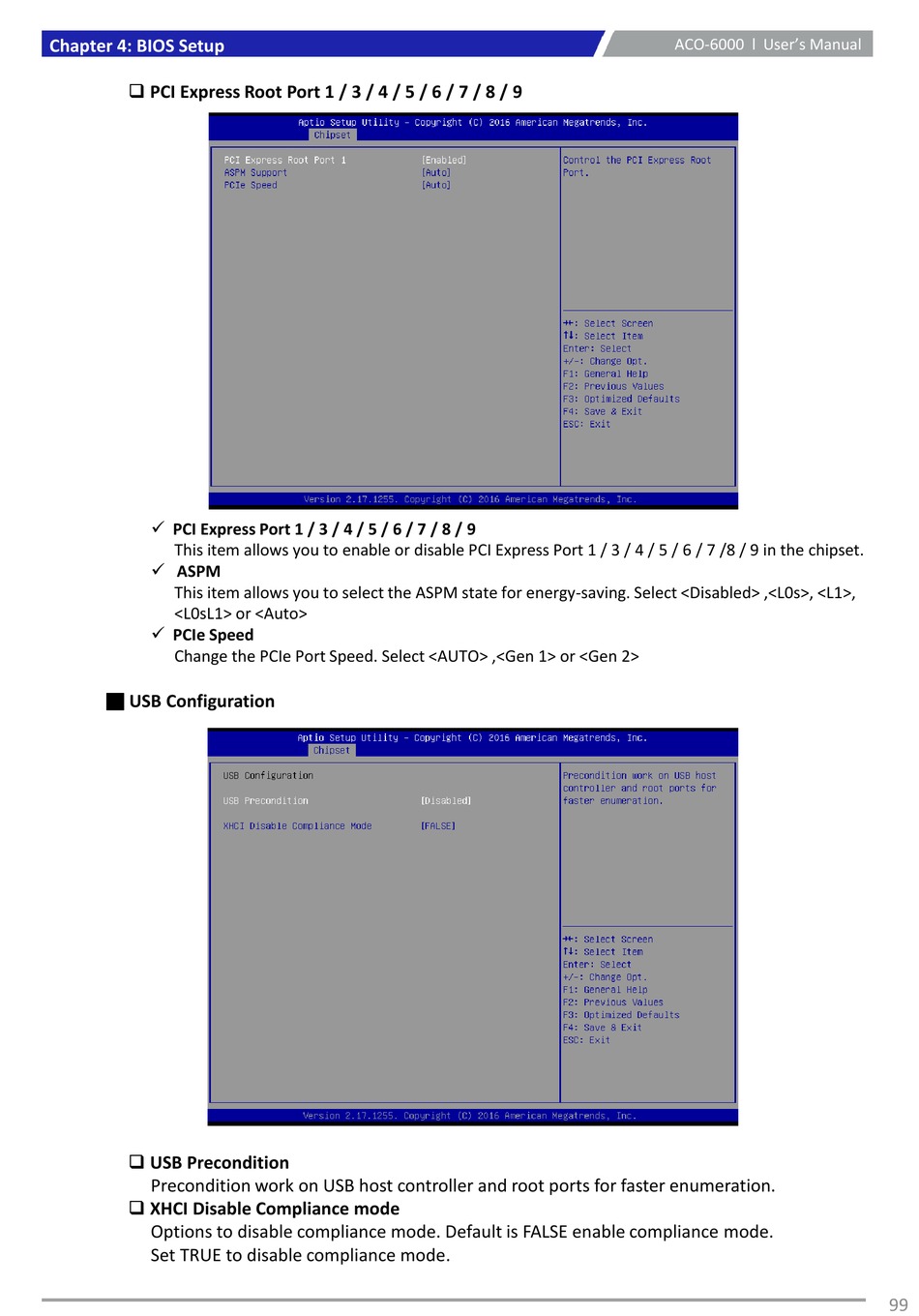

C&T Solution ACO-6000-8L User Manual page 99

Chapter 4: BIOS Setup
 PCI Express Root Port 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9
 PCI Express Port 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9
This item allows you to enable or disable PCI Express Port 1 / 3 / 4 / 5 / 6 / 7 /8 / 9 in the chipset.
 ASPM
This item allows you to select the ASPM state for energy-saving. Select <Disabled> ,<L0s>, <L1>,
<L0sL1> or <Auto>
 PCIe Speed
Change the PCIe Port Speed. Select <AUTO> ,<Gen 1> or <Gen 2>
■ USB Configuration
 USB Precondition
Precondition work on USB host controller and root ports for faster enumeration.
 XHCI Disable Compliance mode
Options to disable compliance mode. Default is FALSE enable compliance mode.
Set TRUE to disable compliance mode.
ACO-6000 l User's Manual
99
