Summary of Contents for Linak 504-010

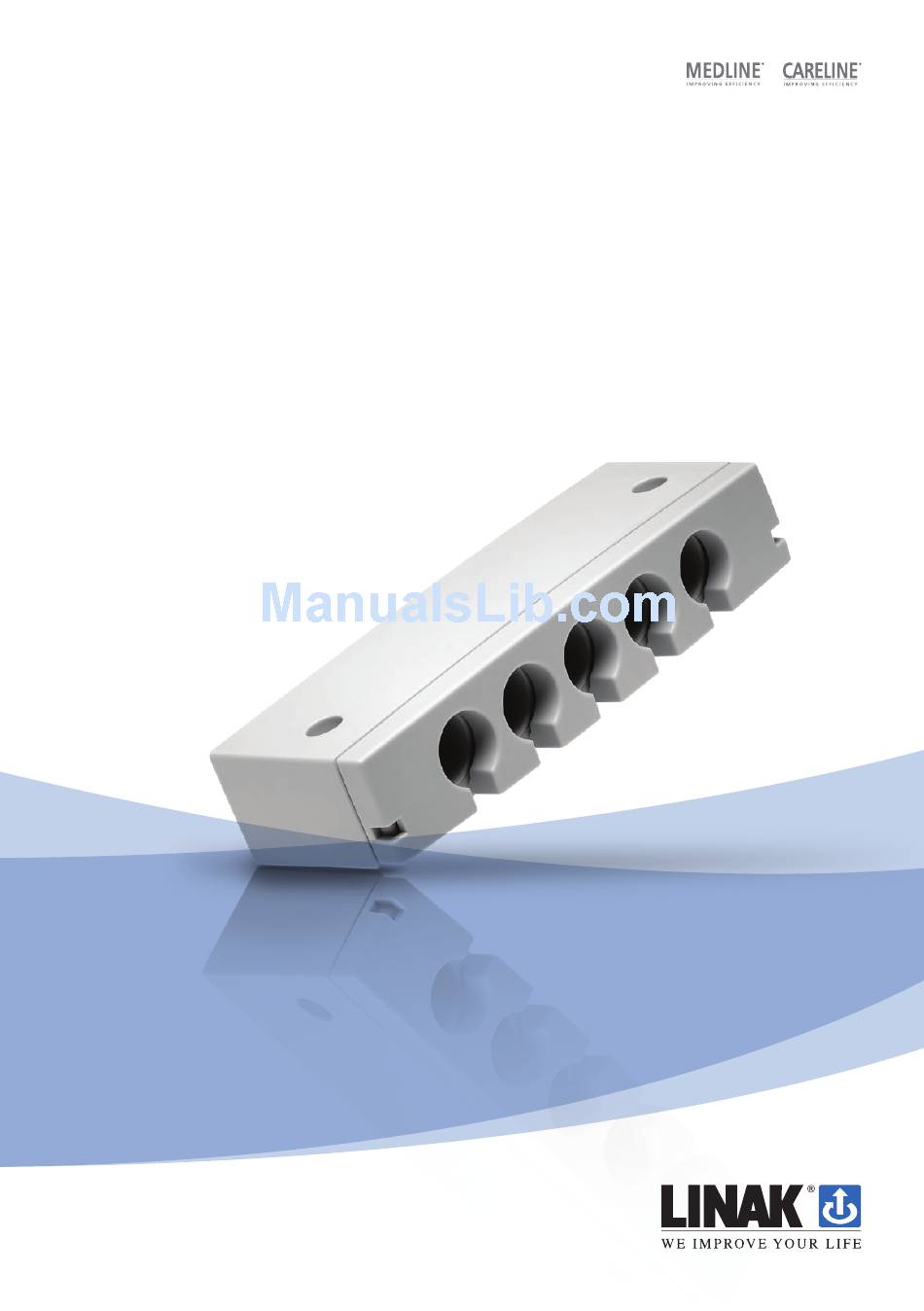

- Page 1 MJB - Gateway User manual LINAK.COM/MEDLINE-CARELINE Page 1 of 24...
- Page 2 Contents Preface ............................. 3 Important information ........................4 Safety instructions ........................... 4 Residual risk ............................. 5 Before installation, reinstallation or troubleshooting ..............6 Before start-up ..........................6 During operation ..........................6 Information on the MJB ........................6 Repairs ............................. 7 Misc.
-
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Important Information
According to the above rules it must be informed and if necessary considered in the Risk analysis of the final application - More details to residual risk can be provided by LINAK if necessary. Page 4 of 24... - Page 5 Warning! Sockets not used must be fitted with blind plugs to ensure IP degree The LINAK products cannot tolerate the influence of strong solvents, basic or alkaline liquids. Precautions: • Please note, the MJB with SMPS is using 150 mA on V permanent 40V. This means that the remaining current on the V Permanent 40V is 50 mA.
-
Page 6: Before Installation, Reinstallation Or Troubleshooting
Out of Bed detection, USB charger, Under Bed Light etc. LINAK A/S delivers only the OpenBus system and is not responsible for any products other than LINAK products (i.e. products from 3 party suppliers) or the compliance of such products with the LINAK OpenBus system. -
Page 7: Repairs
Repairs In order to avoid the risk of malfunction, all repairs must only be carried out by authorised LINAK workshops or repairers, as special tools must be used and special gaskets must be fitted. Products under warranty must also be returned to authorised LINAK workshops. -
Page 8: Misc. On The Mjb System
Furthermore, the products must not be exposed to violent treatment. In the event of this, the warranty will be ineffective / invalid. LINAK’s warranty is only valid if the system is unopened and has been used correctly. -
Page 9: Mjb - Gateway Variant
MJB - GATEWAY variant, 504-010 & 504-020 : The MJB is a simple gateway interface, which can connect switch input notifications from the infrastructure of the hospital or nursing home, such as service/nurse call systems. Please note that notifications are only to be used as service information and not for emergency issues. - Page 10 Relay 1 CB power mode Notification level Relay state Mains unplugged, CB is in power down or the OpenBus™ Notification NC\* is not running (Clock/ data is missing) On mains or battery at “wake up” Bed notification \ ** No notification Relay 2 CB power mode Notification level...
-
Page 11: Features
• It is possible to define the OpenBus™ signals to be used for activating the relays and / or change the notification indicator, so that it fits to the customer’s system. Please contact your Sales Engineer at LINAK A/S for further information. Usage: •... - Page 12 The MJB is not able to detect defective party products. • LINAK only takes responsibility for LINAK products, not 3 . party products. Please pay attention to the “Patient Environment” Clause 3.79 - EN60601-1 3...
- Page 13 Cable ordering nos.: 0964140-3000: Gateway cable, 3000 mm, modular plug–open end 0964140-1375: Gateway cable, 1375 mm, modular plug–open end Please note, the slit is placed on the opposite side of the modular plug. This is to ensure that the cable is only being used for the Gateway MJB.
-
Page 14: Ip Protection Degree
IP Protection degree: All LINAK products can be cleaned as follow according to their IP protection, which is stated on the product label. The IP code specifies the degrees of protection provided by the enclosures. Only the protection against ingress of water (second characteristic numeral) is specified, ingress of solid foreign objects (first characteristic numeral) is not specified and therefore replaced by the letter X in the code. -
Page 15: Precautions
Warning! The systems must not be sprayed directly with a high-pressure cleaner. Warning! Interconnecting cables must remain plugged in during cleaning to prevent the ingress of water. Precaution! When cleaned, water must never be sprayed upwards from underneath the bed, because it may enter the cable outlet. - Page 16 Modular plug with wide alignment groove To be used with LINAK products. Can be connected to all ports in the MJB, both ports with narrow and wide alignment grooves. Modular plug with narrow alignment groove To be used with 3 party products.
-
Page 17: Keys To Symbols
Key to symbols The following symbols are used on the label on the LINAK products. IEC 60417-5172: UL Listing Mark ZERO standby power Class II equipment UL Listing Mark for Canada Product with a thermofuse Regulatory Compliance Mark: The Australian Safety/EMC... - Page 18 ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to ANSI/AAMI Std. ES60601-1 Cert. to CSA Std. C22.2 No. 60601-1 C/N 9901916 Conforms to ANSI/AAMI Std.
-
Page 19: Drawing Appendix
DRAWING APPENDIX MJB - Modular Junction Box Page 19 of 24... - Page 20 LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
- Page 21 Page 21 of 24...
- Page 22 Page 22 of 24...
- Page 23 Page 23 of 24...
- Page 24 While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
