14

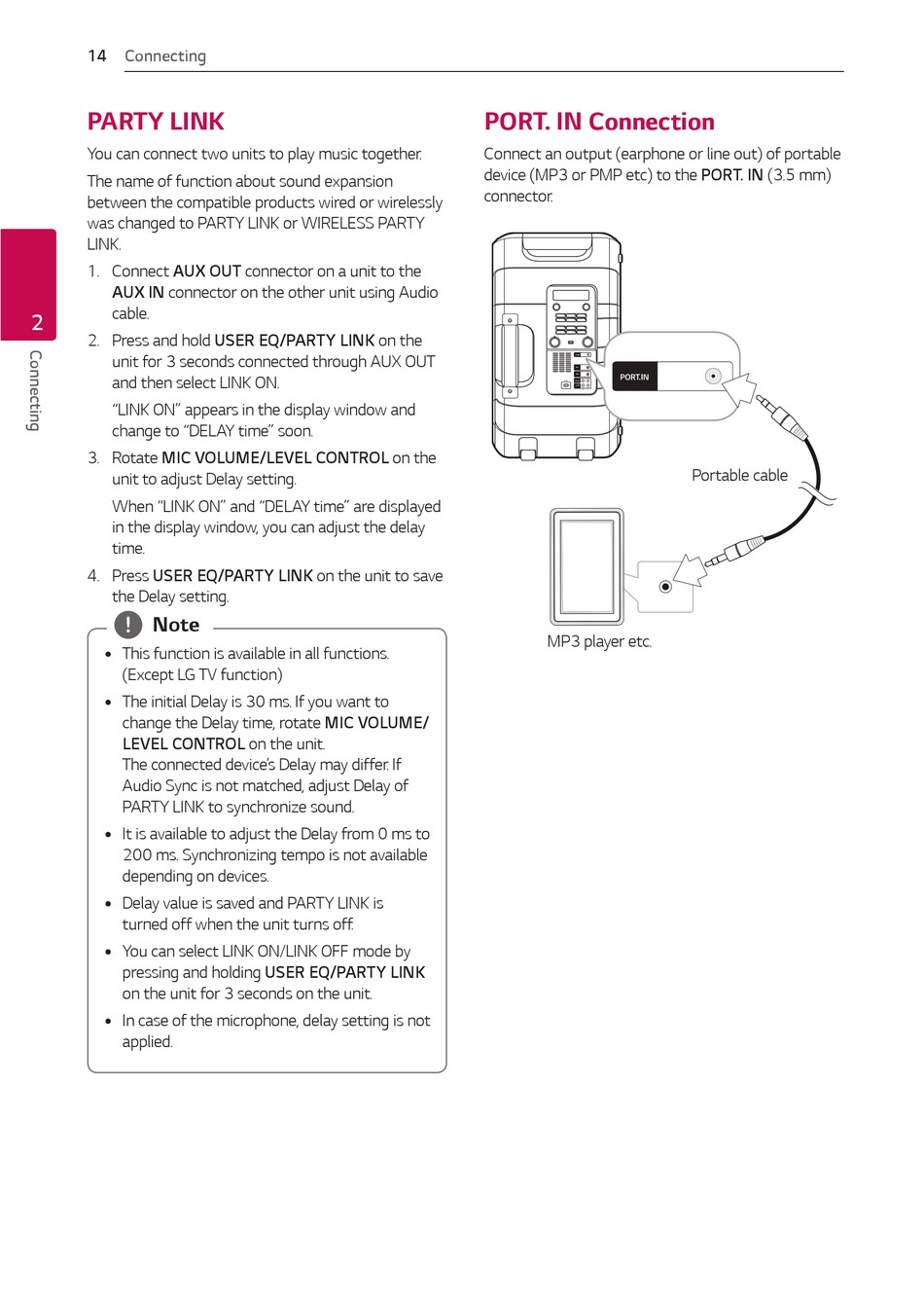

Connecting

PARTY LINK

You can connect two units to play music together.
The name of function about sound expansion
between the compatible products wired or wirelessly
was changed to PARTY LINK or WIRELESS PARTY
LINK.
1. Connect AUX OUT connector on a unit to the
AUX IN connector on the other unit using Audio
cable.
2
2. Press and hold USER EQ/PARTY LINK on the
unit for 3 seconds connected through AUX OUT
and then select LINK ON.
"LINK ON" appears in the display window and
change to "DELAY time" soon.
3. Rotate MIC VOLUME/LEVEL CONTROL on the
unit to adjust Delay setting.
When "LINK ON" and "DELAY time" are displayed
in the display window, you can adjust the delay
time.
4. Press USER EQ/PARTY LINK on the unit to save
the Delay setting.
,
Note
y This function is available in all functions.
(Except LG TV function)
y The initial Delay is 30 ms. If you want to
change the Delay time, rotate MIC VOLUME/
LEVEL CONTROL on the unit.
The connected device' s Delay may differ. If
Audio Sync is not matched, adjust Delay of
PARTY LINK to synchronize sound.
y It is available to adjust the Delay from 0 ms to
200 ms. Synchronizing tempo is not available
depending on devices.
y Delay value is saved and PARTY LINK is
turned off when the unit turns off.
y You can select LINK ON/LINK OFF mode by
pressing and holding USER EQ/PARTY LINK
on the unit for 3 seconds on the unit.
y In case of the microphone, delay setting is not
applied.
PORT. IN Connection
Connect an output (earphone or line out) of portable
device (MP3 or PMP etc) to the PORT. IN (3.5 mm)
connector.
MP3 player etc.
Portable cable
