WCDMA/LTE：≤-106dBm, Bit Err<0.1%
 Other Indicators
Input/Output Impendence
VCTVXO Freq
Max Freq Err：

1.4 Introduction to Motherboard Configuration

SERVICE GUIDE
50Ω
26MHz
＜±0.1PPm

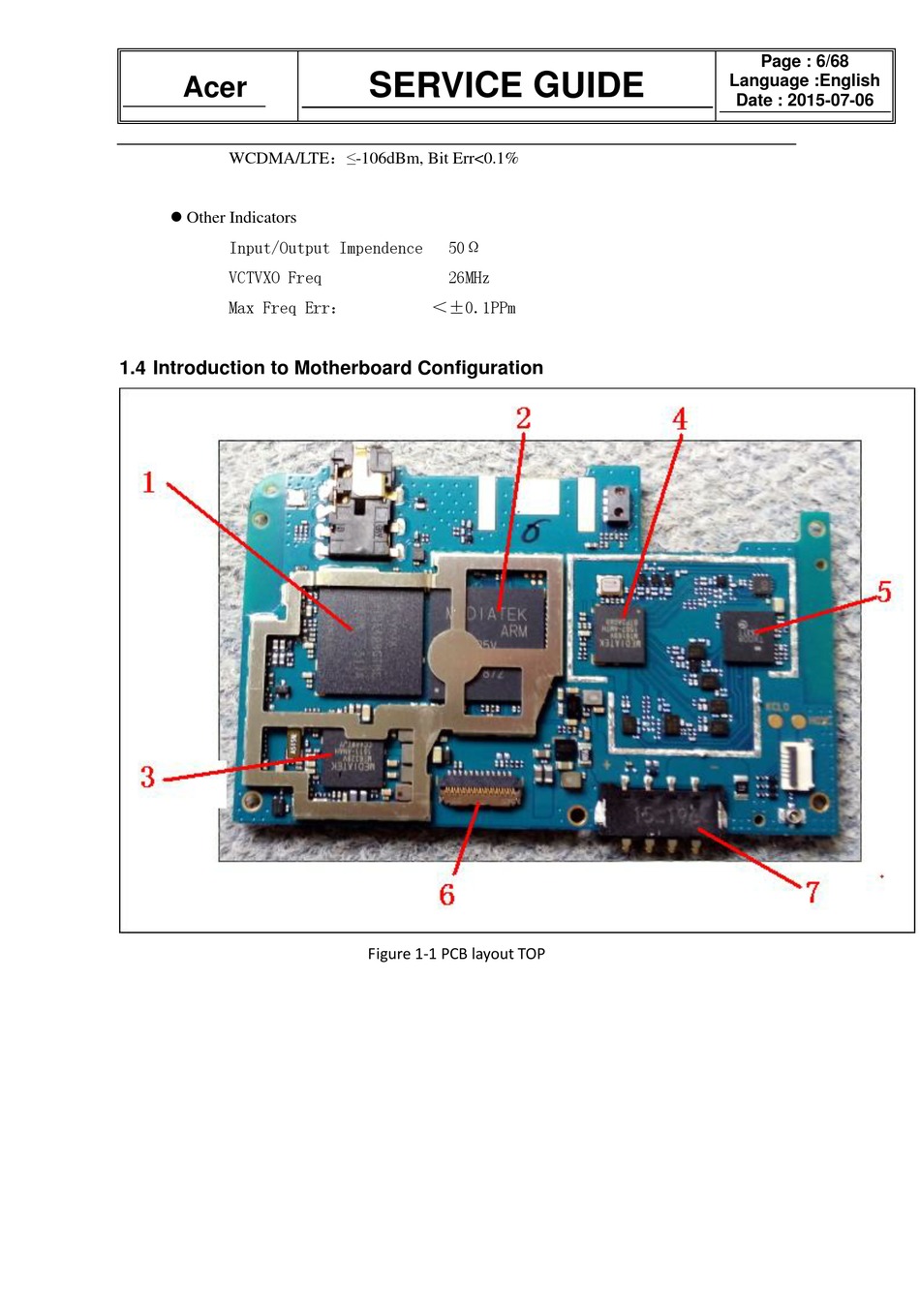

Figure 1-1 PCB layout TOP
Page : 6/68
Language :English
Date : 2015-07-06
