  • Page 1 SMCVG2DVI User Manual VGA to DVI Active Converter Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131...

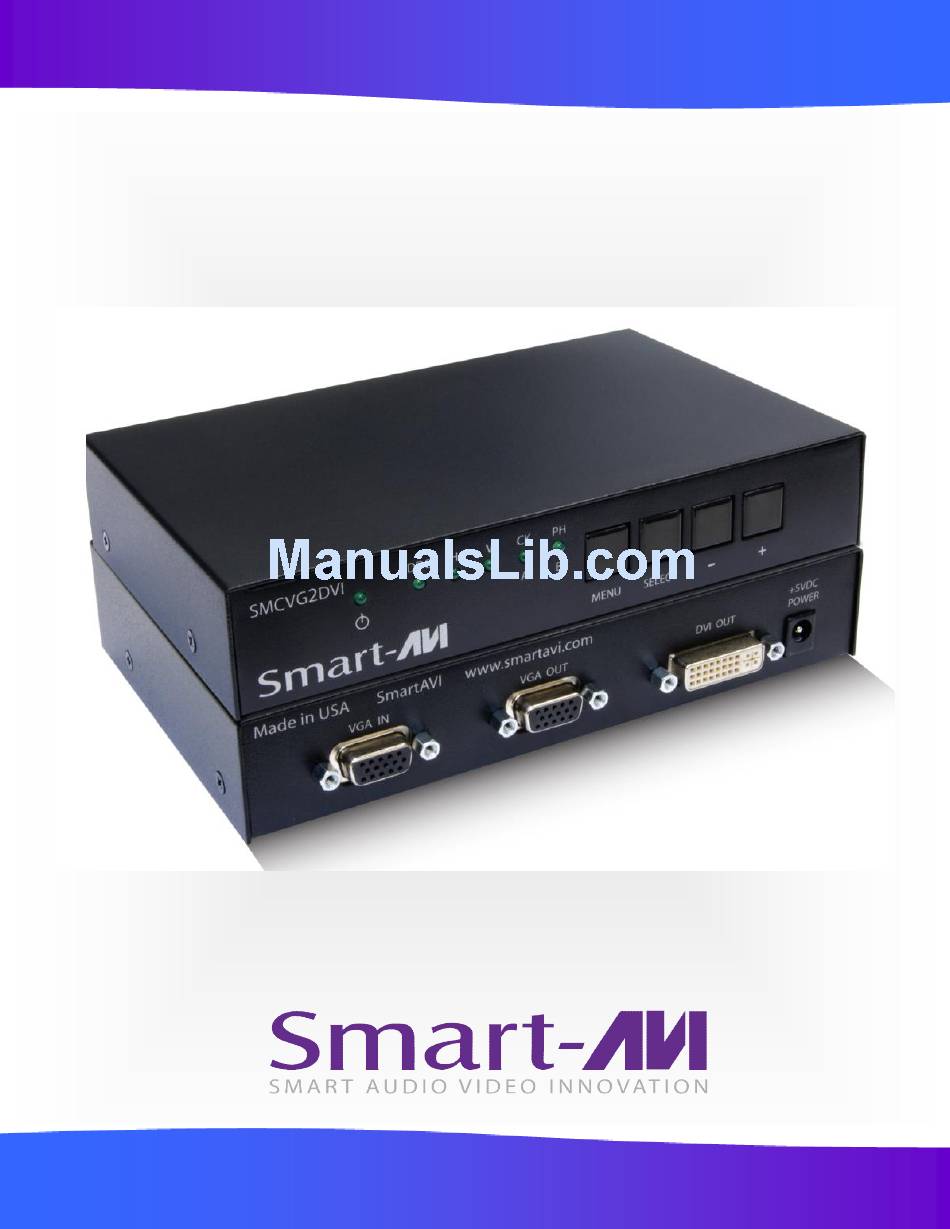

  • Page 2 Power Supply Adapter Quick Start Guide INTRODUCTION The SMCVG2DVI automatically detects the VGA input resolution and converts it to DVI video display format. It also supports a local VGA display. FEATURES • Allows older systems to connect to a DVI display.

  • Page 3: Hardware Installation

    Turn off the computer, displays and the make sure the SMCVG2DVI is unplugged. Connect a VGA cable to the computer and to the VGA IN port on the rear of the SMCVG2DVI. Connect the VGA display to the VGA OUT port on the rear of the SMCVG2DVI.

  • Page 4: Front Panel

    All systems do not support VGA with Hot Plug so if the settings don't update you must unplug the “VGA IN” connector on the back of the SMCVG2DVI, wait a few seconds and plug it back in. This will force your sys- tem to update the settings after a few more seconds.
  • Page 5 FRONT PANEL (Continued) Changing, Learning EDID settings: (Continued) To load the stored Smart-AVI #1 (SMARTAVI1) EDID settings. 1. Press the [MENU] button. (Wait for the lights to cycle back and forth. The DDC light should be on.) 2. Press the [SELECT] button. (The DDC light and the H light should be on. If not repeat 1 an 2.) 3.

  • Page 6: Limited Warranty Statement

    LIMITED WARRANTY STATEMENT Extent of limited warranty Smart-AVI Technologies, Inc. warrants to the end-user customers that the Smart-AVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer.
  • Page 7 SmartAVI will not be liable for errors contained herein or for inci- dental or consequential damages in connection with the furnishing, performance or use of this material. No part of this document may be photocopied, reproduced, or translated into another language without prior written consent from SmartAVI Technologies, Inc.
