LGC wireless InterReach Fusion SingleStar Installation And Operation Manual page 105

N-male to N-male
Coaxial Jumper Cables
between Combiner/Splitter and
usion SingleStar Hub's Uplink Port
for either Band 1 or Band 2
Coaxial Jumper Cable
N-male to N-male
Insert attenuator, if needed
D-620605-0-20 Rev A
Check Hub LEDs.
4.
After connecting and powering on the Hub, check all LEDs to ensure that the sys-
tem is operating properly.
Make sure the Hub is grounded. The warranty does not cover damage caused
when an ungrounded Hub is powered on.
NOTE: Use a 50 ohm terminator on any unused power combiner/splitter ports.

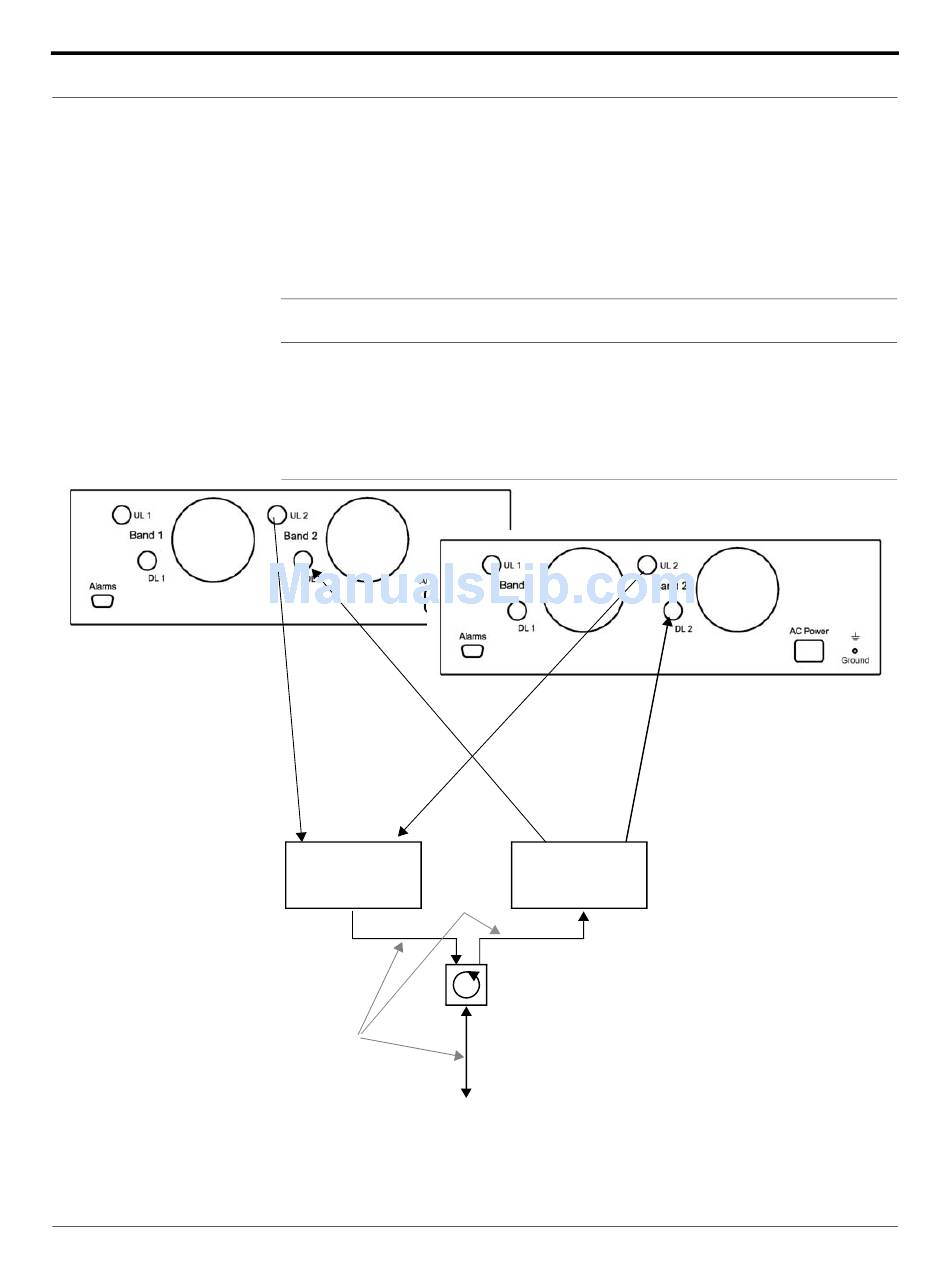

Figure 6-12 shows how to connect two Hubs to a duplex repeater or base station. You
need to use one circulator and one more coaxial jumper cable, as shown.
Connecting Two Fusion SingleStar Hub's RF Band Ports to a
Figure 6-12
Duplex Repeater or Base Station
Port
2 x 1 Power
Combiner/Splitter
Help Hot Line (U.S. only): 1-800-530-9960
Interfacing the Fusion SingleStar to an RF Source
2 x 1 Power
Combiner/Splitter
Coaxial Jumper Cable
N-male to N-male
Circulator
Base Station
to Repeater or
Coaxial Jumper Cable
N-male to N-male
N-male to N-male
Coaxial Jumper Cables
between Combiner/Splitter and
Fusion SingleStar Hub's Downlink Po
either Band 1 or Band 2
CONFIDENTIAL
6-31
