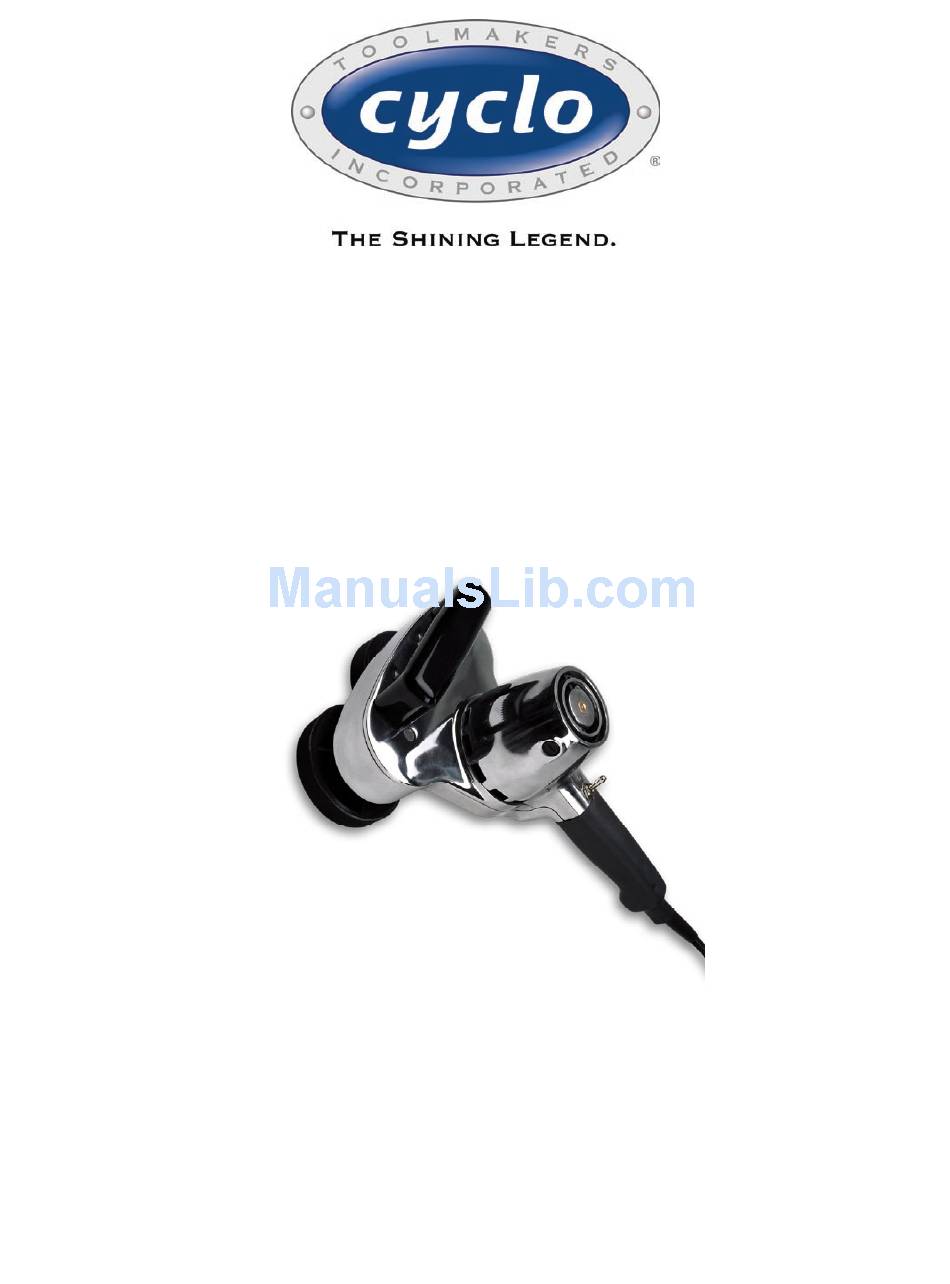

- Page 1 CYCLO DUAL HEAD ORBITAL POLISHER MODEL 5, 5C AND 6CE INSTRUCTION MANUAL Cyclo Toolmakers, Inc., 1740 Skyway Drive, Bldg. C, Longmont, CO 80504-5556 USA Phone: +1-303-485-1990, Fax: +1-303-723-8680, www.cyclotoolmakers.com...
- Page 2 ® This instruction manual is furnished with each Cyclo Model 5, 5C & 6CE Electric Dual Head Orbital Polisher. The entire manual should be read carefully before using the Cyclo Dual Head Orbital Polisher and retained for future reference. CONTENTS SAFETY INSTRUCTIONS ....................
- Page 3 Use the power tool, accessories and tool bits etc. in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Page 4 Variance in your power supply’s voltage may result in loss of power and overheating. This tool is factory tested. Built into the motor of the Model 6CE is a thermal circuit interrupt. This device will open the power circuit if the motor windings exceed 120 – 130 C. It is not resettable, and if it the protector is activated, the motor field (stator) may have to be replaced.
-
Page 5: Detailing Basics
DETAILING BASICS This section presents the basic steps involved in vehicle detailing, much of which is accomplished without your Cyclo polisher. More instructions on polisher operation are provided later in this manual. Washing Soap. To wash the vehicle and remove old wax or polish, use cold or warm water and a dishwashing detergent. A standard detergent usually requires 1-2 ounces per gallon of water. -
Page 6: Cyclo Polisher Set-Up
Durable, long-lasting Pad Holders fit directly over the Cyclo Polisher Head Assemblies to hold 72- Series pads via Velcro hook face (79-101). Quick Connect Adapters Center pads easily and save time by simply snapping the pads in place. System replaces Cyclo Polisher heads to hold 77- Series Double-Precision, two-sided pads (79-725-5/16). Head Assemblies The original backing plate for Rubber Pad Holders or foam and wool bonnets (71- series foam and wool pads permanently attached to a rubber backing). -
Page 7: Guide To Genuine Cyclo Accessories
Plus, its protective coat helps prevent further oxidation. Great for chrome. Guide to Genuine Cyclo Accessories The following information will assist you in selecting the appropriate accessory for use with the Cyclo Polisher. For additional tips and application guides, please refer to the application chart included with this manual. - Page 8 The Cyclo Dual Head Orbital Polisher is one of the most versatile machines available for polishing, buffing and compounding vehicles, planes and RV’s and more. By simply attaching two Cyclo Brushes to the heads you can clean carpet, upholstery, tile, grout and more. The rotating motion of the Cyclo polisher heads combined with the high quality brushes safely cleans leather, fabric, upholstery and carpets.
- Page 9 Drying exterior surfaces Genuine Cyclo Abrasive Discs Genuine Cyclo Abrasive Discs, when used in conjunction with the ProShine™ Interface Pad, can make easy work of the even the most unshapely of contours and surfaces from Plexiglass to paint scratch removal.
-
Page 10: Machine Operating Instructions
For maximum life, be sure to clean pads, bonnets, and pad covers after each use. To clean, spray CTI Pad Cleaner on the pad face, work in, and let soak in a container of water diluted Pad Cleaner (or clean warm soapy water). After soaking, rinse out, and if clean, place the items back on Cyclo Toolmakers Polisher and run for a few seconds. -
Page 11: User Maintenance & Troubleshooting
Be sure the polisher is disconnected from the electrical supply before any inspection or maintenance is performed. The motor is only for the voltage specified on the nameplate. Voltage should not vary more than 10% over or under the voltage shown on the nameplate. Although the Cyclo Polisher is built to last a lifetime, it can encounter problems from heavy wear and tear. - Page 12 Timing: The secret of the operation of your Cyclo Polisher lies in the fact that the two heads are timed exactly 1/2 turn apart. This is necessary for the balanced operation of the tool. If the machine is disassembled, use the following procedures to insure proper timing of the heads.
-
Page 13: Technical Specifications
THE APPEARANCE OF YOUR CYCLO POLISHER Each of our Cyclo Polishers are hand crafted with the same superior level of quality and workmanship. As all handmade items will vary slightly, we cannot guarantee that each polisher will be identical with every other one of our polishers. You may notice light sanding or buffing marks in the hand-finished aluminum castings. - Page 14 CYCLO POLISHER PARTS DIAGRAMS Rev 2010.08.23...
- Page 15 Entire contents ©2005-2010 Cyclo Toolmakers, Inc. All rights reserved. CYCLO, ORBIT CLUB, PROGUARD, VES, FASTCUT, CTI PRO PAINT CARE, CTI 1 PASS EXPRESS, FREE FLITE and Cyclo Toolmakers, Inc logo are registered and unregistered trademarks of Cyclo Toolmakers, Inc. VELCRO is a registered trademark of Velcro USA and its affiliated companies.
- Page 16 Rev 2010.08.23...
