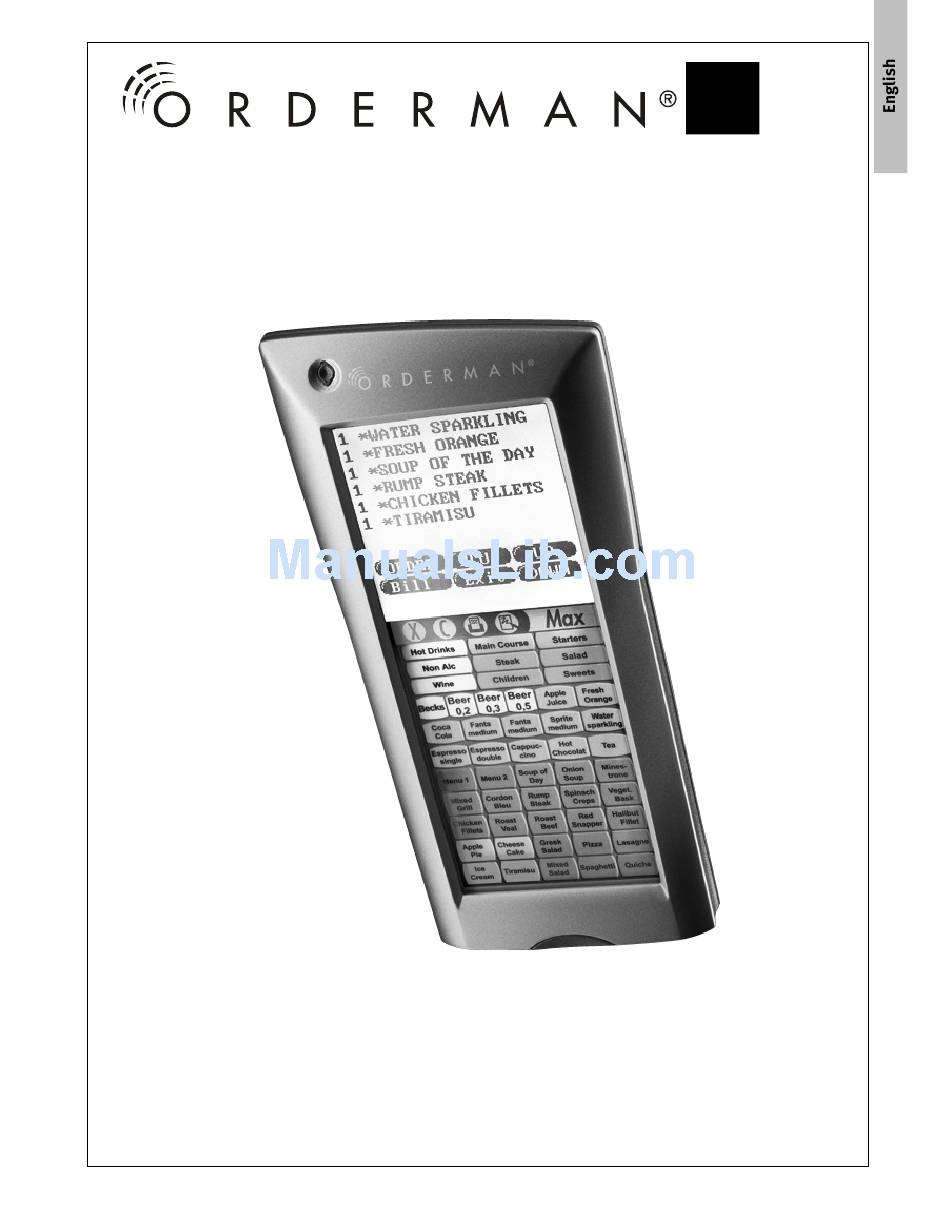

- Page 1 .Max. Users manual CAUTION: Any changes or modification not expressively appoved by the party responsible for compliance could avoid the user’s authority to operate the equipment !
- Page 2 Think dig takes no responsibility for damages or losses that result through use of these instructions. ® • Think dig takes no responsibility for third party losses or claims that result from the use of the ORDERMAN Max. • Changes to the content of these instructions are reserved and changes may be made without giving advan- ce notice.
- Page 3 User’s Manual Hand Held Terminal General ® Welcome to the world of the ORDERMAN ® ORDERMAN Max scope of delivery Safety advice ® ® ® ® Technical data ! " Charging the battery ® Settings in ORDERMAN setup Changing menu cards $ % &...
- Page 4 • Only the ORDERMAN touch pen may be used for pen operation of the ORDERMAN Max. Pencils, ball point pens or other pointed objects lead to the touch surface being damaged. • Do not under any circumstances short-circuit the handset charger contacts.
- Page 5 User’s Manual Hand Held Terminal ® ® ® ® " $ " ! " " $ * + * & ' ( % ' # " " " "...
-
Page 6: Technical Data
60 min. in ORDERMAN MAX charging station (option) Power supply: Default values: 7.5V / 900mA; input values: 100V-240V / 50Hz-60Hz; max. Power consumption: 84mA / 19.4VA Operating time: Up to 18 hours continuousily Environment: Fall proof: 1.2 meters onto concrete Waterproof: IPX4 Operating temperature: -5°... - Page 7 After briefly pressing the toolbar of the Max touch field, the charging status of the battery pack is shown. A fully charged battery allows an operating time of up to 18 hours (regardless of whether automatic shutdown and backlighting are used ).
- Page 8 Touch calibration set-up Touch calib. ® First, touch the four crosses on the display using the Orderman touch pen. Followed by the four points on the menu card (the sequence will be shown in the display). Setting the contrast and background lighting Display ®...
- Page 9 The menu card changing process may only be carried out in a dry and clean environment. ® Switch the ORDERMAN Max off and carefully loosen both screws on the underside of the device. You can now remove the locking part and then remove the menu card from the ORDER- ®...
- Page 10 $ % & ' $ " (...
- Page 11 User’s Manual Hand Held Terminal $ % & ' $ + , - To be included...
