Redfish iDVM 510 User Manual page 9

9
Switches between three fixed ranges and auto-range
1
Press and hold switches to auto range
Constantly displays the value on the LCD until the HOLD button is
2
depressed again. Holding indicated by "H" on the LCD
3 Toggles between functions shown on the selector switch
With the selector switch pointing to "Hz" the meter measures
4
frequency up to 60MHz
Measure capacitance, diode function, resistance and continuity with
5
the selector switch set in this position
Non-Contact Voltage Sensor. With the top of the meter in close
6
proximity to live voltage, an LED will blink & beeper will sound
With the selector set to this position, switch between AC & DC
7
voltage measurements using FUNC button
8 Meter is off - zero current drawn from the battery
9 Probe input for AC or DC serial high current (<10A) measurement
10 Probe input for AC or DC serial low current (<600mA) measurement
11 Permits relative measurements by resetting the zero point
12 Turns on and off the LED back light
Single quick press turns on/off BTLE. Single long press turns on/off
13
data logging/recording
14 Measures temperature. Toggle between F & C using FUNC button
Measures micro amps. Toggle between AC & DC using FUNC
15
button
16 Measures milliamps. Toggle between AC & DC using FUNC button
17 Measures amps. Toggle between AC & DC using FUNC button
Probe input for volts, resistance, capacitance, diode function,
18
frequency and temperature
19 Probe input for COM return path

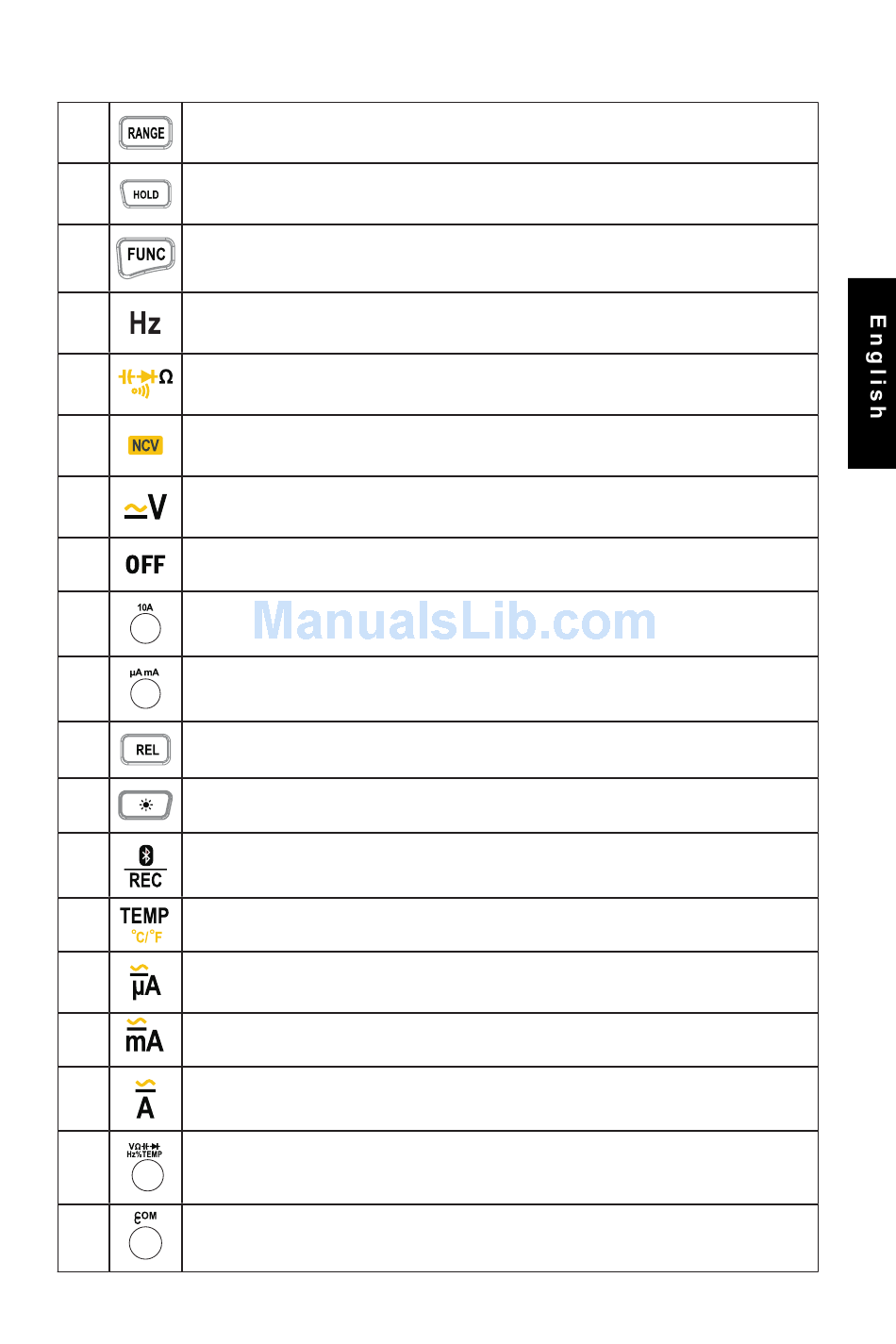

B u t t o n F u n c t i o n s
