Redfish iDVM 510 User Manual

True rms multimeter and data logger

Advertisement

Quick Links

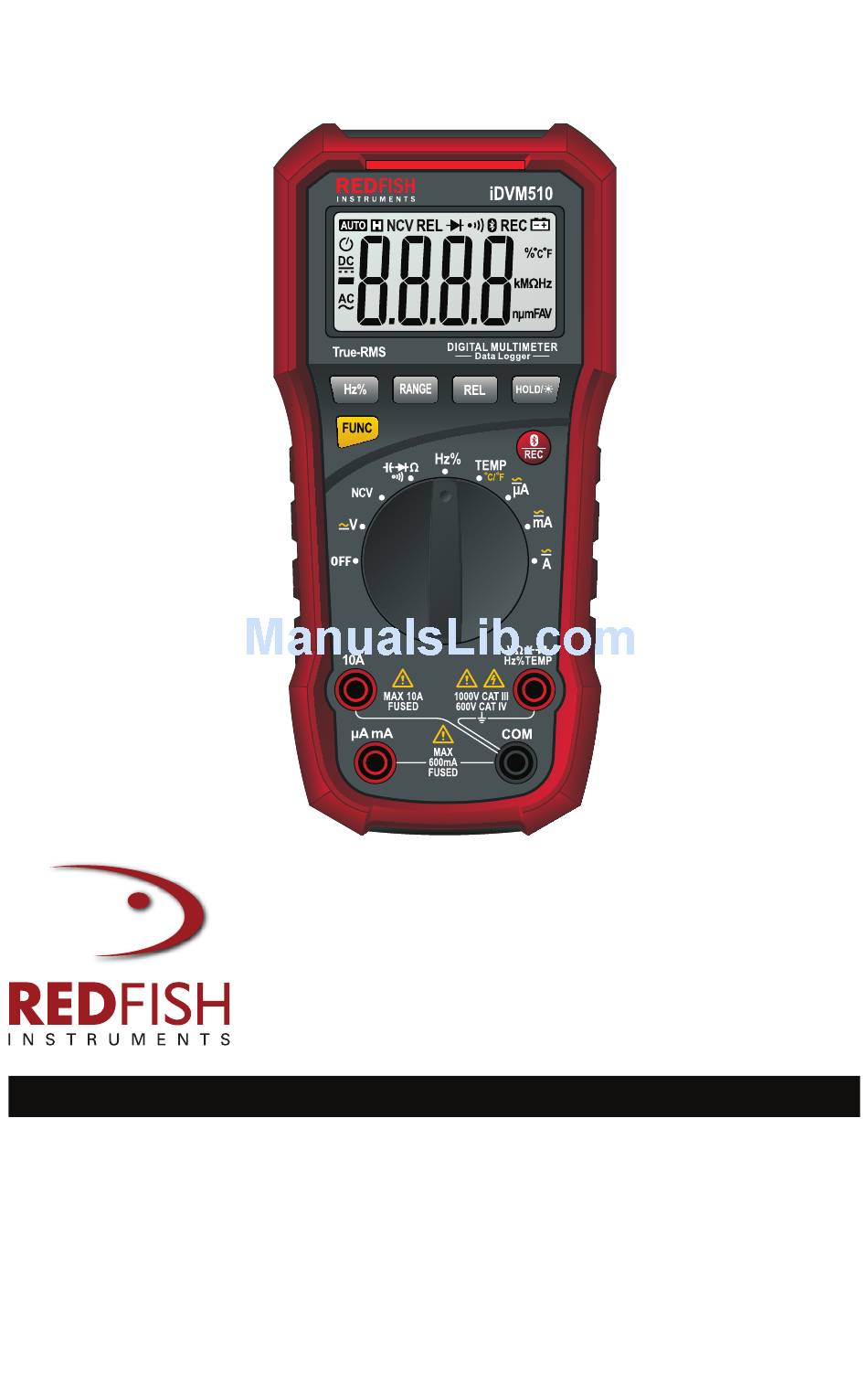

i D V M 5 1 0 T r u e R M S M u l t i m e t e r a n d D a t a L o g g e r
U s e r M a n u a l
November 2017 (English)
© 2015-2017 Redfish Instruments, Inc.
All rights reserved.
Specifications are subject to change without notice.
All product names are trademarks of
Redfish Instruments, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDVM 510 and is the answer not in the manual?

Questions and answers

Summary of Contents for Redfish iDVM 510

  • Page 1 D V M 5 1 0 T r u e R M S M u l t i m e t e r a n d D a t a L o g g e r U s e r M a n u a l November 2017 (English) © 2015-2017 Redfish Instruments, Inc. All rights reserved. Specifications are subject to change without notice.
  • Page 2 T a b l e o f C o n t e n t Warranty 04 Registrating iDVM 510 with Redfish Instruments, Inc. 04 Safety Standard, “Warning” and “Caution” Statements 05 Read before Using Meter 06 Instrument Power ON and Setup 07...
  • Page 4: Warranty

    This warranty covers the original purchaser only and is not transferable. For the lifetime of the iDVM 510, Redfish Instruments, Inc. will replace the non functioning components for a fee based on then current component acquisition costs. For the purposes of replacements the life time of the iDVM is not longer than 3 years.
  • Page 5 S a f e t y S t a n d a r d - I E C / E N 6 1 0 1 0 - 2 The iDVM 510 meets the safety standards of EN/UL/CSA 61010-1, 61010-2-030, 61010-2-033 for electronic testing instruments. This meter meets CAT III 1000V, CAT IV 600V installations and a pollution degree of 2.
  • Page 6 W a r n i n g - R e a d b e f o r e u s i n g t h e M e t e r Use the Meter only as specified in this manual or the protection provided by the Meter might be impaired.
  • Page 7 The most unique feature of the iDVM 510 is its ability to wirelessly connect to a mobile device (iOS or Android). When connected to a mobile device the multimeter can capture and store up to 20,000 data points over an extended period of time.
  • Page 8 M e t e r F u n c t i o n a n d T e r m i n a l D e s c r i p t i o n...
  • Page 9 B u t t o n F u n c t i o n s Switches between three fixed ranges and auto-range Press and hold switches to auto range Constantly displays the value on the LCD until the HOLD button is depressed again.
  • Page 10: Display / Symbols

    D i s p l a y / S y m b o l s 9 10 11 12 13...
  • Page 11 B u t t o n F u n c t i o n s Numeric display and read-out AC measurement Indicates negative value DC measurement Automatic Power Off (APO) Auto range is active Indicates measurement is “holding” Non-Contact Voltage measurement Indicates measurement reading is relative to a previously establised zero Diode measurement...
  • Page 12: Making Basic Measurements

    M a k i n g B a s i c M e a s u r e m e n t s The figures on the following pages show how to make basic measurements. When connecting the test leads to the circuit or device, connect the common (COM) test lead before connecting the live lead;...
  • Page 13: Testing And Measuring

    T e s t i n g a n d M e a s u r i n g Warning To avoid electric shock, injury, or damage to the Meter, disconnect circuit power and discharge all high-voltage capacitors before testing resistance. Measuring Resistance Measuring Continuity Press...
  • Page 14 T e s t i n g a n d M e a s u r i n g Measuring Non-Contact Measuring Frequency Voltage (NCV) Live Voltage Measuring Temperature C Measuring Temperature F...
  • Page 15 M e a s u r i n g A C o r D C C u r r e n t Warning To avoid personal injury or damage to the Meter: Never attempt to make an in-circuit current measurement when the open-circuit potential to earth is >1000 V. Use the proper terminals, switch position, and range for your measurement.
  • Page 16 M e a s u r i n g A C o r D C C u r r e n t Start with open circuit Break the circuit Start with open circuit Break the circuit...
  • Page 17 U n d e r s t a n d i n g A C Z e r o I n p u t B e h a v i o r o f T r u e R M S M e t e r s Unlike averaging meters, which can accurately measure only pure sinewaves, True RMS meters accurately measure distorted waveforms.
  • Page 18: Fuse And Test Probe Replacement

    F u s e a n d T e s t P r o b e R e p l a c e m e n t WARNING Fuses are to be replaced by trained service personnel. Fuses are not intended to be replaced by untrained end-users. Return the iDVM to the factory if needed.
  • Page 19: General Specifications, Product Features

    G e n e r a l S p e c i f i c a t i o n s P r o d u c t F e a t u r e s Accuracy is specified for 1 year after calibration, at operating temperatures of 18ºC to 28ºC, with relative humidity at 90%.
  • Page 20: Detailed Performance Specifications

    D e t a i l e d P e r f o r m a n c e S p e c i f i c a t i o n s Specification iDVM 510 Accuracy DC Voltage 600mV/6.0V/60V/1000V +/- 0.5% +2 counts...
  • Page 21 Visit the Redfish web site at www.redfishinstruments.com Register your Meter at http://www.redfishinstruments.com/product-registration November 2017 (English) © 2015-2017 Redfish Instruments, Inc. All rights reserved. Printed in USA. Specifications are subject to change without notice. All product names are trademarks of Redfish Instruments, Inc.
