Roth Touchline Quick And Easy User Manual

Heating system consists of 1 - 5 control devices and a number of room thermostats.
Hide thumbs Also See for Touchline:
Table of Contents

Advertisement

Quick Links

Roth Touchline
Quick and easy user manual
German quality since 1947
1/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Touchline and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roth Touchline

Summary of Contents for Roth Touchline

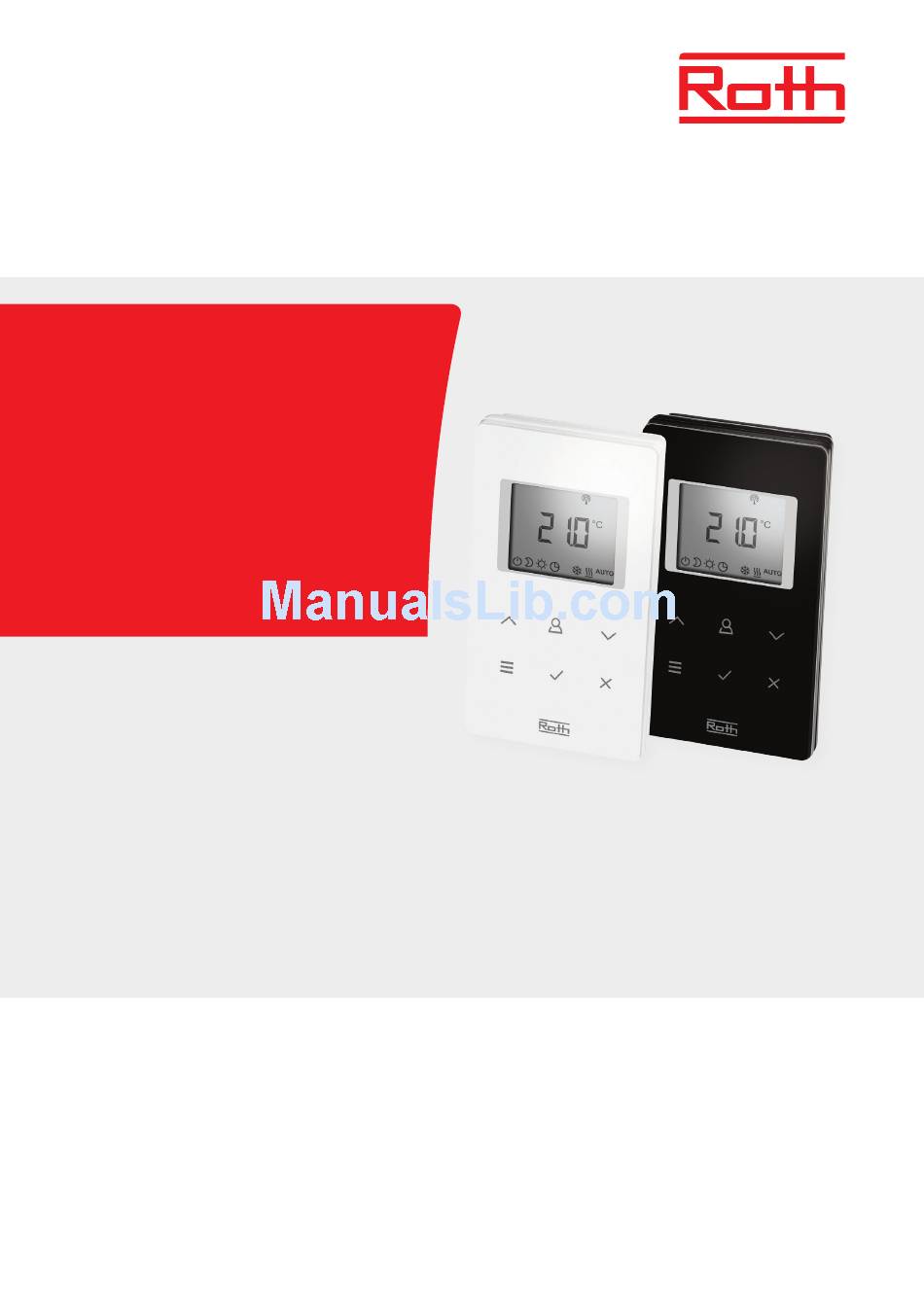

  • Page 1 Roth Touchline Quick and easy user manual German quality since 1947 1/10...
  • Page 2 The thermostats are available with and without floor sensors (IR). control devices and a number of room thermostats. The Roth Touchline system is easy to use and can be controlled The control device can operate functions such as pump stop/start, with an Android or iOS app.
  • Page 3 Touchline 3. Install the Touchline control device and connect the actuators (24V). min. click 4. Insert the batteries in the thermostats and mount the thermostats on the wall. A: Applicable to all thermostats. B: Applicable to IR thermostats only. click 0.555 m...
  • Page 4 Touchline controller. Image 5.a Pump connection diagram Main, 230V Input on terminals 1, 3, 5 and Pump output supply from terminals 2, 4, 6 on the Touchline controller. (Functioning as an On/Off switch when heating is required from the Touchline thermostat).
  • Page 5 6. Pairing a Touchline room thermostat with the control device 6.A: Briefly press the preferred channel or several channels that you want to pair with the Touchline room thermostat. The channel now flashes continuously and is ready for pairing. The Touchline room thermostat is now ready for pairing and displays: 6.B: To pair the Touchline room thermostat, hold the sensor button...
  • Page 6 Parameter Description Set the display to standby: actual temperature or time P-01 Set the setpoint for minimum floor temperature (for versions with integrated IR sensor only) P-02 Set the maximum and minimum values for room temperature setpoint P-03 Change time programs P-04 Reset time programs to factory settings P-05...
  • Page 7 › Press the sensor button to confirm the new mode. The Touchline system has an option for night setback with a time program. View the complete guide at www.roth-uk.com Always check the mode before calling a technician!
  • Page 8 IR sensor broken Specialist stats with IR sensors Problem Possible cause How to clear it To be done by Roth App Inability to connect to Restart control device User lost connection control device via app. Always make sure you have the latest software update.
  • Page 9 Touchline Parameter Description Set temperature for frost protection function. P-32 The frost protection function will be activated as soon the room temperature measured is below the set frost protection temperature. › Factory setting: 8°C › Setting range: 3 - 13°C Operation ›...
  • Page 10 ROTH UK Ltd Higher Ford Wiveliscombe Taunton, Somerset TA4 2 RL Phone +44 (0) 1984 623982 Fax +44 (0) 1984 623915 E-Mail sales@roth-uk.com roth-uk.com 10/10...
