Summary of Contents for JACKON JACKOBOARD R 600

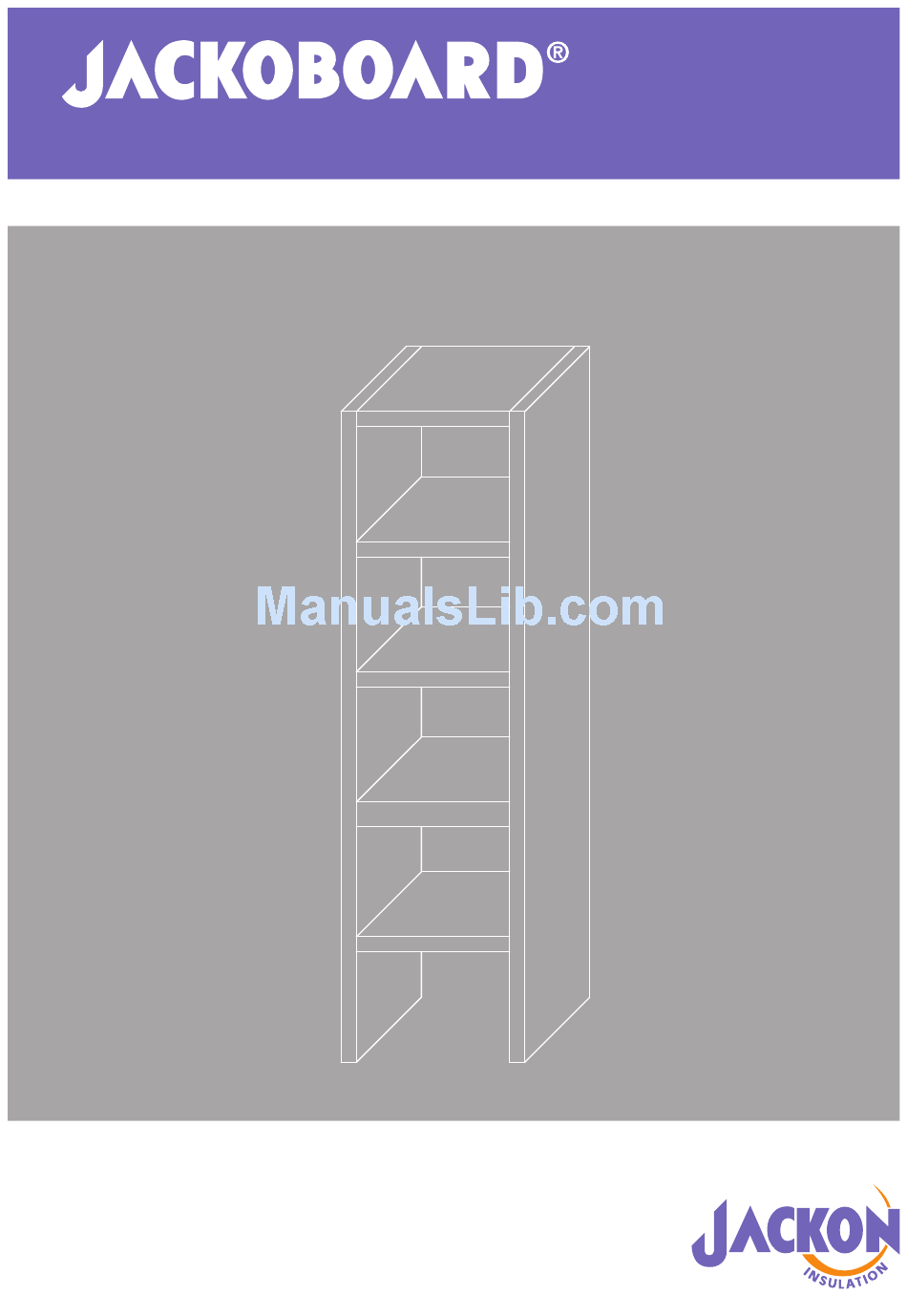

- Page 1 Modula R 600 Shelf unit. Installation Instructions...
- Page 2 Installation Instructions JACKOBOARD Modula R 600 ® Components 4 x shelves (A) 1 x shelf (B) 2 x side walls (C) Accessories 1 x former board 20 x stainless steel screws 20 x stainless steel washers 2 x adhesive Tools Screwdriver Cartridge gun...
- Page 3 Installation Instructions JACKOBOARD Modula R 600 ® 1) Apply adhesive to both joining parts (side wall and shelf). 2) Insert the shelf into the groove on the side wall. Make sure the shelf and side wall are flush. 3) The shelves are glued on one after the other. The 80 mm 4) Apply adhesive to both joining parts (side wall and shelf is positioned second from the bottom to match the shelves).
- Page 4 Building Law. JACKON Insulation GmbH | Carl-Benz-Straße 8 | D-33803 Steinhagen Telephone +49 5204 9955-320 | Telefax +49 5204 9955-300 | info@jackodur.com | www.jackon-insulation.com...
