CO M M i s si ON iN g

05 setup

( ! ) For setup, the transmitter must already be programmed ready for flight, so that the model can be flown or is already flying without CORTEX.
Servo directions, possible mixers, throw limits etc., as well as correct tuning settings for normal flight must already be set up correctly.
( ! ) Switch off dual rate while carrying out the setup. Initially leave the sticks (except gas) in neutral position at the start of setup. Set all remaining functions
(flaps, possible flight modes etc.) to the position used during normal flight.
( ! ) The setup must be repeated every time, if a combination in the transmitter or a channel assignment on the receiver or transmitter has been changed.
Starting setup:

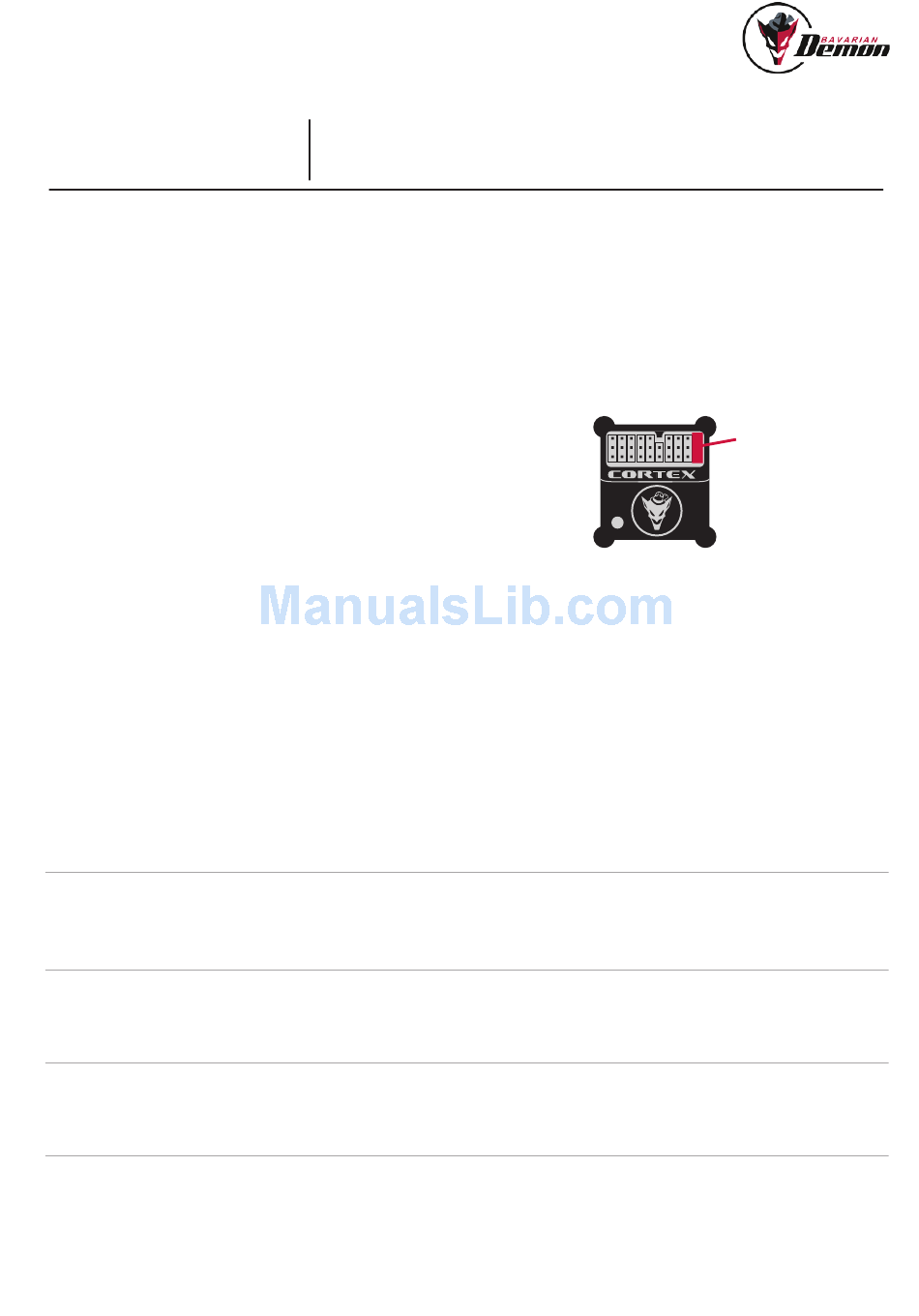

Plug in the jumper supplied as shown in the illustration, then power on the device.
The LED will now issue a series of green flashing signals after a starting initialisation. The servos then issue the same signals as an audible jerk. These are
requests to the stick movements specified in the following table. Follow these instructions exactly, i.e. only move the stipulated function on the transmitter: move
the stick to the corresponding end stop and hold it there until the following signal occurs. This confirms that the command just given has been correctly identified
and gives the signal that this deflection can be taken back again and to apply the next one in the sequence described below.
NOTE: Simply skip over any axes that are not to be stabilised (do not deflect stick).
note signals of the led
(flashing) or the servos (jerking):
• •
(switching on) → Leave the sticks neutral, wait for signal
• •
(2x)
→ Now hold aileron at right-hand stop
• (1x)
→ Now hold aileron at left-hand stop
• • (2x)
Release aileron
→ Now „press" elevator on stop and hold
• (1x)
→ Now „pull" elevator on stop and hold
• • (2x)
Release elevator
→ Now hold rudder on right-hand stop
• (1x)
→ Now hold rudder on left-hand stop
• • •
(Servos 3x)
→ Setup completed successfully. Now first pull the jumper, then switch off.
Important: test gyro directions for all three axes, see Section 8.
•••••••• (LED flashes green)
JUMPER
