Getting Started Safety Information WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled RISK OF ELECTRIC SHOCK with liquids, such as vases, should be placed on the DO NOT OPEN apparatus.
Page 3
Getting Started CAUTION concerning the Power Cord This device is equipped with a portable battery or accumulator. The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily Safety way to remove the battery from the accessible.
Page 4
Getting Started Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage. The symblo indicates polarity of DC Power connector. For indoor use only. The symbol indicates energy effeciency marking with level Ⅵ...
Page 5
Table of Contents Table of Contents Getting Started Operating Safety Information Operations Unique features – DRC (Dynamic Range Control) Introduction – Turn off the sound temporarily – Symbols used in this manual – Using your TV remote control Remote control –...
Getting Started Unique features Introduction Symbols used in this manual Auto power down This unit supports to turn off by itself for saving Note energy consumption. Indicates special notes and operating features. Portable In > Caution Listen to music from your portable device. (MP3 player, Notebook, Smart phone, etc..) Indicates cautions for preventing possible damages from abuse.

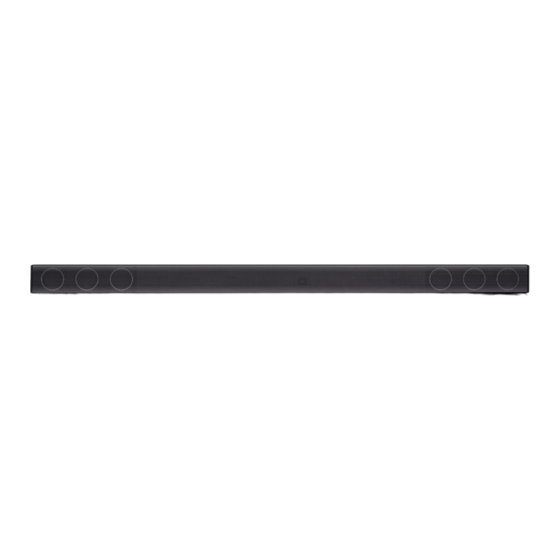

Getting Started Front panel D E F A 1 (Standby/Standby LED) D OPTICAL LED - Switches to power on or standby mode. E j (Bluetooth) LED - Standby LED lights up in red on standby mode. F PORTABLE LED B p/o (Volume) G Remote sensor Adjusts volume level.
Getting Started About LED condition Condition Description OPTICAL LED turns on. OPTICAL function is selected. j (Bluetooth) LED turns on. Paired with Bluetooth device. j (Bluetooth) LED blinks. Waiting for Bluetooth connection. PORTABLE LED turns on. PORTABLE function is selected. Note y When you press any button, standby LED (Red) on the main unit blinks.
Getting Started Installing the sound bar You can hear the sound by connecting the unit to the other device : TV, Blu-ray disc player, DVD player, etc. Place the unit in front of the TV and connect it to the device you want.
Page 11
Getting Started Mounting the main unit 1. Place the unit with the bottom of TV and attach to the location. Align to center the unit on the TV. on a wall (Optional) You can mount the main unit on a wall. 2.
Page 12
Getting Started 4. Fix the screws and wall plugs as shown in the 5. Hang the main unit on wall as shown below. illustration below. Note Note To detach the unit, perform it in reverse order. y Screws and Wall Plugs are not supplied for mounting the unit.
Connecting Connecting the AC Connecting to your TV Adapter Using an OPTICAL cable Connect the speaker to the power supply with the 1. Connect the OPTICAL IN jack on the back of the supplied AC adapter. unit to OPTICAL OUT jack on the TV using an 1.
Connecting Optional equipment PORT. IN connection connection OPTICAL IN connection Connect an optical output jack of external devices to the OPTICAL IN jack. Portable cable Optical cable To the digital MP3 player, etc... optical output jack of external device Listening to music from your portable 1.
Vizio y Make sure that the sound output of your TV is set to [External speaker]. y Depending on the remote control, this function may not work well. y This function does not operate on LG TV's magic remote control.
Operating AUTO POWER On/Off Auto function change This unit automatically turns on by an input source : This unit recognizes input signals such as Optical, Optical or Bluetooth. Bluetooth and then changes suitable function automatically. When you turn on your TV or an external device connected to this unit, this unit recognizes the input When optical signal comes in signal and select the suitable function.
Bluetooth device display Notebook, etc.. depending on the type of Bluetooth device. y Version : 4.0 Your unit appears as “LG SJ1 (XX)” . y Codec : SBC Note Bluetooth Profiles y XX means the last two digits of Bluetooth address.
Page 18
Operating Note BLUETOOTH connection lock (BT lock) y When using Bluetooth technology, you have You can limit Bluetooth connection to only to make a connection between the unit and Bluetooth function to prevent unintended the Bluetooth device as close as possible and Bluetooth connection.
Operating Sound adjustment This system has a number of pre-set surround sound fields. You can select a desired sound mode by using each sound mode button. Sound effect Description STANDARD You can enjoy optimized sound. Reinforces the treble, bass and BASS BLAST surround sound effect.
Troubleshooting Troubleshooting General PROBLEM CAUSE & CORRECTION y Turn off the power of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and turn them on again. The unit does not y Disconnect the power cord of this unit and the connected external device work properly.
Page 21
Troubleshooting PROBLEM CAUSE & CORRECTION Check the details below and adjust the unit according to them. y Switch [ON] state of DRC function to [OFF] by using remote controller. y Change Audio DRC setting on connected device setup menu to [OFF] state. When you feel the y With the sound bar connected with TV, change the AUDIO DIGITAL OUT setting on output sound of the...
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.
Appendix Specifications General Refer to main label. Power consumption Networked standby : 1.0 W (If all network ports are activated.) y Model : NU040A220181 y Manufacturer : TCL Technoly Electronics (Huizhou) Co..,Ltd. AC adapter y Input : 100 - 240 V ~ 50 / 60 Hz 1.5 A MAX y Output : 22 V 0 1.81 A Dimensions (W x H x D) Approx.
Appendix Maintenance Handling the unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit.
Page 26
For IC: This device complies with RSS247 of Industry Canada. Cet appareil se conforme à RSS247 de Canada d'Industrie. This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
