Summary of Contents for 2Wire HomePortal 1500CW

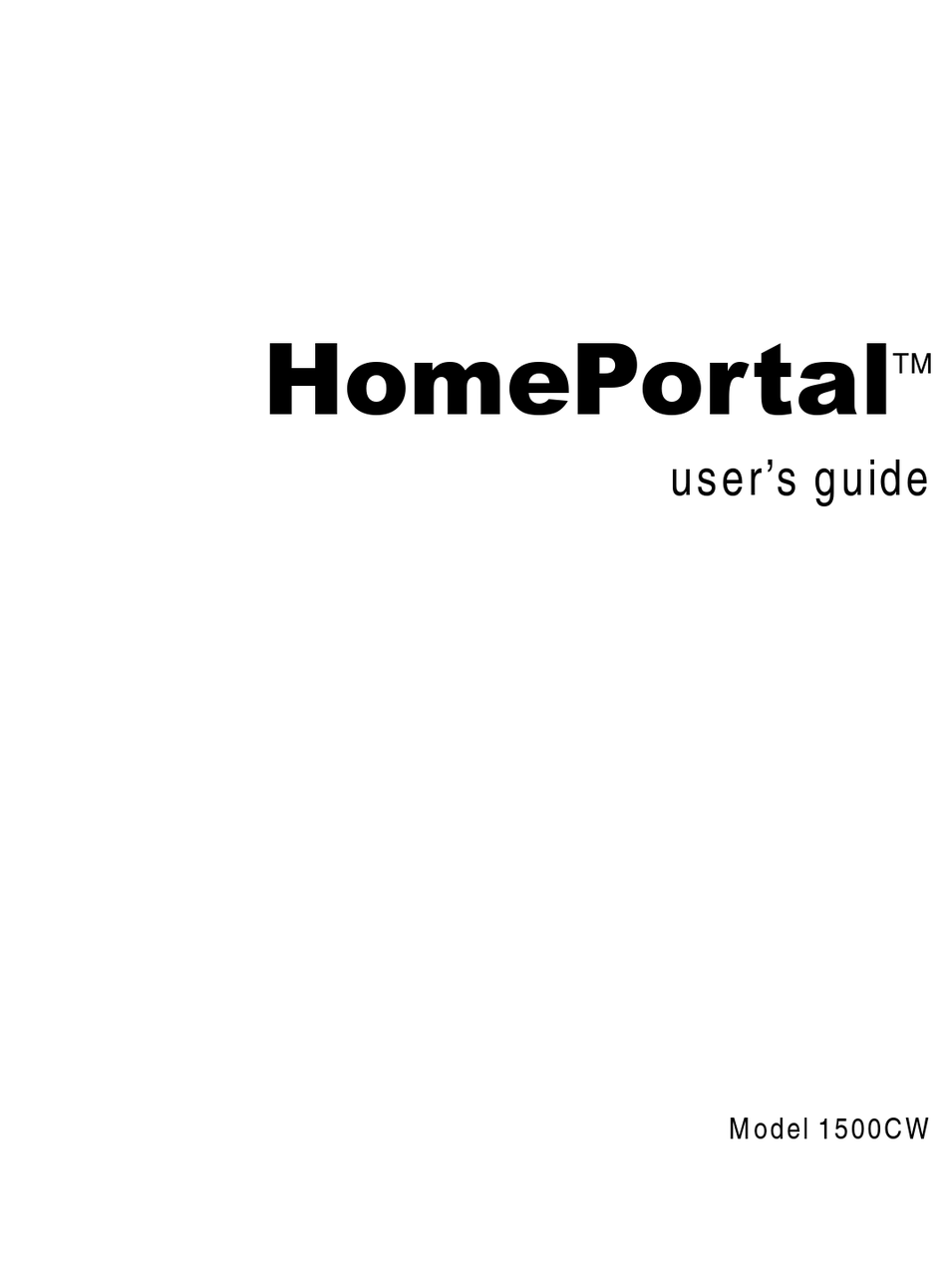

  • Page 1 HomePortal  user’s guide M odel 1500C W...
  • Page 2: Safety Information

    Notice to Users ©2000 2Wire, Inc. All rights reserved. This manual in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval. 2WIRE PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION, IN NO EVENT SHALL 2WIRE, INC.
  • Page 3: About This Guide

    About this guide This guide is designed to help you quickly install the HomePortal and your HomePortal network. It introduces you to the features of the HomePortal and guides you through the installation process. After installation, you can access the most current and detailed version of this guide online by selecting in the Help...
  • Page 4 Provides tips for solving problems that may occur when installing the HomePortal and connecting to the Internet. Chapter 10 Contacting 2Wire Customer Care Provides contact information for 2Wire Customer Care. Index At the end, you’ll find an index so you can quickly find information in this guide.
  • Page 5 Contents Chapter 1: Introduction Welcome to the HomePortal ..................1-1 Features ......................1-1 Before you begin ..................... 1-2 Locating and recording your HomePortal Key Code ........1-2 Check your computers ..................1-2 Remove conflicting applications ..............1-3 Plan your home network ................. 1-4 Getting started ......................
  • Page 6 Chapter 9: Troubleshooting HomePortal Troubleshooting installation ..................9-1 Troubleshooting Internet connection ............... 9-8 Troubleshooting home networking ................9-8 Chapter 10: Contacting 2Wire Customer Care Web support ......................10-1 Email support ......................10-1 Toll-free 24 x 7 telephone and fax support ............10-1...
  • Page 7: Welcome To The Homeportal

    Chapter 1Introduction Welcome to the HomePortal The HomePortal securely delivers rich content from the Internet through a broadband connection and distributes it to multiple simultaneous users within the home. This means that you can share one high-speed Internet connection with all of your computers simultaneously.
  • Page 8: Before You Begin

    HomePortal software. Note: If your HomePortal packaging does not have a Key Code label, you may obtain an activation Key Code on the 2Wire Web site: http://www.2wire.com/keycode. Or your service provider may have provided your Key Code by other means.
  • Page 9: Remove Conflicting Applications

    Macintosh: Internet Explorer 4.51 and 5.1 or Netscape Navigator 4.74 and higher. Note: 2Wire provides a current Windows Web browser on the HomePortal Setup Wizard CD. If one or more of your Windows computers does not have a current Web browser, the Setup Wizard provides an opportunity to install one.
  • Page 10: Plan Your Home Network

    Chapter 1: Introduction Windows provides two methods for uninstalling software. The method you use depends on the type of software you are uninstalling. Consult the documentation of the conflicting software for complete uninstallation instruction, or use the following instructions as a guideline. Method 1 on Windows: From the Start menu, select Settings >...
  • Page 11 Chapter 1: Introduction pairing these locations with these connection types makes sense in a home network. Study/home office Place the HomePortal in a visible, easily accessible location near a power outlet, phone jack, and a computer. If your office computer has Windows 98 SE, ME, or 2000, we recommend connecting it via USB.
  • Page 12: Getting Started

    Chapter 1: Introduction Kitchen With limited counter space, web pads or notebook computers may be your best choice in the kitchen. We recommend using a 2Wire PC Port USB HomePNA adapter to connect via phoneline or using a wireless connection. Bedrooms...
  • Page 13 Chapter 1: Introduction...
  • Page 14 Chapter 1: Introduction...
  • Page 15 Chapter 2Installing HomePortal hardware Important: Read this page. With HomePortal you can use a combination of connectivity methods within your home network. Some of your computers can be networked by way of phoneline networking (HomePNA) by using your existing phoneline, some by way of wireless, some by Ethernet, and one Windows 98 SE, Millenium, or 2000 computer by way of USB.
  • Page 16 Chapter 2: Installing HomePortal hardware Choice 3: Computer with HomePNA adapter page 2-10 Choice 4: Computer with Wireless Ethernet card page 2-12 Choice 5: Network with Ethernet hub page 2-14 Note: If you are not sure whether your computer has one of these options, see “Troubleshooting installation”...
  • Page 17: Choice 1: Computer With Ethernet Connection

    Chapter 2: Installing HomePortal hardware Choice 1: Computer with Ethernet connection To connect your computer to the HomePortal via Ethernet: Verify the computer has an Ethernet card. If you are not sure whether your computer has an Ethernet card, see “Troubleshooting installation”...
  • Page 18 Chapter 2: Installing HomePortal hardware Note: The DSL service wall jack is a special jack set up during installation of DSL service. It is not a regular phone jack and should not have a dial tone. One way to verify that you are connecting to the correct wall jack is to attach a telephone to the jack and then listen for a dial tone.
  • Page 19: Choice 2: Windows 98 Se, Me, Or 2000 Computer With Usb Port

    Chapter 2: Installing HomePortal hardware Choice 2: Windows 98 SE, ME, or 2000 computer with USB port Note: In a HomePortal network, only one Windows 98 SE, Windows ME, or Windows 2000 computer can be connected via USB. USB/HomePortal connectivity is not available for Macintosh, Windows 95, or Windows NT. To connect your computer to the HomePortal via USB: Making sure the round connector is lined up correctly, plug the black AC power adapter into the HomePortal...
  • Page 20 Chapter 2: Installing HomePortal hardware Connect the other included light-gray telephone cable from the HomePortal port (2nd plug from top) to the DSL service wall jack. This connects the HomePortal’s internal DSL modem to your DSL service provider. If you already have an external DSL modem, you no longer need to use it.
  • Page 21 Chapter 2: Installing HomePortal hardware − Place the HomePortal Setup Wizard CD in the CD-ROM tray, and then select . Click to continue. CD-ROM drive Next − Select . Click to continue. The updated driver Next...
  • Page 22 Chapter 2: Installing HomePortal hardware − Click to continue. Next...
  • Page 23 Chapter 2: Installing HomePortal hardware Note: If asked to insert your Windows CD, please do so and follow on-screen instructions. If you don’t have your Windows CD handy, try the following options for locating the driver: C:\WINDOWS\options\cabs C:\Windows C:\Windows\system D:\Win98 −...
  • Page 24: Choice 3: Computer With Homepna Connection

    To connect your computer to the HomePortal via HomePNA: Verify the computer has a HomePNA adapter. You can order HomePNA adapters from 2Wire (2Wire PC Port Phoneline 10 Mbps USB Adapter). Note: If you are not sure whether your computer has a HomePNA adapter, see “Troubleshooting installation”...
  • Page 25 Chapter 2: Installing HomePortal hardware Verify that the telephone line in the room with your computer is active by attaching a telephone to the wall jack and then listening for a dial tone. If you hear a dial tone, you can use this jack for HomePNA. Connect a telephone cord from the HomePNA adapter (or from the HomePNA card in your computer) to a telephone wall jack.
  • Page 26: Choice 4: Computer With Wireless Ethernet Connection

    Chapter 2: Installing HomePortal hardware Power on your computer and after your computer has completely started, verify the top and bottom indicator lights on the front of the HomePortal are green. If the lights are lit green, the HomePortal is POWER HOME NETWORK now connected to your computer and the telephone line that runs throughout...
  • Page 27 Chapter 2: Installing HomePortal hardware Note: If you are not sure whether your computer has a wireless card, see “Troubleshooting installation” on page 9-1. Making sure the round connector is lined up correctly, plug the black AC power adapter into the HomePortal port (bottom plug) and then POWER plug the other end into an electrical outlet.
  • Page 28: Choice 5: Network With Ethernet Hub/Switch

    Chapter 2: Installing HomePortal hardware Note: After installing the HomePortal software, the BROADBAND LINK indicator light will also turn green. Go to “Installing HomePortal software” on page 3-1. Choice 5: Network with Ethernet hub/switch To connect your computer to the HomePortal via Ethernet hub: Verify the computer has an Ethernet card.
  • Page 29 Chapter 2: Installing HomePortal hardware Making sure the round connector is lined up correctly, plug the black AC power adapter into the HomePortal port (bottom plug) and then POWER plug the other end into an electrical outlet. The green Power light on the front of the HomePortal should come on. page 8-1Recommended: If any of the computers in your home today or in the future will connect to your home network via HomePNA, connect the included light-gray telephone cable from the HomePortal...
  • Page 30 Chapter 2: Installing HomePortal hardware Note: After installing the HomePortal software, the BROADBAND LINK indicator light will also turn green. Go to “Installing HomePortal software” on page 3-1. 2-16...
  • Page 31: The Setup Wizard On Windows

    Chapter 3Installing HomePortal software Congratulations! You have completed the hardware installation. But before you start sending print jobs to the printer in the other room or start playing network games with your family, you need to tell your computer that it is connected to a network by installing the HomePortal software.
  • Page 32: The Setup Wizard On Macintosh

    Place the HomePortal Setup Wizard CD in the CD-ROM drive and close the CD tray. A 2Wire icon appears on your desktop. Double-click the 2Wire icon. A window opens with two icons. One is a HomePortal Install icon and the other is an Internet Explorer 5 folder.
  • Page 33 Chapter 3: Installing HomePortal software Follow on-screen instructions. After the Setup Wizard completes, the BROADBAND LINK indicator light on the front of your HomePortal will flash green as the HomePortal establishes a connection to your broadband service provider. This could take several minutes.
  • Page 34 Chapter 3: Installing HomePortal software...
  • Page 35: Adding Computers To Your Network

    Chapter 4Adding computers to your network With HomePortal you can use a combination of connectivity methods within your home network. Some of your computers can be networked by way of phoneline networking (HomePNA) by using your existing phoneline, some by way of wireless, some by Ethernet, and one Windows 98 SE, Millenium, or 2000 computer by way of USB.
  • Page 36: Choice 1: Computers With Homepna Connection

    Chapter 4: Adding computers to your network Choice 4: Computer with Ethernet card (no hub) page 4-5 Choice 5: Windows 98 SE, ME, or 2000 with USB Port page 4-6 Note: If your computers have more than one of the above networking technologies installed, choose one way to connect each computer to the HomePortal.
  • Page 37: Choice 2: Computers With Wireless Ethernet Connection

    To add a computer to your network via HomePNA: Verify the computer has a HomePNA adapter. You can order HomePNA adapters from 2Wire (2Wire PC Port Phoneline 10 Mbps USB Adapter). Connect the HomePNA adapter to a telephone wall jack.
  • Page 38: Choice 3: Network With Ethernet Hub/Switch

    Chapter 4: Adding computers to your network Configuration booklet also includes detailed instructions for configuring Lucent, 3Com, Aironet, and Apple wireless cards. Note: If you are not sure whether your computer has a wireless card, see “Troubleshooting installation” on page 9-1. Install the HomePortal software.
  • Page 39: Choice 4: Computer With Ethernet Connection

    Chapter 4: Adding computers to your network If you have not already done so, connect each Ethernet device’s network card to the hub with a network cable, similar to the dark-gray cable included with the HomePortal. Note: You can purchase additional Ethernet cables at any consumer electronics retailer.
  • Page 40: Choice 5: Windows 98 Se, Me, Or 2000 Computer With Usb Port

    Chapter 4: Adding computers to your network Choice 5: Windows 98 SE, ME, or 2000 computer with USB port Note: In a HomePortal home network, only one Windows 98 SE, ME, or 2000 computer with USB port can be connected via USB. USB/HomePortal connectivity is not available for Macintosh, Windows 95 or Windows NT.
  • Page 41 Chapter 4: Adding computers to your network − Select . Click to continue. Search for best driver for your device Next − Place the HomePortal Setup Wizard CD in the CD-ROM tray, and then select . Click to continue CD-ROM drive Next...
  • Page 42 Chapter 4: Adding computers to your network − Select . Click to continue. The updated driver Next − Click to continue. Next...
  • Page 43 Chapter 4: Adding computers to your network Note: If asked to insert your Windows CD, please do so and follow on-screen instructions. If you don’t have your Windows CD handy, try the following options for locating the driver: C:\Windows\options\cabs C:\Windows C:\Windows\system D:\Win98 −...
  • Page 44 Chapter 4: Adding computers to your network − Remove the CD from the CD-ROM tray, and then click to restart your computer. Install the HomePortal software. 4-10...
  • Page 45: Homeportal Monitor Tools

    Chapter 5Using HomePortal Monitor HomePortal Monitor provides useful networking tools for all the computers in your home network. HomePortal Monitor tools After running the HomePortal Setup Wizard, a icon appears in the task bar of your computer screen. Click the icon to launch HomePortal Monitor, which is a handy menu of tools such as Share Files or Printers, View Home...
  • Page 46: View Home Network Information

    Chapter 5: Using HomePortal Monitor View home network information From HomePortal Monitor, select to open your View Home Network Information... home network page, which displays information about all your networked devices. Change mobile computer location From HomePortal Monitor, select to switch Change Mobile Computer Location…...
  • Page 47: Check For Homeportal Upgrades

    Choose to be notified of connection problems From HomePortal Monitor, check if you would Notify Me of Connection Problems like to automatically initiate 2Wire’s ongoing help in diagnosing and troubleshooting potential problems on your home network. Troubleshoot From HomePortal Monitor, select to open HomePortal Troubleshoot a Problem…...
  • Page 48 Chapter 5: Using HomePortal Monitor...
  • Page 49 Chapter 6Using network-enabled games and applications For security reasons, the HomePortal normally blocks communication from the Internet to “application servers” on your home network. If you need to “host” an application server in your home, you may designate one computer in your home as the host computer for that application, allowing data specifically associated with that application to pass through to that computer.
  • Page 50: Playing Games With Other Players In Your Home

    Chapter 6: Using network-enabled games and applications to be a host. However, the computer must be powered on to actually function as a host for the designated application. Playing games with other players in your home To play a game with other players in the home: Start the game software.
  • Page 51 DSL allows fast, always-connected, reliable Internet access and does not tie up your telephone line. If you do not already have DSL service, you can use 2Wire’s DSL Lookup Service at www.2Wire.com to help locate a provider.
  • Page 52: Glossary

    The HomePortal also has USB connections to attach peripherals, such as printers and digital cameras. These peripheral ports will be functional in a later release of HomePortal software. Check with 2Wire.com to learn when these ports will become active on your HomePortal.
  • Page 53: Frequently Asked Questions

    Chapter 8Frequently asked questions Following are frequently asked questions for networking in general, the HomePortal, and HomePNA. Frequently asked questions about networking How can I share files and printers between Macintosh computers? The HomePortal file and printer sharing feature is not currently supported on Macs.
  • Page 54 Up to 300 feet for a wireless network, 500 feet for a phoneline network, and 300 feet for an Ethernet network. IMPORTANT: 2Wire recommends using the included light-gray telephone cables to connect computers via phoneline and the included dark-gray Ethernet cable to connect computers via Ethernet.
  • Page 55: Frequently Asked Questions About Homeportal

    Chapter 8: Frequently asked questions Frequently asked questions about HomePortal What security features does the HomePortal provide? The HomePortal provides some of the best security on the market by acting as a barrier between your computer and the Internet. The hacker simply cannot get around the HomePortal to attack your computers or your network.
  • Page 56 How can I add peripherals to the HomePortal? The HomePortal has two USB peripheral ports; however, these are not currently available for use. Check www.2Wire.com to find out if your USB peripherals can be used. Does the HomePortal work with Linux, FreeBSD, and other operating...
  • Page 57 To uninstall HomePortal (Macintosh): Insert the HomePortal Setup CD. Double-click the 2Wire icon on the desktop. Double-click the HomePortal Install icon. Click Continue From the pull-down menu select...
  • Page 58: Frequently Asked Questions About Homepna

    Then turn on your dimmer switch and ham radio, and check the result on the HomePortal network connection. 2Wire recommends using only HomePNA devices that support the HomePNA 2.0 standard.
  • Page 59: Troubleshooting

    If you’re having a problem with your HomePortal network, please check this chapter first to see if the problem is included here. Then check 2Wire’s online Troubleshooting system before contacting the 2Wire Customer Care Center. If the problem you’re having is not covered here or online or if the suggestions provided...
  • Page 60 The power cord is keyed and can only go in one way. You should feel a click when you plug it in. Note: If the indicator light is red, there is a system error, and you Power should contact 2Wire Customer Care.
  • Page 61 Chapter 9: Troubleshooting HomePortal Broadband link light If the indicator light is red the HomePortal has not established a Broadband Link connection to your DSL service provider: Verify that DSL service is activated. Verify that a regular telephone cord is plugged into the port on the Line HomePortal and into the telephone outlet in the wall.
  • Page 62 Chapter 9: Troubleshooting HomePortal • Wireless: Verify that your wireless card is properly installed. One of my computers doesn’t have a CD-ROM drive. To install the HomePortal software on a computer that does not have a CD-ROM drive, you will need to create installation diskettes from the HomePortal Setup Wizard CD.
  • Page 63 Chapter 9: Troubleshooting HomePortal I’m having trouble installing the HomePortal software on Windows NT or Windows 2000. Verify that you have administrator user privileges. You must have administrative user privileges to install the HomePortal software on Windows NT. I can’t connect my computer to the HomePortal. Make sure the computer has an adapter installed.
  • Page 64 Chapter 9: Troubleshooting HomePortal − If more than one adapter in listed, you may need to disable the adapters that are not being used for your HomePortal network. To do this, click the tab. From the pull-down menu, select Bindings Show Bindings for .
  • Page 65 Chapter 9: Troubleshooting HomePortal − Make sure the outlet has power. − Make sure the AC adapter is plugged in. − Unplug the adapter and plug it in again. − If you have another adapter power cable, try it with the adapter that is causing problems.
  • Page 66: Troubleshooting Internet Connection

    Chapter 9: Troubleshooting HomePortal Troubleshooting Internet connection I got connected once successfully but am now having problems. From HomePortal Monitor, select Refresh Home Network Connection I can’t connect to the Internet. Following are some tips to help you diagnose and remedy common Internet connection problems: Make sure the HomePortal is on and that the indicator lights are green.
  • Page 67 Chapter 9: Troubleshooting HomePortal I have more than one type of network interface card in my computer, and I’m having network connection problems with this computer. If you have multiple network adapters in a single computer, connect only one network adapter at a time to the HomePortal network. You probably don’t need to remove the unused adapters, unless you have an unused wireless card or adapter that may be attempting to connect to a wireless base station attached to the HomePortal.
  • Page 68 Chapter 9: Troubleshooting HomePortal 9-10...
  • Page 69: Web Support

    Chapter 10Contacting 2Wire Customer Care Web support www.2Wire.com/support Email support Support@2Wire.com Toll-free 24 x 7 telephone and fax support (877) 347-8680 (877) 347-8684 (fax) Feedback Your feedback is important to us and is key to product improvement. Please email your product ideas and suggestions to Support@2Wire.com...
  • Page 70: Contacting 2Wire Customer Care

    Chapter 10: Contacting 2Wire Customer Care 10-2...
  • Page 71 Index Numerics WinGate, 1-3 2Wire Customer Care Center, 9-1 connection 3Com HomeClick, 1-3 attachable quantity of computers, 8-2 computer, 9-8 computer distance apart from one another AC power adapter, 2-3, 2-5, 2-11, 2-13, 2-15 computer, 8-2 adding computers, 4-1 computer to HomePortal, 9-5...
  • Page 72 Index service, 9-3 card, 2-11 service provider, 2-3, 2-6, 2-11, 2-13, 2-15 connection, 4-2 service wall jack, 2-1, 2-3, 2-4, 2-6, 2-11, network, 8-6 2-13, 2-15, 9-3 HomePortal, 1-1 connection problems, 9-8 DSL port, 9-3 Ethernet, 7-1, 9-3 features, 1-1 adapter, 1-3, 4-5 internal DSL modem, 2-3, 2-6, 2-11, 2-13, cable, 2-4, 2-14, 2-15, 8-1...
  • Page 73 Index Internet connection problems, 9-8 online Help, 9-1 sharing software package, 8-5 PC port, 2-5, 2-10, 4-3, 4-6, 9-3 address, 8-3 peripherals, 8-4 phone-line filter, 8-2 Key Code, 1-2 playing games, 6-2 power light, 2-3, 2-4, 2-5, 2-10, 2-11, 2-12, 2-13, laptop, 9-8 2-15 launching HomePortal default page, 5-1...
  • Page 74 Index Macintosh, 8-1 port, 1-3, 2-1, 2-5, 4-2, 4-6 Windows, 8-1 sharing devices, 1-1 viewing home network information, 5-2 ShieldsUP!, 8-3 virtual private network, 8-3 simplicity, 1-1 VPN, 8-3 software installation, 3-1 speed, 1-1 Sygate, 1-3 browser, 1-3 Windows, 7-1 TCP/IP, 7-2 2000, 2-1, 2-5, 4-1, 4-6 telephone jack, 2-1, 2-3, 2-5, 2-11, 2-13, 2-15...
  • Page 75: Regulatory Information

    Regulatory Information Declaration of Conformity Trade Name: 2Wire Responsible Party: 2Wire, Inc. Address: 1704 Automation Pkwy. San Jose, CA 95131 Telephone Number.: 408-428-9500 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 76 This warranty does not cover replacement of products damaged by abuse, accidental misuse, neglect, alteration, repair, disaster, improper installation or improper usage. If the product is found to be otherwise defective, 2Wire, at its option, will replace or repair the product at no charge, except as set forth below, provided that you deliver the product along with a return material authorization (RMA) number either to the company from whom you purchased it or to 2Wire (North America only).
  • Page 77: License Agreement

    2Wire will not be responsible for any settlement it does not approve in writing. The foregoing obligations do not apply with respect to a Product or portions or components thereof (i) not supplied by 2Wire; (ii) made in whole or in part in accordance to Licensee specifications;...
  • Page 78 (i) at the expiration of the warranty period; (ii) if the Product has been modified or altered in any way; (iii) if the defect is the result of an event after delivery to the Licensee; (iv) if Licensee is in breach of any agreement with 2Wire; (v) has not been installed, operated, repaired or maintained in accordance with any installation, handling, maintenance, or operating instructions supplied by 2Wire;...
