- Page 1 Quick Reference Guide...
- Page 2 D-Fi™ Hub QRG The D-Fi™ Hub Quick Reference Guide (QRG) has basic product About this Guide information such as mounting and programming options. For more information, download the User Manual from the Chauvet website: http://www.chauvetlighting.com/product-manuals-literature/. The information and specifications contained in this QRG are subject to change Disclaimer without notice.

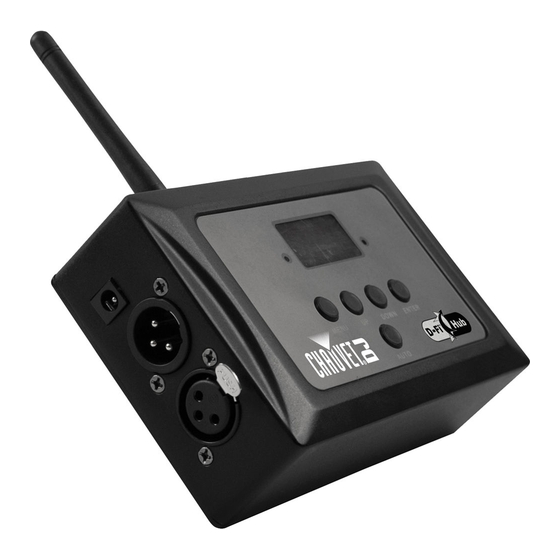

- Page 3 Contact Us section of this manual. The D-Fi™ Hub is a transmitter and receiver that either receives D-Fi™ signals Description and transmits via a DMX cable, or receives data via a DMX cable and transmits D-Fi™ signals. It wirelessly synchronizes an unlimited number of D-Fi™-ready fixtures and receivers simultaneously.
- Page 4 D-Fi™ Hub QRG D-Fi™ Hub has an external auto-ranging power supply that works with an input AC Power voltage range of 100 to 240 VAC, 50/60 Hz. It runs on 9 VDC, 500 mA. To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.
- Page 5 <DOWN> decreases numeric values Enables the currently displayed menu or sets the currently <ENTER> selected value. <AUTO SYNC> Detects the D-Fi™ signal for synchronization of products Menu Options Main Function Programming Options Description Allows selection of a specific D-Fi™ Receive Manual CH01–16...
- Page 6 D-Fi™-compatible lights. · It can be connected to any DMX lights and receive from a D-Fi™-compatible controller. To connect the D-Fi™ Hub to a DMX controller and configure it to transmit to Programming and D-Fi™-compatible lights, do the following: Signal Selection 1.
