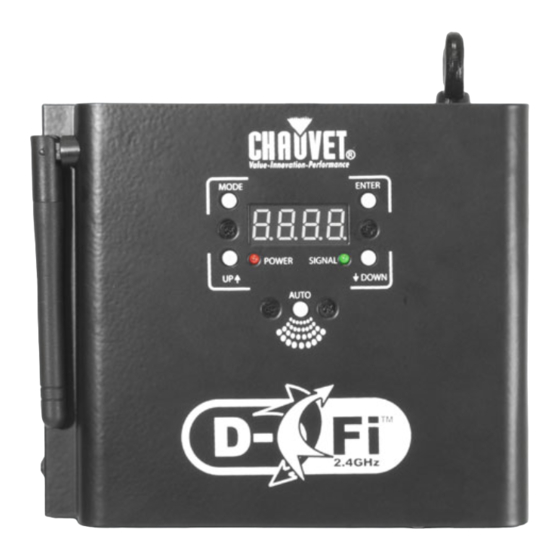

Summary of Contents for Chauvet D-Fi

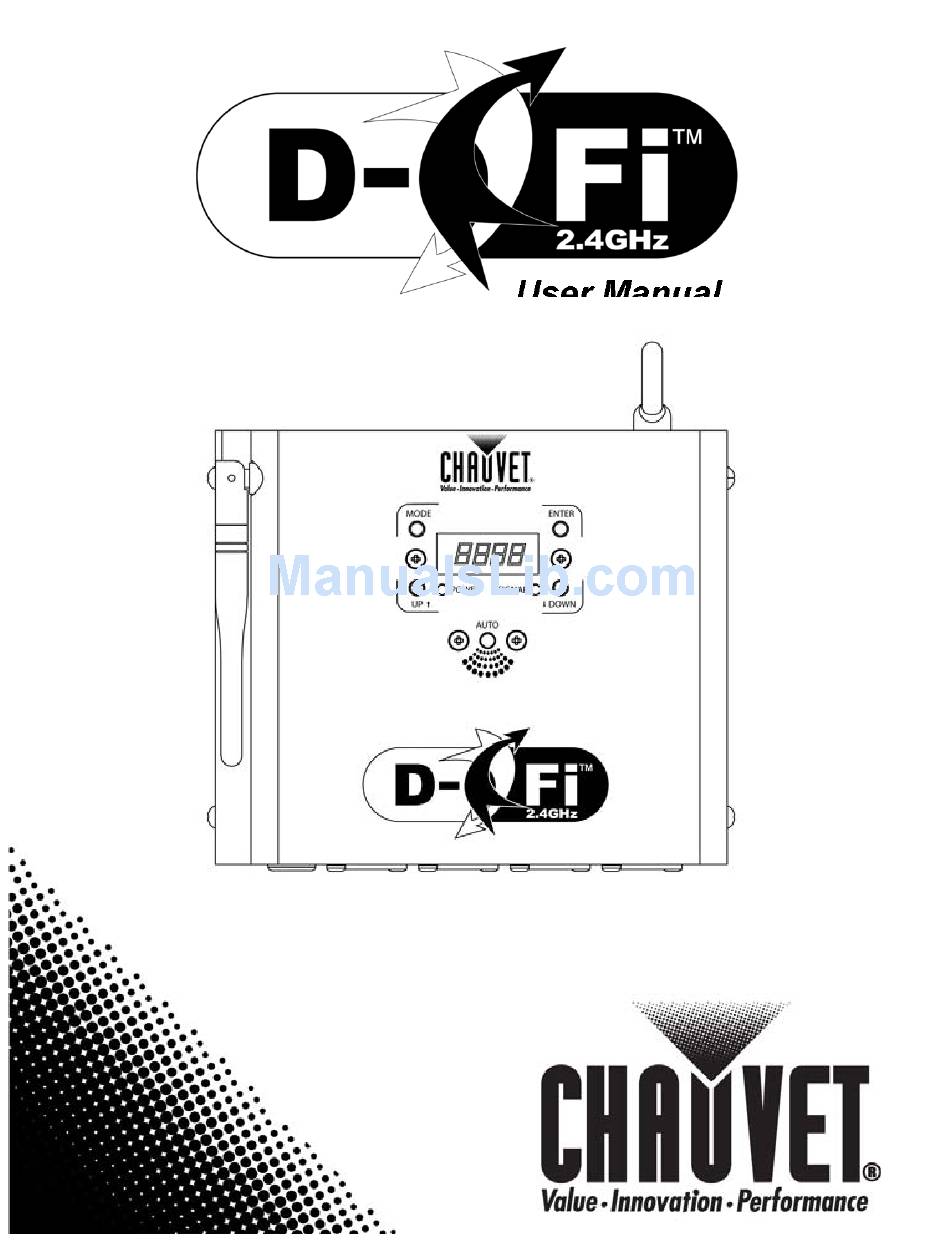

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    DMX Primer ..................... 12   Starting Address ....................... 12   Product Linking (Daisy Chain) .................. 12   DMX Cabling ......................13   DMX Connectors ...................... 13 6. Technical Specifications ..............14  Page 2 of 14 D-Fi™ 2.4GHz User Manual (Rev. 04)

  • Page 3: Before You Begin

    For other issues such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within seven (7) days of receiving the merchandise. Convention...

  • Page 4: Product At A Glance

    Please contact the nearest authorized technical assistance center.  Keep this User Manual for future consultation. If you sell this product to another user, be sure that they also receive this document. Page 4 of 14 D-Fi™ 2.4GHz User Manual (Rev. 04)

  • Page 5: Introduction

    2. I NTRODUCTION Product Overview Mounting Hole Safety Hook Antenna Top View  Bottom View Power In 3 pin DMX In 3 pin DMX Out 5 pin DMX In 5 pin DMX Out D-Fi™ 2.4GHz User Manual (Rev. 04) Page 5 of 14...

  • Page 6: Product Dimensions

    Product Dimensions Page 6 of 14 D-Fi™ 2.4GHz User Manual (Rev. 04)

  • Page 7: Setup

    Before mounting this product, read and follow the safety recommendations indicated in the Safety Notes section (page 2 of this manual). Orientation The D-Fi™ 2.4GHz may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging Before deciding on a location for this product, always make sure that it will be easy to access the unit for maintenance and programming purposes.

  • Page 8: Operation

    1. Connect this product to a suitable power outlet. 2. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket of this product. Page 8 of 14 D-Fi™ 2.4GHz User Manual (Rev. 04)

  • Page 9: Manual Operation

    You can sync an unlimited amount of Receivers to one Transmitter. To ensure strong signals, the units should be elevated 5 feet or higher off the ground and remain in an unobstructed line of sight of each other. D-Fi™ 2.4GHz User Manual (Rev. 04) Page 9 of 14...

  • Page 10: Technical Information

    #32   Terminator not connected Install a terminator, as indicated in the DMX Primer section. If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. Page 10 of 14 D-Fi™ 2.4GHz User Manual (Rev. 04)

  • Page 11: Contact Procedure

    If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below).  If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland.

  • Page 12: Dmx Primer

    The maximum recommended number of products on the same daisy chain is 32. Connecting more than 32 products on one daisy chain without the use of a DMX optically-isolated splitter may result in deterioration of the digital DMX signal. Page 12 of 14 D-Fi™ 2.4GHz User Manual (Rev. 04)

  • Page 13: Dmx Cabling

    You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or make your own DMX cable. If you choose to make your own DMX cable, you must use a data-grade cable such as...

  • Page 14: Technical Specifications

    Maximum External Temp. Cooling System 104° F (40° C) Convection I/O Connectors Connector Type 3- and 5-pin XLR Sockets Ordering Product Name Item Code Item Number D-Fi™ 2.4GHz 02080308 DFI2.4GHZ Page 14 of 14 D-Fi™ 2.4GHz User Manual (Rev. 04)
