Mic Mount Angle

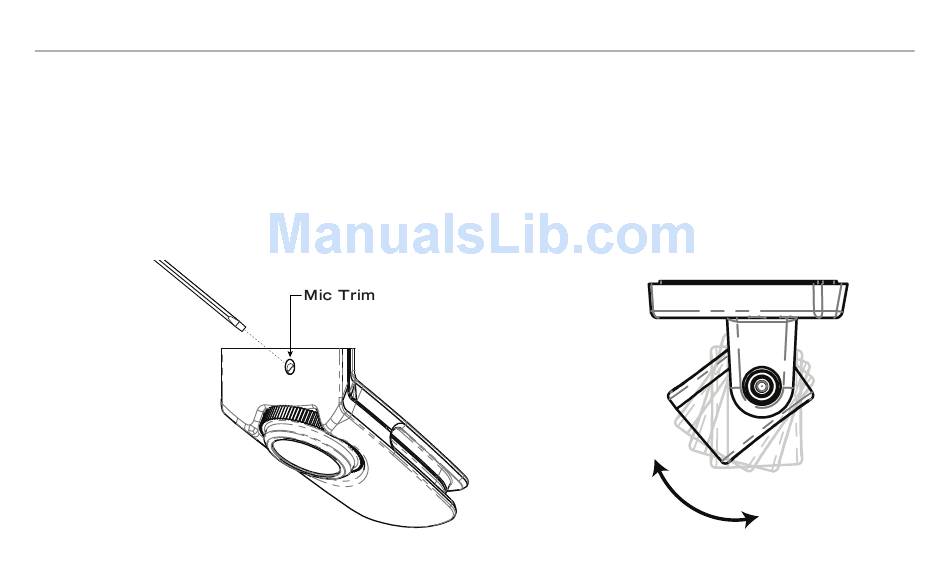

The angle of the microphone is adjustable and useful for fine tuning the amount
of soundhole resonance in the mic (see Fig.2). Start with the mic in the 3rd detent
away from the guitar top (approximately 35 degrees down). Adjust the mic
angle further away from the soundhole to reduce boominess in the bass. To
increase the low bass, move the mic angle closer to the soundhole.
Fig. 1 Fig. 2
5
