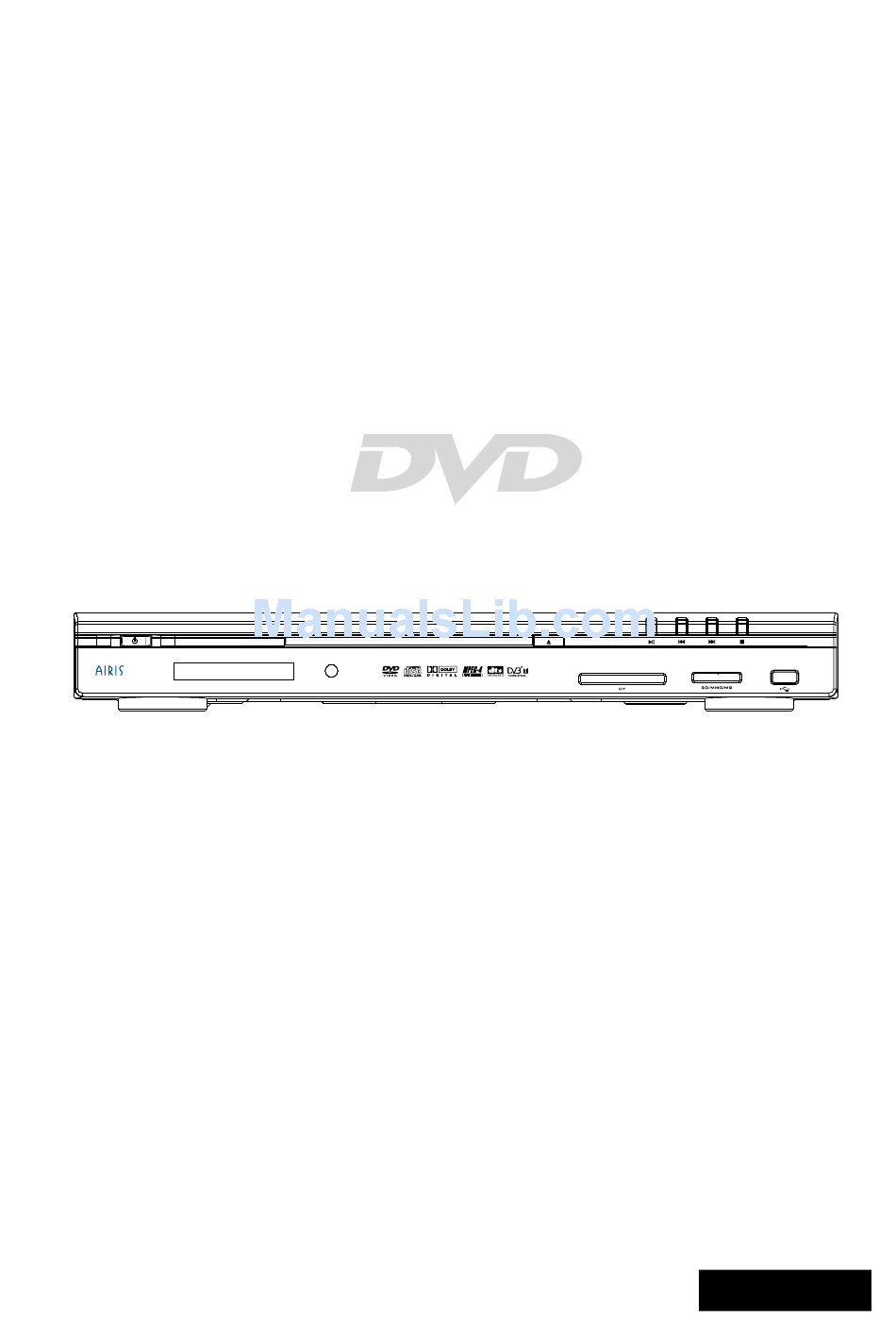

  • Page 1 LW 108T INSTRUCTION MANUAL ENGLISH...
  • Page 2 CONTENTS FEATURES...........A1-A2 OPERATION INTERFACE......B1-B6 BASIC PLAYBACK........C1-C5 REMOTE KEY FUNCTION EXPLAIN....D1-D7 SYSTEM SETUP...........E1-E6 TROUBLE SHOOTING........F1 SPECIFICATIONS.........G1 ADDITIONAL INFORMATION......H1 DVB-T REMOTE CONTROL........I1 BASIC OPERATION........J1 SYSTEM SETUP...........K1-K6 REMOTE KEY FUNCTION EXPLAIN...L1-L3 TROUBLESHOOTIN........M1...
  • Page 3 FEATURES WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus. CLASS 1 CAUTION RISK OF ELECTRIC SHOCK...

  • Page 4: Important Safety Instructions

    FEATURES Important Safety Instructions: Read these instructions. Keep these instructions. Heed all warning. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 5 OPERATION INTERFACE FRONT PANEL: 1. Power on/off 5. Open/close 9. Stop 2. LED display unit 6. Play/Pause 10. CF CARD 3. Receiver window 7. Skip backward 11. SD/MMC/MS CARD 4. Disc tray 8. Skip forward 12. USB REAR PANEL: 10 11 17 18 13 14 15 5 6 7 8...
  • Page 6 Operation Interface Illustration of system connection is only for reference. NOTICE:Before connecting the cables, please turn off the unit power SCART Connecting Wire S-Video Connecting Wire Component Video Connecting Wire Green Blue Optical connection cable Coaxial connection cable Stereo amplifier Antenna Green Blue If connected to Digital Decode...
  • Page 7 5.1 channel surrounding Digital decoder amplifier You can choose one of the following for the video output connection: *Composite Video output: Connect Composite Video output (yellow) to Composite Video input on the TV/monitor with a AV connecting wire (yellow jack). *S-Video output: Connect S-Video output on the unit to S-Video output on the TV/monitor with a S-Video connecting wire.
  • Page 8 OPERATION INTERFACE USB flash Card Reader USB means Universal Serial Bus.. On The Go, the supplementary agreement of USB, is to actualize USB on the non-personal computer. Our DVD PLAYER actualize the USB jack under this agreement, the speed is 1.5Mbps. Our DVD PLAYER can support majority of the USB FLASH and card reader in the market through the USB jack, it can playback all kinds of multi-media files, such as MP3, JPEG, MPEG1, MPEG2, Divx.
  • Page 9 OPERATION INTERFACE Compact Flash 64 MB 64 MB 1D 64MB 8 MB Smart Media Card Secure Digital Multi Memory Card It can support 5 types memory cards: CF, SD, MS, SM, MMC. Input1 support CF, input 2 support SD, MS, SM, MMC input 2 can only insert one type card at one time.
  • Page 10 OPERATION INTERFACE REMOTE CONTROL: 1. STANDBY: power on or off. 2. PROG/EPG: arrange program. 3. Choose number key. 4. SUBTITLE: select subtitle of disc supply or cancel subtitle. 5. SETUP: menu setup. 6. DIRECTION KEY: remove cursor direction. 7. ZOOM: zoom in or out the current picture. 8.

  • Page 11: Basic Playback

    BASIC PLAYBACK Playback Divx Disc DIVX/OGM file: A new audio compression format (MPEG-4). It can transform very low bit rate to high quality picture. In other words, the content of a DVD disc (4.78GB) can be compressed into a normal sized CD-R disc (700MB), and the picture quality are the same, saving must space of the disc.
  • Page 12 BASIC PLAYBACK Play CD disc 1. Place the CD disc in. 2.Show the contents of the disc play auto matically. 3.Choose the number key to play directly. For example : when you want the No.8 track, you can just press the number key "8".
  • Page 13 BASIC PLAYBACK PLAY MP3/OGG/JPEG DISC When load a MP3 disc, the unit read it and show on TV screen as follow: play time surplus time After the unit reads the contents of the MP3/OGG/JPEG disc, the TV screen will 00:00 00:00 the total of file show as follows (picture 1):...
  • Page 14 BASIC PLAYBACK 03:18 06:26 2) Program Play 008 / 138 VOL 25 You can use direction key to move yellow curse to your desired tracks, press MARK key to select them. (picture 4). After selection press PROM key to enter playing list (picture 5), then press direction key or number key to...
  • Page 15 BASIC PLAYBACK Play JPEG disc: After the unit reading the content of e-album disc, the TV screen display shows as follows: Working state 00*00 00*00 Playing track 058/158 Tracks of disc JPEG - - - - - - - JPEG - - - - - - - JPEG - - - - - - -...
  • Page 16 REMOTE KEY FUNCTION EXPLAIN [STANDBY] Press this key in working status to turn the unit into standby status, or to wakeup the unit from standby status. [OPEN/CLOSE] Press OPEN/CLOSE to open the tray, and then place the disc on it ,press this button again to close the tray. When finishing loading the disc , the TV screen will display the disc type and the disc will be automatically played .(MP3 and JPEG disc can not be automatically played) [RETURN]...
  • Page 17 REMOTE KEY FUNCTION EXPLAIN [PREV/NEXT] When play SVCD, VCD, CD, MP3, Press skipbackward to play last chapter. To play DVD, press skipbackward to last chapter or title.press skipforward to next chapter or title. [F.REV/F.FWD] When play DVD, SVCD, VCD, CD, MP3, press this key to play forward or backward speedily. The class as bellows: [AUDIO] If the S-VCD,VCD,CD disc has multi channel, you can press this button to select the...
  • Page 18 REMOTE KEY FUNCTION EXPLAIN [PROG/EPG] If the disc has over two chapter or title, you can press this button to setup the playing order which you want. PROG TT- -/CH- - [TT- -(TITLE)CH- -(CHAPTER)] 01 TT:__ CH:__ 06 TT:__ CH:__ 02 TT:__ CH:__ 07 TT:__ CH:__ 03 TT:__ CH:__ 08 TT:__ CH:__ 04 TT:__ CH:__ 09 TT:__ CH:__...
  • Page 19 REMOTE KEY FUNCTION EXPLAIN [V-REMOTE] (V-remote menu) On playing the VCD, SVCD and DVD, press the 1 [V-REMOTE] key to show v-remote menu at the left side of the screen from the bottom. Press the direction key to switch the cursor to the desired mark, and then press the select key to confirm.
  • Page 20 REMOTE KEY FUNCTION EXPLAIN [DIGEST] On playing DVD disc, press this key and the screen will appear browse menu (picture1) Press the direction key to switch the cursor to the desired digest type, and then press the select key. The select digest types are as follows: “Title digest”: choose this item to show every title of the DVD Select Digest Type: disc on the TV screen in order, and press number key to choose the...
  • Page 21 REMOTE KEY FUNCTION EXPLAIN [SEARCH] MENU MENU 01/20 Title 01/16 Track 01/01 Chapter 1*16*28 Disc Time AC-3 5.1CH Audio 0*03*58 Track Time CHINESE Subtitle Repeat Angle Total Elapsed Time Display 0*06*58 Title Time 0*06*58 Chapter Time SVCD Repeat Elapsed Time Display Bit rate Bit rate Title Elapsed 0*03*28...
  • Page 22 REMOTE KEY FUNCTION EXPLAIN [DISPLAY] Press DISPLAY to display the information referring to the disc on the TV screen. playback DVD disc state play super VCD,VCD2.0 in the state of closeing PBC play super VCD,VCD2.0 in the state of opening PBC [VIDEO] In the OPEN/NO DISC state, press VIDEO key to switch among the modes of YUV, YPbPr, SCART, 720p and 1080i etc.
  • Page 23 SYSTEM SETUP When the unit is working, press the select key to enter setup menu (following picture): General setup Audio setup Video setup Initial setup Password setup Press the direction key " " to move cursor to the desired setup page, and press the select key to confirm.
  • Page 24 SYSTEM SETUP There are five subsidiary setup pages,each function Audio Setup Page: is as follows* Speaker Setup SPDIF Setup 3D Processing Equalizer HDCD Down Mix: Speaker Setup Page In LT/RT or stereo output mode, the center speaker and rear speaker on this page cannot setup, only Downmix LT/RT can if in 5.1 channel output mode.
  • Page 25 SYSTEM SETUP SPDIF output: SPDIF Setup Page: (SPDIF/RAW): when the unit and the amplifier are connected by coaxial and optical cables, please select SPDIF output SPDIF OFF this item; when it playbacks disc of Dolby digital, DTS SPDIF/RAW SPDIF/PCM and MPEG, the coaxial or optical output will output Dynamic the corresponding digital signal, in this case, the FULL...
  • Page 26 SYSTEM SETUP PRO LOGIC II: 3D Processing Page: This setup is available only for two channel. When it is setup and the down mix in speaker setup is 5 PRO LOGIC II channel, 5 channel will output. When it is auto, the system selects mode according to the disc AUTO Mode...
  • Page 27 SYSTEM SETUP Filter: HDCD Setup Page This setup can change output sample rate when playing HDCD disc. Setup for 44.1K, the system Filter can output all signals of the disc sample rate from 0 to 44.1K the signal over 44.1K being cut. Setup for 88.2K, the system can output all signals of the disc sample rate from 0 to 88.2K, the signal over88.2K being cut.
  • Page 28 SYSTEM SETUP TV TYPE: Preference Page: The unit can correspond with erery type of TV all over the world, Select your TV type on this item: TV Type Auto: Select TV type according to the color system Auto Ntsc of the playing disc automatically. NTSC: Taiwan, Japan and USA use this type.

  • Page 29: Trouble Shooting

    TROUBLE SHOOTING SYMPTOM AND SOLUTION: Symptom Reason(s) Solution(s) No power Do not connect power cord to the wall outlet Connect them well Do not set up TV in correct setting Set up TV in correct mode No picture Do not connect video cable securely Connect them well Do not connect audio cable securely Connect them well...

  • Page 30: Specifications

    SPECIFICATIONS DVD PLAYER/OUTPUT: Video OutputVp-p(V) Video Guide 1.0 + 0.2 (75 ) Level Definition(TV-line) Line Audio Output (Vrms) 1.8 + 0.2 (10K ) Audio Guide S/N Ratio(db) 80dB Line Audio Dynamic Range 80dB Audio Fs 48KHz PCM 4Hz-22KHz DVD Audio Frequency Fs 96KHz PCM 4Hz-44KHz...

  • Page 31: Additional Information

    ADDITIONAL INFORMATION Care of disc: Do not touch the signal surface. Do not add labels or adhesive tapes on the discs. Cleaning of discs: Finger prints or stains on the surface of the disc will directly affect signal recording and result in a poorer picture quality. Therefore, please use a soft cloth and wipe in a radiating manner from the centre to the outer rims when cleaning the disc.
  • Page 32 DVB INTRODUCTION...
  • Page 33 REMOTE CONTROL REMOTE CONTROL: 1. STANDBY: switch between POWER ON/STANDBY mode. 2. PROG/EPG: open upElectronic Program Guide menu. 3. Choose number key. 4. SUBTITLE: ON/OFF subtitle. 5. SETUP: menu setup. 6. DIRECTION KEY: remove cursor direction. 7. COLOR KEYS:for adjust teletext. 8.

  • Page 34: Basic Operation

    BASIC OPERATION 1.After opening the package, please follow the guideline to connect the DVB reciever as atena,TV set and adaptor. 2.Turn on the power, enter the setup menu to search for the TV programs first ,for the detailed operation please refer to setup instruction. 3.

  • Page 35: Time Zone

    SYSTEM SETUP Before turn on the unit,let us have a view at the SETUP MENU. AREA Ensure that the area has been set correctly before channel scan. Press the SETUP button and select the DVB-T Setup Page option using the arrow keys.

  • Page 36: Auto Scan

    SYSTEM SETUP PARENTAL AGE Select the Parental Age option using the arrow buttons. Press the ENTER button, the following menu will display. ..DVB-T Setup Page.. Area Time Zone Parental Age Auto Scan Manual Scan Adjust Channel Channel Remap Reserve Channel Press the buttons until the age you want to select is marked yellow.

  • Page 37: Manual Scan

    SYSTEM SETUP MANUAL SCAN After setting the correct area and time zone, scan channels: Select the Manual Scan tab by using the arrow buttons on the remote control. Set Start, the right hand menu will display. Press keys to select frequency you want, or you can select the fregueacy you want by press digital buttons directly,press ENTER key to confirm Scan.
  • Page 38 SYSTEM SETUP ADJUST CHANNEL When channel scan is finished,please adjust the channels by "color keys". Select the DVB-T SETUP PAGE option using the arrow buttons.Press the ENTER button, the following menu will display. Press the buttons to select Adjust Channel option. Press the ENTER button to select Start, the following menu will display.
  • Page 39 SYSTEM SETUP CHANNEL REMAP The Channel Remap option allows you to select how your channels will be Ordered in the channel list. Press the buttons to select Channel Remap option.Press the ENTER button to select Start, you will see the channel remap submenu. key remove cursor to select the channel you want to remap.
  • Page 40 SYSTEM SETUP RESERVE CHANNEL Select the Channel Setup option using the arrow buttons, the following menu will display. Press the ENTER buttons to select Start option, the following menu will display. keys to remove cursor. Press ENTER key you will see the following menu, this menu including the program brief Introduction.

  • Page 41: Power Button

    REMOTE KEY FUNCTION EXPLAIN POWER BUTTON Ensure all connections are correct. To switch on the set top box, press the button on the remote control, or the set top box. To switch the set top box off, press the button again. Then you will see the DVD logo or DVB logo on the TV screen.You can press DVD/DVB button to switch between DVD and DVB.
  • Page 42 REMOTE KEY FUNCTION EXPLAIN DIGEST The Digest menu is used to look at what is currently being broadcast on a TV or Radio channel. To access the Digest Menu, Pressing DIGEST key on the remote control. The following menu will display. To view a different channel, press either the button or button.
  • Page 43 REMOTE KEY FUNCTION EXPLAIN ZOOM Press ZOOM Key when playing program, could zoom in or zoom out pictures. Zoom: 2X-3X-4X-1/2-1/3-1/4. A-B/DVB MODE Use A-B/DVB MODE Key to switch channel mode between TV, Radio and favorite mode. CHANGING THE VOLUME Press the + button will make the volume of the set top box louder. Press the - button will make the volume of the set top box quieter.

  • Page 44: Troubleshootin

    TROUBLESHOOTING In some r egion, the digital terrestrial signal may be weak. So you'd better use the antenna in which the booster was built,for watching theweak sinal channels. Problem Possible cause What to do Standby light not lit Mains lead unplugged Check mains lead Check fuse Mains fuse blown...
