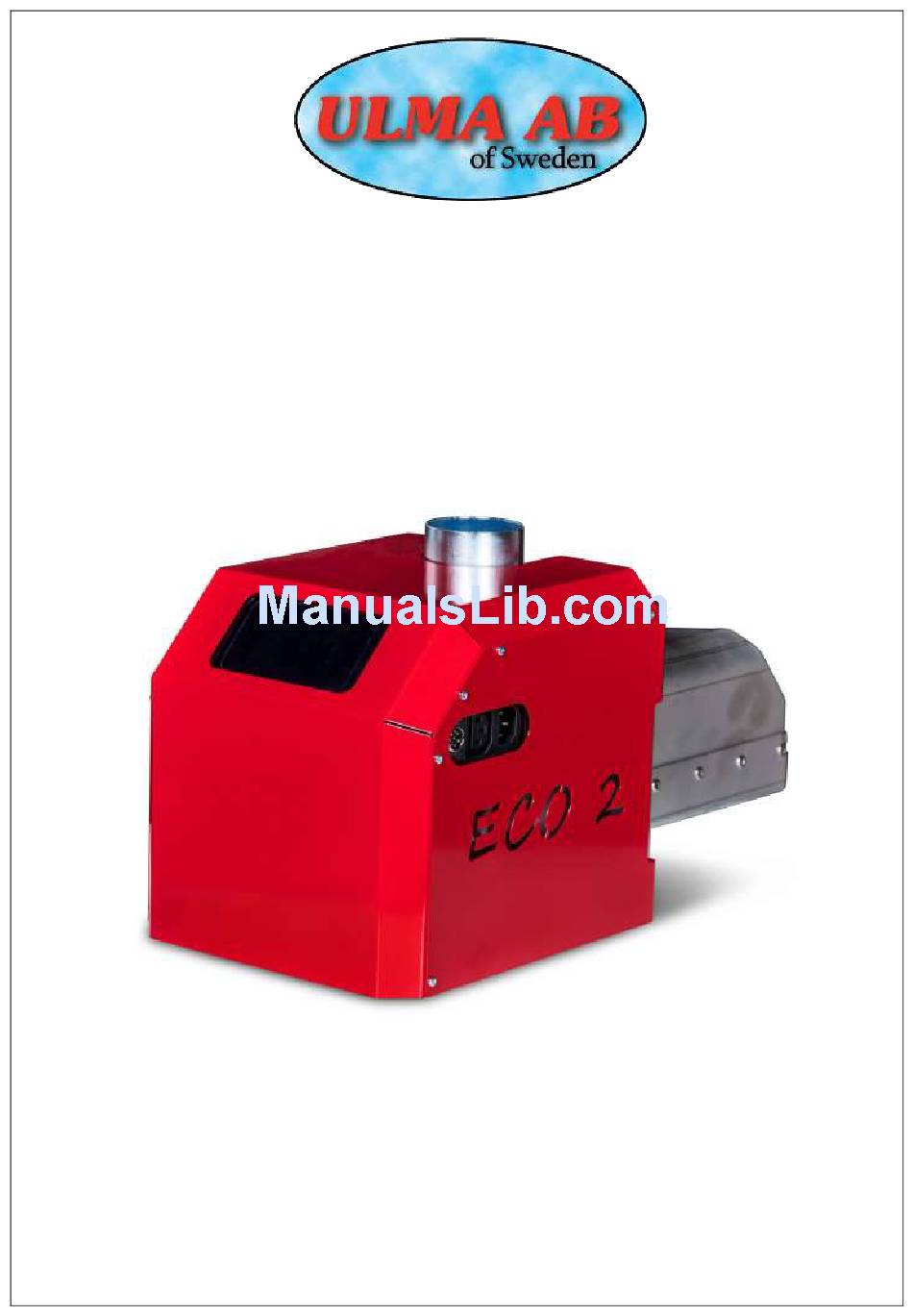

- Page 1 INSTALLATION AND MAINTENANCE OF Ulma ECO 2 Premium 30 kW...
- Page 2 Installation certificate (To be sent to ULMA AB) ULMA AB Energigatan 11 SE - 512 53 Svenljunga, SWEDEN Phone + 46 (0)325-17680 E-mail: info@ulma.se www.ulma.se ULMA AB reserves the right to changes in details and specifications without a preceding message.
-
Page 3: Information
Description Ulma ECO 2 is intended to be mounted on a boiler and shall be fueled with 6-8mm wood pellets. The enclosed conveyor feeds the fuel from a separate storage. The integrated steering controls the burner via the temperature giver that starts and stops the burner automatically. The burner has a switch for on-and-off switch that sits on the right side of the burner. -
Page 4: Installation
Installation Ulma ECO 2 shall be mounted in one of the doors of the boiler. It is often suitable to mount it in the oil burner door, but if the space for ash is small the door for wood burning could be a good alternative. If the door is so small it can not be opened without removing the pellet burner, it can easily be removed and re-mounted with the enclosed mounting flange. - Page 5 Feed auger The angle from the horizontal level shall be between 42 and 45 degrees. The feed auger has to be fastened well since it wants to work its way into the storage. The auger is hanged up in the front edge with the enclosed chain and fastened well in the ceiling.
- Page 6 12. Push the plastic pipe together 13. The outlet hole on the plastic 14. Fasten the plastic with the T-pipe in the opposite end pipe should be 180 degrees pipe with enclosed screw. you drilled the inlet hole in the towards the outlet on the T-pipe.
- Page 7 The suitability of the boiler The Ulma ECO 2 can be installed in almost all existing boiler on the market. It is important that he hearth is so big that he flame does not touch water cooled walls. There should also be room the ash. The smoke flues of the boiler may not be so narrow that they clog of the ash.
-
Page 8: Electrical Installation
Electrical installation All electrical connections on the burner and auger have high speed contact device see below 1. To temperature giver 2. To feed auger 3. Power lead in ( 230 v ) Even the auger engine has a contact device (corresponding to nr 4 in the picture above this text). The protection cover of the burner can not be removed without pulling out all cables from the devices. - Page 9 2. Press the right arrow on the display to the next menu in which you confirm the change with OK button. See below Figure 3. This procedure should you do if you change your pellets quality.. Power mode 1 may just be between 6-8 kW. Power level 5 may only be between 25-30 kW.
- Page 10 Decrease Touch OR hold Enter timers menu Touch Enter statistics menu Touch Enter settings menu Touch Enter tips menu Touch Turn ON the heating device Hold Turn OFF the heating device Hold Screen lock set to HIGH Touch Screen lock set to LOW Touch Close the menu Touch...
- Page 11 Idle mode Fumis Premium automatically switches to idle mode after 30 seconds of inactivity and exits from it when touched again. Depending on the settings for the idle mode, the screen in idle mode displays: the clock only the WATER temperature only Switching between the clock and WATER temperature.
- Page 12 Setting the water temperature Touch the screen (if currently in idle mode) to exit from the idle mode. If the display currently is not in idle mode, skip this step. Tap on to enter the temperature menu The screen is now displaying the currently set water temperature (WATER temperature): Change the target temperature by tapping on and/or icons.
- Page 13 Option B: Touch the screen (if currently in idle mode) to exit from the idle mode. If the display currently is not in idle mode, skip this step. Tap on to enter the temperature menu Tap on to enter the main menu Hold to turn on the heating device The following screens will appear as follows:...
- Page 14 Note: The heating power in kilowatts [kW] depends of the heating device and not of the Fumis Premium user interface. Changing/selecting the ambient fan speed Fumis Premium allows you to switch between 5 different ambient fan speeds. If the ‘’AUTO’’ option is selected (the operating power must also be set to ‘’AUTO’’), the ambient fan speed follows the automatic power modulation of the heating device.
- Page 15 Setting the fuel quality If enabled in your combustion system, Fumis Premium allows you to select up to 3 different qualities for pellets If you change pellet quality and the ash is getting darker, you can change “Fuel” level to level 1. Standard setting is level 2..
- Page 16 Setting the automatic brightness adaptation Touch the screen (if currently in idle mode) to exit from the idle mode. If the display currently is not in idle mode, skip this step. Tap on to enter the temperature menu Tap on to enter the main menu Tap on to enter the settings menu...
- Page 17 Tap on to enter the temperature menu Tap on to enter the main menu Tap on to enter the settings menu Navigate to the ''Display brightness'' by tapping on and/or Tap on ''Display brightness'' to enter into the Display brightness menu Set the desired active display brightness by tapping on and/or icons, next to the ''Idle...
- Page 18 Idle display mode settings Fumis Premium automatically switches to idle mode after 30 seconds of inactivity and exits from it when touched again. Depending on the settings for the idle mode, the screen in idle mode displays: the clock only the WATER temperature only Switching between the clock and WATER temperature.
- Page 19 To select the desired temperature unit, follow the steps below: Touch the screen (if currently in idle mode) to exit from the idle mode. If the display currently is not in idle mode, skip this step. Tap on to enter the temperature menu Tap on to enter the main menu Tap on...
- Page 20 Tap on to enter the temperature menu Tap on to enter the main menu Tap on to enter the settings menu Navigate to the ''Manual feed'' by tapping on and/or Tap on ''Manual feed'' to enter into the Manual feed menu Activate the manual feeding by holding the icon.
- Page 21 Using the screen lock function Fumis Premium allows you to lock the screen in order to prevent accidental changes of the settings. With the screen lock enabled, you can navigate the menu to display current values, but you cannot edit any of the settings, except the screen lock itself.
- Page 22 Tap on to enter the settings menu Navigate to the ''Display cleaning'' by tapping on and/or Tap on ''Display cleaning'' to enter into the Display cleaning menu Tap on ''START'' icon to start the 30 seconds countdown Note If the heating device turns on automatically (by timer, room thermostat, etc.), the cleaning function gets interrupted in the moment when the heating device turns ON.
-
Page 23: Troubleshooting
Tap on to enter the settings menu Navigate to the ''Info'' by tapping on and/or Tap on ''Info'' to see the currently installed firmware. Using the tips For easier usage of the Fumis Premium you can make use of the tips Touch the screen (if currently in idle mode) to exit from the idle mode. - Page 24 E004 communication MB communication error error Error, caused by: 1. Ignition failed, 2. water over E101 Fire error temperature, 3. backfire protection Overheated. Clean the boiler and chimney. Reset the Security switch E108 alarm and restart the device. If the error persists, call error service.
- Page 25 Resetting the errors In case of an error, the screen displays a red message with the errors description (see an example below). To close the error screen, tap on . Closing the error screen does not reset the error. After closing the error screen with , the error code is still present in the upper left corner of the main screen as well as on all idle mode screens (see an example below).
-
Page 26: Maintenance Of The Burner
Maintenance of the burner How many times as necessary to clean manually due to the quality of pellets and how much energy the house consumes. Because a dirty boiler gives higher flue gas temperatures and thus lower efficiency. At least twice a year, the burner is taken apart and the outer burner tube is separated from the inside, ashes are being collected and sinter to be removed. - Page 27 Change of ignition element 1. Loosen all 3 cables to the burner. 2. Demount the burner cover and then carefully pull the cover backwards. 3. Loosen the quick-action hooks that hold the outer pipe towards the back cover. Carefully separate the burner.
-
Page 28: Wiring Diagram
Wiring diagram... -
Page 29: Drawing
Drawing... -
Page 30: Data – And Service Information
The installation certificates at the end of this manual shall be filled out with correct information. One to the customer that should be kept in this binder. The other one we would like you to send per mail to ULMA AB. We also prefer that you enclose a print from the flue gas analysis with date and time of the installation. -
Page 31: Test Record
Test record Date: __________________________________ Model: _________________________________ Serial number: ___________________________ Checkpoints 1. Connection and tension setting 2. Programming 3. Functional inspection photo-conductive cell 4. Functional inspection temperature sender 5. Start up of burner: control of ignition unit + screw engine exit 6. - Page 32 Flue gas temp Effect burner (kW) mode High Give fuel deliverer at the service occasion. Bulk, small bags, other etc. If this instruction is not being followed at installation, operation and maintenance ULMA AB is according to existing warranty conditions not bounded.
- Page 33 Flue gas temp Effect burner (kW) mode High Give fuel deliverer at the service occasion. Bulk, small bags, other etc. If this instruction is not being followed at installation, operation and maintenance ULMA AB is according to existing warranty conditions not bounded...
