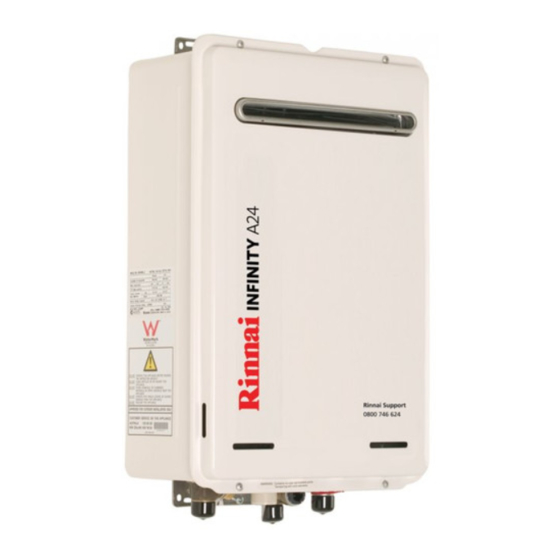

Rinnai REU-A2626WG-ZK Installation Manual

Rinnai REU-A2626WG-ZK Installation Manual

Infinity a-series continuous flow water heaters

Advertisement

Installation guide
Rinnai INFINITY A-Series
continuous flow water heaters
REU-A2626WG-ZK
The Rinnai INFINITY A-Series models are not suitable for commercial or solar applications
REU-A2426WG-ZK
REU-A2024WG-ZK
REU-A1620WG-ZK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REU-A2626WG-ZK and is the answer not in the manual?

Questions and answers

Summary of Contents for Rinnai REU-A2626WG-ZK

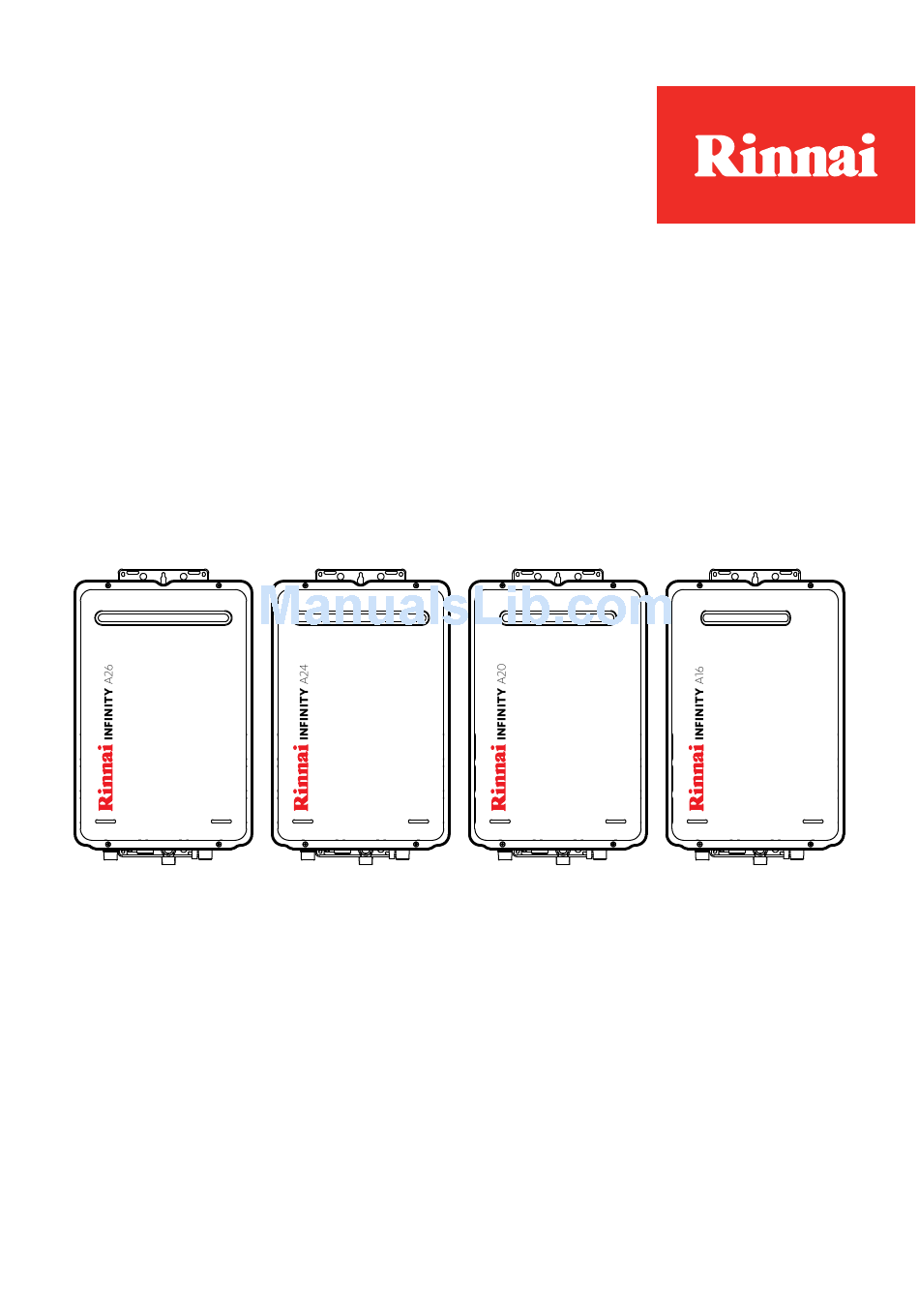

  • Page 1 Installation guide Rinnai INFINITY A-Series continuous flow water heaters REU-A2626WG-ZK REU-A2426WG-ZK REU-A2024WG-ZK REU-A1620WG-ZK The Rinnai INFINITY A-Series models are not suitable for commercial or solar applications...
  • Page 2 Warning Improper installation, adjustment, alteration, service and maintenance can cause property damage, personal injury or loss of life. For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland...
  • Page 3 Before installation ........4 Appliance location ........4 General installation information ....5 Water delivery temperature ......6 Connections and fittings ......7 Dimensions (mm) ........8 Commissioning ...........10 PCB interface and dip switch settings ..12 Flue diverter dip switch changes ....14 Appendix 1 Water controller communication cables ..15...
  • Page 4: Before Installation

    Failure to follow these instructions could cause a malfunction of the appliance. This could result in serious injury and property damage. • Applicable models: These instructions apply only to the Rinnai A-Series continuous flow water heater models listed on the cover page of this guide.
  • Page 5: General Installation Information

    Contact Rinnai for gravity fed or low pressure installations. Water chemistry and impurity limits are detailed in the operation guide within the warranty section.
  • Page 6: Water Delivery Temperature

    (TLD = Temperature Limiting Device) When the Rinnai INFINITY is set to deliver water at a temperature higher than 55 °C, it will be necessary to fit a Temperature Limiting Device for delivery to areas used for the purposes of personal hygiene.
  • Page 7: Connections And Fittings

    R¾ (20 mm) (20 mm) (20 mm) REU-A2626WG-ZK Service connection points An approved full flow isolation valve and disconnection union MUST BE fitted to the cold water inlet. A non-return valve is not required unless required by local regulations. Isolation valves MUST NOT be fitted directly to the appliance.
  • Page 8: Dimensions (Mm)

    Dimensions (mm) The basic dimensions, (height, width, and depth) are the same. The difference between the models are the dimensions and position of the flue outlet. A26 & A24 175.5 164.5 17.7 8 | A-Series CFWH installation guide 01-18...
  • Page 9 5.5 x 24 “ 5.5 x 24 “ long hole long hole Ø 13 hole 29.5 A-Series CFWH installation guide 01-18 | 9...
  • Page 10: Commissioning

    Inlet supply pressure to the appliance MUST BE checked and set within the operating parameters of the appliance in all instances. If the appliance can not be adjusted to perform correctly call 0800 RINNAI (0800 746 624) for assistance. Steps to commissioning a Rinnai INFINITY A-Series model...
  • Page 11 PCB settings checked if the factory default temperature has been changed. Dip switch settings checked if a flue diverter is fitted. Short video: http://rinnai.co.nz/007 Operate and test for gas leaks Replace the appliance front cover otherwise the unit won’t operate correctly, and operate and test for gas leaks using an electronic leak detector.
  • Page 12: Pcb Interface And Dip Switch Settings

    Rinnai will accept no liability for issues arising out of the use of this information. If you have any doubts about the performance of the water heater, please contact Rinnai by phoning 0800 RINNAI (0800 746 624).
  • Page 13 Communication interface socket Data transfer button for PCB replacement - push button 1 (PB1) Data transfer LED, illuminates to show data transfer in progress MODE button, places the PCB into programming mode (PB2) MENU button, cycles through available modes (PB3) Forced combustion rate setting mode, raises the gas pressure VALUE button, cycles through available values (PB4) Forced combustion rate setting mode, lowers the gas pressure...
  • Page 14: Flue Diverter Dip Switch Changes

    Flue diverter dip switch changes When delivered ex-factory, by default SW1, SW2, SW3, and SW4 of the DipSW are set to the OFF position. If a flue diverter is installed onto the water heater, SW1 and SW3 of the DipSW must be set to the ON position.
  • Page 15: Appendix

    10 m long communication cable is supplied for connection to the water heater. Only Rinnai supplied communication cables may be used. The water heater end of the cables is fitted with spade terminals. Only two pairs of cables (four spade connectors in total) may be terminated.
  • Page 16 Experience our innovation Rinnai.co.nz 0800 746 624 http://www.youtube.com/rinnainz U340-1336(01)

This manual is also suitable for:

Reu-a1620wg-zkReu-a2024wg-zkReu-a2426wg-zk
