Specification
LOAD
See datasheet for RAPID LCM
SUPPLY VOLTAGE
12VDC
TIME OUT PERIOD
Adjustable 1 minute to 99 minutes
LIGHT LEVEL
Light to dark
MATERIAL
Flame retardant ABS
TYPE
Class 2
TEMPERATURE
-10°C to 35°C
CONFORMITY
EMC-89/336/EEC
LVD-73/23/EEC
Microwave frequency compatibility
The allowable frequency of operation of this product is different depending on region. Please select
the correct order code using the table below.
Suffix
blank
UK, China, India, Middle East, Malaysia, Hong Kong, Singapore
-R2
Australia and all of Europe except: UK, France, Portugal, Germany, Switzerland, Austria, Slovak Re-
public, Republic of Ireland
-R3
France, Portugal, Switzerland
-R4
Germany, Austria, Slovak Republic
-R5
Republic of Ireland
Part Numbers
Part number
Description
Detector
EBR-MWS3A
RAPID ceiling mounted microwave presence detector
Accessories MWS3A-DBB
Surface mounting box
UNLCDHS
Universal LCD IR handset
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in
accordance with the latest edition of the IEE wiring regulations.
Due to our policy of continual product improvement CP Electronics reserves the right
to alter the specification of this product without prior notice.
Region
C.P. Electronics Ltd
Brent Crescent
London
NW10 7XR
United Kingdom
Tel:
+ 44 (0) 333 900 0671
Fax:
+ 44 (0) 333 900 0674
www.cpelectronics.co.uk
enquiry@cpelectronics.co.uk
Ref #WD344 Issue 4

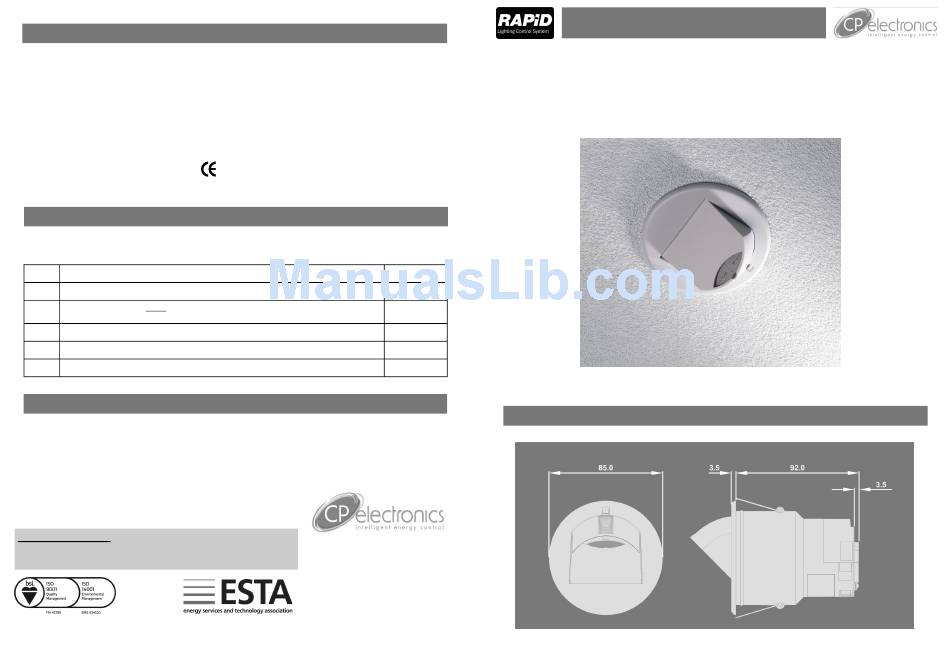

EBR-MWS3A
Ceiling Microwave Presence Detector
Frequency
10.587GHz
10.525GHz
9.900GHz
9.350GHz
10.41GHz
Product Guide
Dimensions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CP EBR-MWS3A
Summary of Contents for CP EBR-MWS3A
- Page 1 + 44 (0) 333 900 0671 Fax: + 44 (0) 333 900 0674 www.cpelectronics.co.uk enquiry@cpelectronics.co.uk Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice. Ref #WD344 Issue 4...
- Page 2 This works by emitting low power microwave signals and measuring the reflections as the signals bounce off moving objects. The EBR-MWS3A has a unique adjustable sensor head that allows the area of detection to be optimised for the application. When an area is occupied the Rapid system can be programmed to turn the lights on.
- Page 3 Commissioning ETECTION ATTERNS Commissioning will normally be performed by our trained commissioning engineers. Please note that prior to commissioning, it is the responsibility of the installing contractor to ensure the following: The RAPID LCMs must be connected and installed as described in the relevant datasheet ...
- Page 4 Warning - be careful bending springs when mounting unit. FLUSH FIXING Hole Ø74mm If the range is compromised by the Attach cable clamp Attach cable clamp ceiling construction / material. Add the supplied 20mm spacer ring. SURFACE FIXING Warning - be careful bending springs when mounting unit. HEAD LOCKING ...
