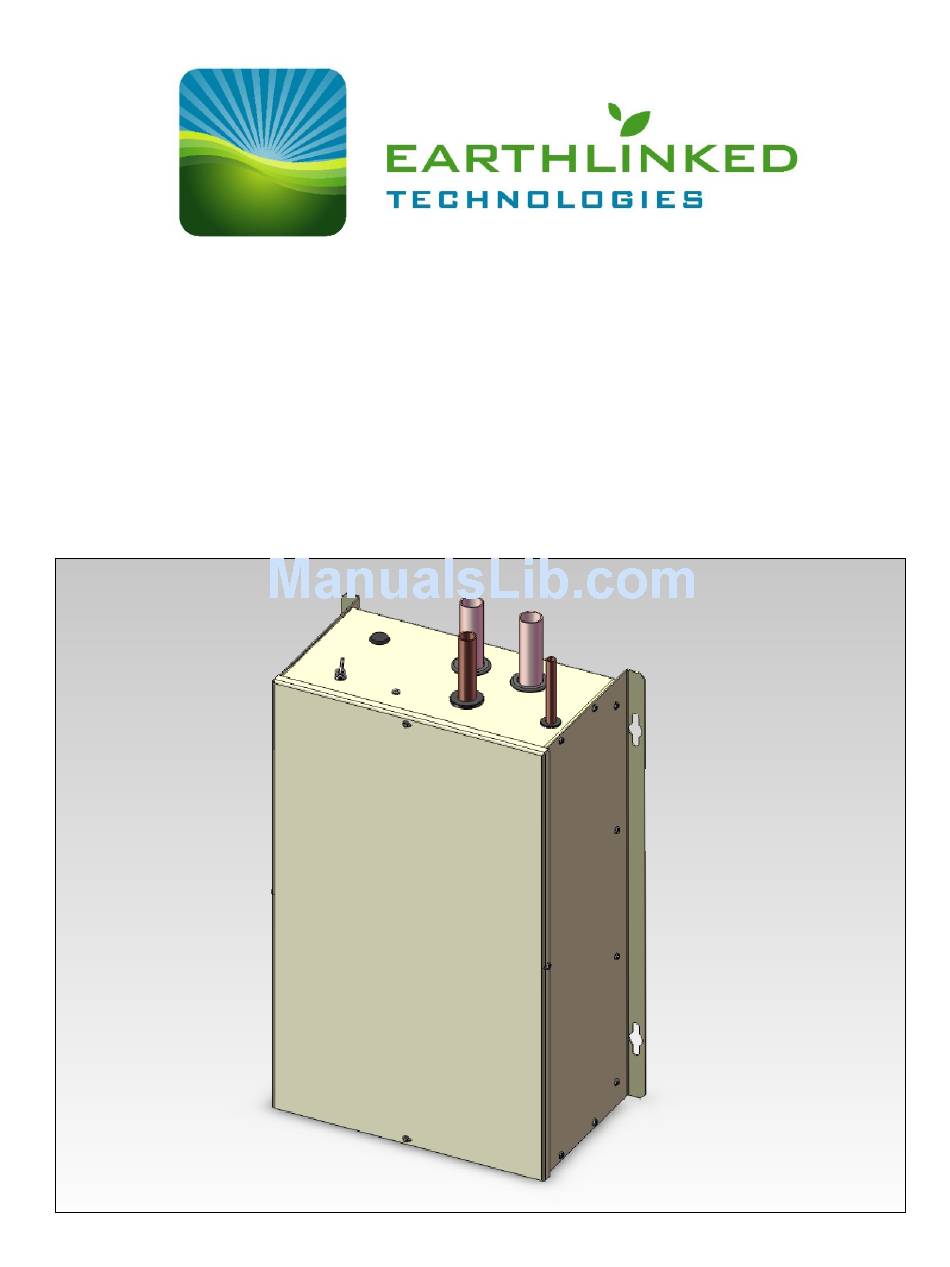

- Page 1 ® EarthLinked Hydronic Water Module Installation, Operation & Maintenance Manual R-410A and R-407C Radiant Panel Hydronic Heat Only Systems HWM-H-IOM (10/14) Copyright 2014 Earthlinked Technologies, Inc...
- Page 2 SOLUTION PROTECTION IN EARTHLINKED RADIANT PANEL HYDRONIC HEATING AND/OR CHILLED WATER COOLING SYSTEMS ® AT THE TIME OF SYSTEM START-UP WILL VOID THE EARTHLINKED LIMITED WARRANTY FOR HEATING AND COOLING SYSTEMS. Earthlinked Technologies, Inc. 4151 South Pipkin Road Lakeland, Florida 33811 tel.
- Page 3 Table of Contents 1. Inspection/Pre-Installation ......................5 A. Inspection ..........................5 B. Pre-Installation ........................6 2. General System Layout ......................7 3. Application ..........................8 4. The Primary Circuit ........................9 A. Plumbing ..........................9 B. Antifreeze Protection ......................11 C.
- Page 4 List of Figures Figure 1. Matching Component Model Numbers ................5 Figure 2. General Layout of System Components ................7 Figure 3. Typical Radiant Panel Hydronic Heating System ..............8 Figure 4. Typical HWM Primary Circuit Plumbing ................9 Figure 5a. Propylene Glycol Freeze Protection Table ..............11 Figure 5b.
-
Page 5: Inspection/Pre-Installation
Figure 1. Make sure all units have been received and model numbers are the same as those ordered. Compressor Unit Hydronic Water Module -018, -024, -030, -036 HWM-1836 -042, -048 HWM-4248 -054, -060, -068, -072 HWM-5472 Figure 1. -
Page 6: B. Pre-Installation
B. Pre-Installation ® Prior to installing the Hydronic Water Module and other EarthLinked space heating and cooling system above-ground components, you will need tools and equipment listed in Section 8 to properly install the system. Installation of the Hydronic Water Module must be done in accordance with this manual. -
Page 7: General System Layout
2. General System Layout ® Guidelines for the general layout of the Hydronic Water Module and other EarthLinked system components are shown in Figure 2. Figure 2. General Layout of System Components HWM-H-IOM (10/14) Page 7... -
Page 8: Application
3. Application Typical application of the Hydronic Water Module to radiant panel hydronic heating is illustrated in Figure 3. Figure 3. Typical Radiant Panel Hydronic Heating System IMPORTANT! This HWM series hydronic water module may be utilized with R-104A and R- 407C systems when the only function is to heat hydronic water. -
Page 9: The Primary Circuit
4. The Primary Circuit A. Plumbing The primary circuit in a typical HWM installation is shown in Figure 4. IMPORTANT! The hydronic water module (HWM) is to be mounted on a wall or fixed rigidly in place. The HWM is to be placed no more than 10 FEET AWAY FROM THE STORAGE WATER HEATER. - Page 10 Failure to isolate the heat exchanger will damage the heat exchanger causing system failure. Allowing highly chlorinated water to enter the heat exchanger will void ® the EarthLinked Limited Warranty. HWM-H-IOM (10/14) Page 10...
-
Page 11: B. Antifreeze Protection
® EarthLinked system start-up. IMPORTANT! FAILURE OF THE INSTALLER TO PROVIDE ADEQUATE ANTIFREEZE ® SOLUTION PROTECTION IN EARTHLINKED RADIANT PANEL HYDRONIC HEATING SYSTEMS AT THE TIME OF SYSTEM START-UP ® WILL VOID THE EARTHLINKED LIMITED WARRANTY FOR HEATING AND COOLING SYSTEMS. - Page 12 Straight propylene-glycol: Chemical Specialties, Inc. (www.chemicalspec.com/spg.html) Inhibitor: Nu-Calgon Products, Ty-lon B20 (www.nucalgon.com/products) ® Inhibited propylene-glycol: Houghton Chemical Corp., SAFE-T-THERM www.houghton.com/fluids/safe-t-therm/index.html) General guidelines for introducing propylene glycol into the water circulating system follow. The manufacturer’s specific instructions and industry standards always take precedence when introducing propylene-glycol to the system.
-
Page 13: C. Water Quality
C. Water Quality IMPORTANT! Always follow the propylene-glycol manufacturer’s instructions concerning the water quality specifications before filling the water circulating system. Water quality in hydronic systems is important to the life and efficiency of the system. Water of poor quality can cause a decrease in heat transfer ability and cause leaks. Ensuring proper quality water is a key step in the installation of the hydronic water module (HWM) and circulating water system. -
Page 14: D. Storage Water Heater Sizing And Connections
D. Storage Water Heater Sizing and Connections ® Storage water heaters are necessary with EarthLinked radiant panel hydronic heating systems, as typically illustrated in Figures 3 and 4. IMPORTANT A STORAGE WATER HEATER USED FOR HYDRONIC HEATING MUST BE EQUIPPED WITH SUPPLEMENTAL ELECTRIC HEATING WITH A RATING OF AT LEAST 20% OF THE DESIGN HEATING LOAD. -
Page 15: Figure 7. Hydronic Water Module (Hwm)
Figure 7. Hydronic Water Module (HWM) HWM-H-IOM (10/14) Page 15... -
Page 16: F. Refrigerant Piping
IMPORTANT! Maximum hot water temperature, from the Hydronic Water Module is 110°F. Figure 8a lists the minimum nominal Type L hard copper pipe and fitting sizes, and the strainer required for the primary circuit between the hot water module (HWM) and the storage water heater. -
Page 17: Controls And Electrical
5. Controls and Electrical IMPORTANT When the Hydronic Water Module (HWM) is being installed with an SC or SD Series Compressor Unit, the following Pump Wire Kit must be field installed: PW1-1872 for 230/208-1-60 and 230/208-3-60 power supply A. Hydronic Heating Only The electrical field wiring for the HHK-1872 temperature controller and the electric heat element and thermostat are illustrated in Figure 8c (Part 1 of 2) and Figure 8c (Part 2 of 2). -
Page 18: Figure 8C. (Part 2 Of 2) Electrical Field Wiring – Hydronic Heating (Hwm)
Figure 8c. (Part 2 of 2) Electrical Field Wiring – Hydronic Heating (HWM) HWM-H-IOM (10/14) Page 18... -
Page 19: B. Hwm Freeze Protection Thermostat
B. HWM Freeze Protection Thermostat 1. The freeze protection thermostat is factory installed. The thermostat wiring must be connected when the HWM is installed. Run the wire through the electrical port in the top panel of the Hydronic Water Module cabinet. After attaching the wire to the switch terminals, run it into the Compressor Unit (using a control wiring port), in accordance with applicable electrical codes. -
Page 20: Start-Up
6. Start-Up The following conditions must be met before starting the HWM: The toggle switch on the HWM cabinet must be “OFF”. The system has been charged according to instructions. Heating elements in the hot water storage tank are “OFF”. ... -
Page 21: Figure 9. Maximum Operating Conditions (R-410A)
Figure 9. Maximum Operating Conditions (R-410A) Figure 10. Maximum Operating Conditions (R-407C) HWM-H-IOM (10/14) Page 21... -
Page 22: Heat Exchanger Maintenance
7. Heat Exchanger Maintenance A compact brazed heat exchanger is utilized in the Hydronic Water Module. The water flow rate designed into each of these heat exchangers is 2 or more gallons per minute per ton of nominal system capacity. The acceptable water flow rate range for each system is shown in Figures 11 and 12. -
Page 23: Figure 12. Minimum Heat Exchanger Propylene Glycol/Water Solution Flow Rates
Figure 12 shows minimum antifreeze solution flow rates for various mixtures of propylene glycol and water Minimum Propylene Glycol/Water Solution Flow Compressor Unit Rates, GPM Size/Capacity Model (BTUH) 20% PG 30% PG 40% PG 50% PG -018 (18,000) -1836 -024 (24,000) -1836 -030 (30,000) -1836... -
Page 24: Figure 13. Hwm Heat Exchanger Cleaning Set-Up
Figure 13. HWM Heat Exchanger Cleaning Set-up Disconnect power from HWM and be sure pump is off. Mix heat exchanger cleaning solution in a 55 gallon drum can be sealed and disposed of in accordance with local and federal chemical waste regulations, when the cleaning process is completed. - Page 25 Mix 1 gallon of concentrated liquid ice machine cleaner per 15 gallons of water in a 55 gallon drum as shown in Figure 13. Connect the 3/4” ID x 15’ heavy duty hoses to the drain valves and run to the container holding the cleaning solution.
-
Page 26: Tools And Equipment
8. Tools and Equipment The purpose of the following list is to highlight key pieces of equipment, tools and materials ® necessary for the installation, maintenance and servicing of EarthLinked Heating and Cooling System HVAC (above ground) equipment. The professional HVAC technician is expected to have a compliment of standard tools for the general servicing of refrigeration equipment. -
Page 27: Index
9. Index Circulating ............................28 Compressor ......................5, 15, 17, 22, 25, 26 Connection ....................... 6, 15, 18, 21, 22 Controls ............................18 Flow Meter ..........................17, 29 Flow Rate ..........................24, 26 Manifold ........................... 22, 29 Model ........................5, 15, 17, 25, 26 Piping ............................
