ATTACHMENT
■ Attachment (Continued)

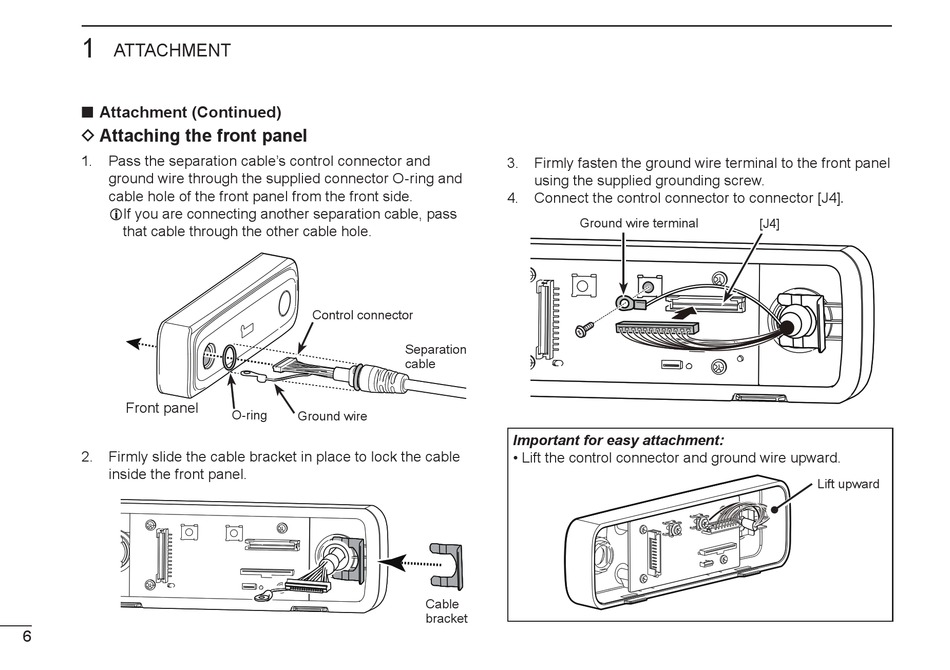

D Attaching the front panel
1. Pass the separation cable's control connector and
ground wire through the supplied connector O-ring and
cable hole of the front panel from the front side.
L If you are connecting another separation cable, pass
that cable through the other cable hole.
Front panel
2. Firmly slide the cable bracket in place to lock the cable
inside the front panel.
6
Control connector
Separation
cable
O-ring
Ground wire
3. Firmly fasten the ground wire terminal to the front panel
using the supplied grounding screw.
4. Connect the control connector to connector [J4].
Ground wire terminal
Important for easy attachment:
• Lift the control connector and ground wire upward.
Cable
bracket
[J4]
Lift upward
