ClearCube M1032W User Manual

Engineering workstation
Hide thumbs

Advertisement

Quick Links

Download this manual

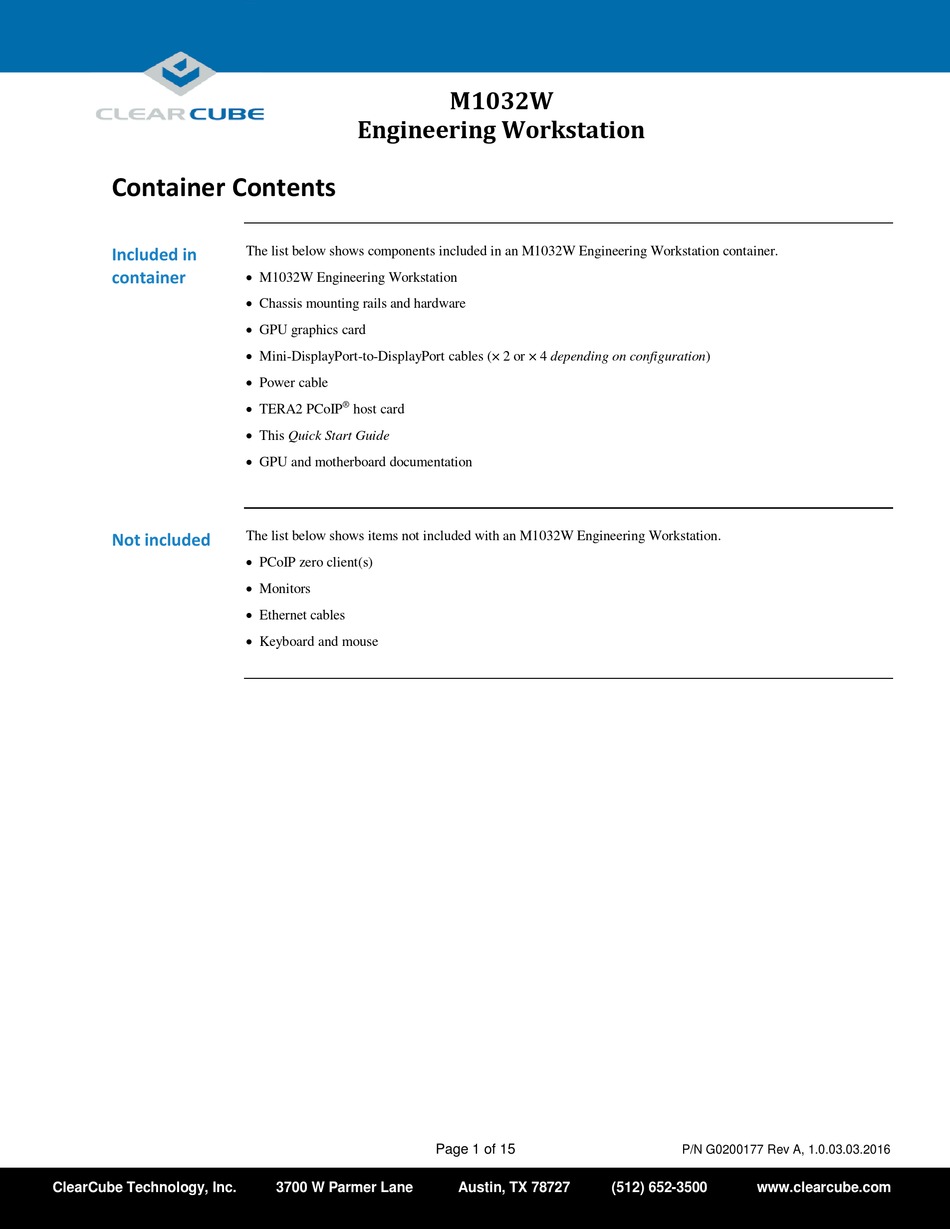

Container Contents
Included in
container
Not included
ClearCube Technology, Inc.
Engineering Workstation

Quick Start Guide

The list below shows components included in an M1032W Engineering Workstation container.
 M1032W Engineering Workstation
 Chassis mounting rails and hardware
 GPU graphics card
 Mini-DisplayPort-to-DisplayPort cables (× 2 or × 4 depending on configuration)
 Power cable
 TERA2 PCoIP
®
host card
 This Quick Start Guide
 GPU and motherboard documentation
The list below shows items not included with an M1032W Engineering Workstation.
 PCoIP zero client(s)
 Monitors
 Ethernet cables
 Keyboard and mouse
3700 W Parmer Lane
M1032W
Page 1 of 15
Austin, TX 78727
(512) 652-3500
P/N G0200177 Rev A, 1.0.03.03.2016
www.clearcube.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the M1032W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearCube M1032W

Summary of Contents for ClearCube M1032W

  • Page 1: Quick Start Guide

    M1032W Engineering Workstation Quick Start Guide Container Contents The list below shows components included in an M1032W Engineering Workstation container. Included in  M1032W Engineering Workstation container  Chassis mounting rails and hardware  GPU graphics card  Mini-DisplayPort-to-DisplayPort cables (× 2 or × 4 depending on configuration) ...
  • Page 2 M1032W Overview and Features M1032W The M1032W Engineering Workstation is a 1U, GPU-optimized, high-performance engineering workstation overview ® based on the Intel C612 chipset. The list below shows M1032W features.  Intel Xeon ® E5-2600 v3-series processor (up to 10 cores and 145 W) ...
  • Page 3 M1032W Overview and Features, Continued The picture and table below show indicators and buttons on the front panel of an M1032W. M1032W front panel Indicator Description Button Information Information. Shows several states: Status Description 2 3 4 5 Red, continuous Overheat condition.
  • Page 4 M1032W Overview and Features, Continued, Continued The picture below shows ports, connectors, and buttons on the rear of an M1032W. M1032W rear ports and connectors GPU Graphics Card (Varies by Configuration) PCoIP Host Card (Varies by Configurations) 13 14 Description...
  • Page 5 Rack Rails and Mounting Two rack rail assemblies are included with an M1032W Engineering Workstation. Each assembly has Rack rail two sections: components  Inner rails: attach to the workstation chassis (the inner rail is pre-attached), and  Outer rack rails: attach to rack The picture below shows the inner chassis rails and the outer rack rails.
  • Page 6 Repeat these steps to assemble the other outer rack rail. Next step: install outer rack rails in a rack. Continued on next page Page 6 of 15 P/N G0200177 Rev A, 1.0.03.03.2016 ClearCube Technology, Inc. 3700 W Parmer Lane Austin, TX 78727 (512) 652-3500 www.clearcube.com...

  • Page 7: Rack Rails

    2. Push the workstation into the rack until it clicks into the locked position. Removing This picture and table below show how to remove an M1032W Engineering Workstation from a rack. from rack 1. Press the outer rack rail latch to release the workstation chassis (the latch is shown in the adjacent picture).
  • Page 8 Setting up an M1032W Engineering Workstation This section shows how to connect cables. Numbers in parentheses correspond to labels shown in “ M1032W M1032W ” and in “ ” to ease identification. front panel M1032W rear ports and connectors cabling...
  • Page 9 Setting up an M1032W Engineering Workstation, Continued This section shows how to connect cables between the GPU and PCoIP Host Card for each M1032W Cabling configuration. Connect video cables on the rear of your workstation according to the configuration you ordered.
  • Page 10 Setting up an M1032W Engineering Workstation, Continued Cabling diagrams (continued) Card Displays Resolution Diagram Configuration K2200 GPU and 1920 × 1200 Dual PCoIP Host Card 2560 × 1600 M4000 GPU and 1920 × 1200 Quad PCoIP Host Card 2560 × 1600...
  • Page 11 Setting up an M1032W Engineering Workstation, Continued Cabling diagrams (continued) Card Displays Resolution Diagram Configuration M4000 GPU and 1920 × 1200 Dual PCoIP Host Card 2560 × 1600 M5000 GPU and 1920 × 1200 Dual PCoIP Host Card 2560 × 1600...
  • Page 12 Setting up an M1032W Engineering Workstation, Continued Cabling diagrams (continued) Card Displays Resolution Diagram Configuration M5000 GPU and 1920 × 1200 Quad PCoIP Host Card 2560 × 1600 M6000 GPU and 1920 × 1200 Dual PCoIP Host Card 2560 × 1600...
  • Page 13 Power option present when a workstation is powered off. M1032W Engineering Workstations contain a PCoIP host card that requires an IP address. The IP address can be PCoIP host assigned by a DHCP server or be a static IP address. Note that: card settings ...
  • Page 14 BIOS Access and VGA Output This section shows how to access the M1032W BIOS. It assumes the BIOS is set to the default video Accessing the configuration, which sends video to the off-board, add-on video card. Before performing these steps, note the BIOS MAC address of the PCoIP host card in the workstation to which you are connecting.
  • Page 15 Laws are different in each country, so please check with your local authorities for proper disposal instructions. For assistance, contact ClearCube at recycle@clearcube.com. Page 15 of 15 P/N G0200177 Rev A, 1.0.03.03.2016...
