ClearCube ClientCube 3 Quick Start Manual

Box pc with secure kvm switch
Hide thumbs

Advertisement

Quick Links

Download this manual

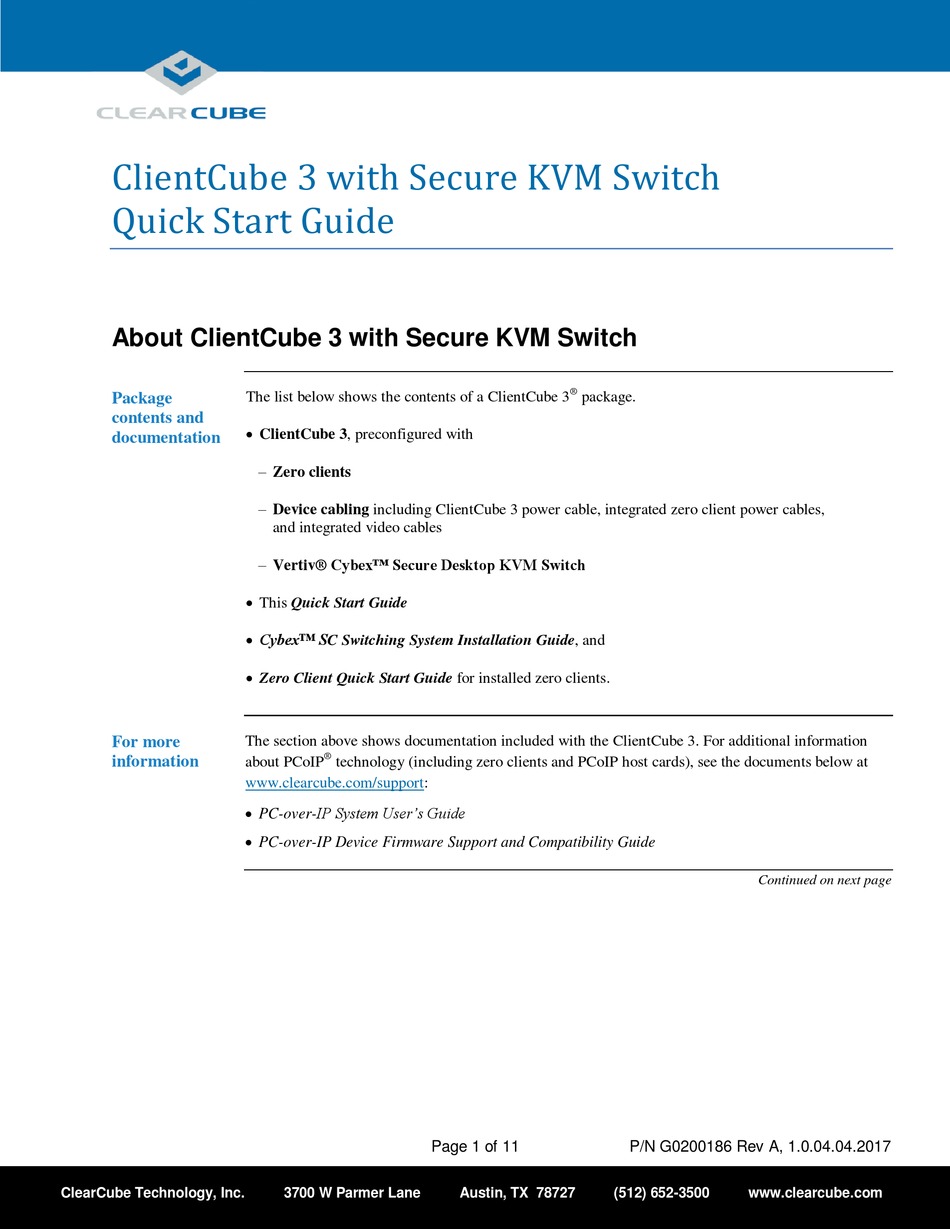

ClientCube 3 with Secure KVM Switch
Quick Start Guide
About ClientCube 3 with Secure KVM Switch
Package
contents and
documentation
For more
information
ClearCube Technology, Inc.
The list below shows the contents of a ClientCube 3
 ClientCube 3, preconfigured with
 Zero clients
 Device cabling including ClientCube 3 power cable, integrated zero client power cables,
and integrated video cables
 Vertiv® Cybex™ Secure Desktop KVM Switch
 This Quick Start Guide
 Cybex™ SC Switching System Installation Guide, and
 Zero Client Quick Start Guide for installed zero clients.
The section above shows documentation included with the ClientCube 3. For additional information
®
about PCoIP
technology (including zero clients and PCoIP host cards), see the documents below at
www.clearcube.com/support:
 PC-over-IP System User's Guide
 PC-over-IP Device Firmware Support and Compatibility Guide
3700 W Parmer Lane
®
package.
Page 1 of 11
Austin, TX 78727
Continued on next page
P/N G0200186 Rev A, 1.0.04.04.2017
(512) 652-3500
www.clearcube.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ClientCube 3 and is the answer not in the manual?

Questions and answers

Related Manuals for ClearCube ClientCube 3

Summary of Contents for ClearCube ClientCube 3

  • Page 1  ClientCube 3, preconfigured with documentation  Zero clients  Device cabling including ClientCube 3 power cable, integrated zero client power cables, and integrated video cables  Vertiv® Cybex™ Secure Desktop KVM Switch  This Quick Start Guide ...
  • Page 2 About ClientCube 3 with Secure KVM Switch, Continued The picture below shows the front of a ClientCube 3 (depending on the model, product appearance ClientCube 3 front features and features might differ slightly). Description Secure KVM switch. Port (zero client) selectors.
  • Page 3 About ClientCube 3 with Secure KVM Switch, Continued The picture below shows the rear of a ClientCube 3 (depending on the model, product appearance and ClientCube 3 features might differ slightly). rear features Description LAN connector (Client 1) LAN connector (Client 2) USB mouse and keyboard (switched) 3.5 mm audio connector (switched)
  • Page 4 About ClientCube 3 with Secure KVM Switch, Continued ClientCube 3 enables users to connect to two remote computing resources (physical computers or ClientCube 3 virtual machines) while using the same mouse, keyboard, video displays, and audio devices for both architecture computers.

  • Page 5: Before You Begin

    Always perform ESD prevention steps before using a card reader. Inspect If ClientCube 3 packaging or hardware (including tamper-evident seals on the Secure KVM) shows packaging any evidence of disruption, call ClearCube Support immediately at (800) 652-3400.
  • Page 6 ClearCube Support. Optionally, install a CAC driver on any computing devices requiring CAC support. Setting up ClientCube 3 The table below shows how to set up ClientCube 3. All items listed below are shown in “ClientCube 3 Set up...
  • Page 7 For more information about the OSD and configuration, see the appropriate zero client Quick Start Guide (included) and PC-over-IP System User’s Guide (download from ClearCube Support). If you are using physical devices with PCoIP host cards, use a Web browser to configure the host card as appropriate for your environment.
  • Page 8 (through a network switch or by direct connection). Connect one or more displays to the zero clients in the rear of the ClientCube 3. Connect a keyboard and mouse to the Console portion of the Secure KM.
  • Page 9 For more information about Host Card configuration, see the appropriate zero client Quick Start Guide (included) and PC-over-IP System User’s Guide (download from ClearCube Support). Connect to From the zero client OSD, click Connect.
  • Page 10 To restart the zero client, click Diagnostics > PCoIP Processor and then click Reset. A message is displayed. Click OK. This ends the PCoIP session with the zero client. Repeat this procedure for all zero clients in the ClientCube 3. Page 10 of 11 P/N G0200186 Rev A, 1.0.04.04.2017 ClearCube Technology, Inc.

  • Page 11: Additional Information And Support

    For more information about zero client configuration, see the appropriate zero client Quick Start Guide (included) and PC-over-IP System User’s Guide (download from ClearCube Support). The table below shows how to connect to a VM from a zero client. These instructions assume you Connect to VM “Configuring Zero Clients for VM...
