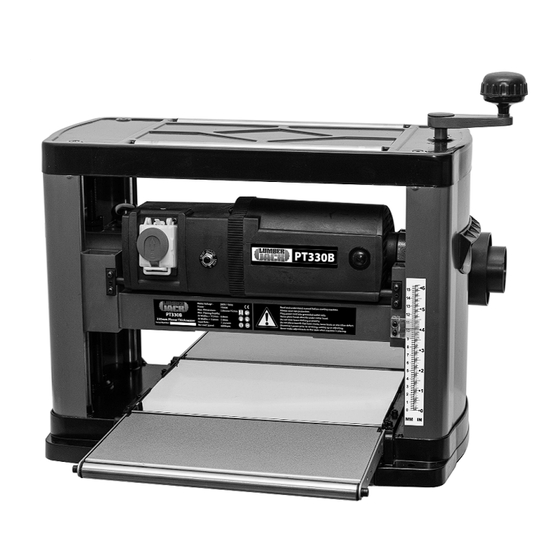

- Page 1 SAFETY AND OPERATING MANUAL 330mm Planer Thicknesser PT330B ORIGINAL INSTRUCTIONS PT330B...
- Page 2 Closely observe all safety information in these instructions! General Power Tool Safety Warnings………………………………….…..01 Symbols & Cable Rating Chart ……….…………………………………….………05 Machine Details and Product Features……….…………………………….….06 Assembly……………………………………………………………………………………..07 Operation, Maintenance and Service…………………………………………..09 Lumberjack Guarantee………….…………………………………………………….11 Declaration of Conformity……………………………………………………………13 Parts List…………..………………………………………………………………………...14 Parts Diagram………………………………………………………………………………17 PT330B...
-
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. PT330B... - Page 4 Use power tools only with specifically operate the power tool. Power tools are designated battery packs. Use of any other dangerous in the hands of untrained users. battery packs may create a risk of injury or fire. PT330B...
- Page 5 Wait for the cutter to stop before setting the screws. The planer blade and the blade shaft can tool down. An exposed rotating cutter may become damaged and lead to increased vibrations. engage the surface leading to possible loss of control and serious injury. PT330B...
- Page 6 The smaller the gauge number of the wire the greater the capacity of the cord. e) When using a cable reel, always unwind the cable completely. PT330B...
- Page 7 Caution! Wear a dust mask. Amperes 7.5M 0 – 2.0 2.1 – 3.4 3.5 - 5.0 5.1 – 7.1 7.1 – 12.0 12.1 – 20.0 PT330B...
-
Page 8: Machine Details And Product Features
5. Adapter x 1 Nett Weight - 32kg 6. Crank handle x 1 7. Socket head bolt x 1 Package Contents: 8. Flat washer x 1 Planer Thicknesser 9. Hex wrench x 1 Dust Chute Wrench PT330B AIR6V AIR6V AIR6V AIR6V... -
Page 9: Assembly
WARNING: Do not connect to power supply until assembly is complete．Failure to comply could result in accidental starting and possible serious personal injury． – Unwrap the power cord from the cord storage underneath the out-feed table. – Lower the in-feed and out-feed tables. PT330B... -
Page 10: Assembly Instructions
Polystyrene insert ust chute ust chute – The thicknesser features four holes in the base for mounting to a workbench or worktable. – The thicknesser should be mounted level bench or Protective table before operation. film Hole for mounting PT330B... -
Page 11: Operation, Maintenance And Service
– Carefully turn cutterhead by hand. – Loosen and remove six bolts from gib. PT330B... -
Page 12: Maintenance And Service
– Reverse or replace blade and carefully position it on the two pins using magnets. – Replace gib and align the holes on the gib with holes on the blade using magnets. – Secure gib to cutterhead using six bolts removed earlier. PT330B... -
Page 13: Lumberjack Guarantee
This letter should be then sent with proof PT330B... - Page 14 This Guarantee is offered as an extra benefit and does not affect your statutory rights as a consumer. 4. Notice This Guarantee applies to all product purchased from an Authorised Dealer of Lumberjack within the United Kingdom. Terms of Guarantee may vary in other countries. PT330B...
-
Page 15: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the DUST EXTTRACTOR(PT330B) Is in compliance with the regulations included in the Directives:2006/95/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by TÜV Rheinland LGA Products Gmbh – Tillystraße 2 -90431 Nürnberg(Registration No.:BM 50310153 0001) -
Page 16: Parts List
Pan head screw 6-1.0x12mm Socket pan head screw 8- 1.25x16mm Cutter head Cover 70tgear Pan head screw 6-1.0x16mm 58T/12T double gear 52T/12Tdouble gear Blade Bushing Spring Spacer Key 5x5x10mm Inside gear plate Bearing retainer Spacer Socket head bolt 5-0.8x10mm PT330B AIR6V AIR6V AIR6V... - Page 17 Left elevating nut Right elevating screw Spacer Socket head bolt 5-0.8x12mm Flat washer 8mm Flat washer 5mm Pan head screw 8-1.0x25mm Base Right elevating nut Hex head bolt 6-1.0x25mm Hex nut Hex nut 6-1.0mm Left elevating screw Sprocket PT330B AIR6V AIR6V AIR6V...
- Page 18 Hex nut 10-1.5mm Idler bracket Cord wrap Lock washer 5mm Pan head screw 4-0.8x8mm Socket head bolt 5-0.8x16mm angle iron Key C4x10mm Socket head bolt 4-0.8x8mm Hex nut 12-1.5mm 4mm Hex wrench Shaft 5mm Hex wrench PT330B AIR6V AIR6V AIR6V...
-
Page 19: Parts Diagram
Parts Diagram PT330B...
