1. Introduction Before using the machine, carefully read all of the instructions contained in this machine. 1.1 Using the manual This manual contains all information required for the installation, use and maintenance of the coffee machine. This manual is an integral part of the machine; always keep it intact together with the appliance.
Page 4
• The user must be a responsible adult, who is expected to comply with local safety rules and accepted common sense procedures. For a proper and safe use of the machine, the operator must always comply with applicable accident prevention and other work safety and health regulations.

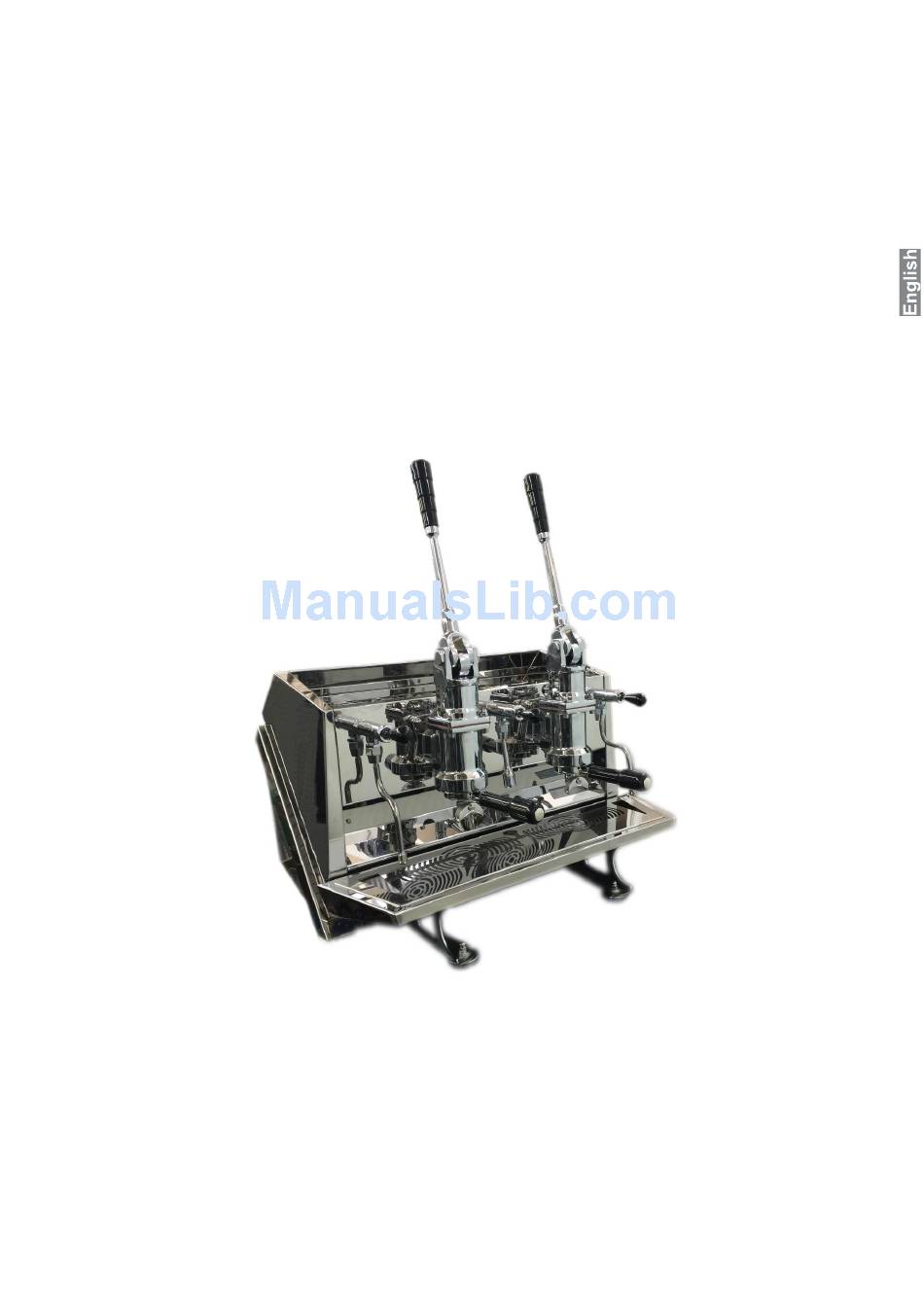

3. Description of the machine Note: The terms used in this description will commonly be used throughout the following pages. 3.1 Legend Steam valve lever Espresso coffee serving Steam spout Filter holding cup with handle Hot water valve lever Steam valve lever Water spout Steam spout Display touch multiffunction...
4. installation MANDATORY REQUIREMENTS : the operation of the lever for coffee brewing , it is extremely dangerous. In order to avoid the risk of harm to the operator is absolutely necessary, before driving the lever for any reason, make sure that: the filter holder cup is completely filled with the right amount of coffee, the cup is safely and properly coupled to the coffee brewing unit and the coffee machine is regularly and properly connected to the network‘s national water,...
Provide an inspect able drainage pit on the floor connected with the sink drainage line, suitable for receiving the machine gravity drainage tube. The drain tube must be positioned so that the water flows out freely, without possibility for the pipe to clog up during the operation. 4.3 Water softener (optional) The water softener for softening the mains water can be manual or automatic, depending on customer’s request.
Connect the power cord to the electrical mains as shown in the attached diagram: 5. start-up The coffee machine must be started by qualified technical personnel approved by ACS-M&V S.r.l. Once the electric and hydraulic connections are completed, the user is urged to start the espresso coffee machine with the following procedure in order to avoid damaging the appliance.
6.2 Drawing steam A jet of steam, which can be used to foam milk or to heat other liquids, comes out of the steam drawing spout as follows: by raising or lowering the lever you attain the maximum flow (the lever stops in the maximum position.
7. Routine maintenance No panel or fixed guard of the frame may be removed from the machine to carry out the routine maintenance. Do not use harsh or harmful detergents such as alcohol, petrol or solvents to clean the coffee machine; use water and neutral detergents.
Wash the components of the machine as described in the paragraph on routine maintenance. Cover the machine if necessary. 9. safety devices 9.1 Manual reset safety thermostat Every boiler is equipped with a safety thermostat and is located next to the element unit and can be accessed by removing the top side panel from the machine.
12. Declaration of conformity manufacturer: M&V S.r.l. 80040 Cercola (NA) Italy – Via Learco Guerra, 9 phone/Fax (+39) 081 5552428 – (+39) 081 0152417 – http://www.mevsrl.net declares under its own responsibility that the espresso coffee machine described in this manual and identified by the data on the tag located on the machine, is compliant with directives 2004/108/EC, 2006/95/EC, 2011/65/UE, Regulation (EC) No 1935/2004, Reg.
Page 14
Problem Cause Solution Light cream (the coffee a. Coarse grinding a. Finer grinding flows out of the spout b. Low pressing pressure b. Increase the pressure rapidly) c. Small quantity of ground c. Increase the quantity of ground coffee coffee d.
