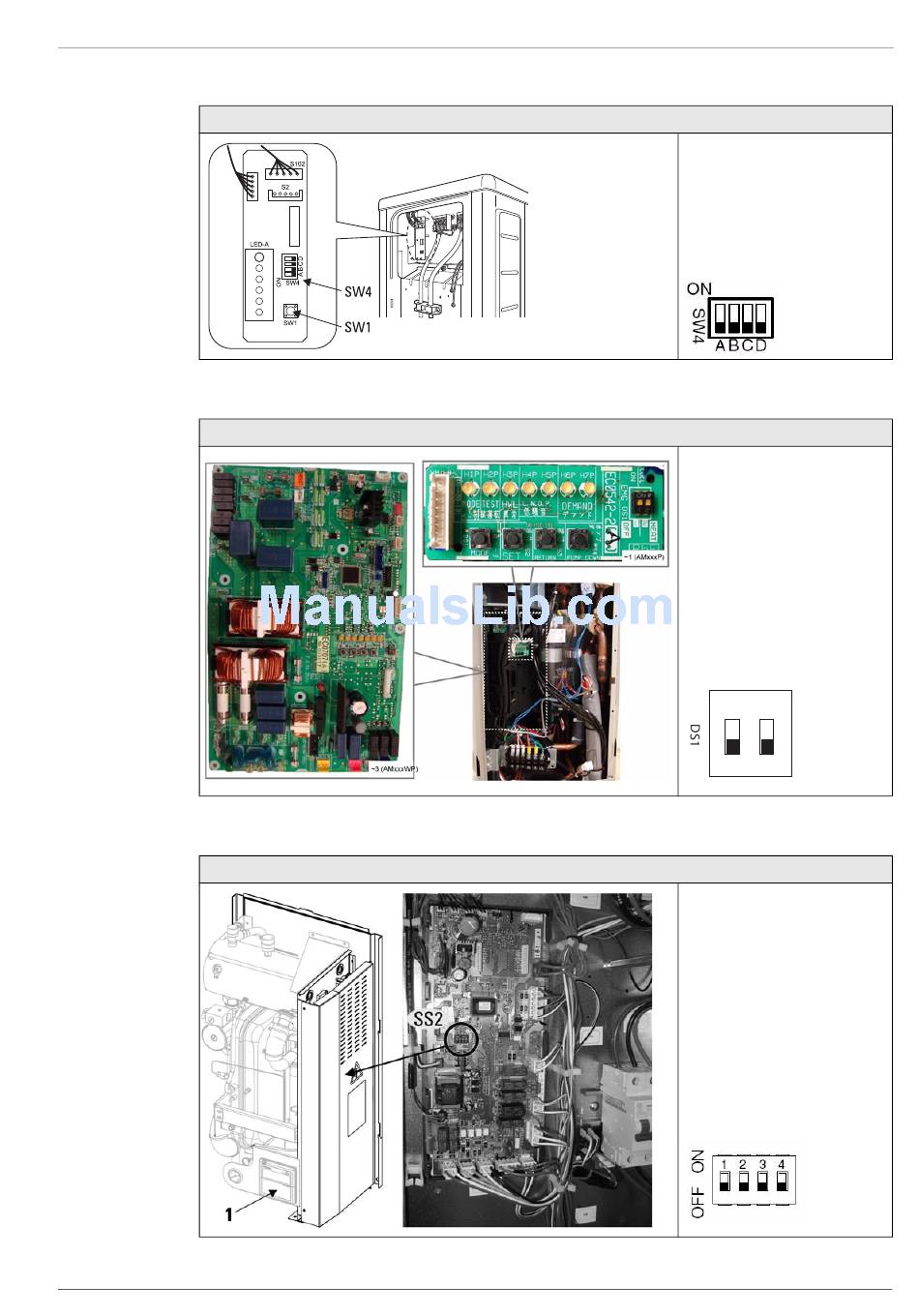

Position of DIP switches and the user interface
Outdoor Module (RRHQ) 6-8 kW
Fig.5-1
Outdoor Module (RRHQ) 11-16 kW
Fig.5-3
Indoor Module (RKHB)
Fig.5-5
FA ROTEX HeatPumpSolarUnit - Part 2 - 05/2009
Position Switch RRHQ 6-8 kW
Position Switch RRHQ 11-16 kW
Position of switch and user interface Indoor Module (RKHB)
5 x Start-up
SW4 DIP switches
Fig.5-2 Factory setting SW4
DS1 DIP switch
ON
1 2
Fig.5-4 Factory setting DS1
1 User interface control system
SS2 DIP switch
Fig.5-6 Factory setting SS2
