Summary of Contents for Blue Star MHW301RC

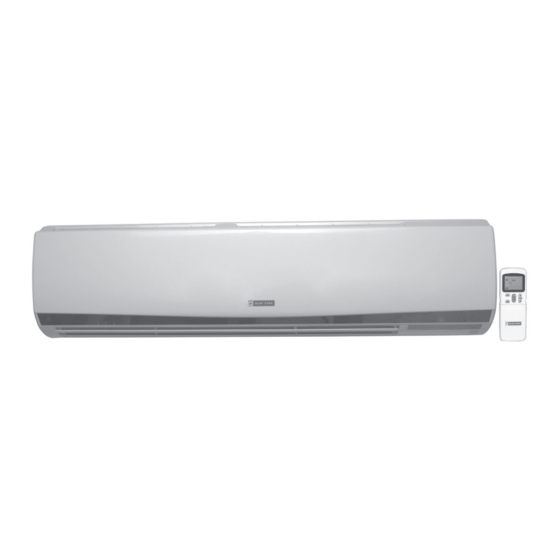

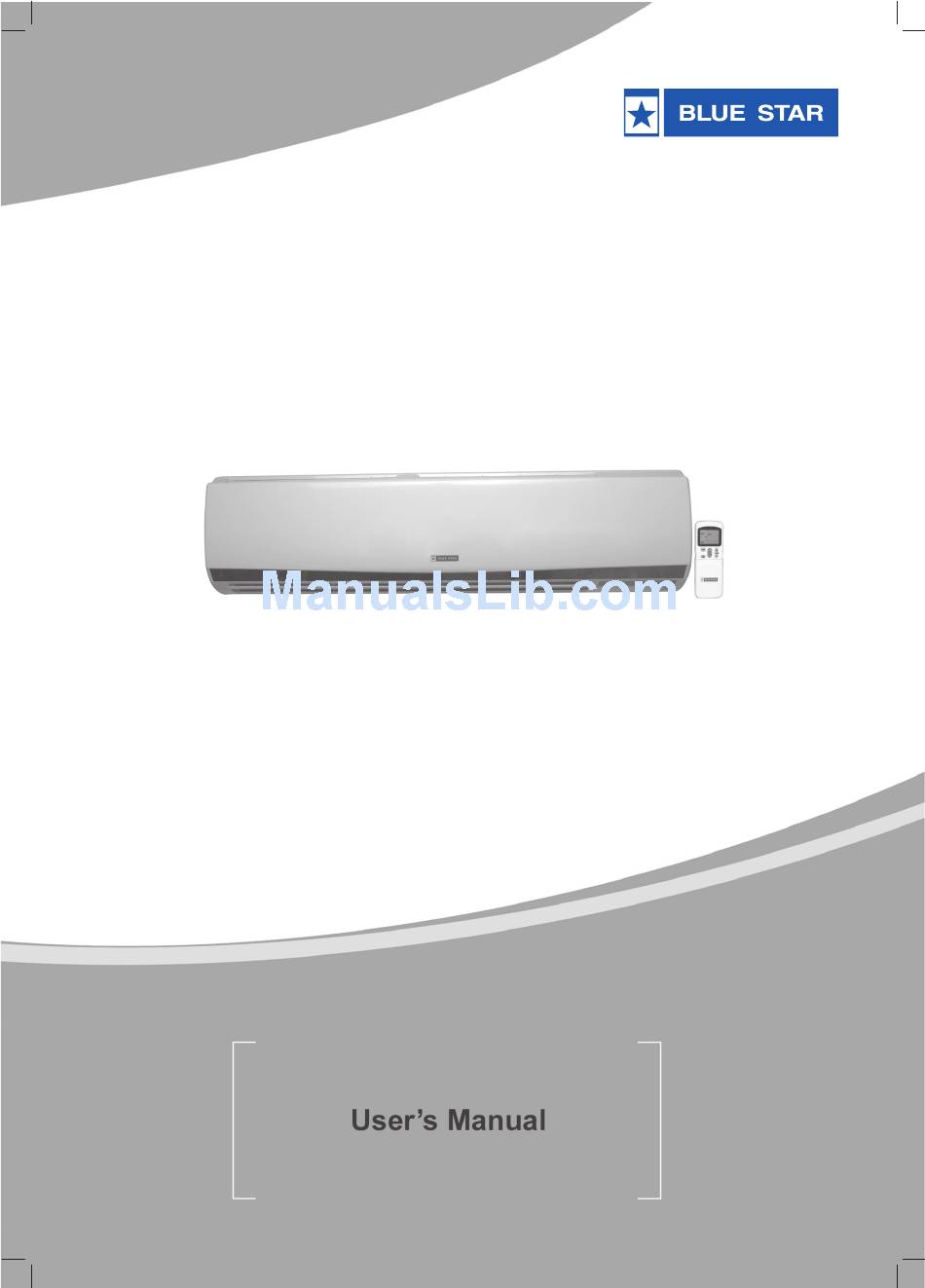

- Page 1 Mega Split Airconditioners (with Cordless Remote Control & 3 Phase Compressor) Models: MHW301RC, MHW361RC...
- Page 2 Vice President, Blue Star Ltd., Room Airconditioners Division, 9 Bazullah Road, T.Nagar, Chennai 600 017. While due care has been taken to avoid errors or misinterpretation, Blue Star Limited is neither liable nor responsible for consequence of any action taken, on the basis of this publication.
- Page 3 The Cordless Remote Control – An Overview The Display Panel on the Indoor Unit Manual Operation Operating Your Airconditioner Maintenance Dos & Don’ts Troubleshooting Chart Warranty Warranty Certificate 24x7 Customer Care & Blue Star Service Offices E-Waste Management Back inner cover...
-
Page 4: From Our Vice President
Troubleshooting Chart to diagnose the possible cause and take necessary steps. However, do not hesitate to approach your dealer or the nearest Blue Star office, if you require help. The list of Blue Star service offices is provided in this manual. -
Page 5: Product Features
USER’S MANUAL Product Features Long Life Great Looks Small Footprint Electronic Thermostat Fuzzy Logic 3 Phase Power Saver Compressor Programmable Timer Sleep Mode Time Delay Auto Restart Memory Backup Oscillating Louvres Digital Display 3-Speed Cooling... -
Page 6: Know Your Airconditioner
ODU. The ODU houses the all-important part of your airconditioner – the compressor. Blue Star ODUs are capable of withstanding a 500 hour salt spray test. The condenser coil uses coated ‘blue fins’ to enhance coil efficiency and life, and to protect it from chemicals and corrossion due to salinity. -
Page 7: Installation
While your Blue Star/Dealer’s Technician will be happy to guide you on the best location for your airconditioner, here are a few helpful hints. -
Page 8: Locating The Outdoor Unit
On Wall with Frame Once again, the Blue Star/Dealer’s Technician will ensure optimal installation of the ODU for you. On Skirting However, the following information will be of interest ODU & IDU 2. - Page 9 USER’S MANUAL Avoid long and complicated routing of pipes between the IDU and ODU, as shown in the three adjacent figures. a. Too long b. Too high c. Too many bends The ODU must be placed on a strong frame or support.
-
Page 10: The Cordless Remote Control An Overview
MEGA SPLIT AIRCONDITIONING SYSTEMS The Cordless Remote Control – an Overview The Cordless Remote Control of your airconditioner comes with a mounting bracket. Mount the bracket on the wall near the indoor unit of your airconditioner, at an accessible height. The remote control can then be placed conveniently on the mounted bracket. - Page 11 USER’S MANUAL Secondary Panel (slide cover downwards to access) Adjust swing angle of louvre. Sets louvre sweep on or off. Sets the Clock. Sets AC on ECONOMY mode. 10. Sets the Timer On time. 11. Sets the Timer Off time. 12.
- Page 12 MEGA SPLIT AIRCONDITIONING SYSTEMS Display TRANSMISSION INDICATOR Lights when remote control transmits signals to the Indoor Unit. MODE Displays the current operation mode. ON/OFF DISPLAY TEMP Displays the temperature setting. CLOCK The current time is displayed in 24 hour format. TIMER The time set for both ON and OFF timers is indicated in 24 hour format.
-
Page 13: Inserting The Batteries
USER’S MANUAL Inserting the Batteries When you unpack your AC, you will find along with your cordless remote control, 2 AAA size batteries. 1. Slide the lower portion on the front of the remote further downwards. 2. You will find the battery compartment. 3. -
Page 14: Setting The Clock
MEGA SPLIT AIRCONDITIONING SYSTEMS Setting the Clock You may set the clock in the remote control using the steps given below. The remote control will always display the time regardless of whether the airconditioner is on or off. Initial Setting When batteries are inserted into the remote control, the clock panel displays “0:00”... -
Page 15: Using The Remote Control
USER’S MANUAL Using the Remote Control 1. Point the remote control towards the AC, and operate within 8m of the AC and within a 30 angle. 2. Press the ON/OFF button on the remote. 3. Your AC is switched ON, but your compressor will switch on automatically after a delay of about 3 minutes. -
Page 16: The Display Panel On The Indoor Unit
MEGA SPLIT AIRCONDITIONING SYSTEMS The Display Panel on the Indoor Unit Infrared signal receptor Operation Indicator This indicator flashes when power comes on and stays illuminated when the unit is in operation. Not applicable to these models. TIMER Indicator This indicator lights up when TIMER is set ON/OFF. -
Page 17: Manual Operation
USER’S MANUAL Manual Operation Your AC can be operated manually without the remote control too, in an emergency, in a limited way. This is useful for example when the remote is misplaced. To Operate Manually: Lift the indoor unit’s cover by applying gentle pressure on both sides and lifting it upwards until it locks in place with a click. -
Page 18: Operating Your Airconditioner
MEGA SPLIT AIRCONDITIONING SYSTEMS Operating Your Airconditioner Your airconditioner can be conveniently operated using the intelligent cordless Remote Control. 1. Switch on the MCB. A red lamp on the Indoor Unit glows when you power on the unit. Time Delay The compressor can be damaged if the electrical supply stops and resumes immediately. - Page 19 USER’S MANUAL Press the FAN button to select fan speed. Every time this button is pressed, fan speed cycles through the AUTO Mode to LOW, MEDIUM and HIGH speeds. For more details on the AUTO mode, see below. The selected fan setting can be read on the LCD display.
-
Page 20: Operating Modes
MEGA SPLIT AIRCONDITIONING SYSTEMS Operating Modes Your AC operates in one of the following modes: AUTO, COOL, DRY, HEAT* or FAN. The Mode button cyclically chooses between the operating modes. The COOL Mode In the COOL Mode, the compressor is in operation and your AC functions in the standard operating mode, cooling your room to the desired Set Temperature. - Page 21 USER’S MANUAL The Power-Saving ECONOMY Mode Press the ECONOMIC RUNNING button to put your AC into ECONOMY Mode. ECONOMY is displayed on the LCD screen. Press the ECONOMIC RUNNING button again to return to normal operation. In the ECONOMY Mode, your wall-mounted AC is designed to give you maximum comfort, while at the same time, save power.
-
Page 22: Timer Operation
MEGA SPLIT AIRCONDITIONING SYSTEMS Timer Operation You can program your AC to switch itself on or off at a particular time: Press the TIMER ON or TIMER OFF button. Press the TIME ADJUST button’s UP or DOWN arrows to increase or decrease the Set Time. - Page 23 USER’S MANUAL Louvre Swing Your AC has oscillating louvres for uniform cooling around your room. You can stop the oscillation if you so desire. Upon switching your AC on, the louvres are set to oscillate by default. 1. Press the SWING button to stop the oscillation. Press again to restart oscillation.
- Page 24 MEGA SPLIT AIRCONDITIONING SYSTEMS Horizontal Louvre Control You can adjust air flow in any horizontal direction that you may desire. Vertical louvre control is possible manually and not from the remote. To move the louvres to adjust horizontal air flow: Use the lever on the left or right side of the vertical louvre arm (depending on your model).
-
Page 25: Maintenance
USER’S MANUAL Maintenance M o s t o f t h e m a i n t e n a n c e w o r k o n y o u r airconditioner, during warranty and subsequently under the maintenance contract, will be handled by a trained technician. -
Page 26: Dos & Don'ts
MEGA SPLIT AIRCONDITIONING SYSTEMS DOs & DON’Ts DOs ( ) • Seal all air gaps in the room. • Set the desired temperature at an optimal level to ensure comfort and avoid over-cooling. We recommend a setting of 23 C at which both comfort and efficient operation are achieved. -
Page 27: Troubleshooting Chart
USER’S MANUAL Troubleshooting Chart Symptoms Possible Causes Suggested Remedy Unit does not start MCB has tripped Reset MCB FUSE Fuse has burnt Replace fuse wire If the input voltage Input voltage to the STABILISER to the stabiliser is stabiliser is below below the acceptable acceptable range range, the... -
Page 28: Warranty
MEGA SPLIT AIRCONDITIONING SYSTEMS Warranty Thank you for buying a Blue Star airconditioner. It comes to you with a standard warranty of performance. Under this warranty, the purchaser is entitled to the following: 1) Repair / replacement of any part of the airconditioner (except as laid down in the “Warranty Obligation”... - Page 29 If the voltage prevailing is beyond these limits, the purchaser is advised to install a good quality voltage stabiliser. 6) Blue Star Limited shall not be liable or be deemed to be in default for any delay or failure in performance resulting directly or indirectly...
- Page 30 5. The original serial number of the product or any part thereof is removed, obliterated or altered. 6. Defects are caused because of factors beyond control of Blue Star Ltd., like lightning, abnormal voltage, Acts of God, environmental conditions, negligence of Purchaser in using Product.
- Page 31 3. Blue Star Ltd. strongly recommends that customers avail of Blue Star ’s Annual Maintenance Contract for the customer to get timely service and maintenance, ensuring continued optimum performance of the product.
- Page 32 MEGA SPLIT AIRCONDITIONING SYSTEMS Warranty Registration: You can register your product warranty with Blue Star in one of two easy ways. a. Visit h t t p : / / w w w.bluestarindia.com/ c u s t o m e r - s e r v i c e / o n l i n e - w a r r a n t y - register.aspx and follow instructions therein.
-
Page 33: Warranty Certificate
Warranty Certificate USER’S MANUAL Mega Split Airconditioners Customer’s Name :......................Address :...................................................... City ........State ........Pin........Phone / Mobile No. : (O)..........(R)..........Bill No..............Date : ........... Model No............Serial No..........Dealer’s Name & Address Dealer’s Signature & Stamp Warranty Certificate Mega Split Airconditioners Customer’s Name :...................... - Page 34 MEGA SPLIT AIRCONDITIONING SYSTEMS Please Affix Postage Stamp Blue Star Limited, CBO - ACRSD II Pokharan Road, Majiwada, Thane - 400 601...
- Page 35 KOCHI GUWAHATI 2nd Floor, Millennium Plaza, MUMBAI 13, K C Patowari Road, MKK Nair Road, Alinchuvadu • Blue Star House Junction, Kochi - 682 024. Ulubari, Guwahati - 781 007. 9A, Ghatkopar Link Road Tel: (0361) 2468496 Tel: (0484) 4499000/4499043 Saki Naka, Mumbai - 400 072.
- Page 36 MEGA SPLIT AIRCONDITIONING SYSTEMS...
- Page 37 E-Waste Management Protect The Environment From E-WASTE This product at its end of usable life should not be mixed with household domestic waste or any general waste. It must be stored separately and disposed off through an authorized recycler of electrical and electronic appliance waste since it is categorized under Schedule I of E-Waste Management Rules promulgated by the Government of India.
