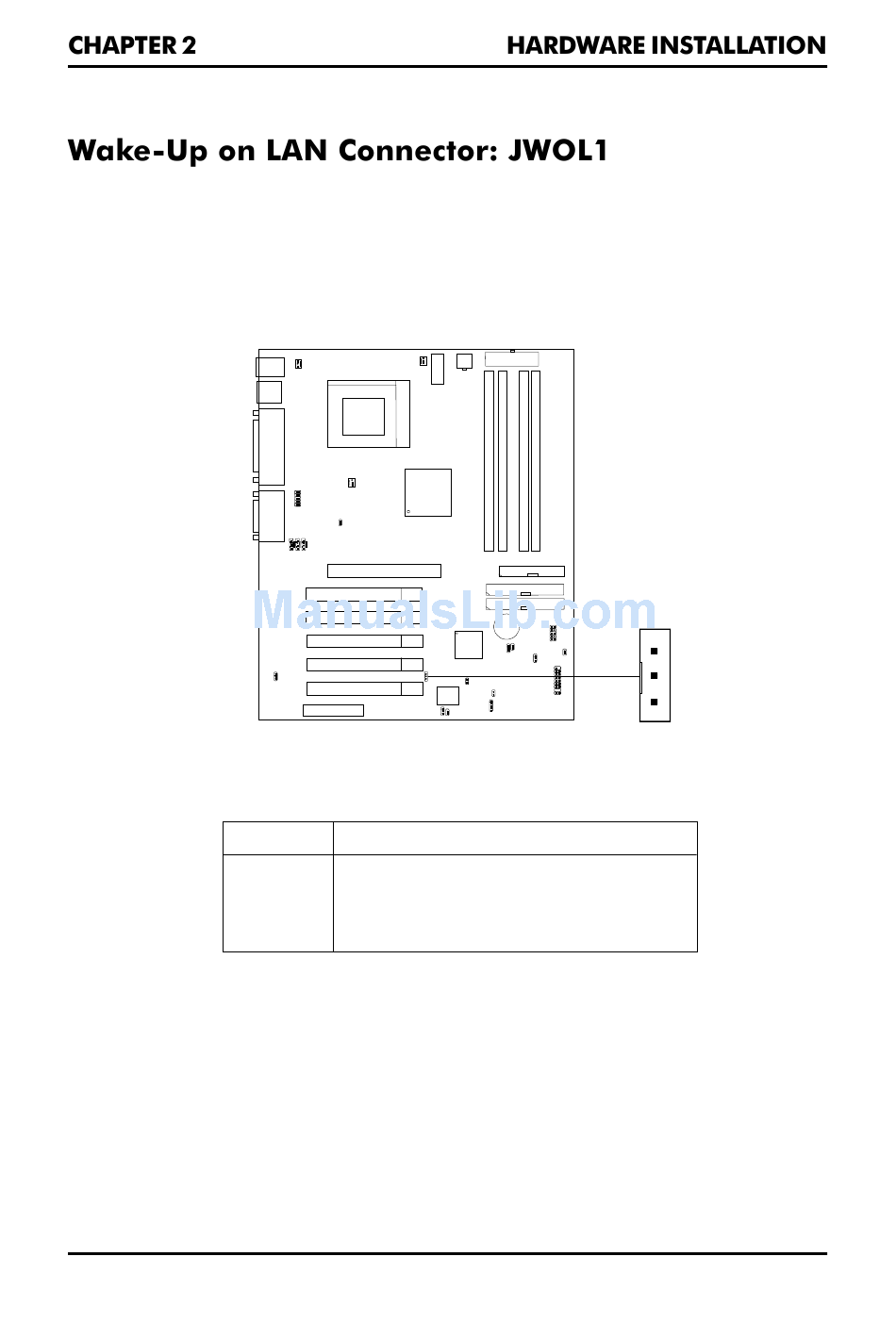

The JWOL1 connector is for used with LAN add-on cards that supports
Wake Up on LAN function. To use this function, set the "Wake-Up on
LAN" to enable at the BIOS Power Management Setup.
Note: LAN wake-up signal is active "high".
Note:
To be able to use this function, you need a power supply that
provide enough power for this feature. (Power supply with 750mA
5V Stand-by)
PIN
1
2
3
2-22
SIGNAL
5VSB
GND
MP_WAKEUP
1
3
JWOL1
