Memorex MP3441 User Manual

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING:
Users of this product are cautioned not to make modifications or changes that are not
approved by MEM-CE, LLC., doing so may void the compliance of this product and may result in the loss
of the user's authority to operate the equipment.
DANGER: This symbol is intended to alert the user to the risk of exposure to invisible and hazardous laser
radiation if the cover or back is opened the interlock fails or is defeated. Direct exposure to the beam may
damage your eyesight.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
LASER SAFETY: This unit employs a laser. Only qualified service personnel should attempt to service this device due
to possible eye injury.
CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURE HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges
ARE NOT covered under warranty for this product.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme
à la norme NMB-003 du Canada.
CLASS 1 LASER PRODUCT
CAUTION
CLASS 1 LASER PRODUCT INVISIBLE LASER RADIATION
APPAREIL Á LASER DE CLASSE 1 WHEN OPEN AND INTERLOCKS
PRODUCTO LASER DE CLASE 1 DEFEATED.
AVOID EXPOSURE TO BEAM
IMPORTANT SAFETY INSTRUCTIONS
1. Read these Instructions. 11. Only use attachments/accessories specified by the
2. Keep these Instructions. manufacturer.
3. Heed all Warnings. 12. Unplug this apparatus during lightning storms or when
4. Follow all Instructions. unused for long periods of time.
5. Do not use this apparatus near water. 13. Refer all servicing to qualified service personnel.
6. Clean only with a dry cloth. Servicing is required when the apparatus has been
7. Do not block any of the ventilation openings. Install damaged in any way, such as power-supply cord or
in accordance with the manufacturer's instructions. plug is damaged, liquid has been spilled or objects
8. Do not install near any heat sources such as have fallen into the apparatus, the apparatus has
radiators, heat registers, stoves, or other apparatus been exposed to rain or moisture, does not operate
(including amplifiers) that produce heat. normally, or has been dropped.
9. Do not defeat the safety purpose of the polarized 14. WARNING: To reduce the risk of fire or electric shock,
or grounding-type plug. A polarized plug has two do not expose this apparatus to rain or moisture. Do
blades with one wider than the other. A grounding- not place objects filled with water, such as a vase, on
type plug has two blades and a third grounding the apparatus.
prong. The wide blade or the third prong are 15. The AC mains plug is used as the power disconnect
provided for your safety. When the provided plug device and it should remain readily accessible and
does not fit into your outlet, consult an electrician operable during intended use. In order to completely
for replacement of the obsolete outlet. disconnect the apparatus from power, the mains plug
10. Protect the power cord from being walked on should be completely removed from the AC outlet
or pinched particularly at plugs, convenience socket.
receptacles, and the point where they exit from the
apparatus.

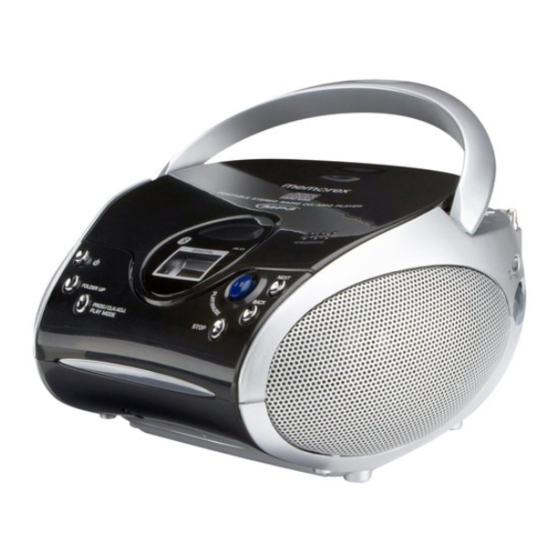

Bluetooth CD Boombox Portable AM/FM
HOW TO USE THE MEMOREX MP3441
Congratulations on your purchase of the Memorex Portable Bluetooth ® CD Boombox!
The MP3441, with built-in Bluetooth ® v2.1 + EDR Wireless Technology, makes it easy
to take your tunes anywhere. Choose from a variety of music sources, including CD/
MP3/WMA formatted Discs, FM Stereo Radio, and wireless streaming from Bluetooth-
enabled devices. Please follow these operational instructions carefully. Save them for
future reference.
POWER SUPPLY
Before first use, check that the rated voltage of the unit matches your local voltage.
• Connect AC adapter and power cord to AC socket and plug into AC outlet.
ar
• When using batteries, disconnect the AC power cord. Battery power will
AC plug
To AC socket
AC outlet
To AC outlet
AC plug
To AC socket
To AC outlet
automatically cut off when cord is connected.
• Insert 6 "C" size batteries (not included). When the volume decreases, or the
sound starts to distort, replace all of the batteries with new ones.
• Press the POWER button to turn unit on or off.
w
_
+
_
+
_
+ _
+
_
+
_
+
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Warning – Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
2. Use only the size and type of batteries specified.
3. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. A reversed battery
may cause damage to the device.
4. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbon-zinc) or old batteries with fresh ones.
5. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery
leakage.
6. Do not try to recharge a battery not intended to be recharged; it can overheat and rupture. (Follow battery manufacturer's
directions.)
7. Remove batteries promptly if consumed.
8. Clean the battery contacts and also those of the device prior to battery installation.
• Use the Function switch to change audio mode between CD, Radio and Bluetooth.
BLUETOOTH OPERATION
1. Press the POWER button w.
2. Set Function switch to Bluetooth, "BT" will apear in the Display.
bk
3. On your Bluetooth-enabled device, select Bluetooth in Settings and search for
"MRX-MP3441."
4. The Bluetooth Blue LED Indicator will flash during pairing and remain steady when
successfully paired.
5. Select and play music from Bluetooth-enabled device.
Note: When turned on and in Bluetooth source mode, the boombox will automatically
try to connect to the most recently played paired device, when available. If connection
is lost after successful pairing, check to make sure the distance between speaker and
Bluetooth- enabled device does not exceed 30 ft/10 m.
CD PLAYER OPERATION
1. Press the POWER button w.
2. Set Function switch to CD/MP3/WMA Disc Mode.
bk
3. Open and Close the CD door by pushing the Open/Close button X.
4. Insert a disc with the label side facing up, close door and press Play/Pause button
al.
5. Press the Skip 9 or : buttons to play previous or next track. Press and hold
am ak
the Skip 9 or : buttons to search for track or passage within a track.
6. Press Play MODE button during disc playback to Rrepeat a single track, all
u
tracks or random playback.
7. Use Program playback to select tracks on a disc to play (up to 20 tracks) in a
desired order. (Additional PROGRAM instructions available in User Manual at www.
memorex-ce.com)
Note: If the CD skips or will not play, the disc may need to be cleaned. Wipe the disc
with a clean cloth. Keep CD lens clean from dust and fingerprints.
I'll Play Your Tunes
HOW TO USE THE MEMOREX MP3441
LISTENING TO THE RADIO
1. Press the POWER button w.
2. Set Function switch to Radio Mode.
bk
3. Select a Radio Band (AM or FM, or FM Stereo).
ap
4. For better FM reception, extend and adjust telescoping antenna. For better AM
reception, rotate the unit as it has an internal AM antenna.
5. Tune to a station, adjust sound using volume control and enjoy!
CLOCK FUNCTION
• Clock will appear in the display when in Standby Mode when plugged in or when
AC outlet
using battery power.
• Press PROGRAM/CLOCK-ADJ button u.
• Press Skip 9 or : buttons to select 12-Hour or 24-Hour Display.
am ak
• Press the PROGRAM/CLOCK-ADJ button until the Hour Digit flashes.
u
• Press Skip 9 or : buttons to adjust the hour digit.
am ak
• Press the PROGRAM/CLOCK-ADJ button until the Minute Digit flashes.
u
• Press Skip 9 or : buttons to adjust the minute digit.
am ak
• Press the PROGRAM/CLOCK ADJ button again; correct time will appear in
u
the display.
WHERE TO PLACE ITEM
Today's furniture is coated with a wide variety of lacquers and synthetic coatings that
are treated with an extensive range of cleaning products. Therefore, the possibility
that some of these substances contain components that react adversely to the
rubber feet of the item and soften them, cannot be completely excluded. The rubber
feet of the appliance can cause discoloring to furniture surfaces. If necessary, place
the appliance on a non-slide surface.
MAINTAINING YOUR SYSTEM FOR CONTINUED ENJOYMENT
• When not in use, turn unit off.
• Keep the unit away from direct sunlight and excessive heat.
• Clean durable rubberized exterior with a damp soft cloth.
• CLEANING THE CD LENS: If the CD lens is dusty, clean it with a brush-blower.
Blow several times on the lens and remove the dust with the brush. Finger prints
may be removed with a cotton swab moistened with alcohol.
• CLEANING THE UNIT: Do not use volatile chemicals on this unit. Clean by lightly
wiping with a soft cloth.
• If an abnormal display indication or an operating problem occurs, disconnect the
AC power cord and remove the batteries. Wait at least 5 seconds, then reconnect
the AC power cord or reinstall the batteries.
SPECIFICATIONS AND COMPATIBILITY
CD Section .......................................................................................................................... 2 Channels
S/N Radio .................................................................................................................................... 60 dB
Wow & Flutter ....................................................................................................................Undetectable
Sampling Frequency ......................................................................................44.1 kHz 8 x over sampling
Quantization .............................................................................................................. 1 bit DA converter
Pick Up Light Source ..............................................................................................Semi-conductor laser
Pick Up Wave Length ................................................................................................................ 790 nm
Bluetooth Standard ....................................................................................................Version 2.1 + EDR
Range .................................................................................................................................... 10m/33ft
Radio Tuning Ranges .............................................................FFM 87.5– 108 MHz AM 530 – 1710 kHz
Antennas ......................................................................................AM built-in ferrite bar, FM rod antenna
Output Power...............................................................................................................1W + 1 W (RMS)
Power Consumption ....................................................................................................................... 12W
Speaker................................................................................................................................. 3" 8 OHM
Phones jack ............................................................................................................................... 3.5mm
Dimensions ................................................................................................244mm x 234mm x 128mm
Weight ..................................................................................................................................... 1.42 kg
Power Source .............................................................................................................AC: 120V ~ 60Hz
LOCATION OF CONTROLS
1. CD Program / Clock-ADJ / CD Play
Mode Button
2. CD Folder Up Button
3. Power Button
4. Bluetooth Indicator
5. CD Display
6. Speaker
7. CD Door
8. Telescopic Antenna
9. Open / Close CD Button
10. FM Stereo Indicator
11. CD : Next Button
LIMITED WARRANTY
DC: 9V (6 x 1.5V LR14/"C"/UM2)
MEM-CE, LLC. warrants this product against defects for 90 days from the date of original purchase. MEM-CE, LLC. shall
not be responsible for any lost data or other incidental or consequential damages related to this product. Some jurisdictions
do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This limited warranty gives you specic legal rights, and
you may have other rights which may vary from one state, province or country to another.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR
PLACE OF PURCHASE OR MEM-CE, LLC.
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT: WWW.MEMOREX-CE.COM
OR CONTACT CUSTOMER SERVICE: For customers calling within the United States and Canada, call 1-877-363-6673
MEM-CE, LLC.
11485 Valley View Road, Eden Prairie, MN 55344 USA MEMOREX-CE.COM
Memorex and the Memorex logo are trademarks of Imation Corp and its affiliates. The Bluetooth
owned by Bluetooth SIG, Inc. and any use of such marks by Imation Corp is under license. All other trademarks are the property of their respective
owners.
For additional setup, operating assistance or an electronic version of this user manual, please visit www.MEMOREX-CE.COM
User Guide
Please read these instructions completely
before operating this product.
MEMOREX-CE.COM
MP3441
12. CD Play / Pause Button
13. CD 9 Back Button
14. CD Stop Button
15. Dial Scale
16. Band Switch
17. Tuning Control
18. AC Socket
19. Carrying Handle
20. Volume Control
21. Function Switch
22. Phones Jack
23. Battery Compartment
® word mark and logos are registered trademarks
