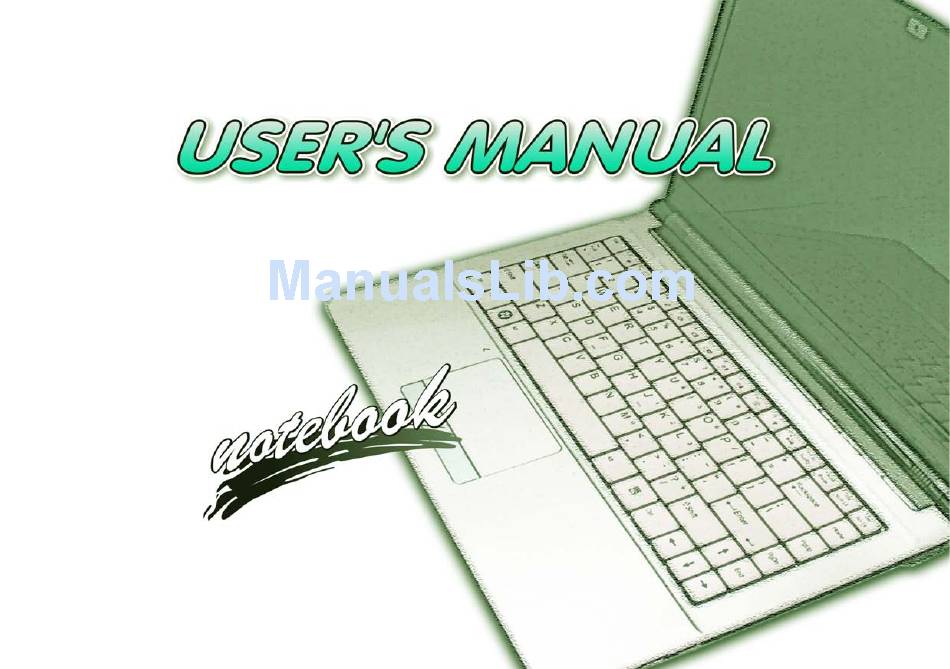

SVOA C4805 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V10.1.30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C4805 and is the answer not in the manual?

Questions and answers

Related Manuals for SVOA C4805

Summary of Contents for SVOA C4805

  • Page 1 V10.1.30...
  • Page 3 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
  • Page 4 Preface R&TTE Directive This device is in compliance with the essential requirements and other relevant provisions of the R&TTE Direc- tive 1999/5/EC. This device will be sold in the following EEA countries: Austria, Italy, Belgium, Liechtenstein, Denmark, Lux- embourg, Finland, Netherlands, France, Norway, Germany, Portugal, Greece, Spain, Iceland, Sweden, Ireland, United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Slovakia, Poland, Slov- enia.

  • Page 5: Fcc Statement

    Preface FCC Statement (Federal Communications Commission) You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 6 Preface FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

  • Page 7: Important Safety Instructions

    Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment: Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 8: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...
  • Page 9 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work.

  • Page 10: Power Safety

    Preface Power Safety The computer has specific power requirements: •Only use a power adapter approved for use with this computer. •Your AC/DC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are unsure of your local power specifications, consult Power Safety Warning your service representative or local power company.

  • Page 11: Battery Precautions

    Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not remove any batteries from the computer while it is powered on. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
  • Page 12 Preface Cleaning Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer. Servicing Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock.

  • Page 13: Travel Considerations

    Preface Travel Considerations Packing As you get ready for your trip, run through this list to make sure the system is ready to go: Check that the battery pack and any spares are fully charged. Power off the computer and peripherals. Close the display panel and make sure it’s latched.
  • Page 14 Preface On the Road In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind: Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common.
  • Page 15 Preface Developing Good Work Habits Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints.

  • Page 16: Lcd Screen Care

    Preface Lighting Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders. • Position the display to avoid glare or reflections from overhead lighting or outside sources of light. • Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly. •...
  • Page 17 Preface Contents Notice .................I System Map: Front & Left Views ........1-11 FCC Statement ..............III System Map: Right & Rear Views ......1-12 FCC RF Radiation Exposure Statement: ......IV System Map: Bottom View ..........1-13 Instructions for Care and Operation ....... VI Windows Vista Start Menu &...
  • Page 18 Preface Gestures and Device Settings ........2-10 Battery Life ..............3-13 Sentelic Driver .............2-13 New Battery ..............3-13 Finger Sensing Pad Configurator .........2-14 Recharging the Battery with the AC/DC Adapter ..3-13 Gestures ...............2-15 Proper handling of the Battery Pack ......3-14 Audio Features .............2-16 Battery FAQ ..............3-15 Optimizing Audio Recording ........2-17 Drivers &...
  • Page 19 Preface 3.75G/HSPA Module .............4-8 Advanced Chipset Control (Advanced Menu) ....5-9 Security Menu ..............5-10 BIOS Utilities Set Supervisor Password (Security Menu) ....5-10 Set User Password (Security Menu) ......5-11 Overview ................5-1 Password on boot: (Security Menu) ......5-11 The Power-On Self Test (POST) ........5-2 Boot Menu ..............5-12 Failing the POST ............5-3 Exit Menu ..............5-13...
  • Page 20 Preface Connecting to a Wireless Network in Windows Vista 7-22 Interface (Ports & Jacks) 3.75G/HSPA Module ...........7-26 Overview ...............A-1 HSPA Modem Interface ..........7-30 Notebook Ports and Jacks ..........A-2 HSPA Modem Interface Installation ......7-30 HSPA Modem Interface ..........7-31 SIS Video Driver Controls Adding a Profile ............7-33 SIS Video Driver Installation ........
  • Page 21 Preface Audio ................C-3 Keyboard & Pointing Device ........C-3 Interface ................ C-3 Card Reader ..............C-3 Slots ................C-3 Communication ............. C-3 Power Management ............C-3 Power ................C-4 Security ................. C-4 Operating System ............C-4 Environmental Spec ............C-4 Dimensions &...
  • Page 22 Preface...

  • Page 23: Overview

    Quick Start Guide Chapter 1: Quick Start Guide Overview This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following: •...

  • Page 24: Advanced Users

    Quick Start Guide Advanced Users If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “What to Install” on page 4 - “BIOS Utilities” on page 5 - 1 “Upgrading The Computer”...

  • Page 25: Notebook Ports And Jacks

    Quick Start Guide Not Included Operating Systems (e.g. Windows Vista/Windows 7) and applications (e.g. word processing, spreadsheet and da- tabase programs) have their own manuals, so please consult the appropriate manuals. Drivers If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers listed in “Drivers &...

  • Page 26: System Startup

    Quick Start Guide System Startup Remove all packing materials. Place the computer on a stable surface. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports. Attach the AC/DC adapter to the DC-In jack on the left of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC/DC adapter.

  • Page 27: System Software

    Quick Start Guide System Software Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find that this manual refers to the Windows 7 operating system (however where necessary notes are provided on the Windows Vista OS).

  • Page 28: System Map: Lcd Panel Open

    Quick Start Guide System Map: LCD Panel Open Figure 1 - 2 LCD Panel Open Built-In PC Camera Wireless Device (Optional) Operation Aboard Aircraft Power Button Hot Key Buttons The use of any portable elec- LED Status tronic transmission devices Indicators (see aboard aircraft is usually pro- Table 1 - 2, on...

  • Page 29: Led Indicators

    Quick Start Guide LED Indicators Icon Color Description The LED indicators on the computer display helpful information about the current status of the computer. Icon Color Description Scroll Lock Activated (to activate Green press Fn & Scr Lk) Green Caps Lock Activated Green Number Lock Activated Orange...

  • Page 30: Hot Key Buttons & Keyboard

    Quick Start Guide Hot Key Buttons & Keyboard These buttons give instant access to the default Internet browser and e-mail program, and allow you to toggle the Silent Mode on/off with one quick button press. Hot Key Function Toggle *Silent Mode (for power saving) Activate the Default Internet Program Activate the Default E-Mail Browser (Note that in Windows 7 without Outlook/Outlook Express installed this button has no function.

  • Page 31: Keyboard

    Quick Start Guide Keyboard The keyboard has an embedded numerical keypad for easy numeric data input, and Other Keyboards features function keys to allow you to change operational features instantly. See Table 1 - 4, on page 1 - 10 for full function key combination details.

  • Page 32: Function/Hot Key Indicators

    Quick Start Guide Function/Hot Key Indicators The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the basic function key combinations; visual indicators are available when the hot key utility is installed. Keys Function Keys...

  • Page 33: System Map: Front & Left Views

    Quick Start Guide System Map: Front & Left Views Figure 1 - 4 Front & Left Views LED Power Indica- tors (see Table 1 - 1, on page 1 - DC-In Jack External Monitor Port RJ-45 LAN Jack Vent/Fan Intake/ Outlet 2 * USB 2.0 Ports ExpressCard 34 Slot...

  • Page 34: System Map: Right & Rear Views

    Quick Start Guide System Map: Right & Rear Views Figure 1 - 5 Right & Rear Views Microphone-In Jack Headphone-Out Jack USB 2.0 Port RJ-11 Phone Jack Optical Device Drive Bay (for CD/ DVD Device) Security Lock Slot CD/DVD Emergency Eject Changing DVD Regional Codes Battery If you need to manually eject a CD/...

  • Page 35: System Map: Bottom View

    Quick Start Guide System Map: Bottom View Figure 1 - 6 Bottom View Battery Component Bay Battery Information Cover Always completely dis- Vent/Fan Intake/ charge, then fully charge, a Outlet new battery before using it. Hard Disk Bay Completely discharge and Cover charge the battery at least 3.75G USIM Card...
  • Page 36 Quick Start Guide Windows 7 Start Menu & Control Panel Most of the control panels, utilities and programs within Windows 7 (and most other Windows versions) are ac- cessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in the Start menu and/or the desktop.

  • Page 37: Windows Vista Start Menu & Control Panel

    Quick Start Guide Windows Vista Start Menu & Control Panel Windows Vista has a similar Start menu and set of control panels to that of Windows 7. To see all the Windows Vista controls it may be necessary to toggle to Classic View on. Click here to toggle Classic View Figure 1 - 8 - Start Menu &...

  • Page 38: Video Features - Win 7

    Quick Start Guide Video Features - Win 7 You can switch display devices, and configure display options, from the Display control panel (in Appearances and Personalization) in Windows 7. For more detailed video information see “SIS Video Driver Controls” on page B - To access Display (Control Panel) and Screen Resolution in Windows: Click Start and click Control Panel.

  • Page 39: Screen Resolution & Sis Control Center - Win 7

    Quick Start Guide Screen Resolution & SiS Control Center - Win 7 Figure 1 - 9 - Screen Resolution & SiS Control Center - Win 7 Video Features - Win 7 1 - 17...

  • Page 40: Video Features - Win Vista

    Quick Start Guide Video Features - Win Vista You can switch display devices, and configure display options, from the Display Settings control panel (in Per- sonalization) in Windows Vista. To access Display Settings in Windows Vista: Click Start, and click Control Panel (or point to Settings and click Control Panel). Click Adjust screen resolution under the Appearance and Personalization menu (or double-click Personalization >...

  • Page 41: Display Settings & Sis Control Center - Win Vista

    Quick Start Guide Display Settings & SiS Control Center - Win Vista Figure 1 - 10 - Display Settings & SiS Video Control Center - Win Vista Video Features - Win Vista 1 - 19...

  • Page 42: Power Options

    Quick Start Guide Power Options The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 13) allows you to configure power management features for your computer. You can conserve power by means of power plans and configure the options for the power button, sleep button, computer lid (when closed), display and sleep mode from the left menu.

  • Page 43: Mofa Lcd Back Covers

    Quick Start Guide MOFA LCD Back Covers MOFA (Magic of Film Art) technology allows fashionable and unique pictorial designs to be printed on the spe- cially designed changeable LCD back covers. If your purchase option includes the specially designed change- able LCD back cover option, then follow the instructions in “Changing the Optional Top Covers”...
  • Page 44 Quick Start Guide 1 - 22...

  • Page 45: Overview

    Features & Components Chapter 2: Features & Components Overview Read this chapter to learn more about the following main features and components of the computer: • Hard Disk Drive • Optical (CD/DVD) Device • 7-in-1 Card Reader • ExpressCard Slot •...

  • Page 46: Hard Disk Drive

    Features & Components Hard Disk Drive The hard disk drive is used to store your data in the computer. The hard disk can be Power Safety taken out to accommodate other 2.5" serial (SATA) hard disk drives (see “Storage” on page C - 3) with a height of 9.5 mm.

  • Page 47: Optical (Cd/Dvd) Device

    Features & Components Optical (CD/DVD) Device There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual de- Sound Volume vice will depend on the module you purchased (see “Storage” on page C - 3). The Adjustment optical device is usually labeled “Drive D:”...

  • Page 48: Handling Cds Or Dvds

    Features & Components Handling CDs or DVDs Proper handling of your CDs/DVDs will prevent them from being damaged. Please follow the advice below to make sure that the data stored on your CDs/DVDs can be CD Emergency Eject accessed. If you need to manually eject a CD (e.g.

  • Page 49: Dvd Regional Codes

    Features & Components DVD Regional Codes To change the DVD regional codes see “Changing DVD Regional Codes” on page 1 - DVD Regional Coding Table 2 - 1 Region Geographical Location DVD Regional Coding USA, Canada Western Europe, Japan, South Africa, Middle East &...

  • Page 50: In-1 Card Reader

    Features & Components 7-in-1 Card Reader The card reader allows you to use some of the latest digital storage cards. Push the Card Reader Cover card into the slot and it will appear as a removable device, and can be accessed in the same way as your hard disk (s).

  • Page 51: Expresscard Slot

    Features & Components ExpressCard Slot The computer is equipped with an ExpressCard 34 slot that reads Express Card/34 ExpressCard formats. ExpressCards are the successors to PCMCIA (PC Cards). Make sure you Slot Cover install the Card Reader driver (see “CardReader” on page 4 - Make sure you keep the Inserting and Removing ExpressCards rubber cover provided in...

  • Page 52: Touchpad And Buttons/Mouse

    Features & Components TouchPad and Buttons/Mouse The TouchPad is an alternative to the mouse; however, you can also add a mouse to your computer through one of the USB ports. The TouchPad buttons function in much the same way as a two-button mouse. There are two TouchPad drivers available for this computer model series.

  • Page 53: Synaptics Driver

    Features & Components Synaptics Driver Once you have installed the TouchPad driver (see “TouchPad” on page 4 - 6) you can configure the functions by double-clicking the TouchPad driver icon in the Mouse Driver taskbar. You may then configure the TouchPad tapping, buttons, scrolling, pointer If you are using an ex- motion and sensitivity options to your preferences.

  • Page 54: Gestures And Device Settings

    Features & Components Gestures and Device Settings The Synaptics Gestures Suite application allows you to use a specific gesture (ac- Show Video tion) on the surface of the TouchPad to perform specific actions to manipulate doc- uments, objects and applications. You can get a clearer view of the gestures in- volved by clicking the...
  • Page 55 Features & Components Scrolling The Two-Finger scrolling feature works in most scrollable windows and allows you to scroll horizontally and vertically. Place two fingers, slightly separated, on the TouchPad surface and slide both fingers in the direction required (in a straight con- tinuous motion).
  • Page 56 Features & Components Rotating Use the Pivot Rotate gesture to rotate objects (e.g. photos) in 90 degree increments. Place a finger down on the left “target” zone and keep it stationary. Place another finger near the middle of the TouchPad and slide it in a circular motion around the stationary finger (clockwise or counterclockwise) to rotate the object.

  • Page 57: Sentelic Driver

    Features & Components Sentelic Driver Once you have installed the TouchPad driver (see “TouchPad” on page 4 - 6) you can configure the functions by double-clicking the TouchPad driver icon in the Mouse Driver taskbar. You may then configure the buttons, pointers and finger-sensing pad op- If you are using an ex- tions to your preferences.

  • Page 58: Finger Sensing Pad Configurator

    Features & Components Finger Sensing Pad Configurator The Finger Sensing Pad Configurator allows you to use a configure the settings for the Finger Pad device and software. The left pane in the control panel contains all the configurable items, and you can click the “+” to expand the menu selections. You can configure the settings from the Device Settings tab in Mouse Properties: Click Start, and click Control Panel (or point to Settings and click Control Panel).

  • Page 59: Gestures

    Features & Components Gestures Click Gestures and make sure that the Enable Gestures tickbox is clicked. Double- click Gestures and then double-click Advanced to open the submenu. You can con- Play Video figure any of the gestures from this submenu. You can get a clearer view of the gestures in- volved by clicking the...

  • Page 60: Audio Features

    Features & Components Audio Features You can configure the audio options on your computer from the Sound control Sound Volume panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar/ Adjustment control panel (right-click the taskbar icon to bring up an audio menu).

  • Page 61: Optimizing Audio Recording

    Features & Components Optimizing Audio Recording Follow these instructions to optimize your audio recording. Double-click the taskbar icon to bring up the Realtek HD Audio Manager. Click the Microphone tab. Click the Noise Suppression button to prevent any background noise or feedback.

  • Page 62: Adding A Printer

    Features & Components Adding a Printer The most commonly used peripheral is a printer. The following conventions will Parallel Printer help you to add a printer; however it is always best to refer to the printer manual for specific instructions and configuration options. After setting up the print- er attach the parallel ca- ble to the printer.

  • Page 63: Overview

    Power Management Chapter 3: Power Management Overview OS Note Power management To conserve power, especially when using the battery, your computer power man- functions will vary slight- agement conserves power by controlling individual components of the computer ly depending on your (the monitor and hard disk drive) or the whole system.

  • Page 64: The Power Sources

    Power Management The Power Sources The computer can be powered by either an AC/DC adapter or a battery pack. AC/DC Adapter Use only the AC/DC adapter that comes with your computer. The wrong type of AC/ DC adapter will damage the computer and its components. Attach the AC/DC adapter to the DC-in jack on the left of the computer.

  • Page 65: Turning On The Computer

    Power Management Turning On the Computer Now you are ready to begin using your computer. To turn it on simply press the pow- Forced Off er button on the front panel. If the system “hangs”, When the computer is on, you can use the power button as a Stand by/Hibernate/ and the Ctrl + Alt + Del Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and key combination doesn’t...

  • Page 66: Power Plans

    Power Management Power Plans The computer can be configured to conserve power by means of power plans. You Resuming can use (or modify) an existing power plan, or create a new one. Operation The settings may be adjusted to set the display to turn off after a specified time, and Table 3 - 1, on to send the computer into Sleep after a period of inactivity.
  • Page 67 Power Management Each Windows power plan will also adjust the processor performance of your ma- chine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power). Choose High performance (you may need to click Show additional plans to view the High performance plan) for maximum performance when the computer is pow- ered from an AC power source.
  • Page 68 Power Management Figure 3 - 3 Power Plan Advanced Settings (Win Vista) 3 - 6 Power Plans...

  • Page 69: Power-Saving States

    Power Management Power-Saving States You can use power-saving states to stop the computer’s operation and restart where you left off. Win 7/ Win Vista use the Sleep, Hibernate and Shut Down power-sav- ing states. Sleep In Sleep all of your work, settings and preferences are saved to memory before the system sleeps.

  • Page 70: Hibernate

    Power Management Hibernate Hibernate uses the least amount of power of all the power-saving states and saves all of your information on a part of the hard disk before it turns the system off. If a Win Vista Power power failure occurs the system can restore your work from the hard disk; if a power Button failure occurs when work is saved only to memory, then the work will be lost.

  • Page 71: Configuring The Power Buttons

    Power Management Configuring the Power Buttons The power/sleep button (Fn + F4 key combo) and closed lid may be set to send the Password computer in to a power-saving state. Click Choose what the power buttons do on Protection the left menu in Power Options to bring up the menu. It is recommended that Win 7 WinVista...

  • Page 72: Resuming Operation

    Power Management Resuming Operation You can resume operation from power-saving states by pressing the power button, or in some cases pressing the sleep button (Fn + F4 key combo). Closing the Lid If you have chosen to Power Status To Resume send the computer to Icon Color...

  • Page 73: Battery Information

    Power Management Battery Information Follow these simple guidelines to get the best use out of your battery. Low Battery Battery Power Warning Your computer’s battery power is dependent upon many factors, including the pro- When the battery is criti- grams you are running, and peripheral devices attached. You can set actions to be cally low, immediately taken (e.g.

  • Page 74: Conserving Battery Power

    Power Management Conserving Battery Power • Use a power plan that conserves power (e.g Power saver), however note that this may have an affect on computer performance. Windows Mobility Center • Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC/DC adapter.

  • Page 75: Battery Life

    Power Management Battery Life Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days. We recommend that you do not remove the battery yourself. If you do need to re- move the battery for any reason (e.g.

  • Page 76: Proper Handling Of The Battery Pack

    Power Management Proper handling of the Battery Pack • DO NOT disassemble the battery pack under any circumstances • DO NOT expose the battery to fire or high temperatures, it may explode Caution • DO NOT connect the metal terminals (+, -) to each other Danger of explosion if battery is incorrectly re- placed.

  • Page 77: Battery Faq

    Power Management Battery FAQ How do I completely discharge the battery? Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer even if a message indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own.
  • Page 78 Power Management Click Change plan settings (after creating it) and click Change plan settings > Change advanced power settings. Figure 3 - 9 Change Plan Settings / Change Advanced Power Settings 3 - 16 Battery Information...
  • Page 79 Power Management Scroll down to Battery and click + to expand the battery options. Choose the options below (click Yes if a warning appears): Figure 3 - 10 Power Options Advanced Settings - Battery • Low battery levels = 0% •...
  • Page 80 Power Management How do I fully charge the battery? When charging the battery, don’t stop until the LED charging indicator light changes from orange to green. How do I maintain the battery? Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.

  • Page 81: What To Install

    Drivers & Utilities Chapter 4: Drivers & Utilities This chapter deals with installing the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems. The system takes advantage of some newer hardware components for which the lat- est versions of most available operating systems haven’t built in drivers and utilities.

  • Page 82: Windows 7/Vista Driver Installation

    Drivers & Utilities Windows 7/Vista Driver Installation Insert the Device Drivers & Utilities + User’s Manual disc and click Install Drivers/Option Drivers (button). Figure 4 - 1 - Drivers Installer Screen 1 Check the driver installation order from Table 4 - 1, on page 4 - 3 (the drivers must be installed in this order) which is the same as that listed in the Drivers Installer menu below.
  • Page 83 Drivers & Utilities Driver Win 7 Vista (SP2) Video Page 4 - 6 Modem Page 4 - 6 Page 4 - 6 TouchPad Page 4 - 6 CardReader Page 4 - 6 Hot Key Page 4 - 7 Audio Page 4 - 7 Figure 4 - 2 PC Camera Module Page 7 - 11...

  • Page 84: Updating/Reinstalling Individual Drivers

    Drivers & Utilities Manual Driver Installation Updating/Reinstalling Individual Drivers Click Browse CD/DVD (button) in the Drivers Install- If you wish to update/reinstall individual drivers it er application and browse to the executable file in the may be necessary to uninstall the original driver.To do appropriate driver folder.

  • Page 85: User Account Control

    Drivers & Utilities User Account Control New Hardware Found If a User Account Control prompt appears as part of If you see the message “New Hardware Found” dur- the driver installation procedure, click Continue or ing the installation procedure (other than when out- Allow, and follow the installation procedure as direct- lined in the driver install procedure), click Cancel to close the window, and follow the installation proce-...

  • Page 86: Driver Installation Procedure

    Drivers & Utilities Driver Installation Procedure Insert the Device Drivers & Utilities + User’s Manual 1. Click 3.Install Lan Driver > Yes. disc and click Install Drivers (button). 2. Click Next. 3. Click Finish to restart the computer. Video 1. Click 1.Install Video Driver > Yes. TouchPad 2.

  • Page 87: Audio

    Drivers & Utilities Hot Key 1. Click 6.Install Hotkey Driver > Yes. 2. Click Next > Next. Windows 7 Update 3. Click Finish > Finish to restart the computer. After installing all the drivers make sure you enable Win- dows Update in order to get all the latest security up- Audio dates etc.

  • Page 88: Optional Drivers

    Drivers & Utilities Optional Drivers Bluetooth Module Note: The operating system is the default setting for See the pages indicated for the driver installation pro- Bluetooth control in Windows 7/Windows Vista, and cedures for any modules included in your purchase op- does not require a driver.

  • Page 89: Overview

    BIOS Utilities Chapter 5: BIOS Utilities Overview BIOS Settings Warning This chapter gives a brief introduction to the computer’s built-in software: Incorrect settings can cause your system to Diagnostics: The POST (Power-On Self Test) malfunction. To correct mistakes, return to Set- up and restore the Set- Configuration: The Setup utility up Defaults with <F9>.

  • Page 90: The Power-On Self Test (Post)

    BIOS Utilities The Power-On Self Test (POST) Each time you turn on the computer, the system takes a few seconds to conduct a POST Screen POST, including a quick test of the on-board RAM (memory). 1.BIOS information As the POST proceeds, the computer will tell you if there is anything wrong. If there 2.CPU type is a problem that prevents the system from booting, it will display a system summary 3.Memory status...

  • Page 91: Failing The Post

    BIOS Utilities Failing the POST Errors can be detected during the POST. There are two categories, “fatal” and “non- fatal”. Fatal Errors These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized service center as soon as possible.

  • Page 92: The Setup Utility

    BIOS Utilities The Setup Utility The Phoenix Setup utility tells the system how to configure itself and manage basic features and subsystems (e.g. port configuration). Entering Setup To enter Setup, turn on the computer and press F2 during the POST. The prompt (Press F2 to Enter Setup) seen on page 5 - 2 is usually present for a few seconds...

  • Page 93: Setup Screens

    BIOS Utilities Setup Screens The following pages contain additional advice on portions of the Setup. Setup Menus Along the top of the screen is a menu bar with menu headings. When you select a Setup menus heading, a new screen appears. Scroll through the features listed on each screen to shown in this section are make changes to Setup.

  • Page 94: Main Menu

    BIOS Utilities Main Menu Figure 5 - 2 Main Menu System Time & Date (Main Menu) The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings.

  • Page 95: Ide Channel 0 Master (Main Menu)

    BIOS Utilities IDE Channel 0 Master (Main Menu) Pressing Enter opens the sub-menu to show the configuration of an optical Device/ HDD on the computer’s IDE Channel. Use the Auto (Type:) setting to have the items configured automatically for you. SATA Port 1/2 (Main Menu) Pressing Enter opens the sub-menu to show the configuration of a optical Device/ HDD on the computer’s SATA Port 1/2.

  • Page 96: Advanced Menu

    BIOS Utilities Advanced Menu Figure 5 - 3 Advanced Menu Only available if Vista/Win 7 is selected as the O/S. Installed O/S (Advanced Menu) This setting tells the computer what kind of operating system you’re using. Make sure you choose the correct setting for your O/S in order to prevent system problems. Note: If you select the Vista/Win 7 O/S then the SATA Mode Selection menu will become available.

  • Page 97: Sata Mode Selection (Advanced Menu)

    BIOS Utilities SATA Mode Selection (Advanced Menu) This menu is only available if you select the Vista/Win 7 O/S as your operating sys- tem. You can configure SATA (Serial ATA) control to operate in either IDE (native/ compatible) or AHCI (Advanced Host Controller Interface) modes from this menu. The SATA mode should be set to AHCI mode for this system (unless you are sure your hard disk can only operate in IDE mode).

  • Page 98: Security Menu

    BIOS Utilities Security Menu Security Menu changes make here affect the access to the Setup utility itself, and also access to your ma- chine as it boots up af- ter you turn it on. These settings do not affect your machine or network passwords which will be set in...

  • Page 99: Set User Password (Security Menu)

    BIOS Utilities Set User Password (Security Menu) You can set a password for user mode access to the Phoenix SecureCore(tm) Setup Utility. This will not affect access to the computer OS, (only the Setup utility) unless Password Warning you choose to set a Password on Boot (see below). Many menu items in the Phoenix If you set a boot pass- SecureCore(tm) Setup Utility cannot be modified in user mode.

  • Page 100: Boot Menu

    BIOS Utilities Boot Menu Figure 5 - 5 Boot Menu When you turn the computer on it will look for an operating system (e.g. Windows Vista) from the devices listed in this menu, and in this priority order. If it cannot find the operating system on that device, it will try to load it from the next device in the order specified in the Boot priority order.

  • Page 101: Exit Menu

    BIOS Utilities Exit Menu Figure 5 - 6 Exit Menu Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any changes you have made to the Setup. You can also choose to restore the original Set- up defaults that will return the Setup to its original state, and erase any previous changes you have made in a previous session.
  • Page 102 BIOS Utilities 5 - 14...

  • Page 103: Overview

    Upgrading The Computer Chapter 6: Upgrading The Computer Overview This chapter contains information on upgrading the computer. Follow the steps out- Warranty Warning lined to make the desired upgrades. If you have any trouble or problems you can con- tact your service representative for further help. Before you begin you will need: Please check with your service representative...

  • Page 104: When Not To Upgrade

    Upgrading The Computer When Not to Upgrade These procedures involve opening the system’s case, adding and sometimes replac- ing parts. Power Safety Warning You should not perform any of these upgrades if: Before you undertake • Your system is still under warranty or a service contract upgrade proce- •...

  • Page 105: Removing The Battery

    Upgrading The Computer Removing the Battery If you are confident in undertaking upgrade procedures yourself, for safety reasons Warranty Warning it is best to remove the battery. Turn the computer off, and turn it over. Please check with your Slide the latch in the direction of the arrow, and hold it in place.

  • Page 106: Upgrading The Hard Disk Drive

    Upgrading The Computer Upgrading the Hard Disk Drive The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard HDD System disk drives with a height of 9.5mm (h) (see “Storage” on page C - 3). Follow your Warning operating system’s installation instructions, and install all necessary drivers and util- ities (see...
  • Page 107 Upgrading The Computer Turn off the computer, and turn it over and remove the battery. Locate the hard disk bay cover and loosen screws & Remove the hard disk bay cover Figure 6 - 2 Hard Disk Bay Cover Removal Upgrading the Hard Disk Drive 6 - 5...
  • Page 108 Upgrading The Computer Grip the tab and slide the hard disk in the direction of arrow Lift the hard disk out of the bay Remove the screw(s) and the adhesive cover Hard Disk Screws & Reverse the process to install a new hard disk drive (do not forget to replace all the Cover screws and covers) The hard disks and cov-...

  • Page 109: Upgrading The Optical (Cd/Dvd) Device

    Upgrading The Computer Upgrading the Optical (CD/DVD) Device Turn off the computer, and turn it over and remove the battery. Fan Cable & Cover Locate the component bay cover and remove screws Carefully (a fan and cable are attached to the under side of the cover) lift up Make sure you recon- the bay cover.
  • Page 110 Upgrading The Computer Remove the screw at point , and use a screwdriver to carefully push out the optical device at point Reverse the process to install the new device. Figure 6 - 5 Removing the Optical Device 6 - 8 Upgrading the Optical (CD/DVD) Device...

  • Page 111: Upgrading The System Memory (Ram)

    Upgrading The Computer Upgrading the System Memory (RAM) The computer has two memory sockets for 200 pin Small Outline Dual In-line (SO- Fan Cable & Cover DIMM) DDRII (DDR2) type memory modules (see “Memory” on page C - 2 details of supported module types). Make sure you recon- nect the fan cable before screwing down...
  • Page 112 Upgrading The Computer Gently pull the two release latches on the sides of the memory socket in the direction indicated by the arrows ( & Figure 6 - Figure 6 - 7 RAM Module Release Latches The RAM module will pop-up, and you can remove it.
  • Page 113 Upgrading The Computer Pull the latches to release the second module if necessary. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot. The module’s pin alignment will allow it to only fit one way. Make sure the module Cover Pins is seated as far into the slot as it will go.

  • Page 114: Changing The Optional Top Covers

    Upgrading The Computer Changing the Optional Top Covers If your purchase option includes the specially designed LCD back cover option, then Rubber Screw follow the instructions below to change the covers (note these covers are not appli- Covers cable to all models in this series - consult your service center for details). After removing the rub- &...
  • Page 115 Upgrading The Computer Carefully slide the cover forward in the direction of the arrows & illustrated below Figure 6 - 11 Slide the Top Cover Forward Remove the top cover Figure 6 - 12 Remove the Top Cover Changing the Optional Top Covers 6 - 13...
  • Page 116 Upgrading The Computer Align the replacement cover with the dotted line as illustrated below (and as marked on the cover). Figure 6 - 13 Replacing the Top Cover Slide the top cover forward until it clicks firmly into place Run your hands around the sides and front of the cover to make sure it is firmly aligned in place (carefully press down to make sure the fit is secure).

  • Page 117: Overview

    Modules & Options Chapter 7: Modules & Options Overview Wireless Device Operation Aboard This chapter contains information on the following modules, which may come with Aircraft your computer, depending on the configuration purchased. If you are unsure please The use of any portable contact your service representative.

  • Page 118: Bluetooth Module

    Modules & Options Bluetooth Module The operating system’s Bluetooth Devices control panel is used to configure the Wireless Device Bluetooth settings in Windows 7/Vista, and therefore does not require a driver. Use Operation Aboard the Fn + F12 key combination (see “Function/Hot Key Indicators”...

  • Page 119: Bluetooth Configuration In Windows 7

    Modules & Options Bluetooth Configuration in Windows 7 Setup your Bluetooth Device so the Computer Can Find it Turn your Bluetooth device (e.g. PDA, mobile phone etc.) on. Add a Device Make the device discoverable (to do this check your device documentation). Click Start, and click To Turn the Bluetooth Module On Control Panel and then...
  • Page 120 Modules & Options To Add a Bluetooth Device Access the Bluetooth Devices control panel and click Add a device. Double-click the device you want to pair with the computer. Pairing Options If a device has been pre- viously connected then the pairing option menu will appear when you at- tempt subsequent con-...
  • Page 121 Modules & Options Enter the code into your Bluetooth enabled device and follow any on-screen instructions to complete the pairing. Figure 7 - 3 Pairing Codes Pairing Code Example The example outlined here shows a connection to a mobile device. Other devices e.g. computers, may have a slightly different connection proce- dure, and may require you to confirm a pairing code is correct on both devices.
  • Page 122 Modules & Options To Change Settings for the Bluetooth Device Click the taskbar icon and select Show Bluetooth Devices. Right-click on the device you want to change and click Properties to: Bluetooth Help • Change the name of the device (click Bluetooth, type a new name and click OK). •...

  • Page 123: Bluetooth Configuration In Windows Vista

    Modules & Options Bluetooth Configuration in Windows Vista Setup your Bluetooth Device so the Computer Can Find it Turn your Bluetooth device (e.g. PDA, mobile phone etc.) on. Bluetooth Taskbar Make the device discoverable (to do this check your device documentation). Icon If you cannot see the To Turn the Bluetooth Module On...
  • Page 124 Modules & Options To Add a Bluetooth Device Access the Bluetooth Devices control panel. Click Options (tab), and make sure that Allow Bluetooth devices to connect to this computer check box (Connections) has a tick inside it. Click Devices (tab), and then click Add. The Add Bluetooth Device Wizard will appear.
  • Page 125 Modules & Options To Change Settings for the Bluetooth Device Access the Bluetooth Devices control panel. Click on the device you want to change and click Properties to: Bluetooth Help • Change the name of the device (click General, type a new name and click OK). •...

  • Page 126: Pc Camera Module

    Modules & Options PC Camera Module Before installing the PC Camera driver, make sure that the optional PC Camera is Latest PC Camera on. Use the Fn + F10 key combination (see “Function/Hot Key Indicators” on Driver Information page 1 - 10) to toggle power to the PC Camera module.

  • Page 127: Pc Camera Driver Installation

    Modules & Options PC Camera Driver Installation 1. Insert the Device Drivers & Utilities + User’s Manual disc into the CD/ DVD drive. PC Camera Screen 2. Click Option Drivers (button). Refresh 3. Click 1.PC Camera, Web cam > Yes. The PC Camera module 4.
  • Page 128 Modules & Options PC Camera Audio Setup If you wish to capture video & audio with your camera, it is necessary to setup the audio recording options in Windows. Click Start, and click Control Panel (or point to Settings and click Control Panel). Click Sound (Hardware and Sound).
  • Page 129 Modules & Options Figure 7 - 10 Audio Setup for PC Camera Right-click PC Camera Module 7 - 13...
  • Page 130 Modules & Options Camera Application The WebCam application is a video viewer for general purpose video viewing and testing, and for capturing video files to .avi format. Pre-Allocating File Space Run the camera application from the desktop shortcut (it is recommended that you set the capture file before the capture process - see Set Capture File below).
  • Page 131 Modules & Options Reducing Video File Size Note that capturing high resolution video files requires a substantial amount of disk space for each file. After recording video, check the video file size (right-click the file and select Properties) and the remaining free space on your hard disk (go to My Computer, right-click the hard disk, and select Properties).
  • Page 132 Modules & Options Eliminating Screen Flicker If you find that the video screen in the camera program is flickering, you can try to adjust the setting in the Video Capture Filter options. Run the camera application from the desktop shortcut. Go to Options and scroll down to select Video Capture Filter..
  • Page 133 Modules & Options Zoom The WebCam program allows you to zoom the camera in and out. Run the camera application from the desktop shortcut. Go to Zoom and select Zoom Out/Zoom In. Figure 7 - 12 Zoom/Setting Taking Still Pictures The WebCam program allows you to take still pictures.

  • Page 134: Wireless Lan Module

    Modules & Options Wireless LAN Module If you have included a 802.11b/g/n WLAN module in your purchase option, make Wireless Device sure that the Wireless LAN module is on before installing the driver. Operation Aboard Aircraft Use the Fn + F11 key combination (see “Function/Hot Key Indicators”...

  • Page 135: Connecting To A Wireless Network

    Modules & Options Connecting to a Wireless Network Make sure the Wireless LAN module is turned on. Click the taskbar wireless icon , and then double-click an access point to con- Network and nect to or click to Open Network and Sharing Center if you do not see a network Sharing Center you want to connect to in the taskbar menu (a list of options will appear allowing You can also use the Net-...
  • Page 136 Modules & Options You may need to enter a security key for any access point to which you are trying to connect. Click to select a network location (e.g. Home, Work or Public). Click “View or change settings in Network and Sharing Center” to access further options for the connection.
  • Page 137 Modules & Options Click the taskbar icon to see any currently connected networks. To disconnect from the wireless network you can click the taskbar wireless icon , click the active connection and then click Disconnect (button). Security Enabled Networks You should try to make sure that any network you are connecting to is a se- cure network.

  • Page 138: Connecting To A Wireless Network In Windows Vista

    Modules & Options Connecting to a Wireless Network in Windows Vista Make sure the Wireless LAN module is turned on. Click the taskbar wireless icon , and then click Connect to a network (or right- click the icon , and then click Connect to a network). Figure 7 - 16 Taskbar Menus Click icon...
  • Page 139 Modules & Options Click a network, and then click Connect. If you do not see a network you want to connect to, click Set up a connection or network (a list of options will appear allowing manual searching, and creating a new network).
  • Page 140 Modules & Options To disconnect from the wireless network you can click the taskbar wireless icon and then select Connect or disconnect to access the network menu, and click Disconnect (or right-click the icon , and then click Disconnect from). Security Enabled Networks You should try to make...

  • Page 141: Windows Mobility Center

    Modules & Options Windows Mobility Center The Windows Mobility Center control panel provides an easy point of access for information on battery status, power plans used and wireless device status etc. To access the Windows Mobility Center: Click Start, and click Control Panel (or point to Settings and click Control Panel).

  • Page 142: G/Hspa Module

    Modules & Options 3.75G/HSPA Module If you have included an optional 3.75G/HSPA (High Speed Packet Access) module 3.75G/HSPA Module (see “Communication” on page C - 3 for specification details) in your purchase op- Options tion, you will have the appropriate application (3G Watcher or Mobile Partner) provided for your particular module.
  • Page 143 Modules & Options Turn off the computer, and turn it over and remove the battery (see page Locate the 3.75G USIM card cover and loosen screw , and then remove the Figure 7 - 22 USIM card cover USIM Card Cover Removal Power Safety Warning...
  • Page 144 Modules & Options Lock the SIMLOCK by pushing it in the direction of the arrow in Figure 7 - 24 until it clicks into the lock position. Figure 7 - 24 SIMLOCK Lock 3.75G/HSPA Modules & System Wake Up Note that the 3.75G modules DO NOT sup- port system wake up on 3.75G/HSPA...
  • Page 145 Modules & Options Before installing the application, make sure that the 3.75G/HSPA module is ON (installing the driver with the module off will not allow the software to detect the module hardware correctly). Use the Fn + key combination (see Table 1 - 4, on page 1 - 10) to toggle power to the 3.75G/HSPA module.

  • Page 146: Hspa Modem Interface

    Modules & Options HSPA Modem Interface With the 3.75G/HSPA module and USIM card (supplied by your service provider) installed you may then install the HSPA Modem Interface. The HSPA Modem In- Wireless Device terface allows you to directly access your HSPA internet service from the computer. Operation Aboard Aircraft HSPA Modem Interface Installation...

  • Page 147: Hspa Modem Interface

    Modules & Options HSPA Modem Interface The connection information is stored on the USIM card supplied by the service pro- vider. HSPA Modem Help Power on the 3.75G/HSPA module using the Fn + key combination. To get help on 3.75G/ Access the HSPA Modem Interface from the Start menu (Start >...
  • Page 148 Modules & Options Click Connect to connect to your service provider. Figure 7 - 26 Connecting to Network The message “Network is connected” will be displayed when the network connection is successful. Figure 7 - 27 Network is Connected You can then access the internet, download e-mail etc. as per any internet connection.

  • Page 149: Adding A Profile

    Modules & Options While you are connected the upper right corner of the HSPA Modem interface will display the upload and download rates, and the taskbar icon will display the connection information. Figure 7 - 28 Uploading/ Win Vista Win 7 Downloading Rates and Speed 10.
  • Page 150 Modules & Options Click Add (button) and input any Network Settings required by your service provider. Click OK to save the profile. Figure 7 - 30 Network Settings & Profiles You can Edit or Delete profiles from the Profiles tab. To use a profile click to select it, and then click Apply (button) and the settings will be transferred to Connection Manager.

  • Page 151: Contacts

    Modules & Options Contacts Access the HSPA Modem Interface from the Start menu (Start > Programs/All Programs > HSPA Modem > HSPA Modem), or by clicking the desktop icon. Click Contacts (button). Figure 7 - 31 Network Settings & Profiles Click Refresh (button) to download the contacts from the USIM card to the computer.

  • Page 152: Messages

    Modules & Options Messages Access the HSPA Modem Interface from the Start menu (Start > Programs/All Programs > HSPA Modem > HSPA Modem), or by clicking the desktop icon. SMS Service Click Messages (button). In addition to standard in- ternet services you may also send and receive SMS text messages us- ing the HSPA Modem In-...

  • Page 153: Settings

    Modules & Options Click to select a contact from the list and then click Add (button) and the phone number will automatically be added to the recipient field. Type the message information into the message body and click Send (button) to send it, or Save to draft (button) to save the message.
  • Page 154 Modules & Options Click OK alongside any of the options to configure the settings. The Network can be configured for an Automatic (usually from the USIM card) or Manual connection. The Network Mode can be configured for any appropriate mode required. Figure 7 - 34 Settings - Network/ Network Mode...

  • Page 155: Mobile Partner

    Modules & Options Mobile Partner With the 3.75G/HSPA module and USIM card (supplied by your service provider) installed you may then install the Mobile Partner application. The Mobile Partner Wireless Device application allows you to directly access your HSPA internet service from the com- Operation Aboard puter.

  • Page 156: Mobile Partner Application

    Modules & Options Mobile Partner Application You will need to contact your service provider to obtain the exact details of how ex- actly to configure the settings on this page. Mobile Partner Help Profile Management To get help on Mobile Partner configuration Power on the 3.75G/HSPA module using the Fn +...
  • Page 157 Modules & Options Connecting to the Service Provider Power on the 3.75G/HSPA module using the Fn + key combination. Access the Mobile Partner application from the Start menu (Start > Programs/ All Programs > Mobile Partner), or by double-clicking the Mobile Partner icon on the desktop The software will run and you can select the Profile Name from the menu.
  • Page 158 Modules & Options When the connection is successful you can move the cursor over the network icon in the taskbar to display the connection information. Win Vista Win 7 Figure 7 - 38 Connected Taskbar Notification You can then access the internet, download e-mail etc. as per any internet connection.
  • Page 159 Modules & Options To disconnect click the Disconnect icon, or right click the taskbar icon and select Disconnect. Win Vista Figure 7 - 39 Disconnect Win 7 10. The program will disconnect from the service provider. 11. The module will still be on, and you will need to press the Fn + key combination to turn it off.
  • Page 160 Modules & Options 12. If you click the Mobile Partner close icon a message will be displayed asking you to click OK to confirm the program exit and to terminate the connection. Figure 7 - 40 Exit Prompt 13. Exiting the program terminates the connection, but DOES NOT turn off the 3.75G/ HSPA module, and you will need to press the Fn + key combination to turn off the module (pay careful attention to this aboard aircraft - see...

  • Page 161: Text Messaging Service

    Modules & Options Text Messaging Service In addition to standard internet services you may also send and receive SMS text messages using the Mobile Partner program, if your service supports SMS. Reading SMS Messages An icon will blink at the bottom of the Mobile Partner interface to notify you of any new messages received.
  • Page 162 Modules & Options 7 - 46...

  • Page 163: Overview

    Troubleshooting Chapter 8: Troubleshooting Overview Should you have any problems with your computer, before consulting your service representative, you may want to try to solve the problem yourself. This chapter lists some common problems and their possible solutions. This can’t anticipate every problem, but you should check here before you panic. If you don’t find the answer in these pages, make sure you have followed the instructions carefully and observed the safety precautions in the preface.

  • Page 164: Basic Hints And Tips

    Troubleshooting Basic Hints and Tips Many of the following may seem obvious but they are often the solution to a problem when your computer ap- pears not to be working. • Power - Is the computer actually plugged into a working electrical outlet? If plugged into a power strip, make sure it is actually working.

  • Page 165: Backup And General Maintenance

    Troubleshooting Backup and General Maintenance • Always backup your important data, and keep copies of your OS and programs safe, but close to hand. Don’t forget to note the serial numbers if you are storing them out of their original cases, e.g. in a CD wal- let.

  • Page 166: Viruses

    Troubleshooting Viruses • Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm your computer and cause you to lose data. Anti-Virus programs are commercially available and the defini- tions file updates are usually downloadable directly from the internet.

  • Page 167: Upgrading And Adding New Hardware/Software

    Troubleshooting Upgrading and Adding New Hardware/Software • Do not be tempted to make changes to your Windows Registry unless you are very sure of what you are doing, otherwise you will risk severely damaging your system. • Don’t open your computer or undertake any repair or upgrade work if you are not comfortable with what you are doing.
  • Page 168 Troubleshooting • Thoroughly check any recent changes you made to your system as these changes may affect one or more system components, or software programs. If possible, go back and undo the change you just made and see if the problem still occurs. •...

  • Page 169: Problems And Possible Solutions

    Troubleshooting Problems and Possible Solutions Problem Possible Cause - Solution You turned on the power but it doesn’t Battery missing / incorrectly installed. Check the battery bay, make sure the work. battery is present and seated properly (the design of the battery only allows it to go in one way).

  • Page 170: Troubleshooting

    Troubleshooting Problem Possible Cause - Solution The computer feels too hot. Make sure the computer is properly ventilated and the Vent/Fan intakes are not blocked. If this doesn’t cool it down, put the system into Hibernate mode or turn it off for an hour. Make sure the computer isn’t sitting on a thermal surface (see “Overheating”...
  • Page 171 Troubleshooting Problem Possible Cause - Solution You forget the boot password. If you forget the password, you may have to discharge the battery of the CMOS. Contact your service representative for help. Password Warning If you choose to set a boot password, NEVER forget your password. The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.
  • Page 172 Troubleshooting Problem Possible Cause - Solution Other Keyboards If your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. The system will detect and enable it automatically. However special functions/hot keys unique to the system’s regular keyboard may not work.
  • Page 173 Troubleshooting Problem Possible Cause - Solution The PC Camera module cannot be The module is off. Press the Fn + F10 key combination in order to enable the detected. module (see “Function/Hot Key Indicators” on page 1 - 10). Run the BisonCap program to view the camera picture.
  • Page 174 Troubleshooting Problem Possible Cause - Solution The PC Camera picture “freezes”. The camera picture may rarely “freeze” in some driver and camera versions under certain conditions. A beta driver version is provided on the Device Drivers & Utilities + User’s Manual disc, and you can install this driver to solve this problem.

  • Page 175: Bluetooth Connection Problems

    Troubleshooting Bluetooth Connection Problems If you are experiencing problems connecting to some Bluetooth devices (in particular certain mobile phones and headsets) it maybe necessary to download and install the Windows Mobile Device Center software (for Win- dows Vista and Windows 7). Go to the Microsoft website and search for the Microsoft Windows Device Center Driver for Windows Vista (64-bit or 32-bit) and Windows 7 (64-bit or 32-bit), and then download the driver.
  • Page 176 Troubleshooting Right-click Bluetooth Peripheral Device and click on Update Driver Software. Click Browse my computer for driver software. Click Let Me pick from a list of device drivers on my computer. Figure 8 - 2 - Browse my computer.../Let me pick from... Select Bluetooth Radios from the list.
  • Page 177 Troubleshooting 10. A list of drivers will appear with Manufacturer on one side and Model in the other. 11. Choose Microsoft Corporation (make sure you choose the full name Microsoft Corporation and do not choose Microsoft - Note that you must have installed the Microsoft Windows Device Center Driver for Microsoft Corporation to appear in the list).
  • Page 178 Troubleshooting 15. The Device Manager should now display the Windows Mobile-based device support under Bluetooth Radios. 16. You will need to repeat the process for any other Bluetooth Peripheral Devices listed under Other Devices. Figure 8 - 5 - Device Manager - Bluetooth Radio 8 - 16 Bluetooth Connection Problems...
  • Page 179 Interface (Ports & Jacks) Appendix A: Interface (Ports & Jacks) Overview The following chapter will give a quick description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc. Interface (Ports & Jacks) A - 1...
  • Page 180 Interface (Ports & Jacks) Notebook Ports and Jacks Item Description Card Reader Port The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device. DC-In Jack Plug the supplied AC/DC adapter into this jack to power your computer.
  • Page 181 Interface (Ports & Jacks) Item Description RJ-45 LAN Jack This port supports LAN (Network) functions. Note: Broadband (e.g. ADSL) modems usually connect to the LAN port. Security Lock Slot To prevent possible theft, a Kensington-type lock can be attached to this slot. Locks can be purchased at any computer store.
  • Page 182 Interface (Ports & Jacks) A - 4...

  • Page 183: Sis Video Driver Installation

    SIS Video Driver Controls Appendix B: SIS Video Driver Controls The basic settings for configuring the LCD are outlined in “Video Features - Win 7” on page 1 - 16 “Video Features - Win Vista” on page 1 - SIS Video Driver Installation Function Key Combination Make sure you install the drivers in the order indicated in...

  • Page 184: Video Driver Controls By Operating System

    SIS Video Driver Controls Video Driver Controls by Operating System Which video driver controls you use for your system depends upon the operating Video Options system you have installed: Note that card types, specifications and driv- • See pages B - 3 B - 7 for Windows 7 information.

  • Page 185: Sis Vga Control Center (Win 7)

    SIS Video Driver Controls SIS VGA Control Center (Win 7) The SIS VGA Control Center allows you to configure some video options. Aero Themes and Click Start, and click Control Panel. Auto-Hide Taskbar Click SiS VGA Control Center (in Appearances and Personalization). Do not use an Aero RIght-click the SIS Tray taskbar icon , and select Control Center.
  • Page 186 SIS Video Driver Controls You may make changes to the Desktop Gamma Correction and Video Setting from the SiS VGA Control Center (you may also obtain Product and File Informa- tion). Switching Displays in SiS Video for Windows 7 Use the combination, Fn + F7 combination Screen...

  • Page 187: Attaching Other Displays

    SIS Video Driver Controls Attaching Other Displays Configuring an External Display in Windows 7 Function Key Attach your external display to the external monitor port and turn it on. Combination Go to the Screen resolution control panel. Click the Detect button. You can use the Fn + The computer will then detect any attached displays.
  • Page 188 SIS Video Driver Controls You can configure the displays from the Multiple Displays menu. Figure B - 4 Screen Resolution Multiple Display Options (Win 7) • Duplicate these displays - Shows an exact copy of the main display desktop on the other display(s) •...
  • Page 189 SIS Video Driver Controls Using the Windows Logo Key + P Key Combination to Switch Displays You can also use the + P key combination to quickly change display configura- tion and modes (this is particularly useful when attaching a projector) in Windows 7. Attach your external display to the external monitor port and turn it on.

  • Page 190: Sis Vga Control Center (Win Vista)

    SIS Video Driver Controls SIS VGA Control Center (Win Vista) More advanced video configuration options are provided by the SIS VGA Control Center. Click Start, and click Control Panel (or point to Settings and click Control Panel). Click SiS VGA Control Center (in Appearances and Personalization). RIght-click the SIS Tray taskbar icon , and select Control Center.
  • Page 191 SIS Video Driver Controls You may make changes to the video and display settings by clicking the appropriate menu button. Figure B - 7 SIS VGA Control Center Control Panels (Win Vista) SIS VGA Control Center (Win Vista) B - 9...
  • Page 192 SIS Video Driver Controls Display Devices & Options Besides the built-in LCD, you can also use an external VGA monitor (CRT) or ex- ternal Flat Panel Display as your display device. A VGA monitor/Flat Panel Dis- play connects to the external monitor port. The following display modes are available.

  • Page 193: Attaching Other Displays

    SIS Video Driver Controls Attaching Other Displays Besides the built-in LCD, you can also use an external monitor (CRT)/flat panel dis- play as your display device. Connect it to the external monitor port on the left of the computer, and configure the displays from SiS VGA Control Center : Attach your external display to the external monitor port and turn it on.

  • Page 194: To Enable A Display Setting Mode

    SIS Video Driver Controls To Enable a Display Setting Mode Attach your external display to the external monitor port and turn it on. Go to the SiS VGA Control Center > Display Setting menu Click the appropriate icon for the display setting mode you wish to use. Click Yes within 15 seconds in order to save the setting change.
  • Page 195 SIS Video Driver Controls Using Display Settings to Enable Extended Mode Attach your external display to the external monitor port, and turn it on. Open the Display Settings control panel (see “Display Settings & SiS Control Display Settings Center - Win Vista” on page 1 - 19).
  • Page 196 SIS Video Driver Controls B - 14...
  • Page 197 Specifications Appendix C: Specifications Latest Specification Information The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/ speeds and CD/DVD device types) may be changed, updated or delayed due to the manufacturer's release schedule. Check with your service center for details.

  • Page 198: Processor

    Specifications Processor Processor (cont’d) Memory Intel® Core™2 Duo Processor: Intel® Pentium® Processor: 64-bit Wide DDRII (DDR2) Data Channel P8800 (2.66GHz)/ P8700 (2.53GHz)/ T4400 (2.20GHz)/ T4300 (2.10GHz)/ Two 200 Pin SO-DIMM sockets P8600 (2.4GHz) T4200 (2.0GHz) supporting DDR2 667/800 MHz 45nm (45 Nanometer) Process 45nm (45 Nanometer) Process Memory Expandable up to 4GB (using Technology, 3MB L2 Cache &...

  • Page 199: Storage

    Specifications Storage Interface Communication Three USB 2.0 Ports Built-In 10Mb/100Mb Base-T Ethernet LAN One Changeable 12.7mm(h) Optical Device (CD/DVD) Type Drive (see “Optional” on One External Monitor Port 56K MDC Modem - V.90 & V.92 Compliant page C - One Headphone-Out Jack One Changeable 2.5"...

  • Page 200: Power

    Specifications Power Dimensions & Weight Full Range AC/DC Adapter 340mm (w) * 238mm (d) * 13.9 - 31.8mm (h) AC input 100 - 240V, 50 - 60Hz, 2.2 kg with 6 Cell Battery & ODD DC Output 19V, 3.42A or 18.5V, 3.5A (65 Optional Watts) Removable 6 Cell Smart Lithium Ion Battery...

Table of Contents
