WARNING:
The Model 8635 Room Pressure Monitor must be wired to 24 VAC only. Wiring the unit to
110 VAC will cause serious damage to the unit and void the warranty.
The pressure sensor must be mounted through the wall between the controlled space
(laboratory) and referenced space (hallway).
These installation instructions guide the installer through the installation of the TSI Model 8635 SureFlow™
Room Pressure Monitor. Please read these instructions thoroughly before beginning installation.
This product is classified by Underwriters Laboratories, Inc.
firestop systems. See UL fire resistance directory.

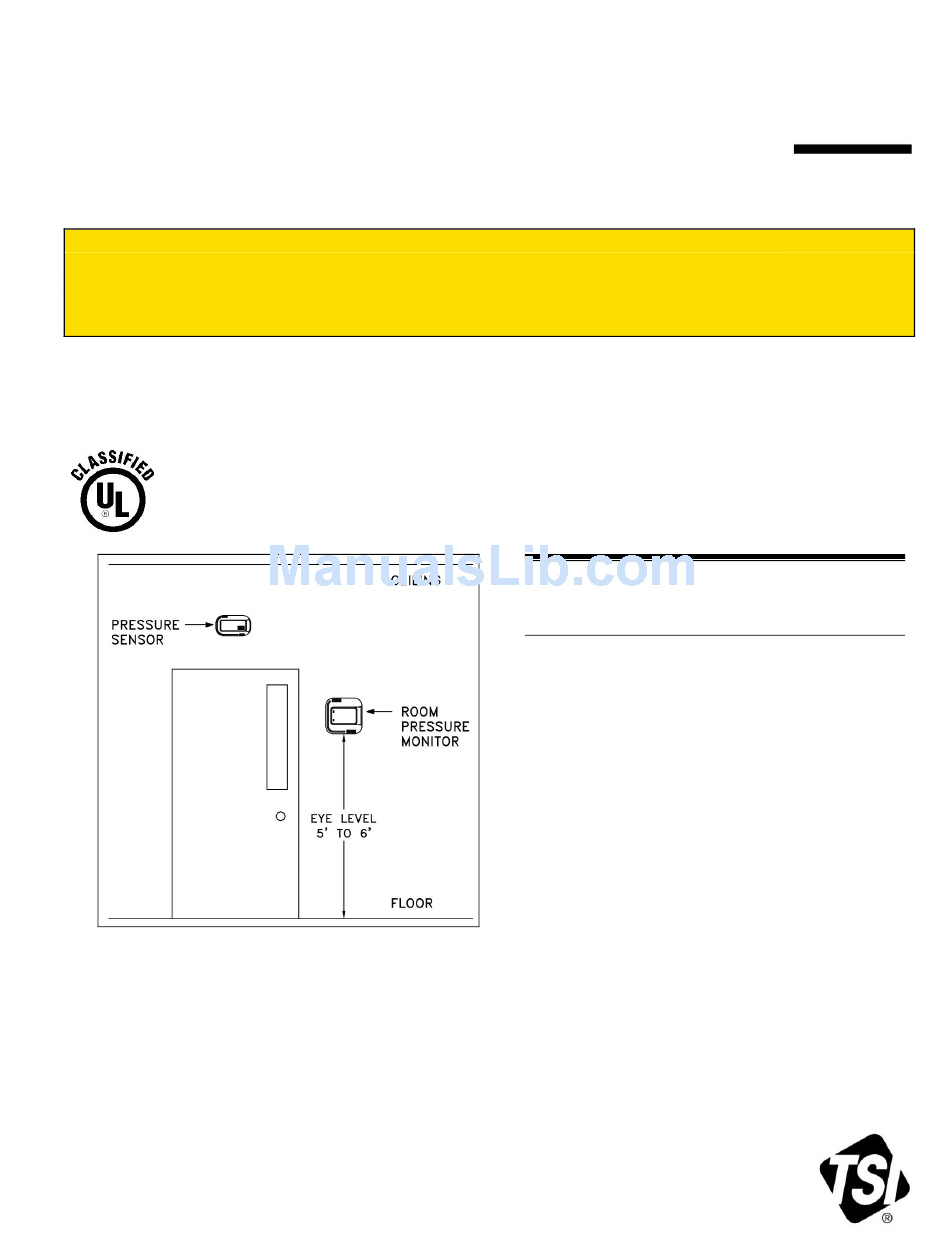

Figure 1: Typical Installation
_____________________
TSI and TSI logo are registered trademarks of TSI Incorporated.
SureFlow is a trademark of TSI Incorporated.
MODEL 8635 SUREFLOW
ROOM PRESSURE MONITOR
INSTALLATION INSTRUCTIONS
for use in through-penetration
®
Component List
Part Number
Qty
800326
1
800248
1
800222
1
800420
1
800414
1
1901057
2
2923020
1
Description
Pressure sensor
Sensor cable
Room pressure monitor
Transformer
Transformer cable
Intumescent ring
Fire sealant
