Summary of Contents for Cozzia MC520

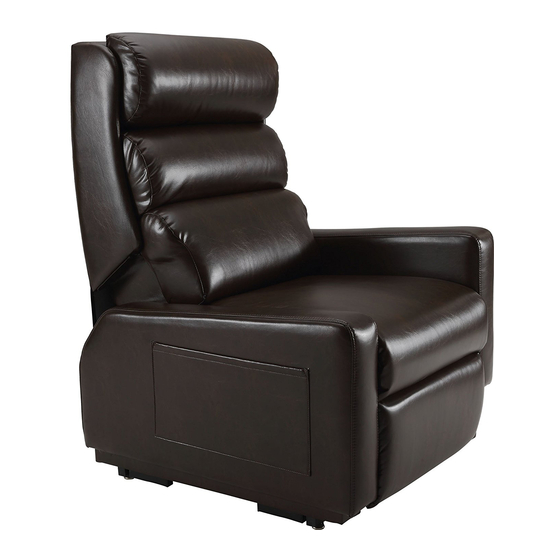

- Page 1 MC520 INSTALLATION MANUAL MC520...
- Page 2 Congratulations on purchasing your new COZZIA MC520. At COZZIA we understand every body is different and have carefully designed on our mobility chair with that in mind. But enough about us, this is about you. Learning how to use your new chair is simple (we designed it that way).
-
Page 3: Table Of Contents
TABLE OF CONTENTS Dimensions Contents INTRO Move&Clearance Components Massage Points CHAIR Specification Assembly Features 10-11 OPERATION Operation 12-13 Safety Troubleshooting Care and Storage CARE Warranty 16-17... -
Page 4: Dimensions
DIMENSIONS First, let’s get your chair inside. 44.0” 30.0” 35.9” Make sure your door is wider than 36” for chair to passthrough without dismantel 33.7” 54.3” 30.3” Door width has to be wider than 36” Box Dimension... -
Page 5: Intro Contents
CONTENTS Everything you need for a relaxing experience. Installation Manual Warranty Postcard Power Cord Wand Remote MC520 MOBILITY CHAIR... -
Page 6: Move&Clearance
HANDLING INSTRUCTIONS Hold from the bottom of the chair CLEARANCE 32” 8” 8” 24” Reserve space on left and right Reserve space on the front and back... -
Page 7: Components
CHAIR COMPONENTS Some of your chair’s most important features. Headrest Backrest Wand Remote Armrest Seat Rest Side Pockets Footrest Castors... -
Page 8: Chair Massage Points
MASSAGE POINTS 1 Air Bag for Lumber Support 3 Air Bags for Massage 1 Heater Lumbar Support Air Bag Massage Heater... -
Page 9: Specification
CHAIR SPECIFICATIONS A few important facts about your mobility chair. MC520 Model No. Max. Time Rate Dimensions (L x W x H) Chair Dimension: 35.9 x30.0 x44.0 MC520 15 minutes ” ” ” Reclined Dimension: 73.3 x30.0 x22.9 ” ”... -
Page 10: Assembly
ASSEMBLY Connect the power source. 1. Connect the power adapter to the chair 2. Insert the power plug into an outlet Battery Installation Your mobility seating is equipped with a battery backup system that will activate during a power failure. The backup system is powered by four 9V batteries (not included). -
Page 11: Features
FEATURES Air massage in back & heated lumbar Adjustable height Adjustable side of headrest wings on headrest Memory foam Motorised adjustable arms positioning up and down Fully Adjustable Armrest Fully adjustable arms on both sides allow ease of entry and exit from sides of chair. Helps reduce muscular strain or shoulder tears when getting in and out of chair. - Page 12 Electric Lift Function Electric lift function will help you in and out of the chair. Air Massage Two modes of air massage & heated lumbar to help blood circulation and muscle relaxation. Lumbar Support Lumbar support is adjustable to help the natural curvature of the spine and reduce pressure. Adjustable Head Rest Headrest height and wings of headrest are both adjustable.
-
Page 13: Operation
OPERATION Press to enter zero gravity Power On/Off position Press and hold to enter TV Press and hold to return to position seated position Press and hold to enter Lift-Up position Press once to raise LEFT arm up, press again to lower LFET arm Press and hold for footrest recline down until the desired angle... - Page 14 NOTICE: • The footrest will be reset to recline and then the chair to be reset to HOME position when plugged in. • Automatic function buttons can ONLY be used when POWER button is ON. • If any button keeps blocking, left arm button will keep blinking.
-
Page 15: Safety
SAFETY PRECAUTIONS We’re looking out for you. IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL FIRST BEFORE INSTALLING OR OPERATING YOUR POWER LIFT AND RECLINER CHAIR. Your mobility seating has been engineered to provide the ultimate in strength and reliability. Great care has been taken to provide you with total comfort and safety. Each unit is thoroughly inspected and tested prior to shipment. -
Page 16: Troubleshooting
• Wipe off dust and dirty from the mobility chair with a dry, soft, clean cloth after use. possible accidents. Disconnect the power plug from the outlet and consult Cozzia. Do not attempt to repair • Keep the mobility chair clean and away from places of high humidity. -
Page 17: Warranty
The COZZIA MC-520 has the following warranty: COZZIA provides a one year full coverage, labor and parts (limited warranty on fabrics), two years on all electronics and wood structure, and 5 years on steel frame warranty. COZZIA customer service will not issue Many COZZIA product repairs may be performed by the consumer in their own home with parts and Return Material Authorizations (RMAs) for products. - Page 18 • Warranties are non-transferable and shall be in lieu of any other warranty, express or implied, including but not limited to any implied warranty or merchantability or fitness for particular use. • COZZIA's sole liability and the purchaser's exclusive remedy shall be for the repair, or at COZZIA's option, for the replacement of the defective part.
- Page 19 861 S OAK PARK ROAD, COVINA, CA 91724 TEL: 1-877-977-0656 FAX: 1-800-521-4712 SERVICE@COZZIAUSA.COM WWW.COZZIAUSA.COM...
